AW1545/AVD | AW1665 | AW1664 | AW1663 | |||||||
Double Skin Base | * | * | ||||||||

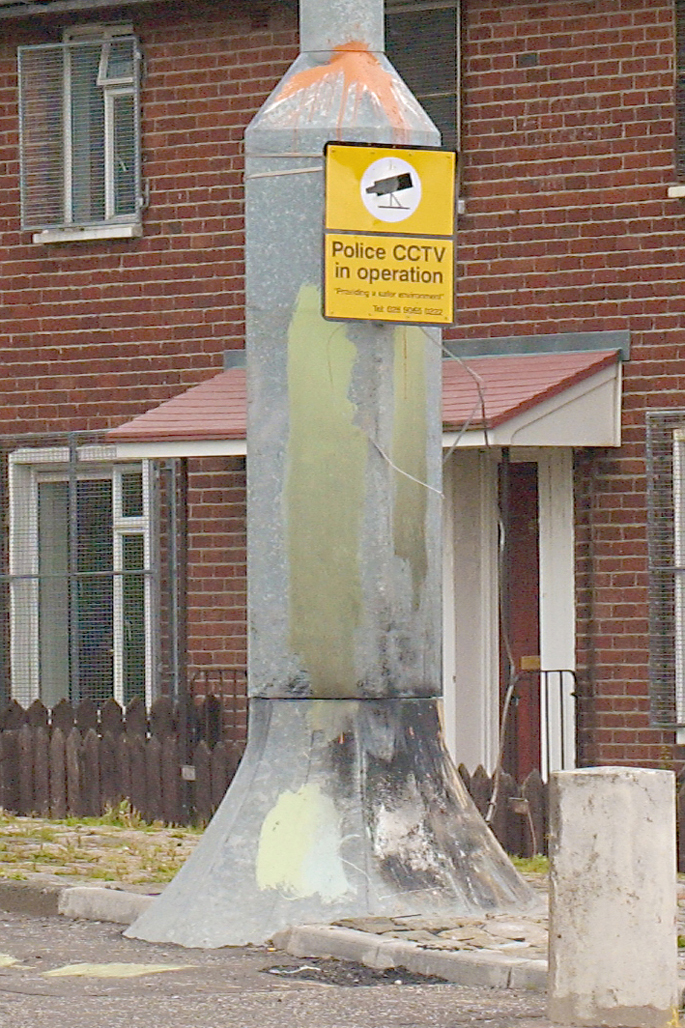

Anti-Ram Base | * | |||||||||
Double Skin Pole Section | * | * | ||||||||
Dead Bolt Door Locking Mechanism | * | * | * | * | ||||||
Heavy Wall Cabinet | * | * | * | * | ||||||
Strengthened Base Plate and Increased
Holding Down Capacity
|
* | * | * | |||||||
High Security Door Locks | * | * | * | * | ||||||
Double Door Access | * | * | ||||||||
Holding Down Bolts Below Ground Level | * | * | * | * | ||||||
Stainless Steel Hinges on Outer Door | * | * | * | |||||||
No Locks on Outer Door | * | * | * | * |
- AW1545/AVD not shown below, is based on the AW1545/UP Cabinet Based pole range
Applicable standards
Design
- Design analysis carried out using a specialist software package in accordance with ILE TR7, BS6399 and BS8100
Material and Finishing
- Structural steel hollow sections EN10219 - EN10025:2004
- Steel flat angles and structural sections EN10025, EN10111, EN 10130
- Foundation bolts Grade 4.6 spun galvanised BS4190, BS3692, DIN931, 934, 601
- Fixings: stainless steel Grade A2, galvanised Grade 4.6 Grade 8.8 BS4190, BS3692, DIN 931, 934, 601
- Hot dipped galvanising after fabrication to ISO 1461
- Painting in BS and RAL colours in accordance with BS4800
Manufacturing Processes
- Welding Procedures conform with BS EN 1011:2009, BS EN 9606-1
Options
Fire rating upgrade on AW1664 and AW1663 poles
|
/FR |
Double doors | /DD |
600mm square cabinet base on AW1664 and AW1663 poles | /600 |
500mm square cabinet base on AW1665 and AW1545/AVD poles | /500 |

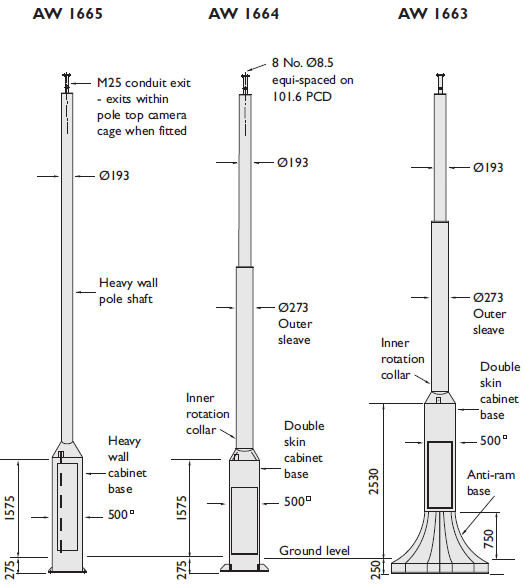

Part Numbering
Standard part numbers are shown below. For the addition of fire rating option and double doors, with an enlaged cabinet base, add the suffixes, for for an 8m AW1664 option with these options the part number is AW1664/8/600/DD/FR
Double Skin Anti-Ram poles
500mm square cabinet base as standard (400mm square inner cabinet)

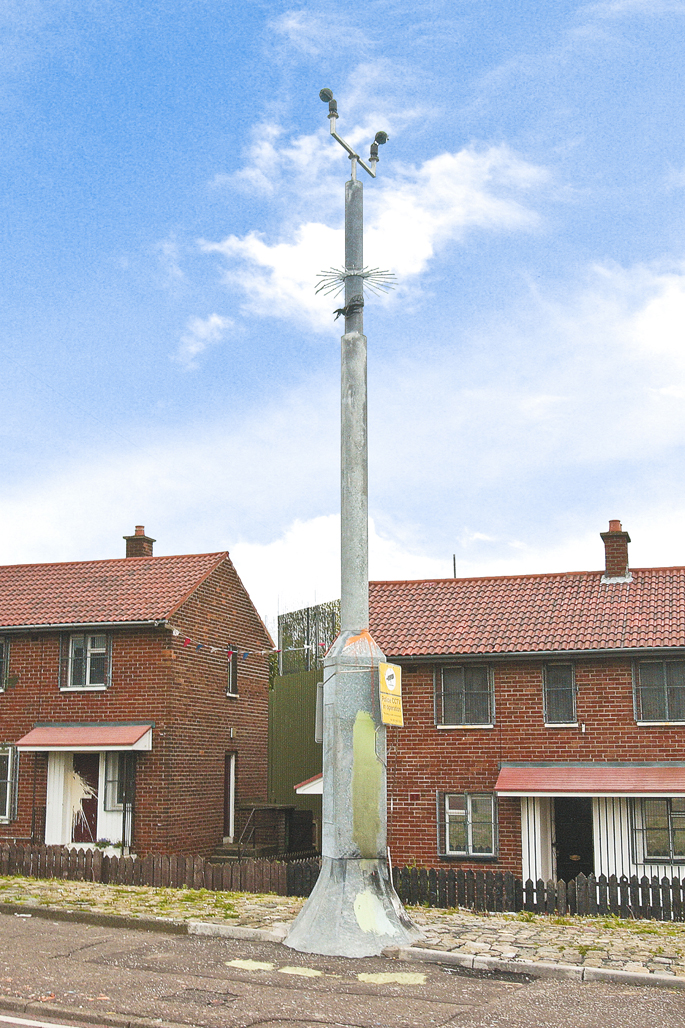

AW1663/6
AW1663/7
AW1663/8
AW1663/9
AW1663/10
AW1663/11
AW1663/12
Double Skin poles with Reinforced Base Plate
500mm square cabinet base as standard (400mm square inner cabinet)

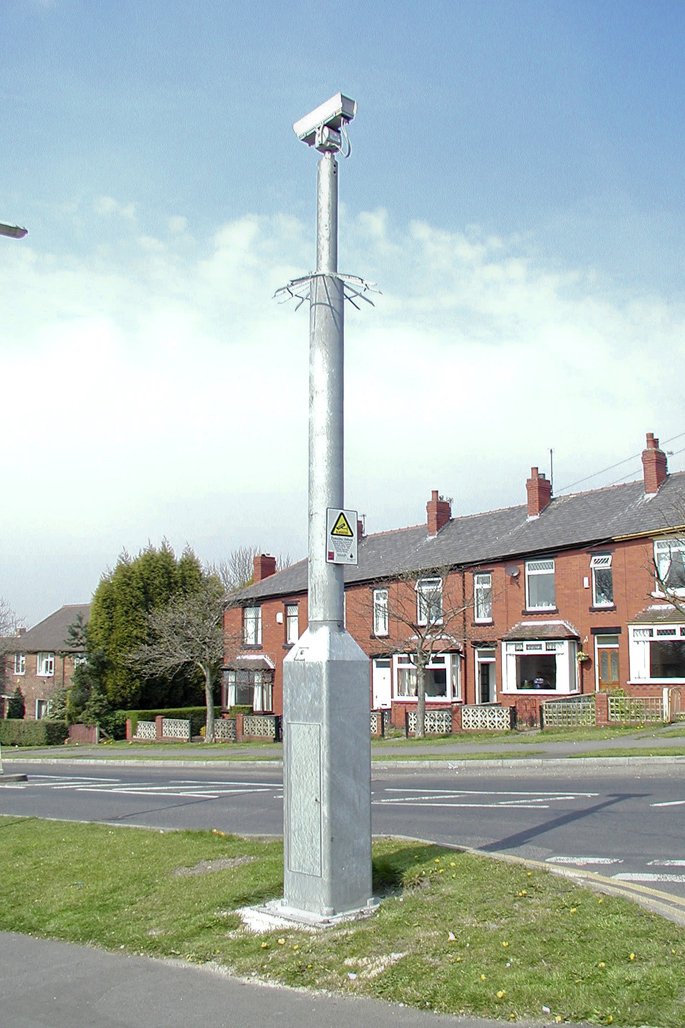

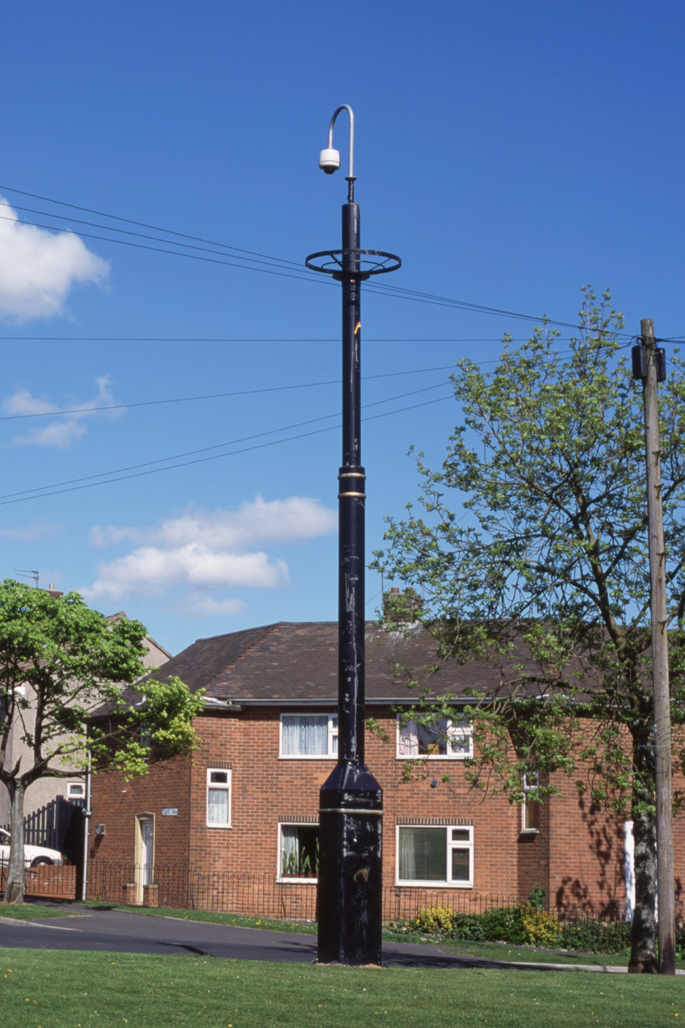

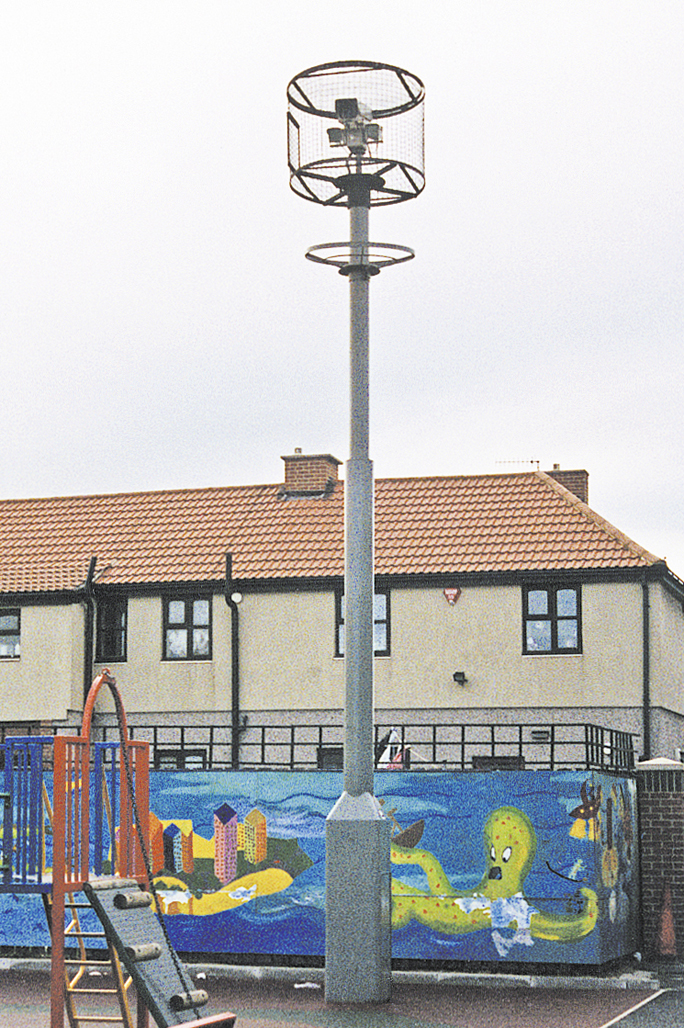

AW1664/4
AW1664/5
AW1664/6
AW1664/7
AW1664/8
AW1664/9
AW1664/10
AW1664/11
AW1664/12
Single Skin Heavy Wall Thickness poles
400mm square cabinet base as standard
AW1665/4
AW1665/5
AW1665/6
AW1665/7
AW1665/8
AW1665/9
AW1665/10
AW1665/11
AW1665/12
Coming Soon
