AW1699H

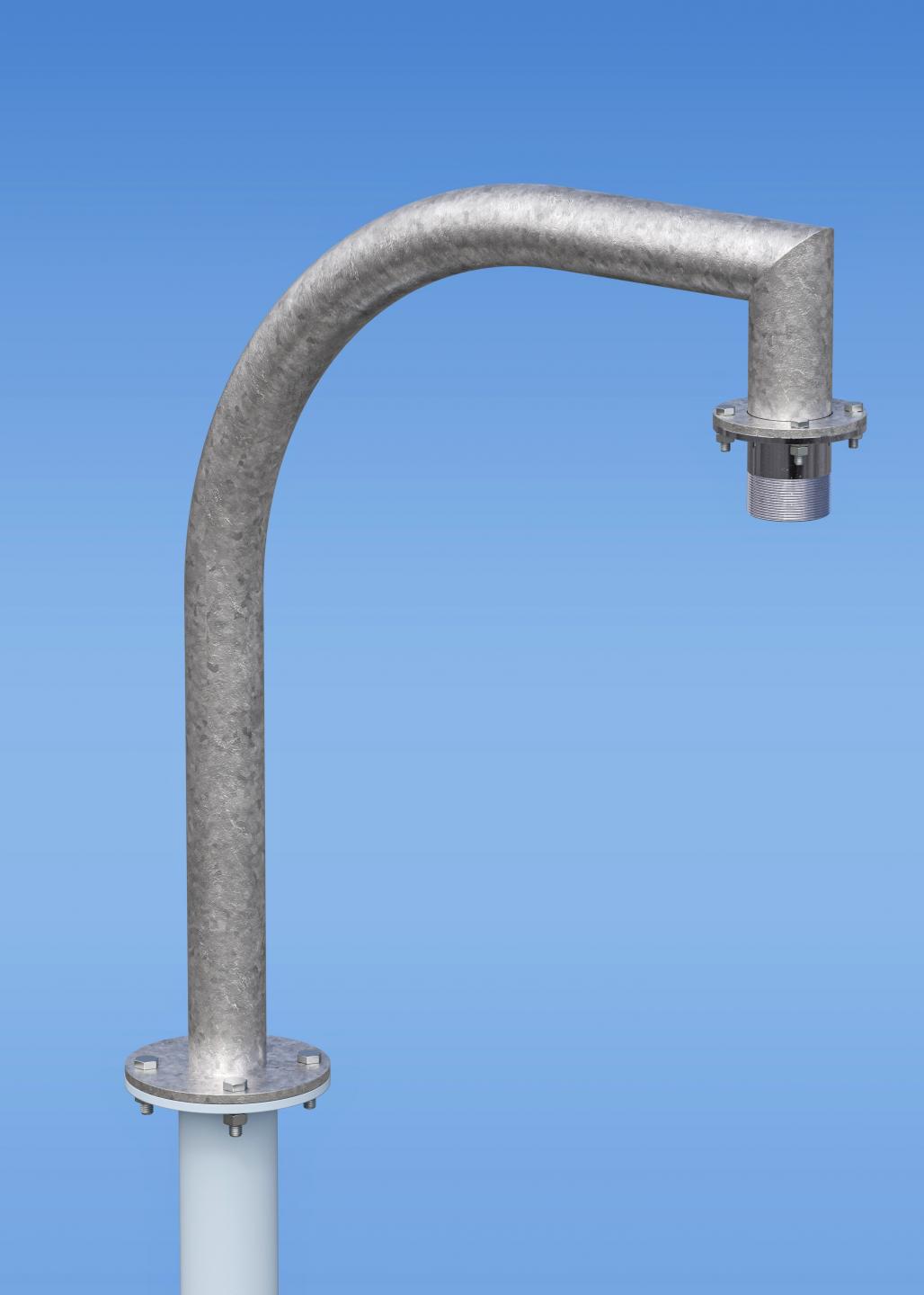

Single Pole Top Half Swan Neck CCTV Dome Camera Mounting Bracket
Stock item - Dependent on UDA stock, see 'Options' tab for sizes / types held

AW1699H

Altron Pole Top Half Swan Neck Brackets are versatile, supplied with bolt-on UDA's (Universal Dome Adaptors) to suit any dome make / model - Most common sizes are held in stock but can also be produced to suit any dome fitting type, or where something non-standard is required.

Please specify dome make & model number when ordering, or dome fitting size / type.

Features

  • Swan neck fits to the top of any Altron CCTV camera mounting product - fixes with 101.6 PCD plate
  • Provides an aesthetic installation for dome cameras, with cabling for dome concealed through swan neck
  • Supplied with UDA to suit dome make / model employed - Most common sizes held in stock
  • UDA benefits from being easily removed / replaced if dome is upgraded, without need for replacing entire bracket
  • UDA's can also be supplied with flat mounting plates, commonly for small, static / vandal domes, with or without junction boxes
  • Can be produced to suit any dome fitting type, or where something non-standard is required - non-stock UDA's made to order
  • Also available for triple (AW1699/3H) and quadruple (AW1699/4H) dome mounting options
  • Hot dipped galvanised finish
  • Bracket weight - 4.5kgs

Download Datasheet

AW1699H



Please specify dome make & model number when ordering, or dome fitting size / type - See 'Options' tab for sizes / types held

Construction and finish

  • Bracket - Produced in high tensile steel
  • Hot dip galvanised for longevity
  • Universal Dome Adaptor - Produced in Grade 304 Stainless Steel
  • Gasket Seal - 1mm Neoprene Rubber
  • Fixings - Stainless Steel Grade A2
  • Polyester powder coated finish to BS4800 - Option on request

Stock UDA's

Please specify dome make & model number when ordering, or dome fitting size / type - Common sizes held below :-

  • 1 ½” NPT Female - Pelco, Hikvision, Avigilon, Dahua, Hanwha etc.
  • 1 ½” NPT Male - Bosch, Axis, Panasonic etc.
  • ¾” NPT Male - Illustra etc.
  • M35x1.5P Female - Bosch etc.
  • Ø47.5mm ID (Internal Diameter) - Hikvision etc.
  • 1” BSPP Female - Hikvision Pendant Cap etc.

Options

  • Twin version - see AW1699TH
  • Triple version - AW1699/3H (stock item)
  • Quadruple version - AW1699/4H (made to order item)
  • Increased upstand height - Please suffix part number with desired height - e.g. for a 900mm upstand height - AW1699H/900
  • Screw-in type, add /SN suffix - To suit pole with screw-in swan neck adaptor fitting - AW1699H/SN
  • Powder coated finish over galvanising - To BS / RAL colours on request
  • Brackets produced in grade 316 stainless steel - For an architectural finish
