AW1962

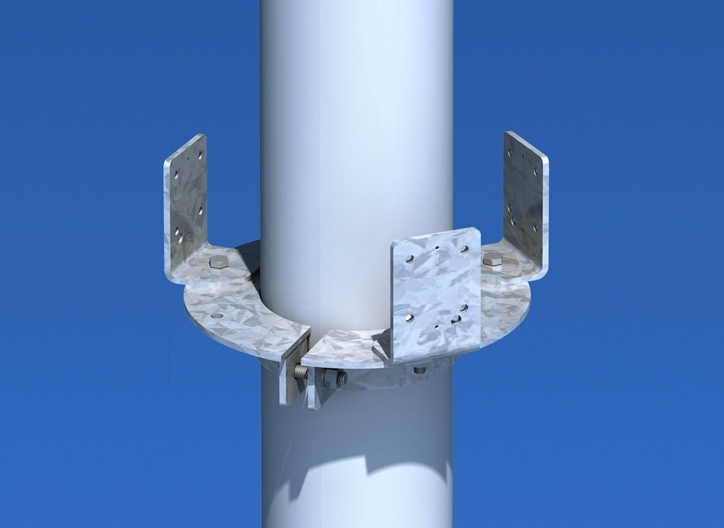

PIR Mount Ring
Stock item - see 'Technical' tab for sizes held

AW1962_2

Features

  • Mounting brackets pivot to enable PIR detectors to be aligned individually
  • Fits up to 5no PIR detectors
  • High loading capacity and solid mounting platform
  • Hot dip galvanised finish
  • Standard mounting brackets are for Redwall PIR's but can be provided to suit any motion detector
  • Stocked and commonly produced for tubular poles. Also made to order for mounting to square section columns

Download Datasheet

AW1962-168-PG84 tech

Part Number
Pole Diameter
 Weight
AW1962/76 Ø76mm 3kgs
AW1962/89 Ø89mm 3.4kgs
AW1962/114 Ø114mm 3.8kgs
AW1962/139  Stock item Ø139mm 4.3kgs
AW1962/168  Stock item Ø168mm 5kgs
AW1962/193 Ø193mm 5.3kgs
AW1962/219  Stock item Ø219mm 5.8kgs
AW1962/273 Ø273mm 6.8kgs

Construction and finish

  • Produced in high tensile steel
  • Hot dip galvanised for longevity
  • Fixings are stainless steel grade A2
  • Powder coated finish to BS & RAL colours on request

Basic part number provides the mounting ring only.
Up to 5no PIR mounting brackets can be used with each ring - Part number - L-BRACKET

e.g. for a 139mm diameter pole with 3no PIR detectors, required parts = 1no AW1962/139 + 3no L-BRACKET
       for a 168mm diameter pole with 4no PIR detectors, required parts = 1no AW1962/168 + 4no L-BRACKET
