Products Pole & Tower - Accessories PIR Mounting Brackets AW1962/CG

AW1962/CG

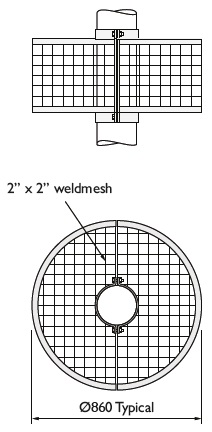

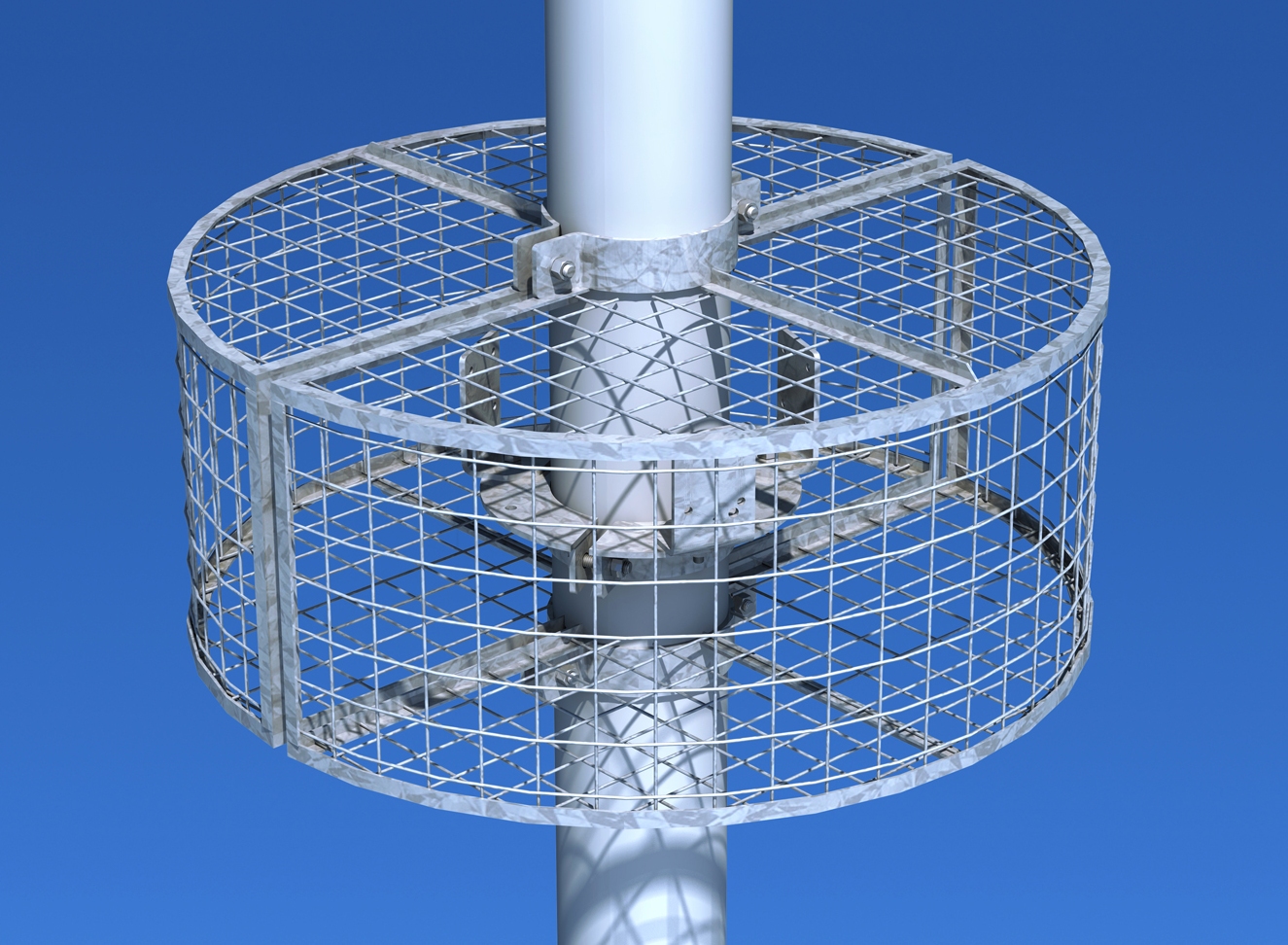

Cage Enclosure for PIR Mount Ring

AW1962-CG

Features

  • Designed specifically to fit over our AW1962 PIR Mount Ring
  • Robust angle construction with 3mm weldmesh infill provides a high level of protection
  • Hot dipped galvanised finish
  • Cages can be painted matt black over galvanising to reduce I/R reflection

Download Datasheet

Cage Weight - 14kgs

AW1962CG

Part Number
Pole Diameter
AW1962/CG/76 Ø76mm
AW1962/CG/89 Ø89mm
AW1962/CG/114 Ø114mm
AW1962/CG/139 Ø139mm
AW1962/CG/168 Ø168mm
AW1962/CG/193 Ø193mm
AW1962/CG/219 Ø219mm
AW1962/CG/273 Ø273mm

Construction and finish

  • Produced in high tensile steel
  • Hot dip galvanised for longevity
  • Fixings are stainless steel grade A2
  • Painting in matt black if required to reduce IR reflection
  • Powder coated finish to BS & RAL colours on request
