Note ref wall construction. We have designed the loading and bolt fixing for our wall mounted poles for fixing into good brickwork with no less than the minimum spacing on wall brackets, as noted in the table below. For breeze block type walls and brick walls in poor condition, we recommend bolting through the wall and employing a structural engineer, to ensure that the wall is suitable.

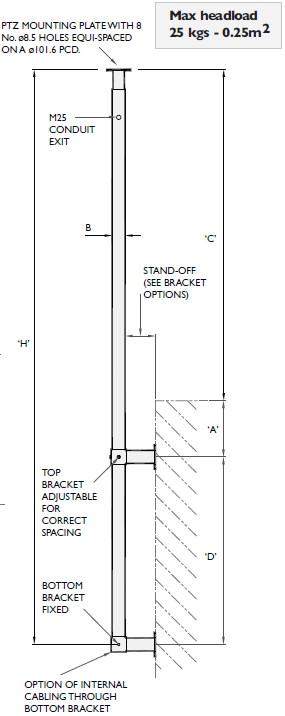

- Dimension 'A' to be maintained for upper bracket fixing strength
- Dimension 'D' to be maintained for camera stability and strength of fixings into wall
Part Number |
H | B | A | C | D |
ACP1 | 3m | 70mm | 0.3m | 1.7m | 1m |
ACP2 | 4m | 80mm | 0.3m | 2.2m | 1.5m |
ACP3 | 5m | 80mm | 0.4m | 2.6m | 2m |
ACP4 | 6m | 90mm | 0.5m | 3.5m | 2m |

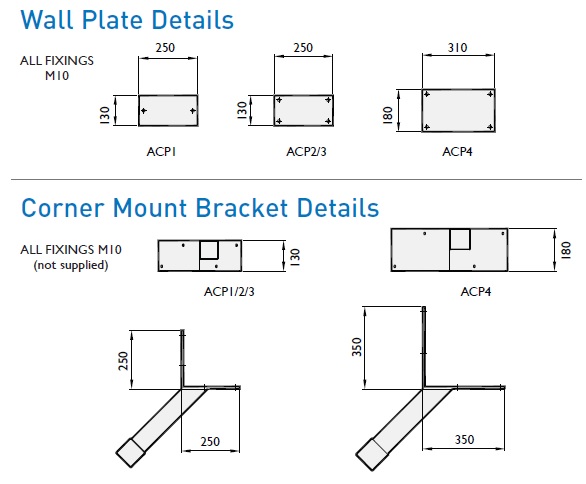

Note: All wall plate fixing centres shown in the diagram below are for guidance only and should not be used for installation
Construction and finish
-
Produced in high tensile steel
-
Hot dip galvanised for longevity
-
Fixings are stainless steel grade A2
-
Painted finish to BS4800 - Option on request
Options

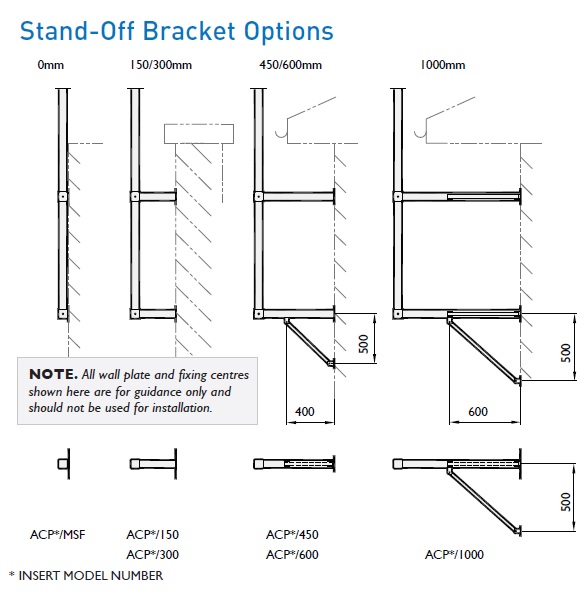

- Internal Cabling through bottom bracket - Add /IC suffix :-
e.g. 3m wall pole with 150mm stand-off + internal cabling - ACP1/150/IC
- Cladding Brackets - Add /CL suffix :-
e.g. 3m wall pole with 300mm stand-off for mounting to cladded building - ACP1/300/CL
- Capped Top version - Add /CAPPED suffix :-
e.g. 4m wall pole with 300mm corner stand-off + capped top - ACP2/300/C/CAPPED
- Variations to suit non-wall mount application, such as clamping to existing girders / RSJ's or steel fenceposts etc. - Please contact us for further details
- Paint finish over galvanising - To BS / RAL colours on request

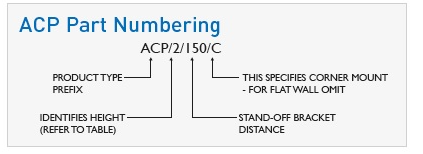

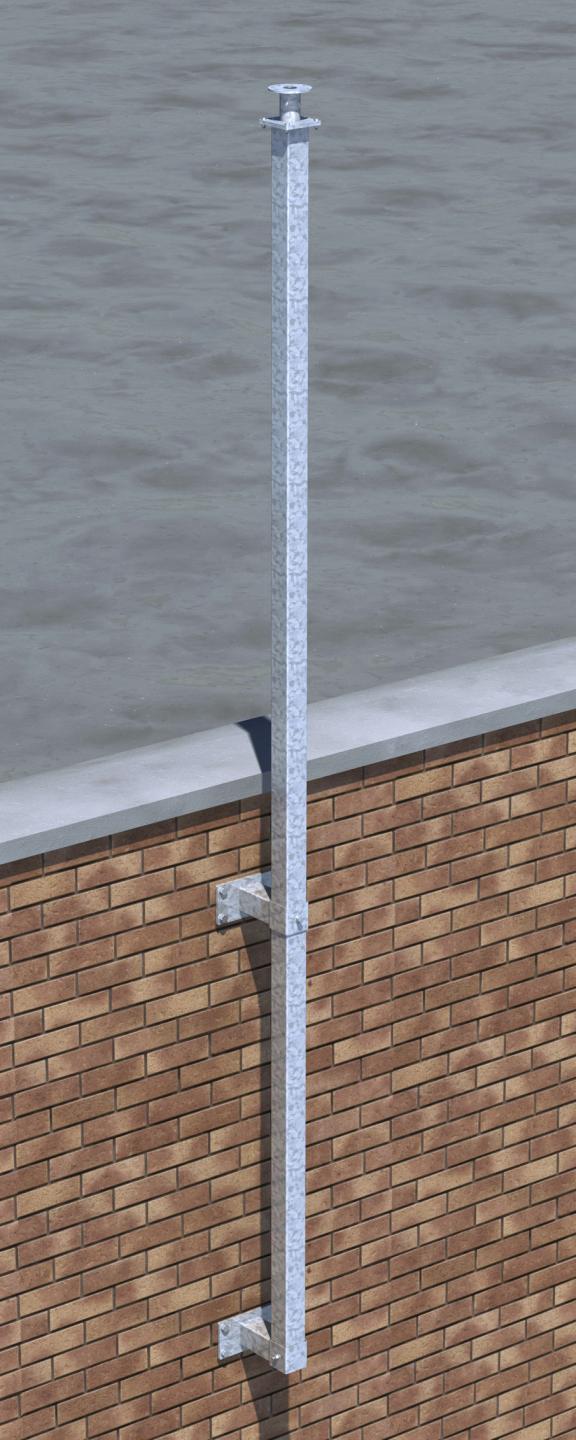

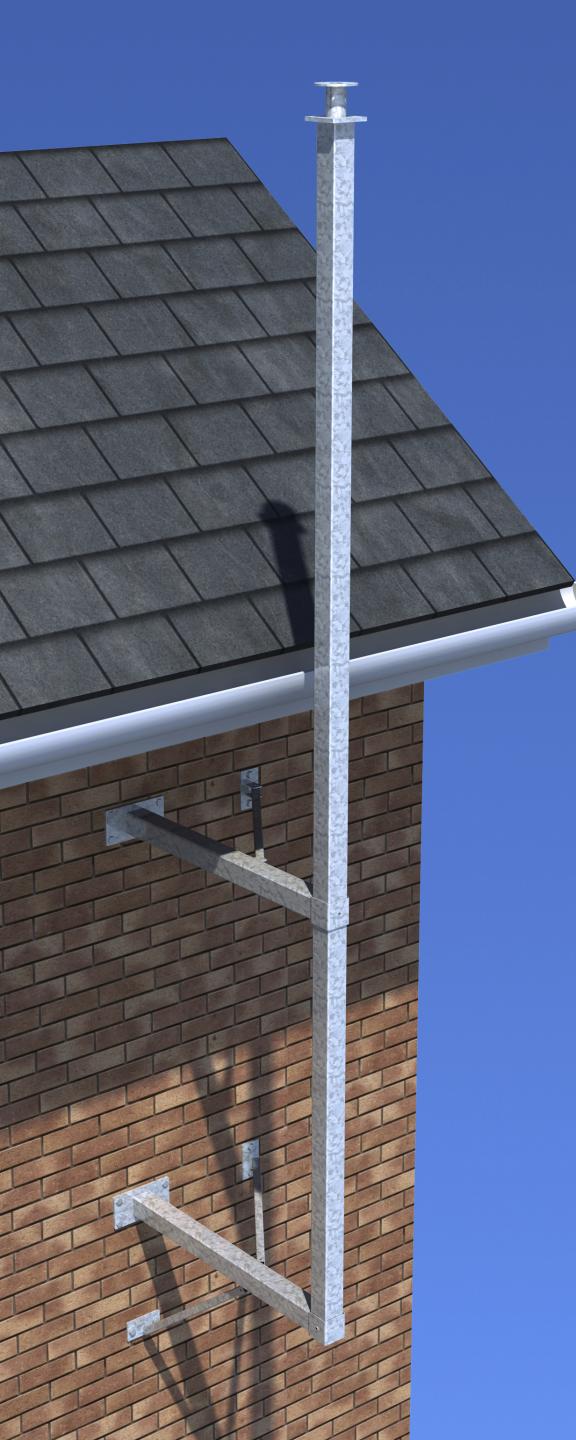

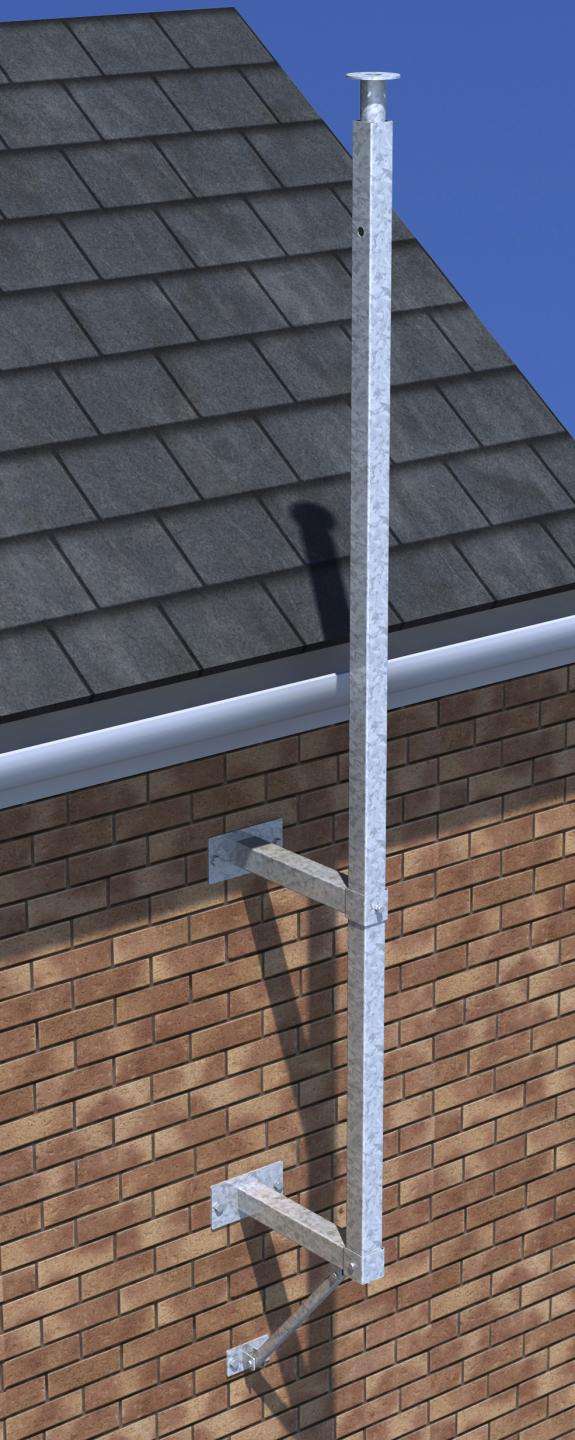

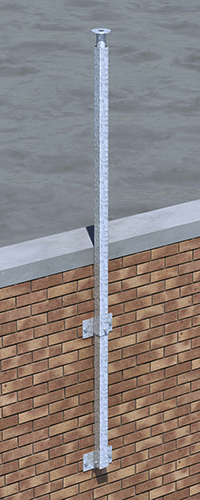

Part Numbering
Part number examples :-
ACP1/300 - 3m wall pole with 300mm stand-off brackets
ACP2/450 - 4m wall pole with 450mm stand-off brackets
ACP4/600/C - 6m wall pole with 600mm corner stand-off brackets
