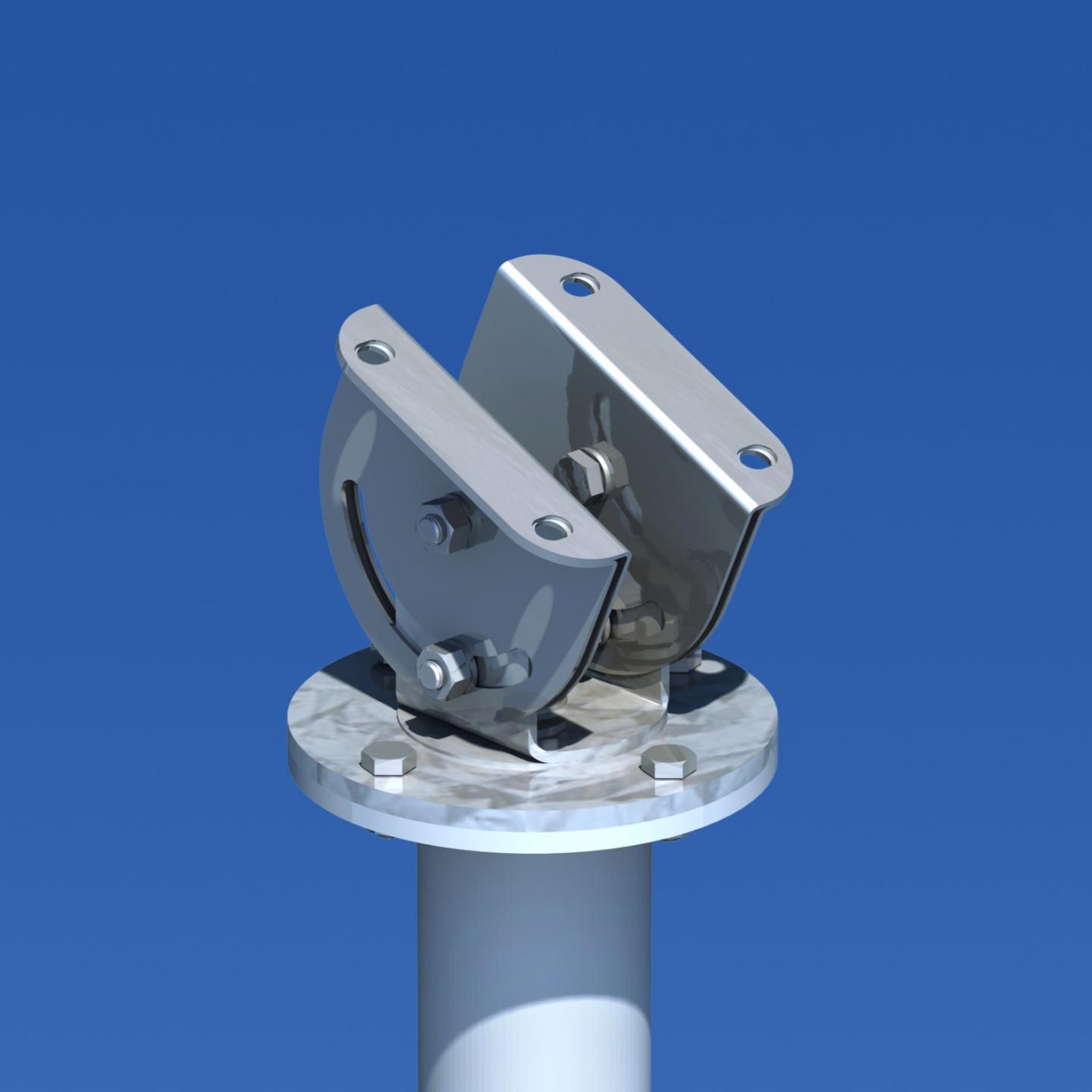

High specification knuckle for single fixed camera
Stock Item

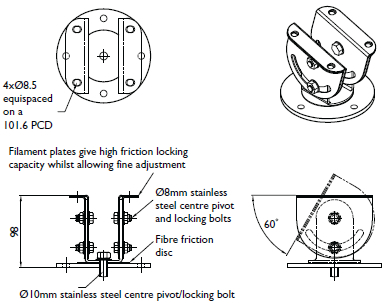

  • High specification adjustable knuckle where fine adjustment and a solid platform are required to ensure accurate reliable camera alignment
  • Load rating - 25kgs (depending on product mounting capacity)
  • Bracket weight - 1.3kgs
  • HAS-1 can be supplied instead of the standard PTS-1 on all fixed camera brackets
  • Also available with solid top plate produced for mounting non-standard 101.6 PCD camera fixings. Specify camera make and model number and use part number HAS-1/FP

Download Datasheet

Bracket weight - 1.3kgs


Construction and Finish

  • Base plate produced in hi-tensile steel and hot dip galvanised for longevity
  • Adjustable knuckle produced in grade 304 stainless steel
  • Bolts - stainless steel grade A2
  • Powder coated finish to BS & RAL colours on request
