AW1606/SF

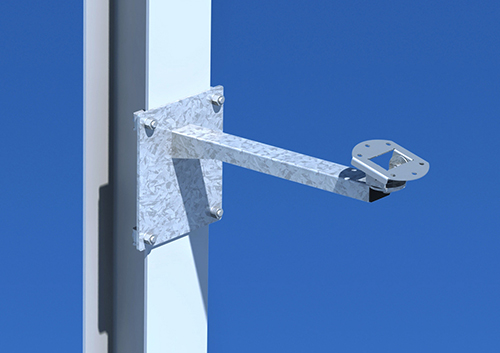

Beam Mounting Bracket for Fixed Camera

AW1606-SF

Features

  • Designed to fix to vertical beams
  • Made to suit any beam size - size needs to be specified
  • Fixed with M12 Lindaptor clamps
  • Hot dipped galvanised finish
  • Standard 101.6 PCD camera mount fixing holes
  • PTS-1 and HAS-1 knuckles can be produced to suit any non standard camera housing (made to order)

  • Load Capacities - depending on structural suitability of beam
    With standard PTS-1 fitted - 10kgs
    With optional HAS-1 fitted - 20kgs

Download Datasheet

Beam size to be specified

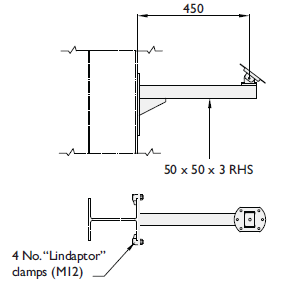

AW1606-SF-PG90 tech







Construction and finish

  • Produced in high tensile steel
  • Hot dip galvanised for longevity
  • Knuckles in grade 304 stainless steel
  • Fixings are stainless steel grade A2
  • Lindaptor fixings are malleable iron and supplied in either zinc plated or galvanised finish
  • Powder coated finish to BS & RAL colours on request
