AW2007-AW2008

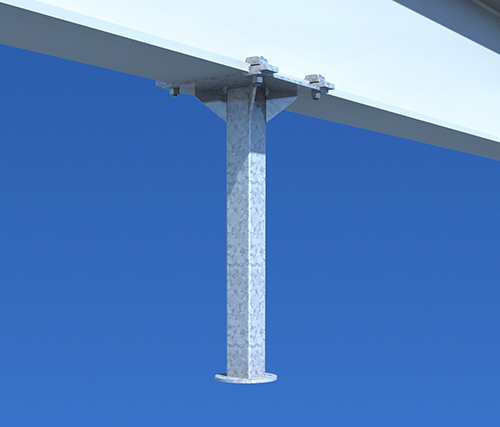

Beam - Suspended Bracket

AW2007

Features

  • AW2007 designed to fix to Horizontal Beams - Made to suit any beam size - size needs to be specified
  • Fixed with M12 Lindaptor clamps
  • AW2008 designed to fix to Soffit / Ceiling - Soffit / ceiling type to be specified
  • Hot dipped galvanised finish
  • Standard 101.6 PCD camera mount fixing holes
  • Can be produced to suit any camera type, including dome mounting (made to order)
  • Load capacity 25kgs - depending on structural suitability of beam / fixing strength into soffit

Download Datasheet

AW2007 - Beam size to be specified

AW2008 - Soffit / ceiling type to be specified

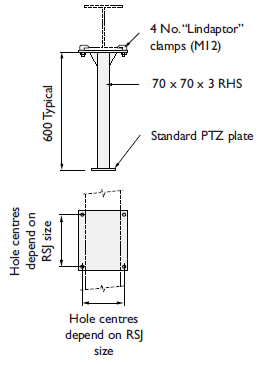

AW2007-PG90 tech

Construction and finish

  • Produced in high tensile steel
  • Hot dip galvanised for longevity
  • Fixings are stainless steel grade A2
  • Lindaptor fixings are malleable iron and supplied in either zinc plated or galvanised finish
  • Powder coated finish to BS & RAL colours on request
