AW1972

Wall Mount Upstand Brackets for CCTV Camera Mounting
Stock items

AW1972-SPT-PG74 revAW1972-SF_1

Features

  • Robust wall bracket giving solid camera mounting platform
  • Hot dipped galvanised finish
  • Standard 101.6 PCD CCTV camera mount fixing holes
  • PTS-1 and HAS-1 knuckles can be produced to suit any non standard camera housing (made to order)

  • Load Capacities
    For PTZ cameras - 25kgs
    For Fixed cameras -
    With standard PTS-1 fitted - 10kgs
    With optional HAS-1 fitted - 20kgs

Download Datasheet

Construction and finish

  • Produced in high tensile steel
  • Hot dip galvanised for longevity
  • Knuckles in grade 304 stainless steel
  • Fixings are stainless steel grade A2
  • Powder coated finish to BS & RAL colours on request

Part numbers

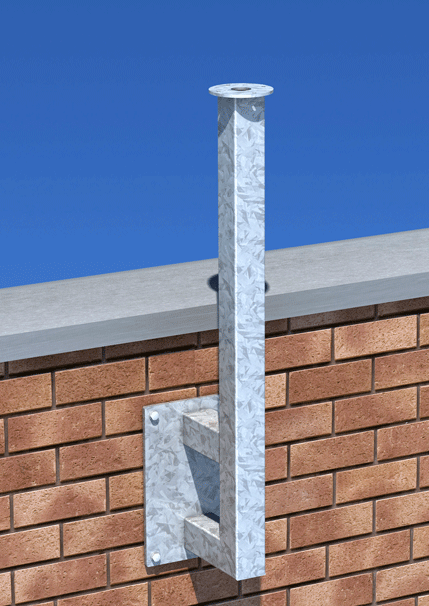

PTZ Cameras - AW1972/SPT

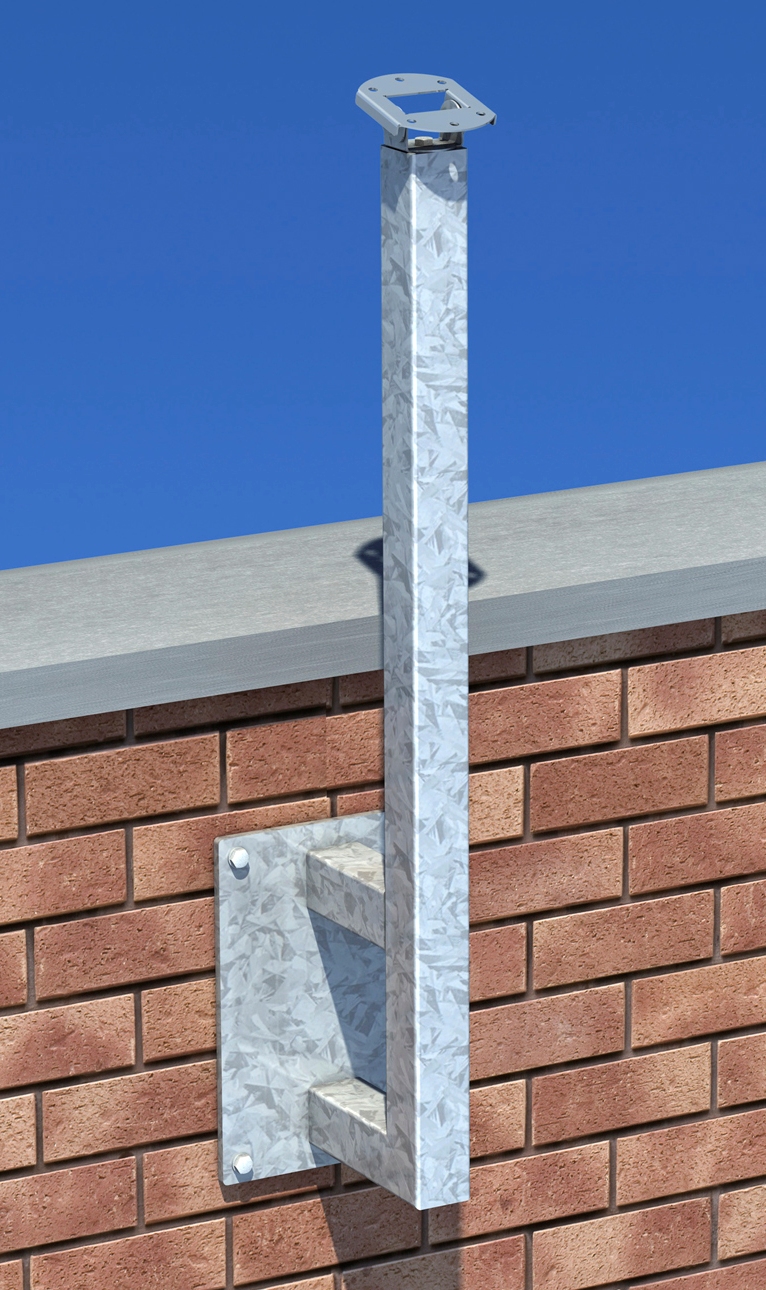

Fixed Cameras - AW1972/SF
