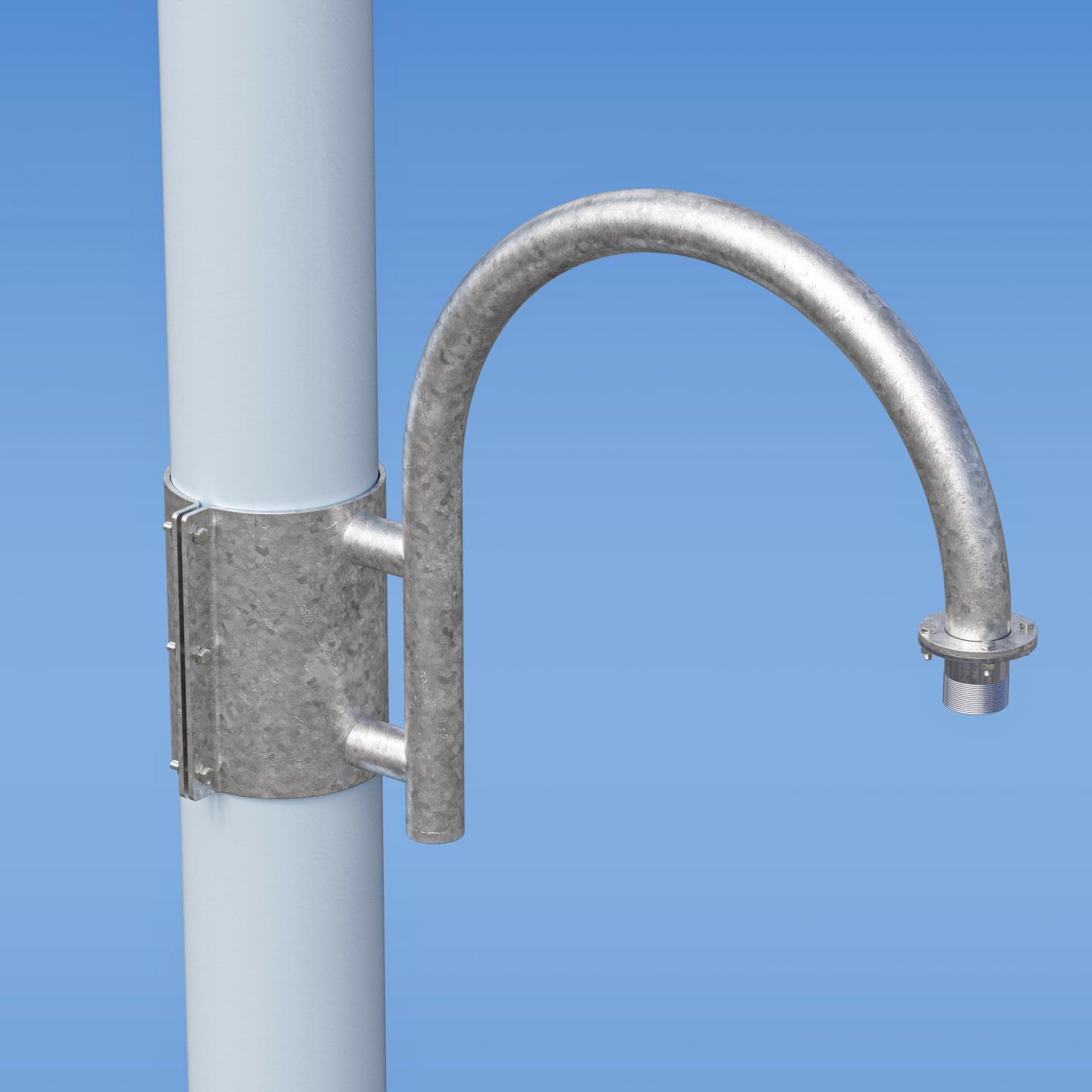

Pole Mounted Full Swan Neck CCTV Dome Camera Mounting Bracket
Stock item - 168mm diameter only, but also dependent on UDA stock, see 'Options' tab for sizes / types held

PMB-1699F

Altron Pole Mounted Full Swan Neck Brackets are versatile, supplied with bolt-on UDA's (Universal Dome Adaptors) to suit any dome make / model - Most common sizes are held in stock but can also be produced to suit any dome fitting type, or where something non-standard is required.

Please specify dome make & model number when ordering, or dome fitting size / type.

Features

  • Pole mounting swan neck provides an aesthetic installation for dome cameras
  • Produced for all pole diameters - specify the diameter when ordering
  • Cabling for dome concealed through swan neck, with optional conduit cable entry
  • Supplied with UDA to suit dome make / model employed - Most common sizes held in stock
  • UDA benefits from being easily removed / replaced if dome is upgraded, without need for replacing entire bracket
  • UDA's can also be supplied with flat mounting plates, commonly for small, static / vandal domes, with or without junction boxes
  • Can be produced to suit any dome fitting type, or where something non-standard is required - non-stock UDA's made to order
  • Available for twin, triple and quadruple dome mounting options
  • Hot dipped galvanised finish
  • Bracket weight - 13kgs

Download Datasheet

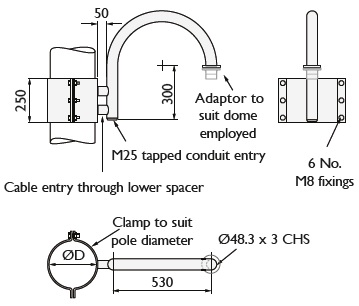

PMB1699F



Please specify dome make & model number when ordering, or dome fitting size / type - See 'Options' tab for sizes / types held

Construction and finish

  • Bracket - Produced in high tensile steel
  • Hot dip galvanised for longevity
  • Universal Dome Adaptor - Produced in Grade 304 Stainless Steel
  • Gasket Seal - 1mm Neoprene Rubber
  • Fixings - Stainless Steel Grade A2
  • Polyester powder coated finish to BS4800 - Option on request

Part Numbering

  • For part number add (Ø*) pole diameter - e.g. for 139mm diameter pole - PMB 1699F/139

Stock UDA's

Please specify dome make & model number when ordering, or dome fitting size / type - Common sizes held below :-

  • 1 ½” NPT Female - Pelco, Hikvision, Avigilon, Dahua, Hanwha etc.
  • 1 ½” NPT Male - Bosch, Axis, Panasonic etc.
  • ¾” NPT Male - Illustra etc.
  • M35x1.5P Female - Bosch etc.
  • Ø47.5mm ID (Internal Diameter) - Hikvision etc.
  • 1” BSPP Female - Hikvision Pendant Cap etc.

Options

  • Twin version - Change part number to 'TF' and add (Ø*) pole diameter - e.g. Twin bracket for 168mm diameter pole - PMB 1699TF/168
  • Twin version with arms at 90o (180o standard) - Add /90DEG suffix - e.g. Twin bracket for 193mm diameter with arms at 90o - PMB 1699TF/193/90DEG
  • Triple version - Change part number to '3F' and add (Ø*) pole diameter - e.g. Triple bracket for 219mm diameter pole - PMB 1699/3F/219
  • Quadruple version - Change part number to '4F' and add (Ø*) pole diameter - e.g. Quadruple bracket for 273mm diameter pole - PMB 1699/4F/273
  • APB adjustable type :-
    To suit Ø75-150mm pole - APB150-1699F (made to order item - 'Half' version is a stock item - APB150-1699H)
    To suit Ø150-250mm pole - APB250-1699F (made to order item - 'Half' version is a stock item - APB150-1699H)
  • Column mount version - Change part number to 'CMB' and add column section size - e.g. for a 100mm box section column - CMB 1699F/100
  • Powder coated finish over galvanising - To BS / RAL colours on request
  • Brackets produced in grade 316 stainless steel - For an architectural finish
