Products Perimeter Security Products Rotating Shaft Products

Rotating Shaft Products

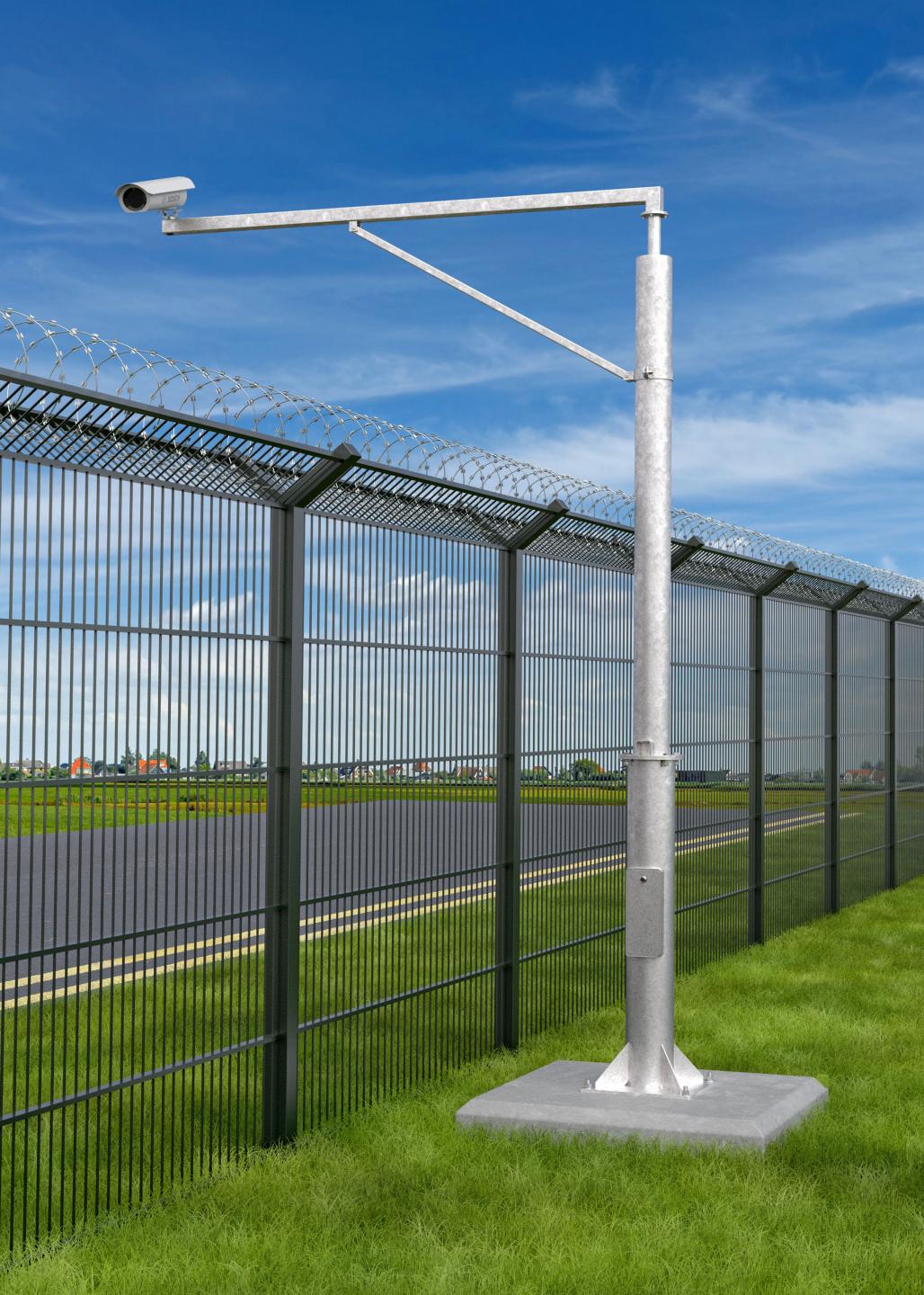

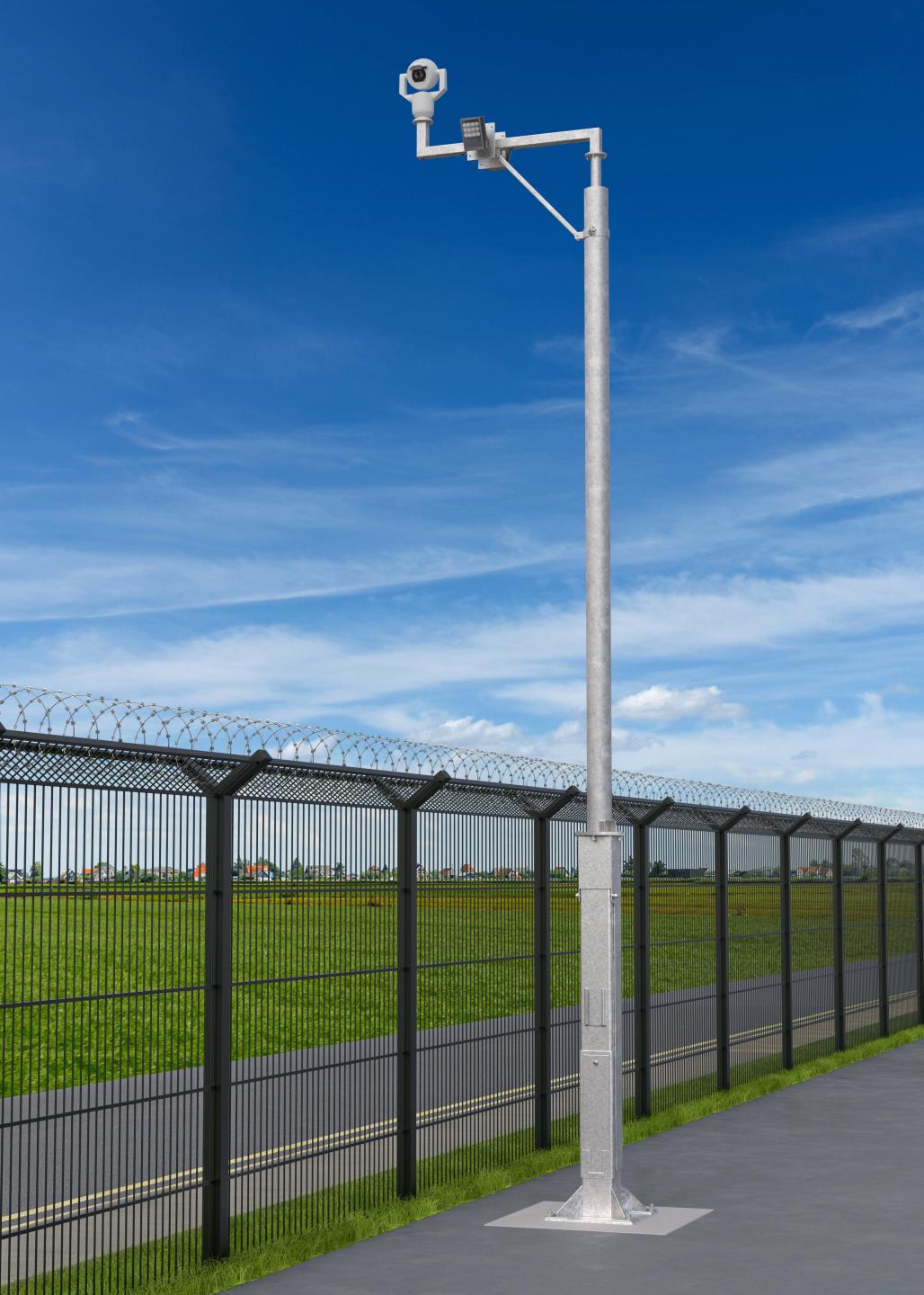

AW1502-4-RSP with POB1-2500-SFAW1859-7-RSPAW1859-6-RSP with POB1-1000-SPT

A range of products developed to enable access to cameras for servicing within secure sites and areas of restricted space.

Pole shaft rotates to bring camera equipment into secure area. Tilt-down versions enable camera maintnenance at ground level.

This product differentiates by tilting parallel to the perimeter, hence requiring limited space inside the secure area.

Product range options detailed in tabs below

  • A range of products cater for all loading requirements
  • Extending arms enable cameras and equipment to be mounted up to 3m from pole structure
  • Available with integral cabinets for equipment housing
  • The range is supported by a full range of accessories and supplementary steelwork for mounting lights, PIR sensors, LiDAR, speakers as well as multiple camera configurations.
  • Constructed in high tensile steel and hot dip galvanised after fabrication for durability
  • Option of painting over the galvanised finish in colours available from BS and RAL colour charts

  • Internal cabling
  • Close fitting flush doors
  • Secure locks as standard with high security lock option
  • Internal padlock facility on tilt down poles to protect against un-authorised lowering

  • Data centres
  • High security facilities
  • Warehouses and industrial sites
  • Utilities sites
  • Sites requiring perimeter security

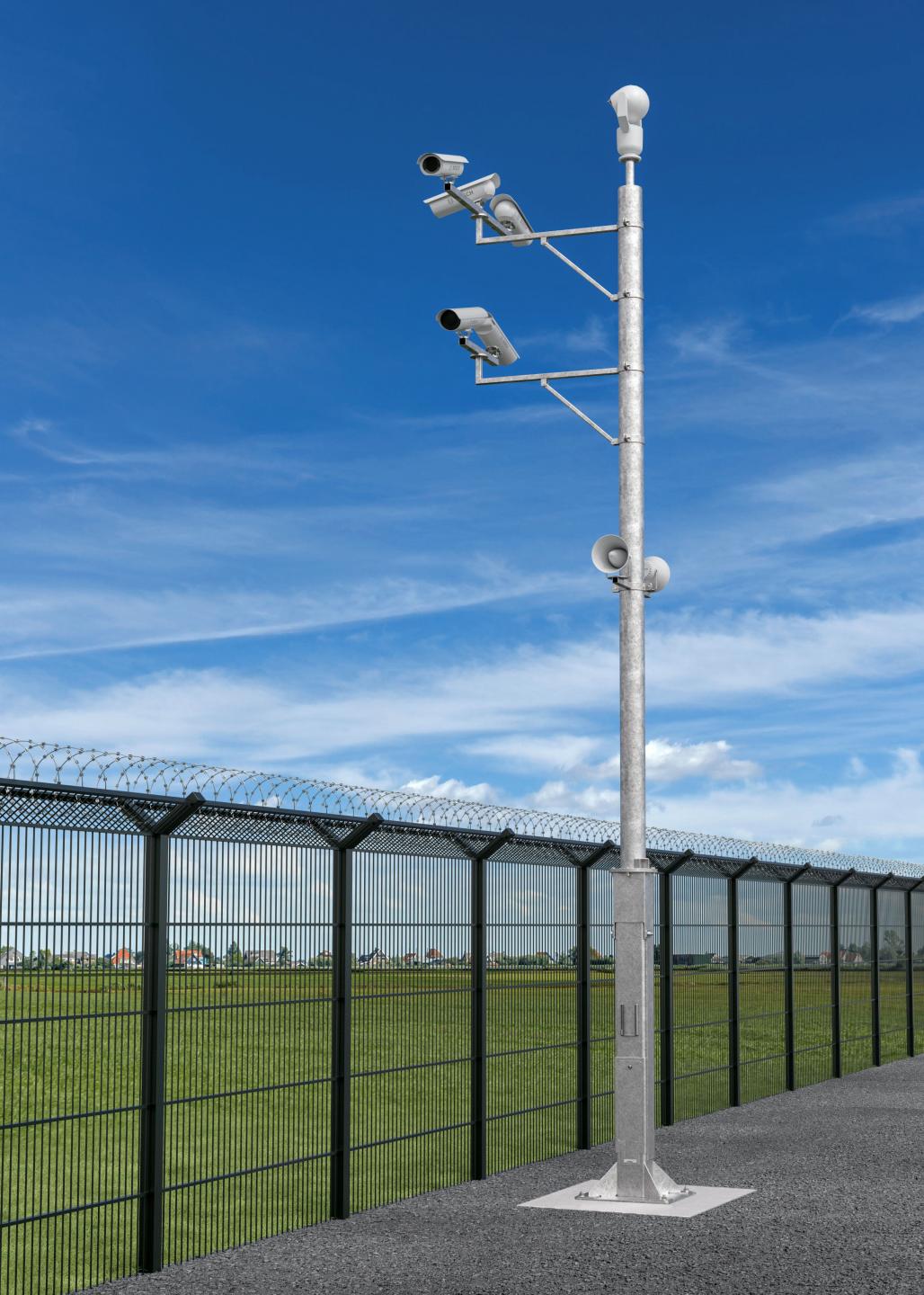

AW1859-7-RSP in operational positionAW1859-7-RSP - rotated prior to tiltingAW1859-7-RSP in tilted service positionAW1859-6-RSP in operational positionAW1859-6-RSP rotated prior to tiltingAW1859-6-RSP in tilted service position

AW1859/RSP


AW1859/RSP rotating arm tilt-down poles have a rotating shaft that enables camera and associated equipment to be operate outside the perimeter fence line and then be brought into the perimeter secure area by rotating the pole shaft and then lowering equipment to ground level for servicing.

Features

  • Typically available in heights of 4-10m
  • Rotation and tilt-down facility operated from ground level
  • Can be rotated left or right
  • Supplied fully assembled and can be placed as a normal tilt-down pole would be
  • Bolt on side arms typically up to 1.5m
  • A full range of Altron standard supporting brackets available for Fixed/PTZ/Bullet cameras, domes, lights, speakers, PIR sensors, LIDAR etc
  • Winch is demount able and pole can be padlocked, leaving it secure
  • Secure access aperture and treated back board included as standard

For further details please contact our sales department.

56 4057-65 - 015 view 156 4057-65 - 015 view 256 4057-65 - 015 view 3

AW1545/TD/UP/RSP


AW1545/TD/UP/RSP cabinet base rotating arm tilt-down poles have a rotating shaft that enables camera and associated equipment to be operate outside the perimeter fence line and then be brought into the perimeter secure area by rotating the pole shaft and then lowering equipment to ground level for servicing.

This pole benifits from an integral cabinet for mounting equipment all within the one pole structure.

Features

  • Typically available in heights of 4-10m
  • Rotation and tilt-down facility operated from ground level
  • Can be rotated left or right
  • Supplied fully assembled and can be placed as a normal cabinet base tilt-down pole would be
  • Bolt on side arms typically up to 2m
  • A full range of Altron standard supporting brackets available for Fixed/PTZ/Bullet cameras, domes, lights, speakers, PIR sensors, LIDAR etc
  • Winch is demount able and pole can be padlocked, leaving it secure
  • Secure access aperture and treated back board included as standard within cabinet allowing sufficient space to mount equipment, instead of the need for a seperate equipment enclosure

For further details please contact our sales department.

AW1502-6-RSP in operational positionAW1502-6-RSP in rotated service position

AW1502/RSP


AW1502 rotating arm poles provide a high level stability whilst being a cost effective solution for bringing camera equipment into the perimeter secure area for servicing camera equipment

Features

  • Typically available in heights of 3-6m
  • Rotation facility operated from ground level
  • Can be rotated left or right
  • Supplied fully assembled and can be placed as a normal fixed pole would be
  • Bolt on side arms typically up to 3m, but longer arms available if required
  • A full range of Altron standard supporting brackets available for Fixed/PTZ/Bullet cameras, domes, lights, PIR sensors, LIDAR etc
  • Secure access aperture and treated back board included as standard
  • Enlarged access aperture and back board available for housing JB

For further details please contact our sales department
