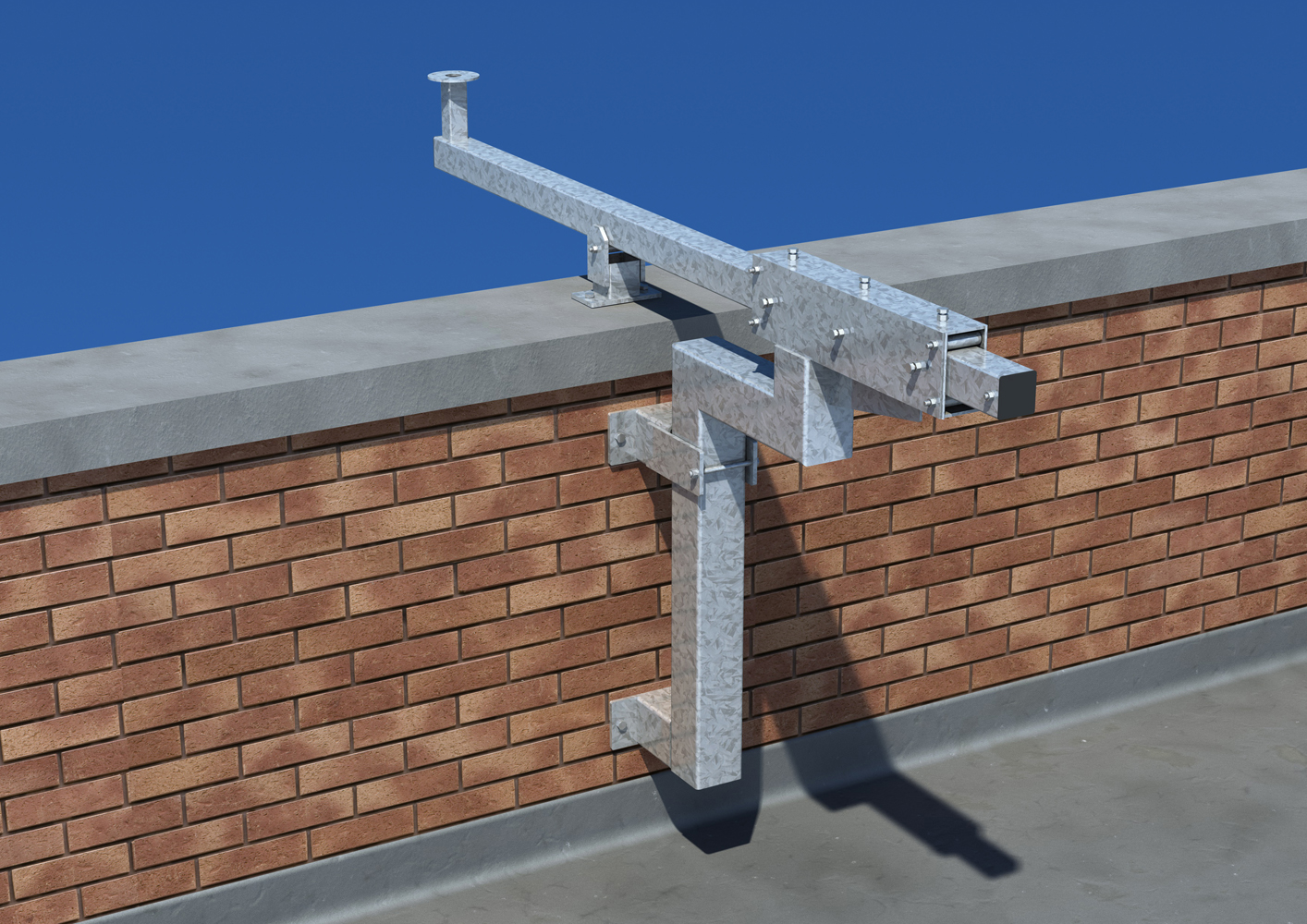

Parapet Mounted Sliding Arm Bracket

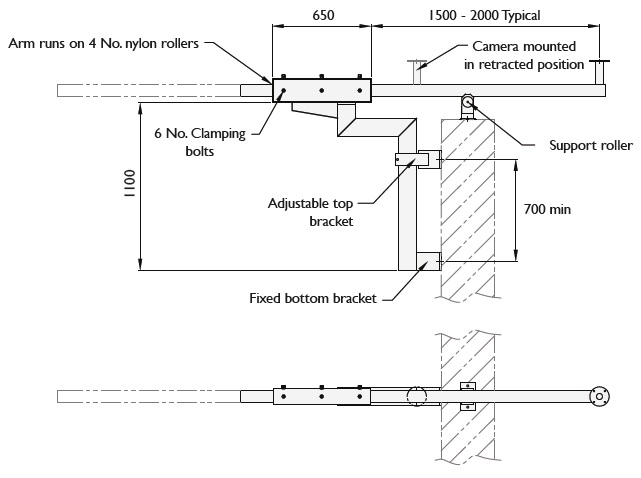

  • Arm slides in for servicing enabling installation in locations where arm is not able to be rotate in
  • Arm runs on nylon 66 rollers for smooth operation
  • Front support roller for parapet supplied as standard
  • Solid constructions means stable platform for camera mounting
  • Designed to enable man handling through lift and stairwell for roof access
  • Standard 101.6 PCD camera mount fixing holes
  • Avaiable as flat parapet or corner parapet mount

Download Datasheet


Max. load capacity

  • Camera load using the front support roller = 25kgs / 0.25m2
  • Camera load without front support roller = 15kgs / 0.15m2
  • For arm lengths of over 2m, camera load depends on application

Notes on parapet mounting

  • Parapets must be of solid construction, ideally pre-cast concrete or steel-framed
  • For brick built parapets, single skin construction is not suitable
  • Parapets where the brickwork is not in good condition are not suitable
  • The minimum parapet height is 1100mm
  • The product head load must not be exceeded
  • In cases where a greater head load is proposed, Altron must be contacted and suitable advice should be sought regarding parapet construction and strength

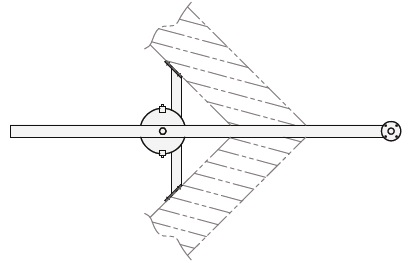

Corner Mounting Bracket Option (SA1-PMC)



Part Number

Arm Length

Flat Parapet Mount
SA1-1000PM 1m
SA1-1500PM 1.5m


Corner Parapet Mount
SA1-1000PMC 1m
SA1-1500PMC 1.5m
SA1-2000PMC 2m

Construction and finish

  • Produced in high tensile steel
  • Hot dip galvanised for longevity
  • Fixings are stainless steel grade A2 and galvanised grade 8.8
  • Painted finish to BS & RAL colours on request
