WB1-D

Wall Mounted CCTV Dome Camera Bracket
Stock item - Dependent on UDA stock, see 'Options' tab for sizes / types held

WB1-D

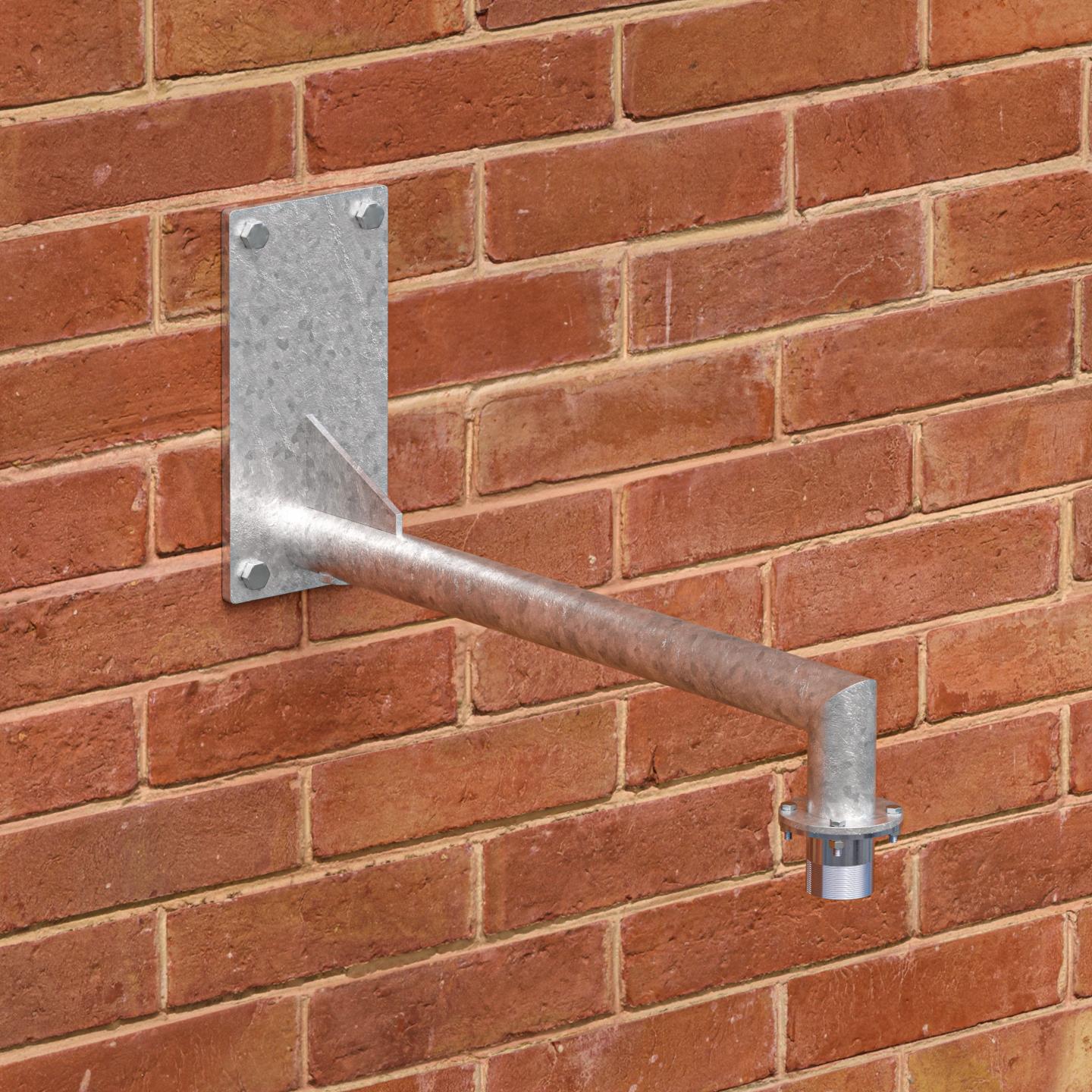

Altron Wall Mounted Dome Brackets are versatile, supplied with bolt-on UDA's (Universal Dome Adaptors) to suit any dome make / model - Most common sizes are held in stock but can also be produced to suit any dome fitting type, or where something non-standard is required.

Please specify dome make & model number when ordering, or dome fitting size / type.

Features

  • Robust wall bracket providing rigid mount for dome cameras

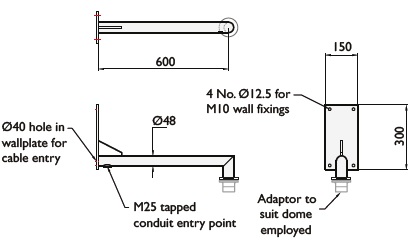

  • Allows dome camera to be spaced away from wall by 600mm
  • Camera cabled either through wall into arm, or conduit entry is provided under arm for surface mounting cables
  • Supplied with UDA to suit dome make / model employed - Most common sizes held in stock
  • UDA benefits from being easily removed / replaced if dome is upgraded, without need for replacing entire bracket
  • UDA's can also be supplied with flat mounting plates, commonly for small, static / vandal domes, with or without junction boxes
  • Can be produced to suit any dome fitting type, or where something non-standard is required - non-stock UDA's made to order
  • Hot dipped galvanised finish

Download Datasheet

WB1D



Please specify dome make & model number when ordering, or dome fitting size / type - See 'Options' tab for sizes / types held

Construction and finish

  • Bracket - Produced in high tensile steel
  • Hot dip galvanised for longevity
  • Universal Dome Adaptor - Produced in Grade 304 Stainless Steel
  • Gasket Seal - 1mm Neoprene Rubber
  • Fixings - Stainless Steel Grade A2
  • Polyester powder coated finish to BS4800 - Option on request

Part Numbering

Standard WB1-D held in stock has a 600mm outreach arm - Revised / shorter arm lengths are available (made to order), please suffix part number with desired length :-

e.g. For a 400mm outreach arm - WB1-D/400

e.g. For a 500mm outreach arm - WB1-D/500



Stock UDA's

Please specify dome make & model number when ordering, or dome fitting size / type - Common sizes held below :-

  • 1 ½” NPT Female - Pelco, Hikvision, Avigilon, Dahua, Hanwha etc.
  • 1 ½” NPT Male - Bosch, Axis, Panasonic etc.
  • ¾” NPT Male - Illustra etc.
  • M35x1.5P Female - Bosch etc.
  • Ø47.5mm ID (Internal Diameter) - Hikvision etc.
  • 1” BSPP Female - Hikvision Pendant Cap etc.

Options

  • Version of bracket to mount to cladded buildings - Please contact us for further details
  • Variations to suit bullet cameras - Please contact us for further details
  • Powder coated finish over galvanising - To BS / RAL colours on request
  • Brackets produced in grade 316 stainless steel - For an architectural finish
