ATBC

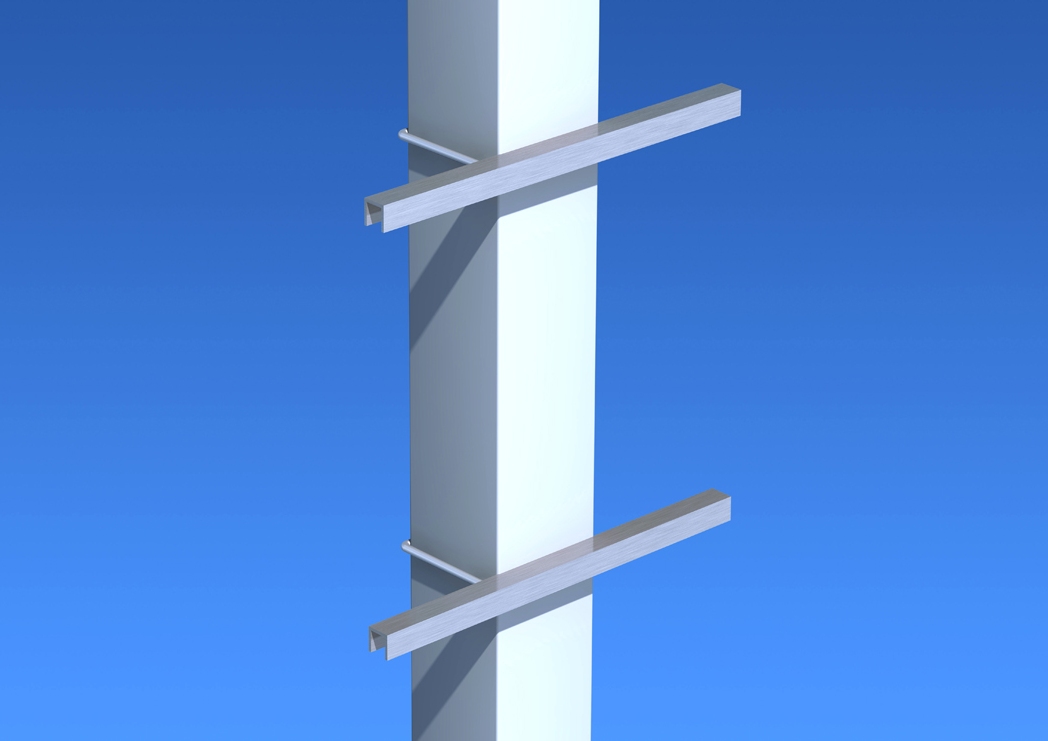

Adjustable Accessory Bracket for Square Section Product
Stock item - see 'Options' tab for sizes held

ATBC

Features

  • Easy to drill aluminium channel for site fitting of any accessory up to 430mm wide
  • Stock sizes to suit all Altron box section products

Download Datasheet

Bracket Weight - 0.9kgs

ATBC-ATBP

Fitting adjustable accessory bracket

1. Drill aluminium channels to fit hole centres on accessory (one channel across the bottom, one across the top)
2. Bolt channels to the accessory
3. Trim channels to the width of the accessory using hacksaw
4. Bolt the accessory to the column using the 'U' bolts supplied

Construction and finish

  • Aluminium channel grade 6082
  • U bolts in stainless steel grade A2
  • Powder coated finish to BS & RAL colours on request

Part numbering

ATBC followed by column type or size

e.g. for box section column ACC1FBLA       - ATBC/ACC1FBLA
       for 100mm square box section column - ATBC/100SQ

Sizes stocked for the following square sections - 70mm, 80mm, 90mm, 100mm, 120mm, 150mm
