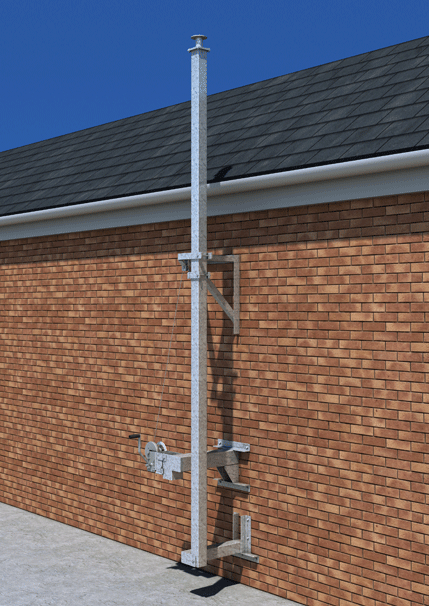

Wall Mounted Tilt-Down CCTV Poles
Common sizes held in stock

AW1934AW1934AW1934/RHTAW1934/RHT - 1AW1934-4-PG65 revAW1934-4-RHT-PG65 rev

Altron Wall Mounted Tilt-Down CCTV Poles are ideal for gaining an elevated view point from existing structures - Common sizes are available from stock, and where a standard product does not suit we can provide variations to suit requirements.

Features

  • For single and two storey buildings
  • Available in tilt-away, left and right hand tilt versions and also for corner mounting
  • A cost effective solution for lowering camera equipment to ground level
  • Fixing brackets are heavy duty, giving a very rigid and safe installation you can be confident in
  • Standard 101.6 PCD camera mount fixing holes
  • Winches are demountable for added security
  • Available with tilt section in 2 pieces to help with handling on site - See 'Options' tab for part numbering
  • Hot dip galvanised finish for longevity
  • 50 year design life

Download Datasheet

Note ref wall construction. We have designed the loading and bolt fixing for our wall mounted poles for fixing into good brickwork with no less than the minimum spacing on wall brackets, as noted in the table below. For breeze block type walls and brick walls in poor condition, we recommend bolting through the wall and employing a structural engineer, to ensure that the wall is suitable.

  • Dimension 'A' to be maintained for upper bracket fixing strength
  • Dimension 'D' to be maintained for camera stability and strength of fixings into wall

Part Number

Height

Dim H

Dim A(min)

Dim A (max)

Dim B (min)

Winch Part No
AW1934/3 3m 3 - 3.3m    1.8m
  2.7m
0.3m DW1934/3
AW1934/4  4m 4 - 4.3m    2.3m
  3.2m
0.3m DW1934/4
AW1934/5 5m  5 - 5.3m    2.9m
  4.2m
0.4m DW1934/5
AW1934/6 6m 6 - 6.3m    3.4m
  5.2m
0.4m DW1934/6
AW1934/7 7m 7 - 7.3m    3.8m
  6.2m
0.5m DW1934/7
AW1934/8 8m 8 - 8.3m    4.3m
  7.1m
0.5m DW1934/8




AW1934-LHAW1934-RH

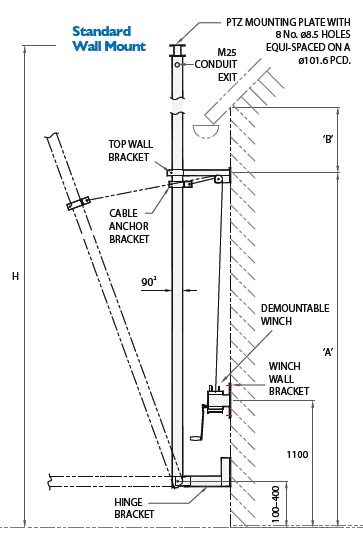

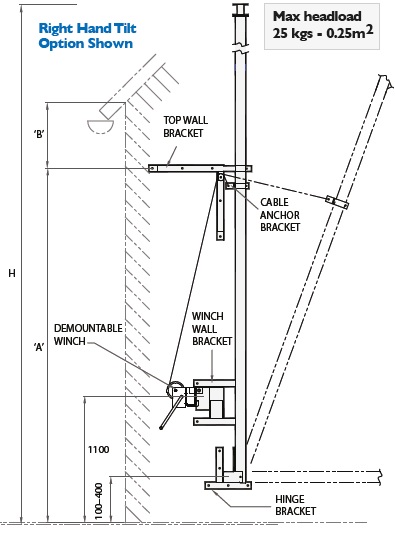

Note: Dimensions shown in the diagram below are for guidance only and should not be used for installation

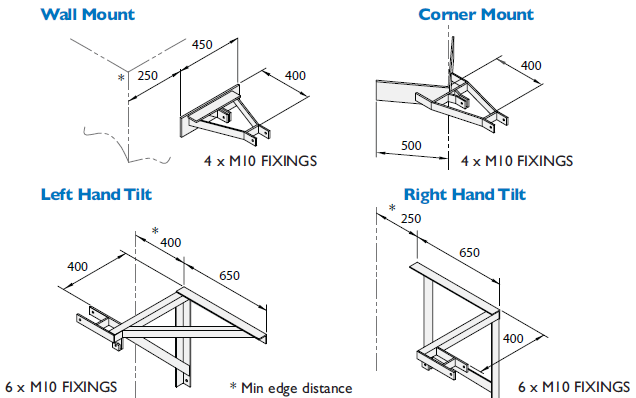

AW1934-Mounting Bracket Options

Applicable standards

Design

  • Design analysis carried out using a specialist software package in accordance BS6399 Part 2

Material and Finishing

  • Structural steel hollow sections to EN10219 - EN10025:2004
  • Steel flat angles and structural sections to EN10025, EN10111, EN 10130
  • Fixings - Stainless steel Grade A2, galvanised Grade 4.6, Grade 8.8 to BS4190, BS3692, DIN 931, 934, 601
  • Hot dipped galvanising after fabrication to ISO 1461
  • Painted finish to BS4800 - Option on request

Manufacturing Processes

  • Welding Procedures conform with BS EN 1011:2009, BS EN 9606-1

Winches

  • Wire ropes to BS183:1972, BS EN 13411 3 2004 + A1 2008
  • Winches conform to American ASAE standard S361.IT.

Options


  • Capped Top version - Add /CAPPED suffix :-
    e.g. 4m tilt-down wall pole + capped top - AW1934/4/CAPPED

  • 2 Part Tilt Section - Add /2P suffix :-
    e.g. 6m tilt-down wall pole with tilt section in 2 x 3m lengths - AW1934/6/2P

  • Tilt away from wall stand-off is 400mm as standard, with left & right hand tilt (LHT/RHT) versions supplied at 500mm. Optional stand-off lengths can be provided to suit specific applications - Please contact our Sales office for further details

  • Paint finish over galvanising - To BS / RAL colours on request

Part Numbering


For Winch part numbers, please refer to the tech table in the 'Technical' tab

Tilt-down wall pole - Standard tilt away

AW1934/3
AW1934/4     stock product
AW1934/5     stock product
AW1934/6     stock product
AW1934/7
AW1934/8

Tilt-down wall pole with Left hand tilt

AW1934/3/LHT
AW1934/4/LHT     stock product
AW1934/5/LHT     stock product
AW1934/6/LHT     stock product
AW1934/7/LHT
AW1934/8/LHT

Tilt-down wall pole with Right hand tilt

AW1934/3/RHT
AW1934/4/RHT     stock product
AW1934/5/RHT     stock product
AW1934/6/RHT     stock product
AW1934/7/RHT
AW1934/8/RHT

Tilt-down wall pole - Corner Wall mount

AW1934/3/C
AW1934/4/C
AW1934/5/C
AW1934/6/C
AW1934/7/C
AW1934/8/C
