AW1980

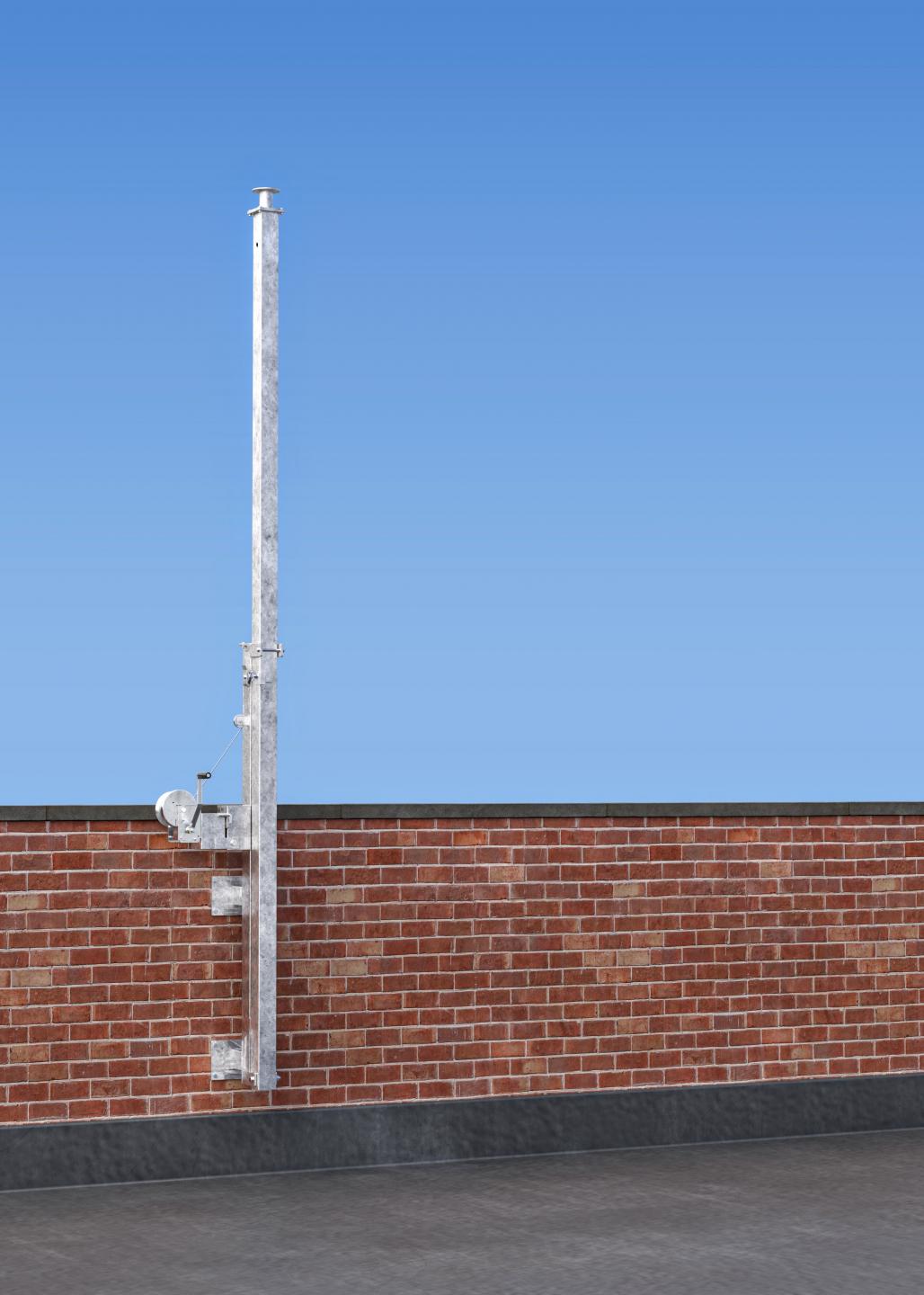

Parapet  & Bunker Mounted Tilt-Down CCTV Poles

AW1980-PMAW1980-PMAW1980-BMAW1980-BM

Altron Parapet & Bunker Mounted Tilt-Down CCTV Poles give additional height from a standard parapet or wall of suitable construction - Demountable winches and the facility to padlock make this product suitable for public areas, such as multi-storey car park roof levels.

Features

  • Suitable for public access areas
  • Available in many mounting options, including left and right hand tilt versions - See 'Mounting Options' tab for details / diagrams

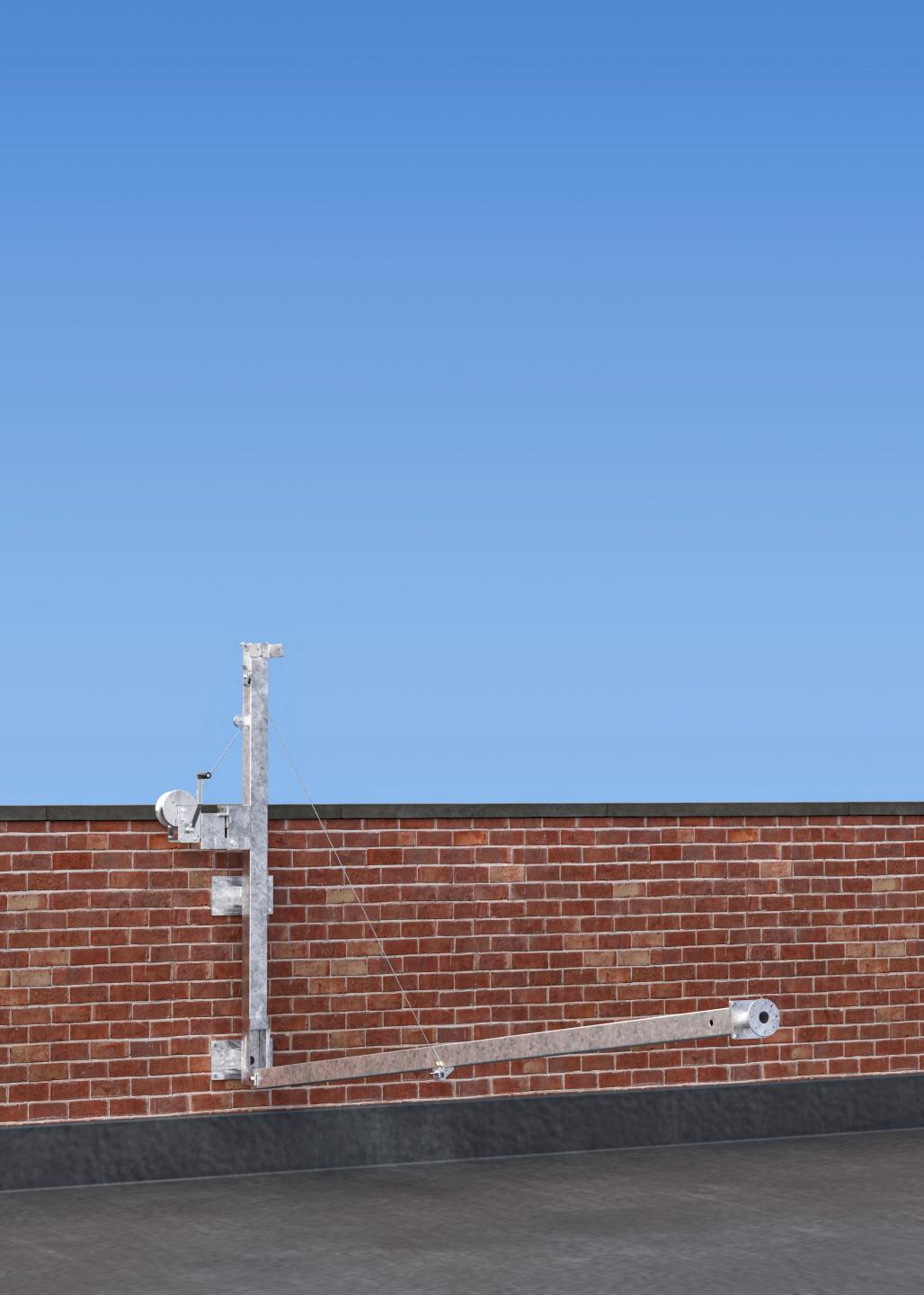

  • A cost effective solution for lowering camera equipment to ground level
  • Fixing brackets are heavy duty, giving a very rigid and safe installation you can be confident in
  • Standard 101.6 PCD camera mount fixing holes
  • Winches are demountable for added security
  • Available with tilt section in 2 pieces to help with handling on site - See 'Options' tab for part numbering

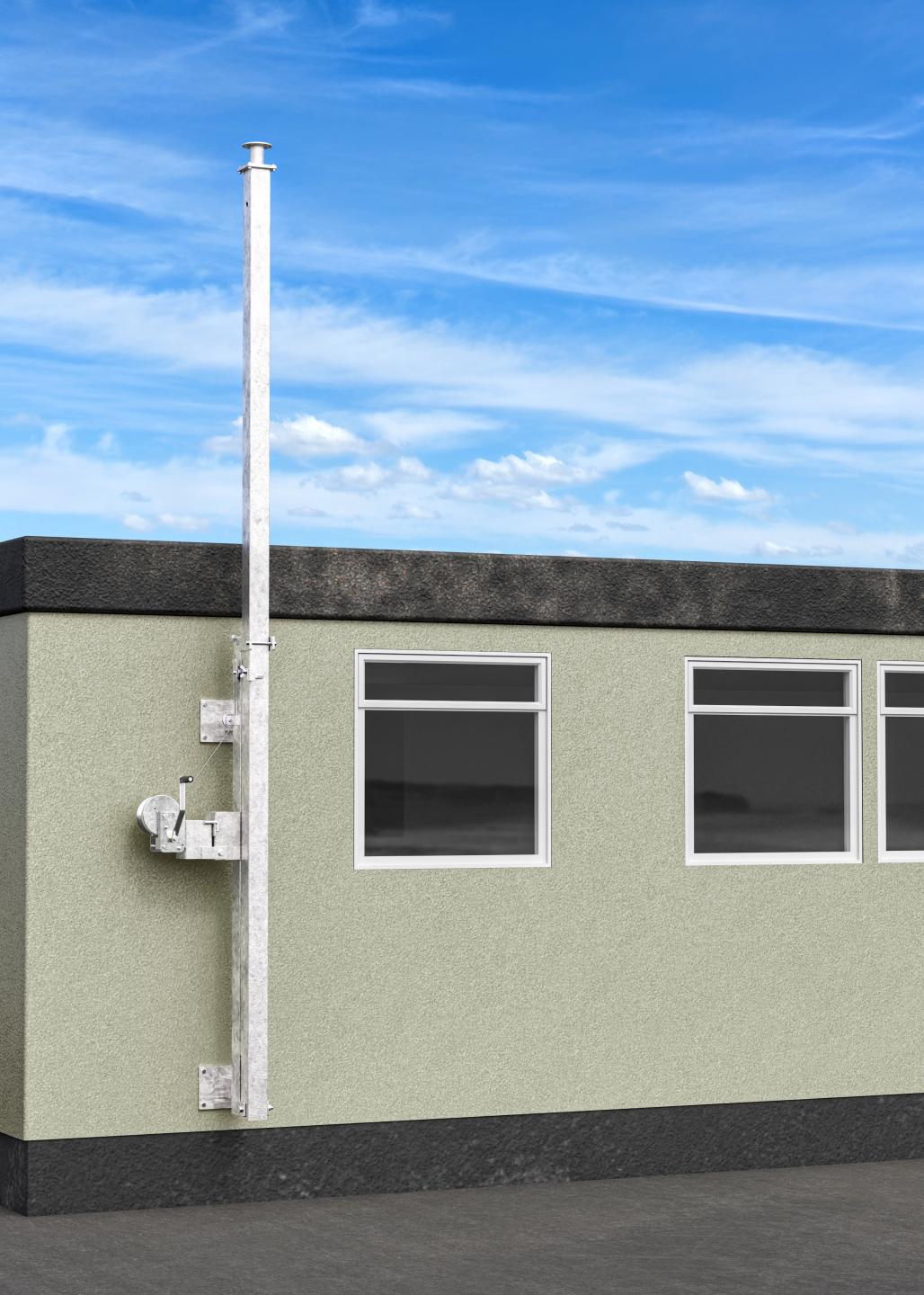

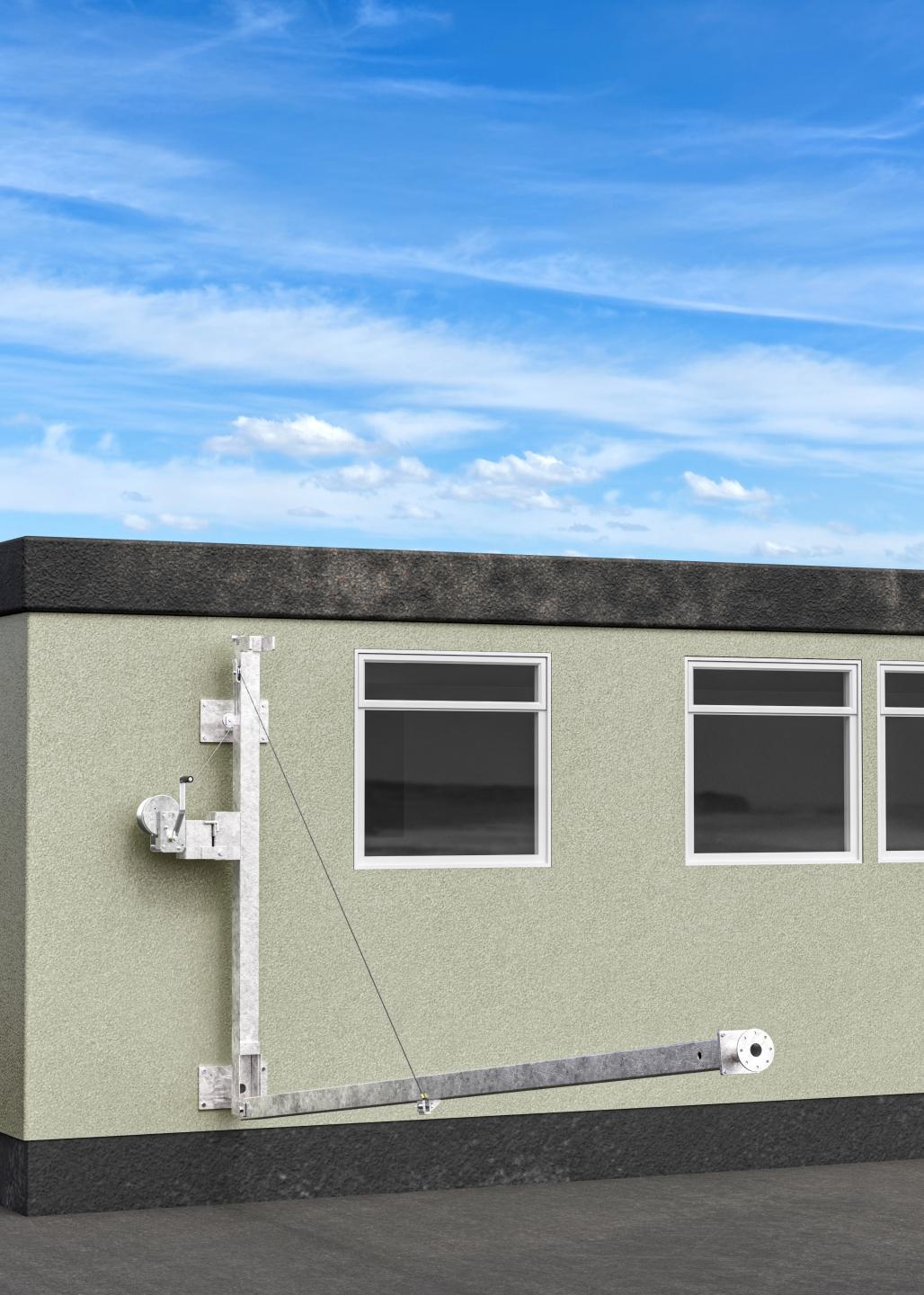

  • Bunker mounted version (AW1980/BM) suitable for wall mounting
  • Both Parapet and Bunker versions can be produced to suit non-wall mount applications, such as clamping to existing girders / RSJ's or steel fenceposts etc.
  • Standard products can be adapted to suit specific site requirements where necessary, depending on suitability of structure
  • Hot dip galvanised finish for longevity
  • 50 year design life

Download Datasheet

Technical

  • Maximum height on parapet mount is 5m
  • Maximum height on bunker mount is 6m

Note ref wall construction for Parapet Mounted

  • Parapets must be of solid construction, ideally pre-cast concrete or steel-framed
  • For brick built parapets, single skin construction is not suitable
  • Parapets where the brickwork is not in good condition are not suitable
  • The minimum parapet height is 1100mm
  • The product head load must not be exceeded
  • In cases where a greater head load is proposed, Altron must be contacted and suitable advice should be sought regarding parapet construction and strength

Note ref wall construction for Bunker Mounted

We have designed the loading and bolt fixing for our wall mounted poles for fixing into good brickwork. For breeze block type walls and brick walls in poor condition, we recommend bolting through the wall and employing a structural engineer, to ensure that the wall is suitable


AW1980

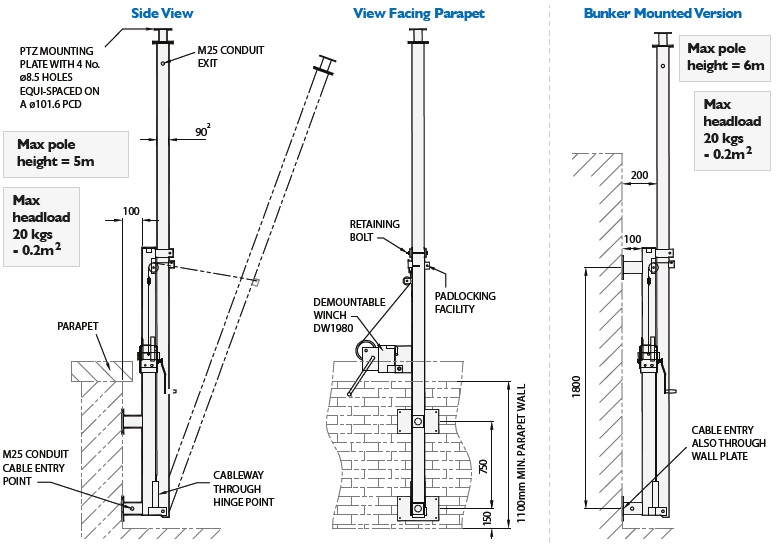

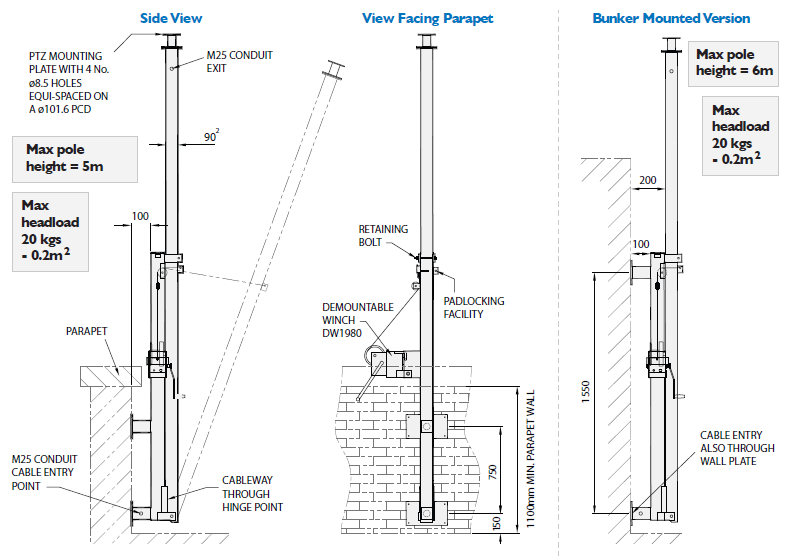

Note: Dimensions shown in the diagram below are for guidance only and should not be used for installation

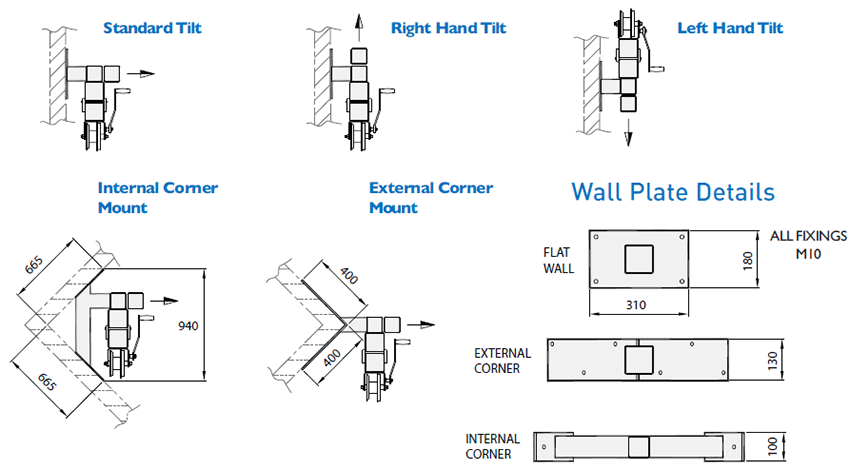

AW1980-Mounting-Bracket-Options

Applicable standards

Design

  • Design analysis carried out using a specialist software package in accordance BS6399 Part 2

Material and Finishing

  • Structural steel hollow sections to EN10219 - EN10025:2004
  • Steel flat angles and structural sections to EN10025, EN10111, EN 10130
  • Fixings - Stainless steel Grade A2, galvanised Grade 4.6, Grade 8.8 to BS4190, BS3692, DIN 931, 934, 601
  • Hot dipped galvanising after fabrication to ISO 1461
  • Painted finish to BS4800 - Option on request

Manufacturing Processes

  • Welding Procedures conform with BS EN 1011:2009, BS EN 9606-1

Winches

  • Wire ropes to BS183:1972, BS EN 13411 3 2004 + A1 2008
  • Winches conform to American ASAE standard S361.IT.

Options


  • Capped Top version - Add /CAPPED suffix :-
    e.g. 4m parapet mount tilt-down + capped top - AW1980/4/CAPPED
    e.g. 5m bunker mount tilt-down + capped top - AW1980/5/BM/CAPPED

  • 2 Part Tilt Section - Add /2P suffix :-
    e.g. 5m parapet mount tilt-down with tilt section in 2 x 2.5m lengths - AW1980/5/2P
    e.g. 6m bunker mount tilt-down with tilt section in 2 x 3m lengths - AW1980/6/2P

  • Tilt away from Parapet / Bunker stand-off is 100mm as standard. Optional stand-off lengths can be provided to suit specific applications - Please contact our Sales office for further details

  • Both Parapet and Bunker versions can be produced to suit non-wall mount applications, such as clamping to existing girders / RSJ's or steel fenceposts etc. - Please contact our Sales office for further details

  • Standard products can be adapted to suit specific site requirements where necessary, depending on suitability of structure - Please contact our Sales office for further details

  • Paint finish over galvanising - To BS / RAL colours on request

Part Numbering


Winch part number for all heights & types = DW1980

Parapet Mount

Refer to the 'Technical' tab for parapet mounting arrangement and 'Mounting Options' tab for diagrams detailing the options

In the part numbers below, replace 'h' with the desired height in metres - Standard heights are 3m, 4m & 5m, with 5m maximum height

AW1980/h                      Standard tilt
AW1980/h/RHT              Right hand tilt
AW1980/h/LHT              Left hand tilt
AW1980/h/C                  Internal Corner
AW1980/h/C-EXT          External Corner

Bunker Mount

Refer to the 'Technical' tab for bunker mounting arrangement and 'Mounting Options' tab for diagrams detailing the options

In the part numbers below, replace 'h' with the desired height in metres - Standard heights are 3m, 4m, 5m & 6m, with 6m maximum height

AW1980/h/BM                   Standard tilt
AW1980/h/BM/RHT           Right hand tilt
AW1980/h/BM/LHT           Left hand tilt
AW1980/h/BM/C               Internal Corner
AW1980/h/BM/C-EXT       External Corner
