AW3288

Ballasted Frame - Roof Mounted Tilt-Down Column - Mid Hinged

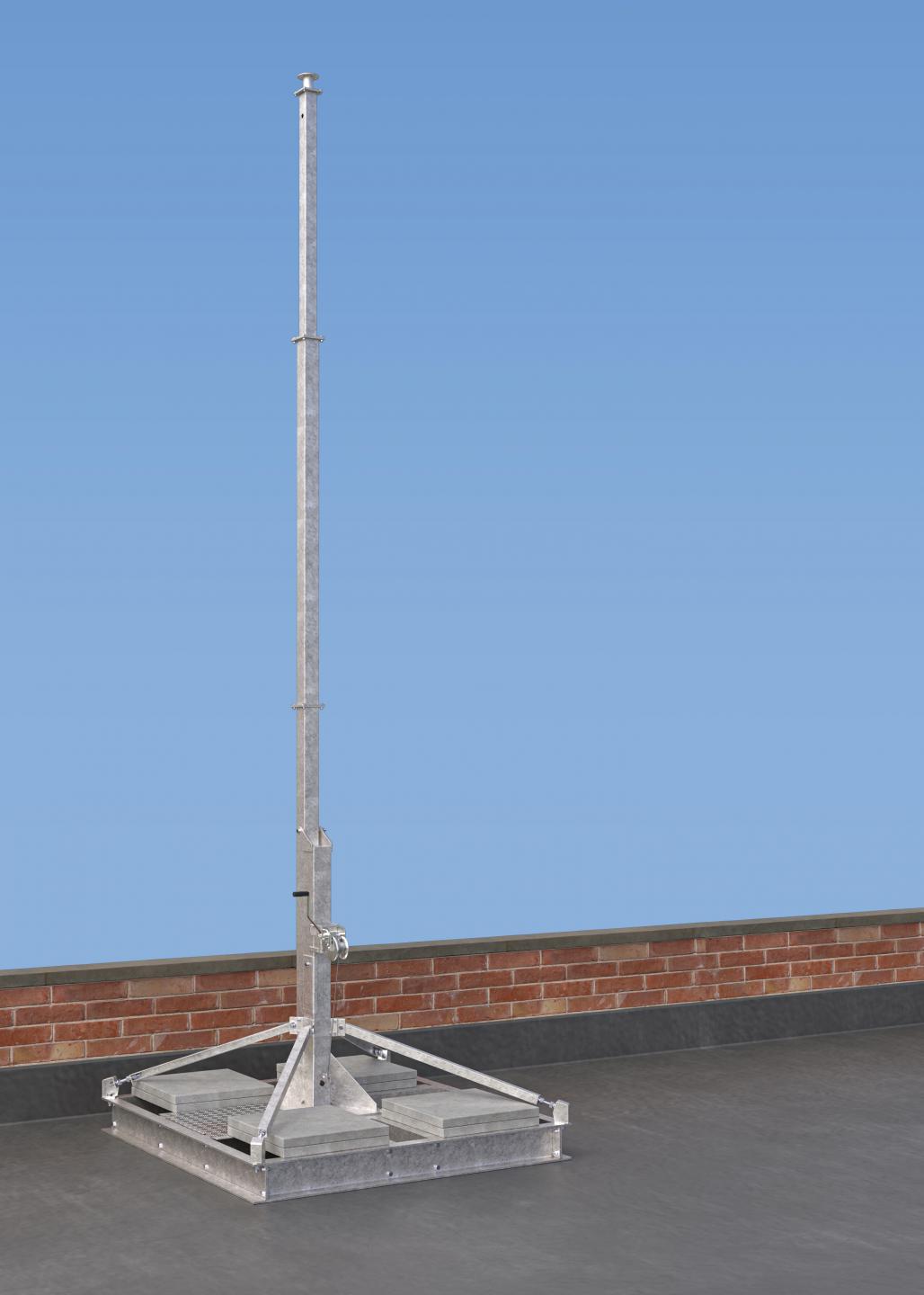

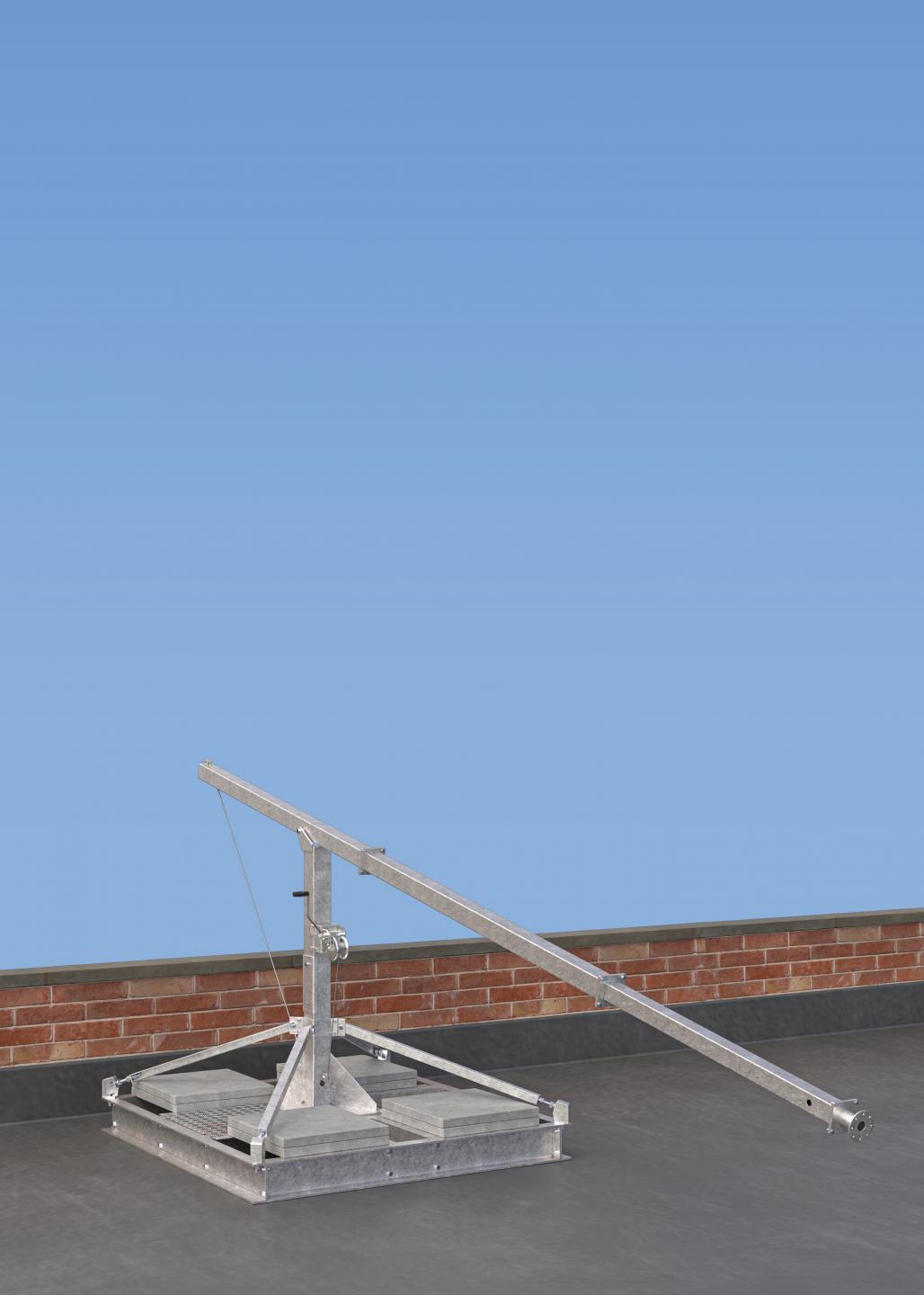

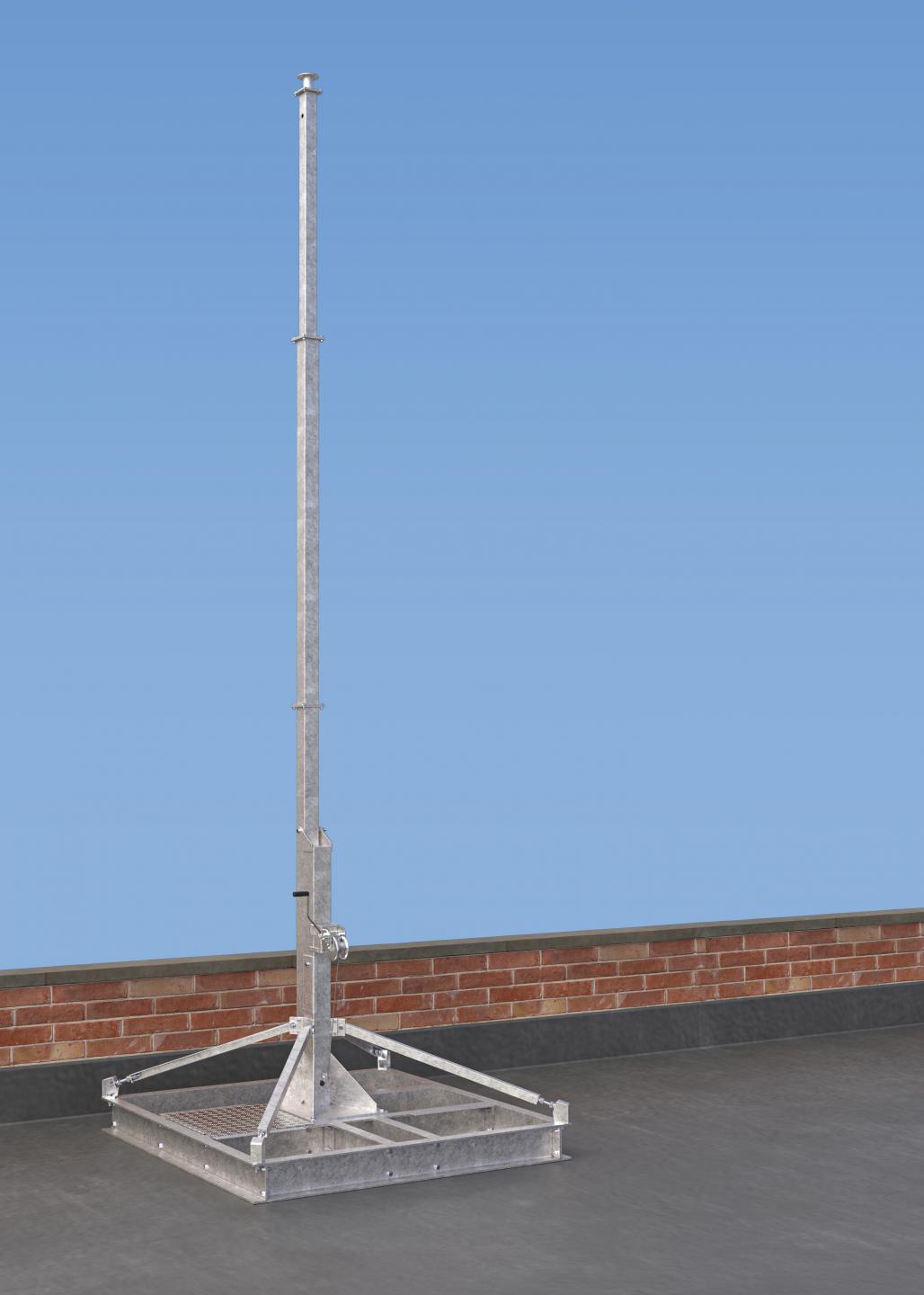

AW3288 - no ballastAW3288 with ballastAW3288 tilted

Features

  • Gain significant clearance above roof height
  • Available in heights from 4m to 6m
  • Can support greater loads than parapet mounted products
  • No need for parapet
  • Better rigidity than parapet mounted products
  • No need to penetrate building membrane
  • Ballast frame is bolt together and supplied in component form with individual parts small enough to man handle and gain access on to roof by lift and through stairwell
  • Demountable winch and padlockable, making a secure installation
  • All standard Altron accessories suitable

Download Datasheet

Technical

Tilt-Down Column Weights
4m = 106kgs
5m = 118kgs
6m = 130kgs

Tilt-Down Column section produced in maximum 2 metre sections as standard to facilitate access onto roof

Ballast Frame Produced in 8 parts of Bolt Together Construction:
Weight = 400kgs
Heaviest Component = 53kgs

Maximum headload:
Camera Weight = 20kgs
Camera Surface Area = 0.2m2

Typical ballast amount 50 - 250kgs per corner depending column height, location and roof height above ground level

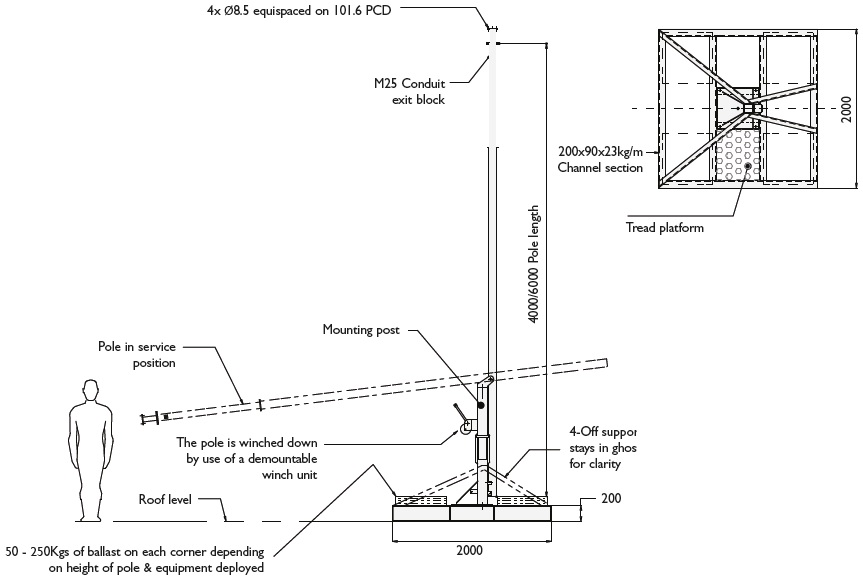

AW3288 diagram

Applicable standards


Design
- Design analysis carried out using a specialist software package in accordance with ILE TR7, BS6399 and BS8100

Material and Finishing
- Structural steel hollow sections EN10219 - EN10025:2004
- Steel flat angles and structural sections EN10025, EN10111, EN 10130
- Fixings: stainless steel Grade A2, galvanised Grade 4.6  Grade 8.8  BS4190, BS3692, DIN 931, 934, 601
- Hot dipped galvanising after fabrication to ISO 1461
- Painting in BS and RAL colours in accordance with BS4800

Manufacturing Processes
- Welding Procedures conform with BS EN 1011:2009, BS EN 9606-1

Winches
- Wire ropes to BS183:1972, BS EN 13411 3 2004 + A1 2008
- Winches conform to American ASAE standard S361.IT.

Winch Part Number - DW1000AC
