Products Pole & Tower - Camera Brackets BCB-T

BCB-T

Top Mount - Bullet Camera Brackets

BCB_T1BCB_T2BCB_T3BCB_T4BCB-T1-SPTBCB-T2-SPTPOB1-1000-BCB

Altron Bullet Camera Brackets are a simple and cost-effective way of mounting Bullet Cameras on top of all Altron pole, tower and column products.
They can be provided for any Bullet Camera, just specify the camera make and model number when ordering.
Cableway allows internal cabling through bracket and mounting top plate, enabling a neat, secure Bullet Camera installation.

Features

  • Max load rating 5kgs per mounting position
  • Internal cableways in all bracket options
  • Can be produced to include any additional camera dome mounting configuration
  • These are made to order items as camera mounting plates are made specifically - lead times typically 7-14 days.

Download Datasheet

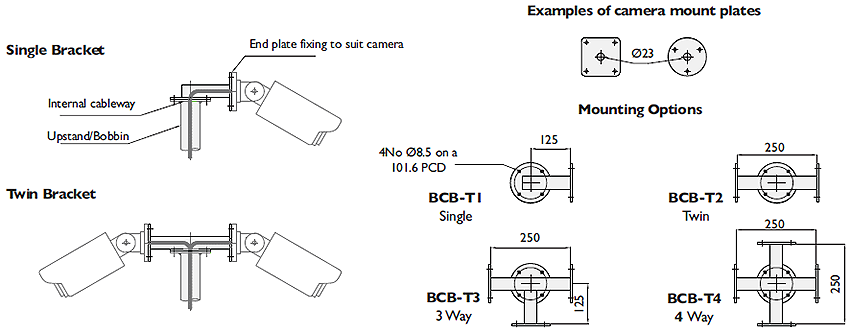

    We produce bullet camera brackets to suit all mounting scenarios. Standard bracket options are shown in these tabs, but essentially we can produce any of our camera bracket products for bullet camera mounting.

    Part number Description Bracket Weight

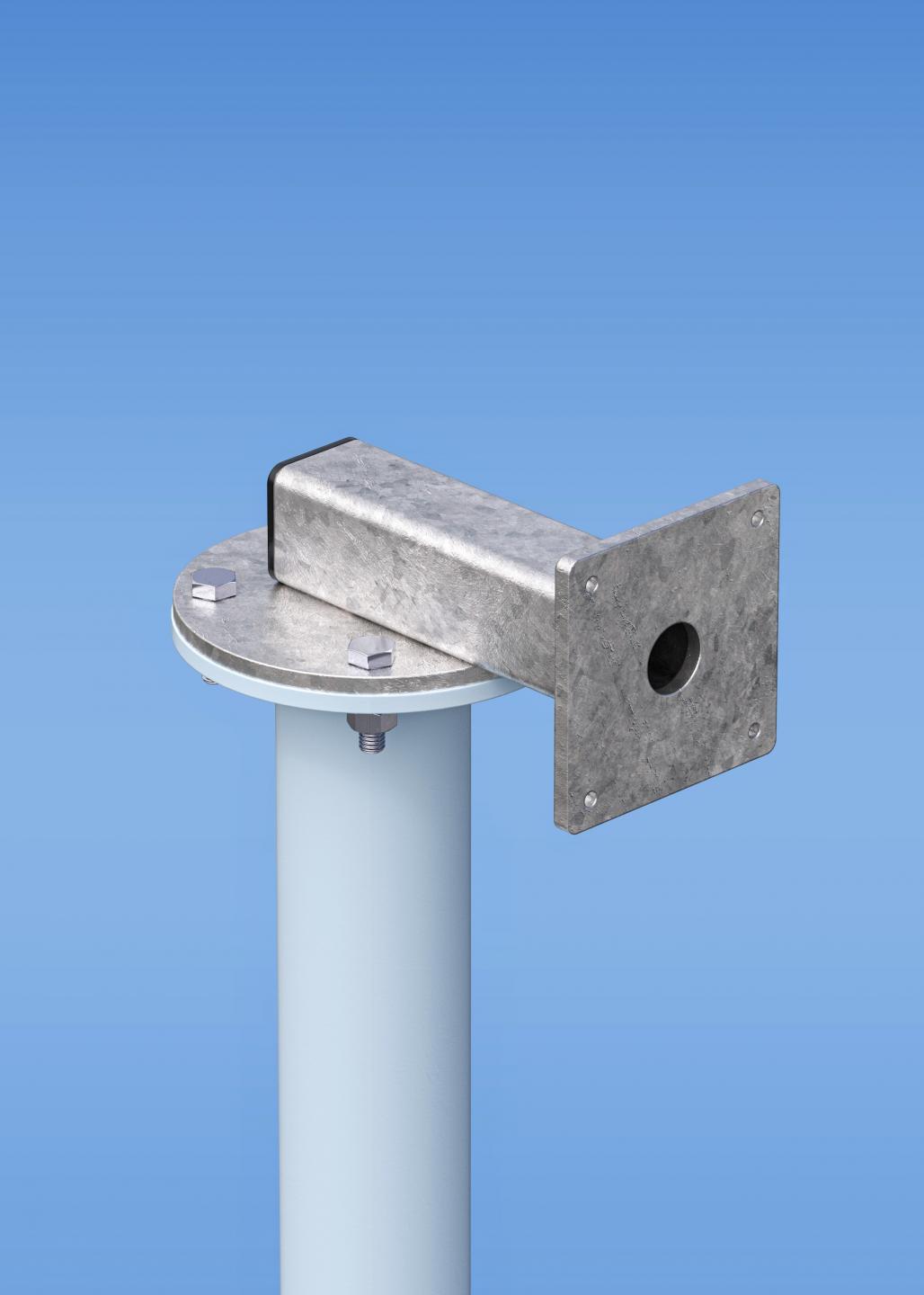

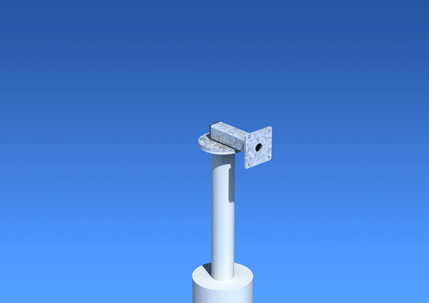

    BCB-T1 Single top mounting bracket      1.5kgs

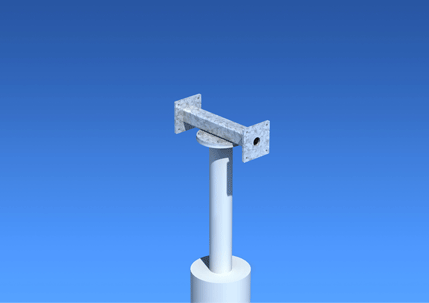

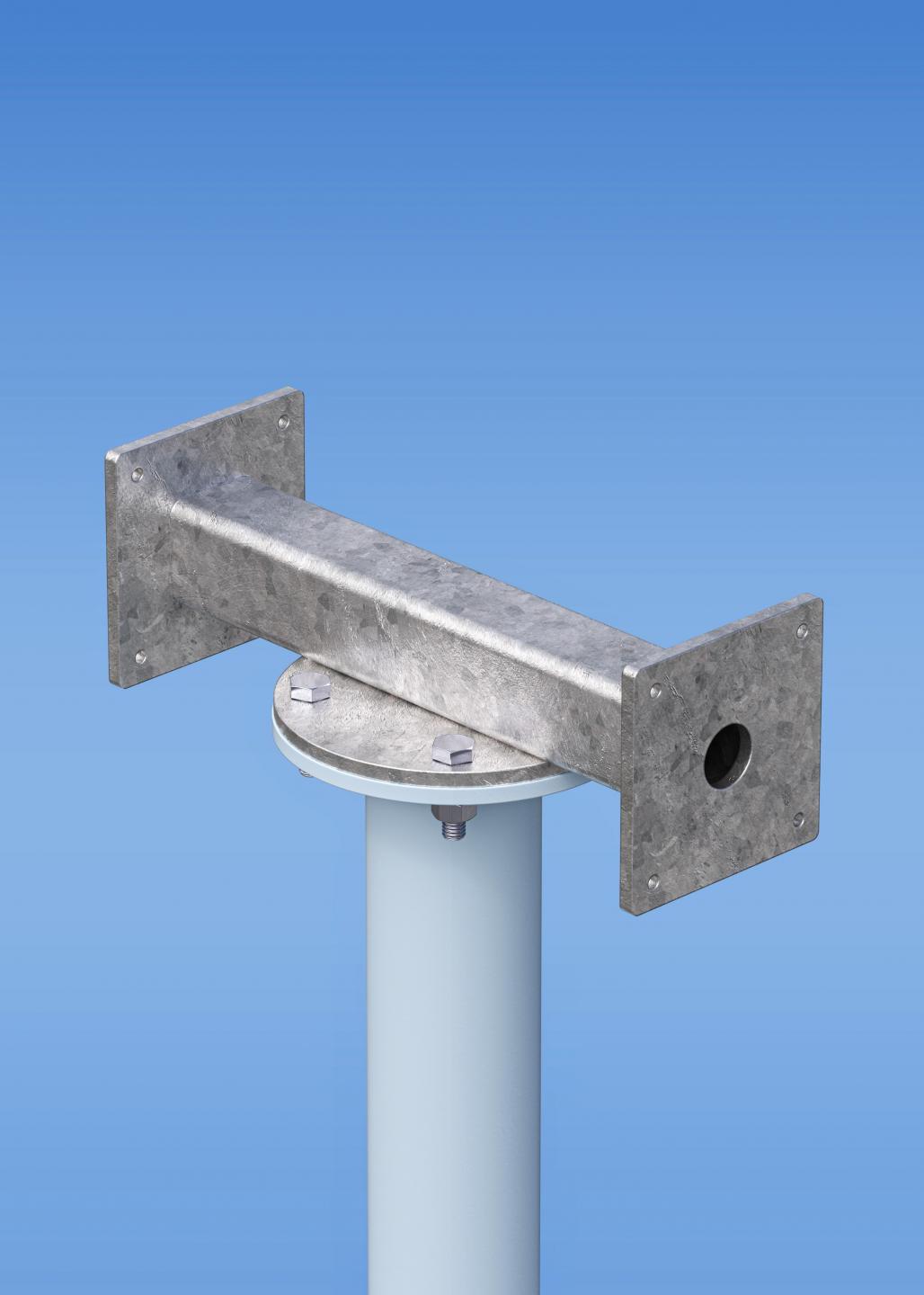

    BCB-T2 Twin top mounting bracket      2.2kgs

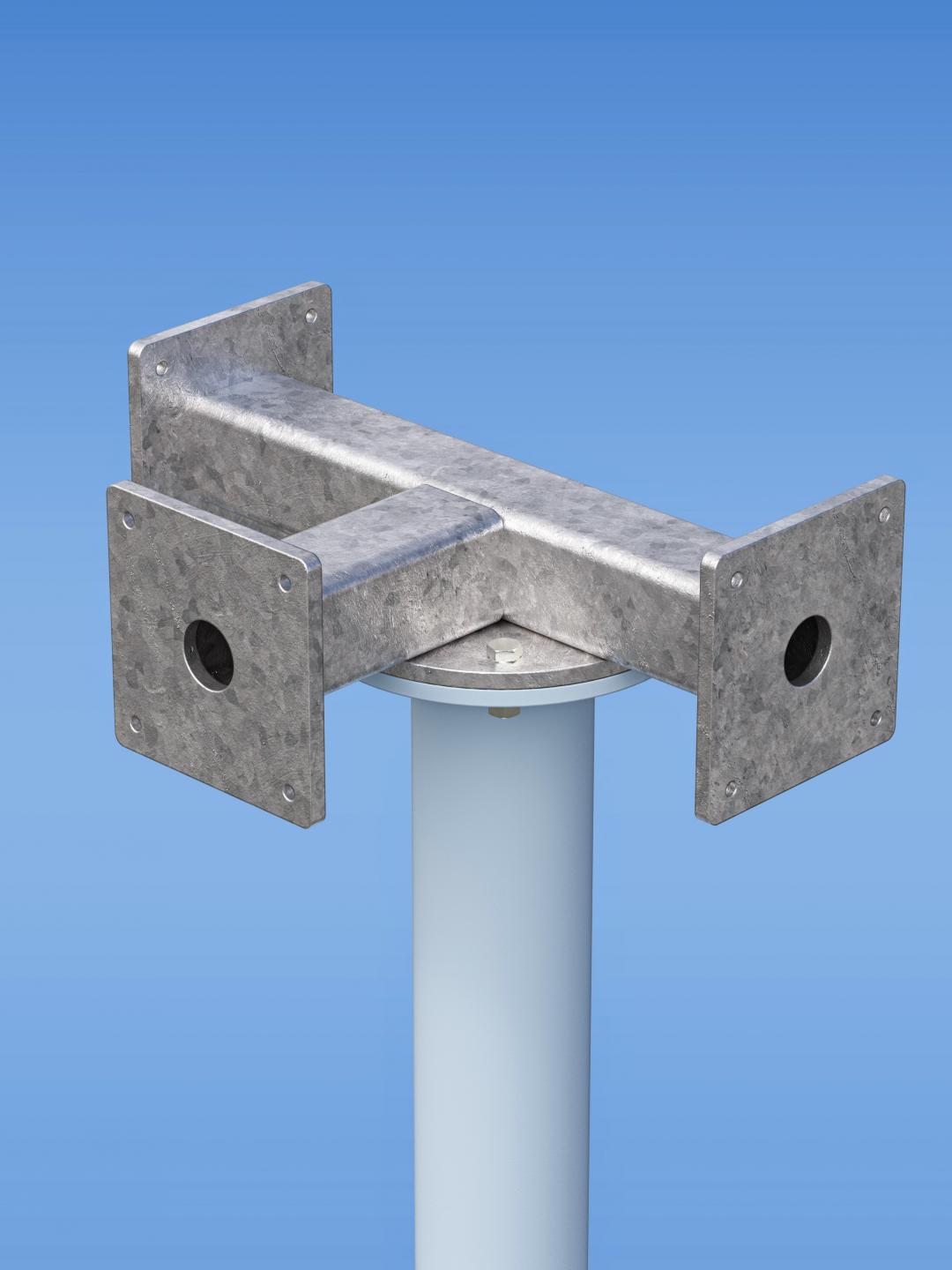

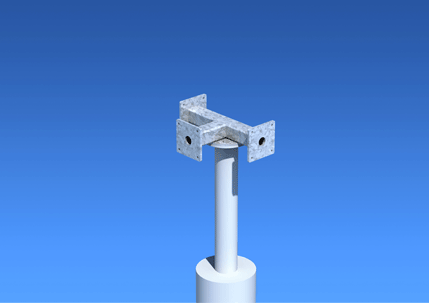

    BCB-T3 3 way top mounting bracket       2.9kgs

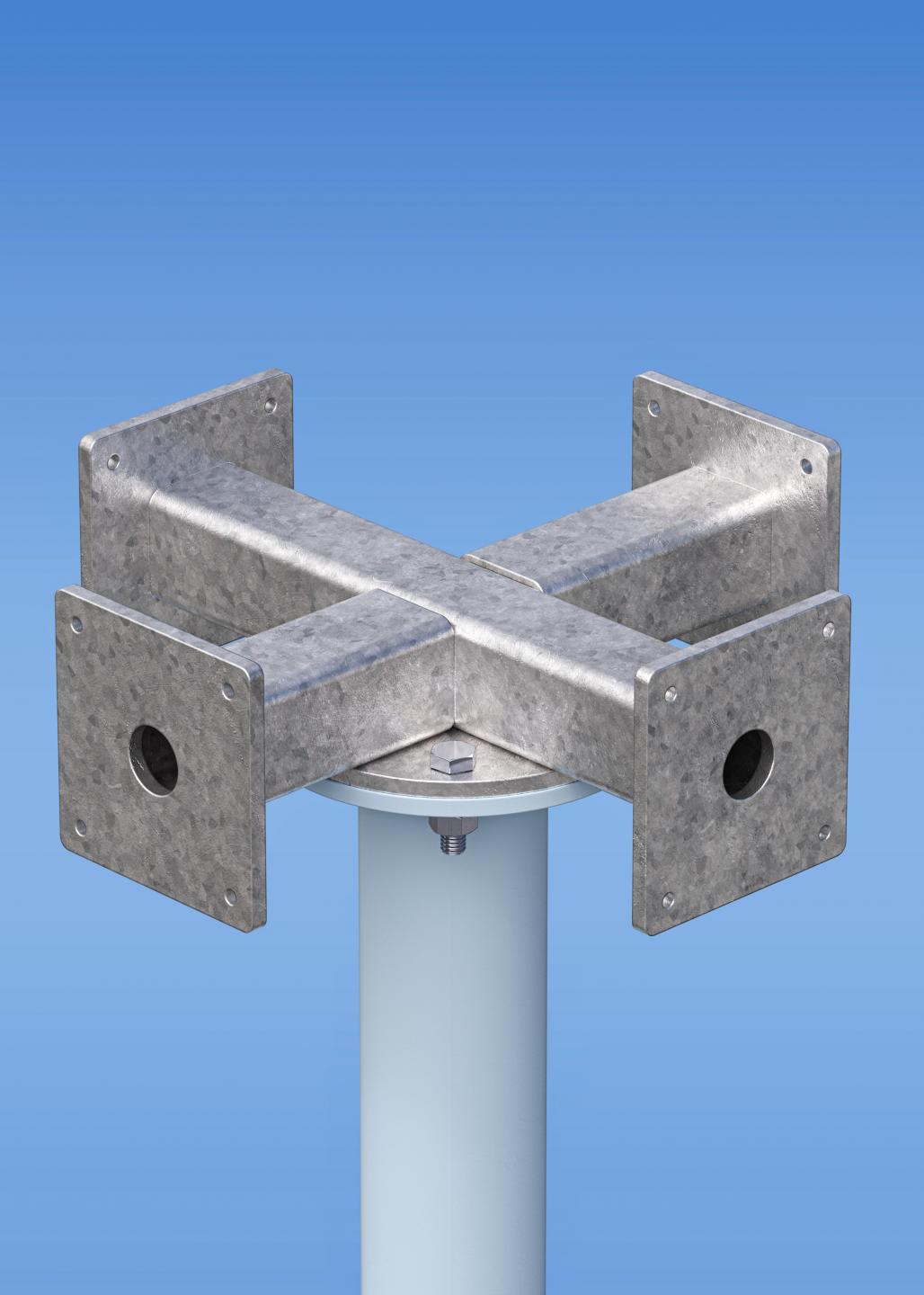

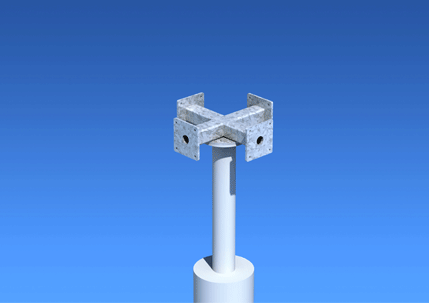

    BCB-T4 4 way top mounting bracket      3.6kgs


    Please specify bullet camera make & model number when ordering

    BCB-T


    Please specify bullet camera make & model number when ordering

    Alternative mounting options - Refer to the 'Options & Part Numbering' tab for further info :-

    • Central mount upstand for camera or dome swan neck mounting
    • Twin bracket with arms at 90o
    • Triple bracket with arms in 'manx' orientation
    • Increased arm lengths

    For clamp-on pole mount (tubular poles) and column mount (square section columns) versions - see BCB-P

    Construction and finish

    • Produced in high tensile steel
    • Hot dip galvanised for longevity
    • Fixings are stainless steel grade A2
    • Painted finish to BS4800 - Option on request

    Options

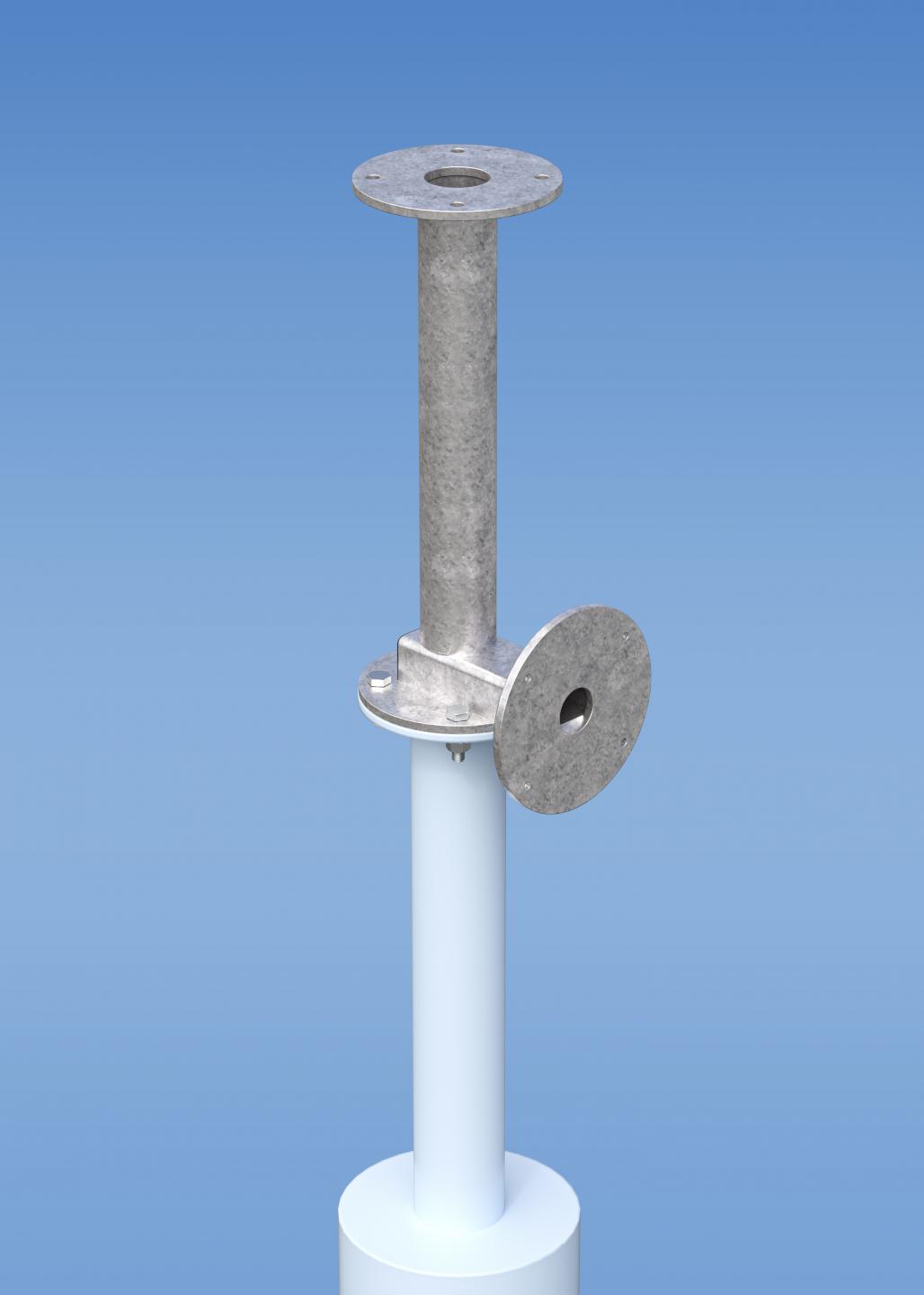

    • A central mount upstand for PTZ camera or dome swan neck bracket mounting can be supplied, add /SPT suffix to bracket part number

      BCB-T1/SPT               Single bracket with PTZ / swan neck upstand

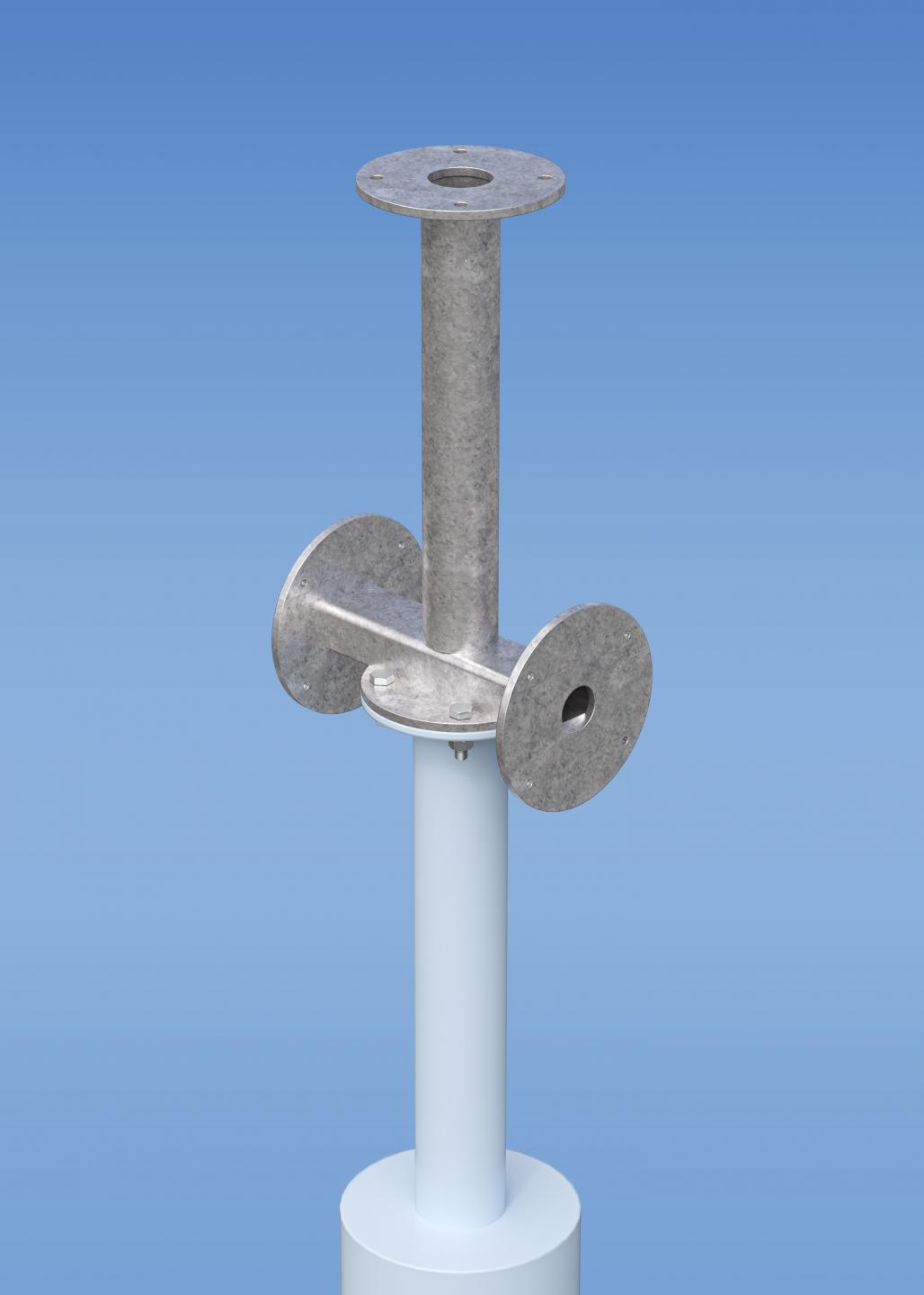

      BCB-T2/SPT               Twin bracket with PTZ / swan neck upstand
      BCB-T3/SPT               3 way bracket with PTZ / swan neck upstand
      BCB-T4/SPT               4 way bracket with PTZ / swan neck upstand

      The additional upstand will add less than 2kg to the bracket weight

    • Twin bracket with arms at 90o - BCB-T2/90DEG

    • Triple bracket with arms in 'manx' orientation - BCB-T3/MANX

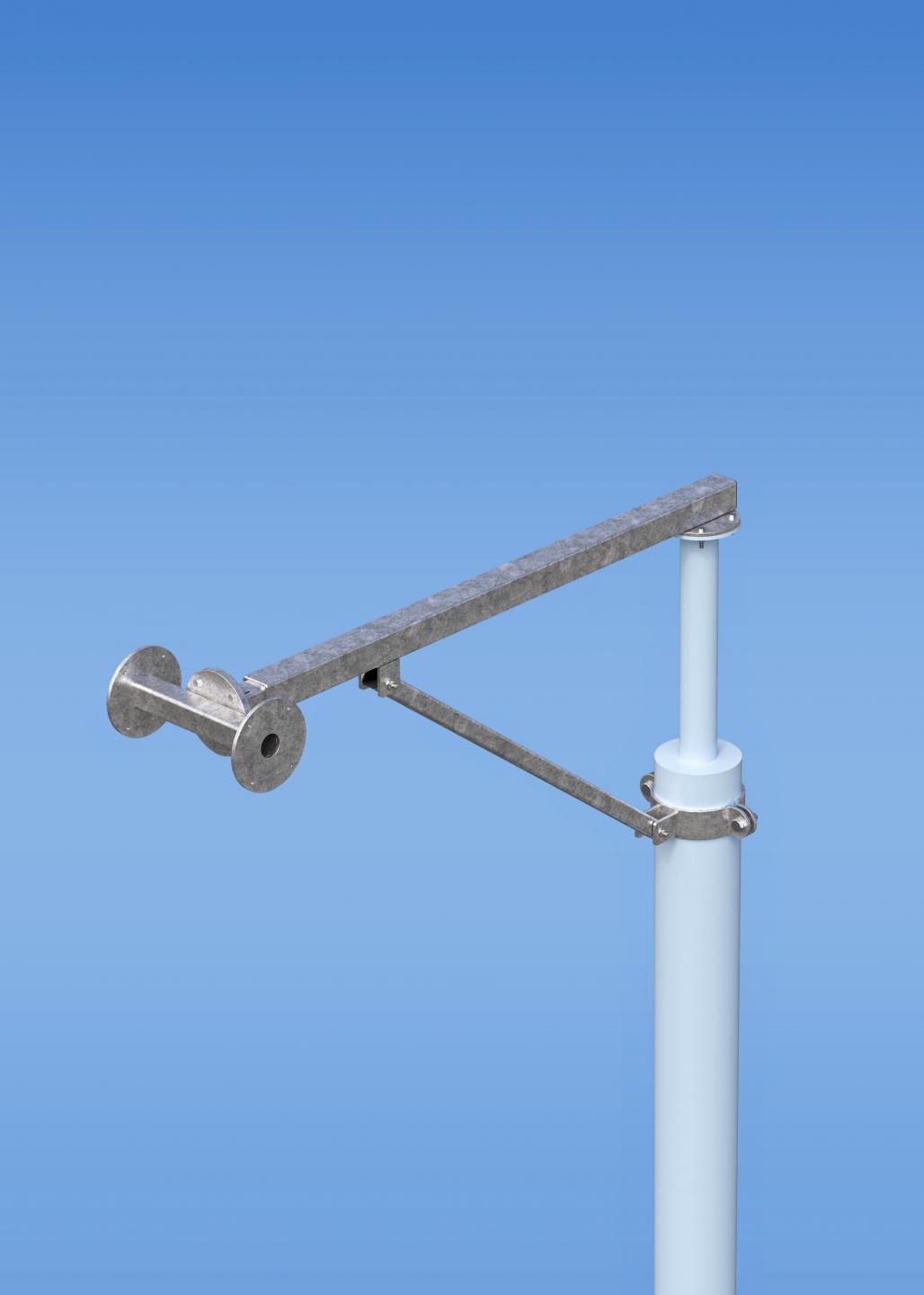

    • Increased arm lengths available to suit specific site requirements - Please contact our Sales office for further details

    Part Numbering

    Standard bracket part numbers below :-

    BCB-T1               Single bracket
    BCB-T2               Twin bracket
    BCB-T3               3 way bracket
    BCB-T4               4 way bracket

    Brackets are produced with camera mounting plates to suit specific bullet cameras.

    Please specify camera make and part number along with any specific mounting requirements when ordering
