Products Pole & Tower - Camera Brackets BCB-P

BCB-P

Clamp-on Pole Mount - Bullet Camera Brackets

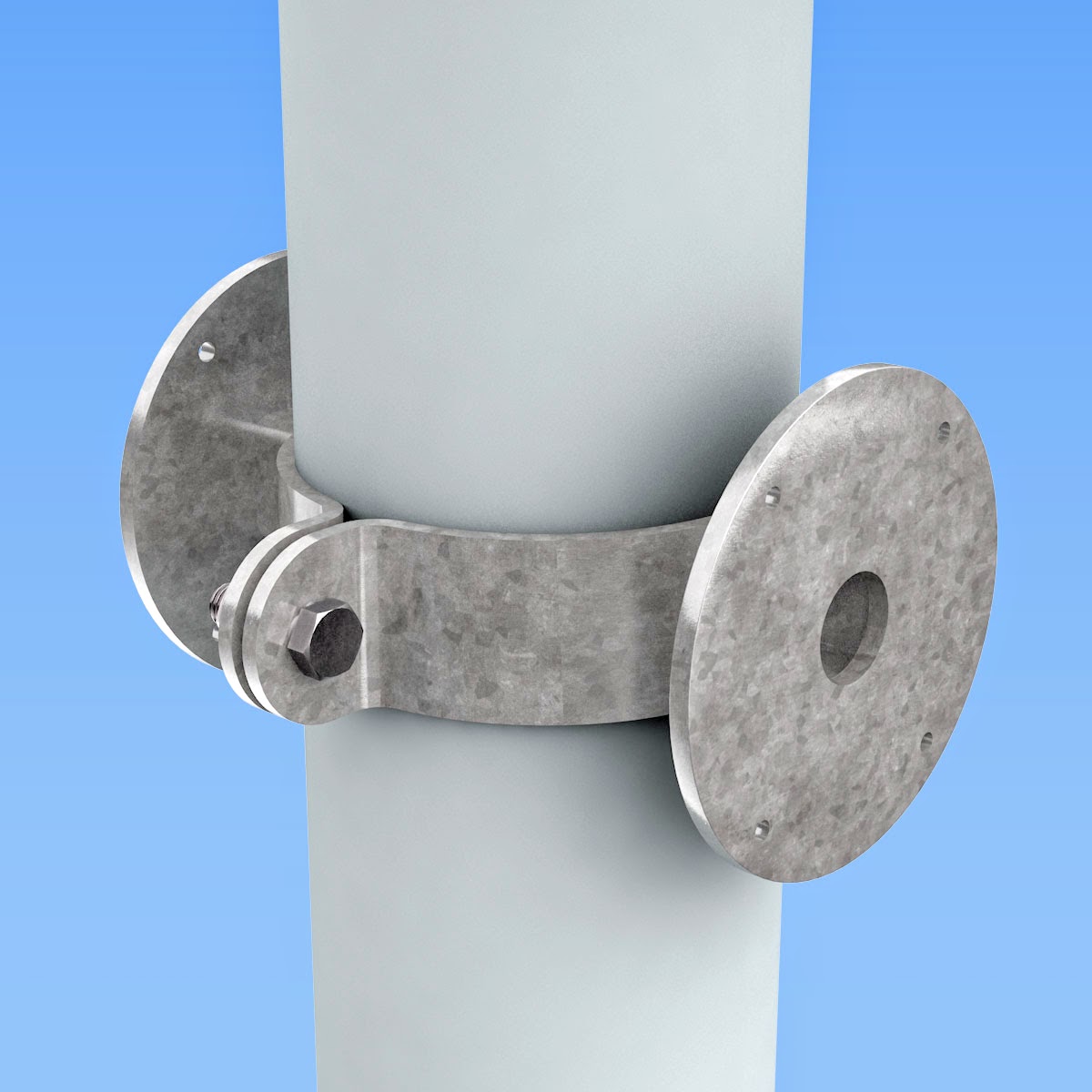

BCB-P2

Altron pole mounted Bullet Camera Brackets are a simple and cost-effective way of mounting Bullet Cameras on to tubular poles and where required, box section columns.
They can be provided for any Bullet Camera, just specify the camera make and model number when ordering.
Cableway allows internal cabling through bracket and mounting top plate, enabling a neat, secure Bullet Camera installation.

Features

  • Max load rating 5kgs per mounting position
  • Internal cableways in all bracket options
  • Can be produced to include any additional camera dome mounting configuration
  • These are made to order items as camera mounting plates are made specifically - lead times typically 7-14 days.

Download Datasheet

    Part number Description Bracket Weight
    BCB-P1(Ø) Single clamp-on pole mount bracket      tbc kgs
    BCB-P2(Ø) Twin clamp-on pole mount bracket      tbc kgs
    BCB-P3(Ø) 3 way clamp-on pole mount bracket       tbc kgs
    BCB-P4(Ø) 4 way clamp-on pole mount bracket      tbc kgs


    Ø* - Insert pole diameter - e.g. for single clamp-on bracket to suit 139mm diameter pole - BCB-P1(139)

    Please specify bullet camera make & model number when ordering


    Part number Description Bracket Weight
    BCB-C1(◻SQ) Single clamp-on column mount bracket      tbc kgs
    BCB-C2(◻SQ) Twin clamp-on column mount bracket      tbc kgs
    BCB-C3(◻SQ) 3 way clamp-on column mount bracket       tbc kgs
    BCB-C4(◻SQ) 4 way clamp-on column mount bracket      tbc kgs


    ◻SQ* - Insert column square section size - e.g. for twin clamp-on bracket to suit 100mm box section - BCB-C2(100SQ)

    Please specify bullet camera make & model number when ordering

    Images Coming Soon

    Please specify bullet camera make & model number when ordering

    Alternative mounting options - Refer to the 'Options & Part Numbering' tab for further info :-

    • Twin bracket with arms at 90o
    • Increased arm lengths
    • Can be supplied to suit horizontal structures, tubular or square section

    For top mount bracket versions - see BCB-T

    Download Datasheet

    Construction and finish

    • Produced in high tensile steel
    • Hot dip galvanised for longevity
    • Fixings are stainless steel grade A2
    • Painted finish to BS4800 - Option on request

    Options

    • Twin brackets can be supplied with arms at 90o (standard is 180o) - Add -90DEG to end of part number :-
      e.g. To suit 139mm diameter pole - BCB-P2(139)-90DEG
      e.g. To suit 100mm square section column - BCB-C2(100SQ)-90DEG

    • Brackets can be supplied to suit horizontal structures, tubular or square section - Insert -HZ after pole diameter or square section size :-
      e.g. Single to suit 114mm diameter pole - BCB-P1(114-HZ)
      e.g. Single to suit 90mm square section column - BCB-C1(90SQ-HZ)

    • Increased arm lengths available to suit specific site requirements - Please contact our Sales office for further details

    Part Numbering

    Part number examples :-

    BCB-P3(114) - 3 way clamp-on pole mount bracket to suit 114mm diameter
    BCB-P4(139) - 4 way clamp-on pole mount bracket to suit 139mm diameter

    BCB-C1(80SQ) - Single clamp-on column mount bracket to suit 80mm square section
    BCB-C2(90SQ) - Twin clamp-on column mount bracket to suit 90mm square section
