CMB-SF

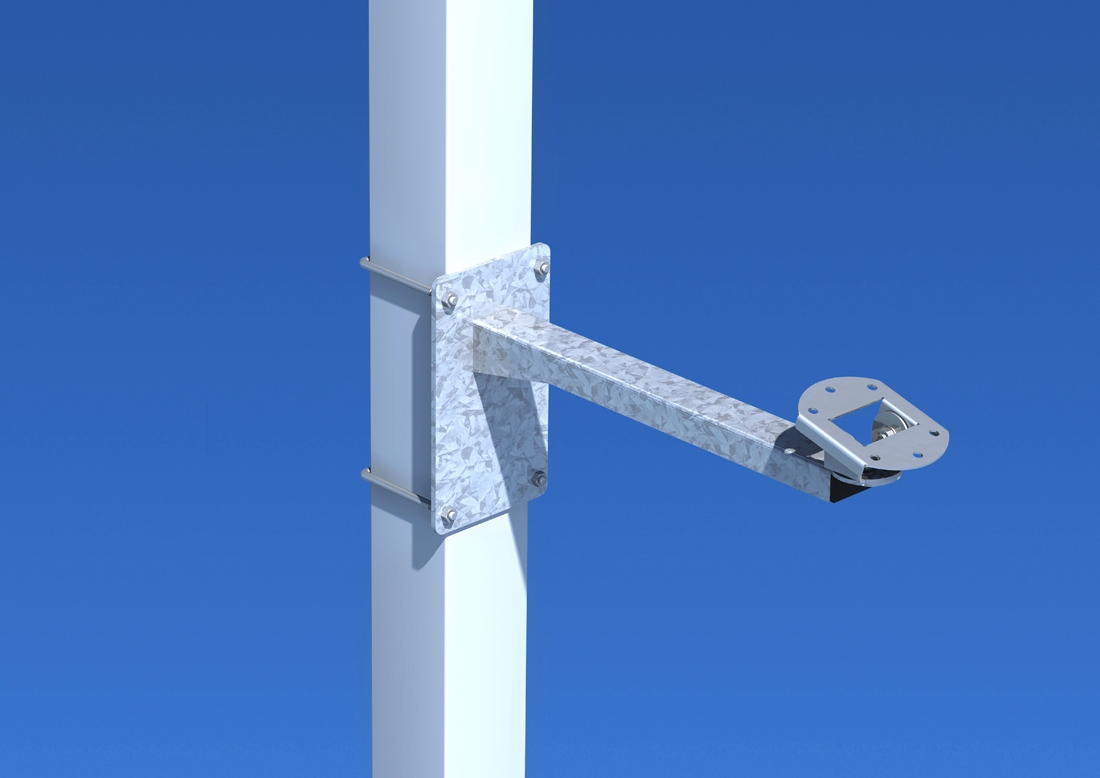

Fixed Camera Column Mounting Bracket
Stock item - see 'Technical' tab for sizes held

CMB-SF

Features

  • Robust bracket to suit Altron ACC column ranges and other square section columns
  • Common sizes stocked
  • Hot dipped galvanised finish
  • Standard 101.6 PCD CCTV camera mount fixing holes
  • PTS-1 and HAS-1 knuckles can be produced to suit any non standard camera housing (made to order)
  • PTZ version also available

  • Load Capacities - depending on column spare capacity
    With standard PTS-1 fitted - 10kgs
    With optional HAS-1 fitted - 20kgs

Download Datasheet

CMB-SF-PG78 tech

Part
Number
Box Section
Size
 Weight
CMB 70SF    Stock item 70 x 70 3.75kgs
CMB 80SF    Stock item 80 x 80 3.9kgs
CMB 90SF    Stock item 90 x 90 4kgs
CMB 100SF  Stock item 100 x 100 4.3kgs
CMB 120SF 120 x 120 4.6kgs
CMB 150SF 150 x 150 5kgs
CMB 200SF 200 x 200 5.75kgs

Construction and finish

  • Produced in high tensile steel
  • Hot dip galvanised for longevity
  • Knuckles in grade 304 stainless steel
  • Fixings are stainless steel grade A2
  • Powder coated finish to BS & RAL colours on request
