POB1-SPT

Pole Top Offset Arm PTZ Camera Mounting Bracket
Stock item - 1000mm Offset stocked, see 'Technical' tab for pole diameters held

POB-1000-SPT

Features

  • Provides offset from top of pole or column to enable view not achievable when camera is mounted centrally
  • Robust fabricated steel construction
  • Hot dipped galvanised finish
  • Standard 101.6 PCD CCTV camera mount fixing hole
  • Can be produced to suit any camera type (made to order)

Download Datasheet

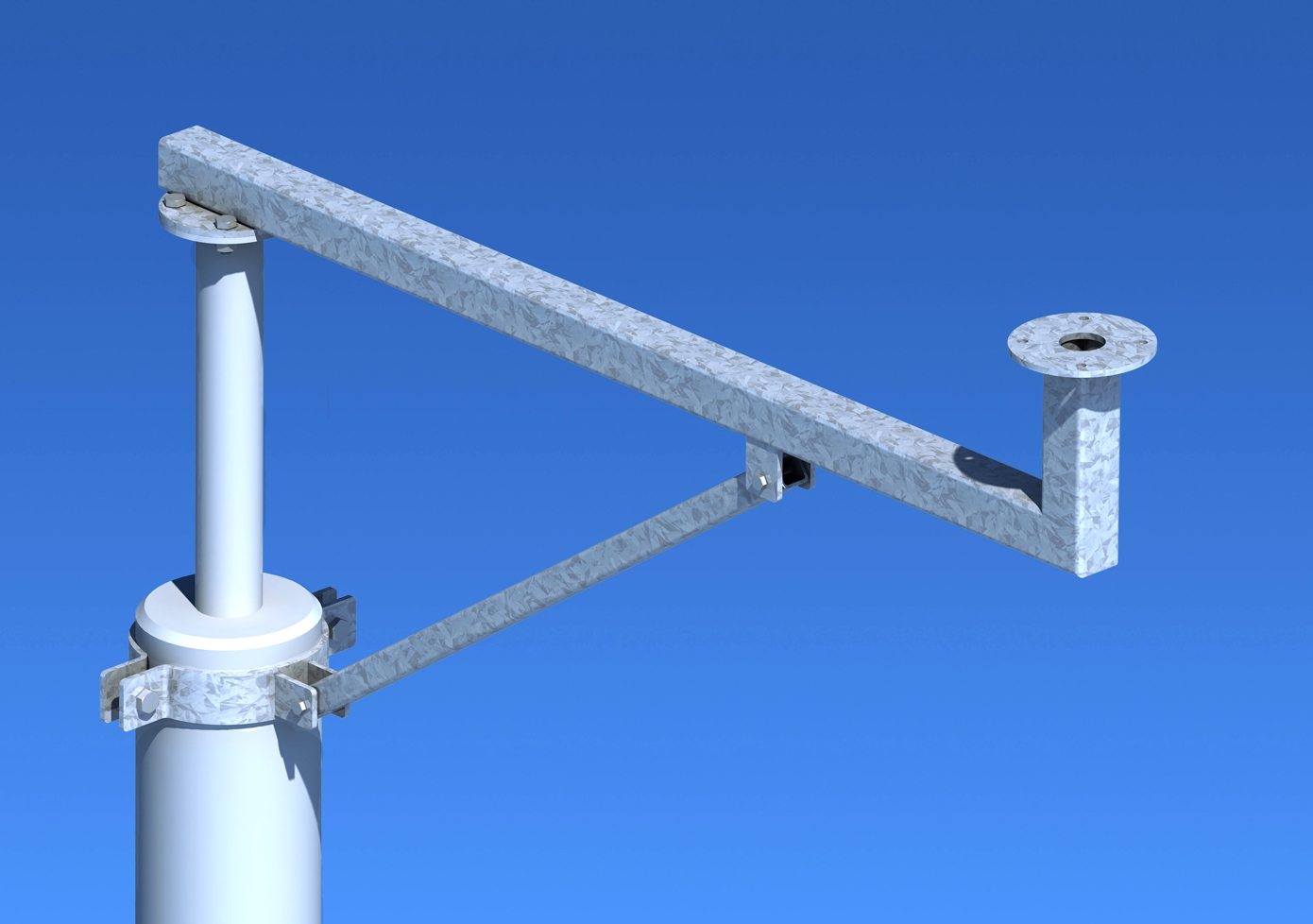

POB1-168-1000-SPT-PG80 tech

For extended offset brackets over 600mm, it is important than on tilt-down products, the arm is orientated in the direction of tilt.


Part Number Outreach Load capacity Bracket Weight
POB1-(Ø*)-600/SPT 600mm     25kgs 9.75kgs
POB1-(Ø*)-1000/SPT Stock item 1000mm     25kgs 12kgs
POB1-(Ø*)-1200/SPT 1200mm     20kgs 13kgs
POB1-(Ø*)-1500/SPT 1500mm     15kgs 15kgs



Stock items held for the following 1000mm offset pole diameters - Ø139mm, Ø168mm & Ø219mm

Add (Ø*) pole diameter - e.g. for 168mm diameter pole with 1000mm outreach - POB1-168-1000/SPT

All part numbers noted above are for brackets to fit tubular poles. For brackets to fit box section columns replace POB1 prefix with COB1 and state column section size - e.g. for a 100mm box section column with 1500mm outreach - COB1-100-1500/SPT

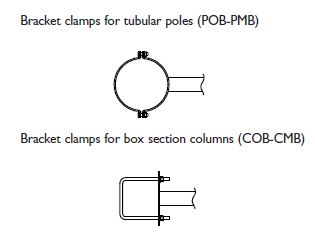

PMB-CMB (1)

Construction and finish

  • Produced in high tensile steel
  • Hot dip galvanised for longevity
  • Fixings in stainless steel grade A2
  • Powder coated finish to BS & RAL colours on request
