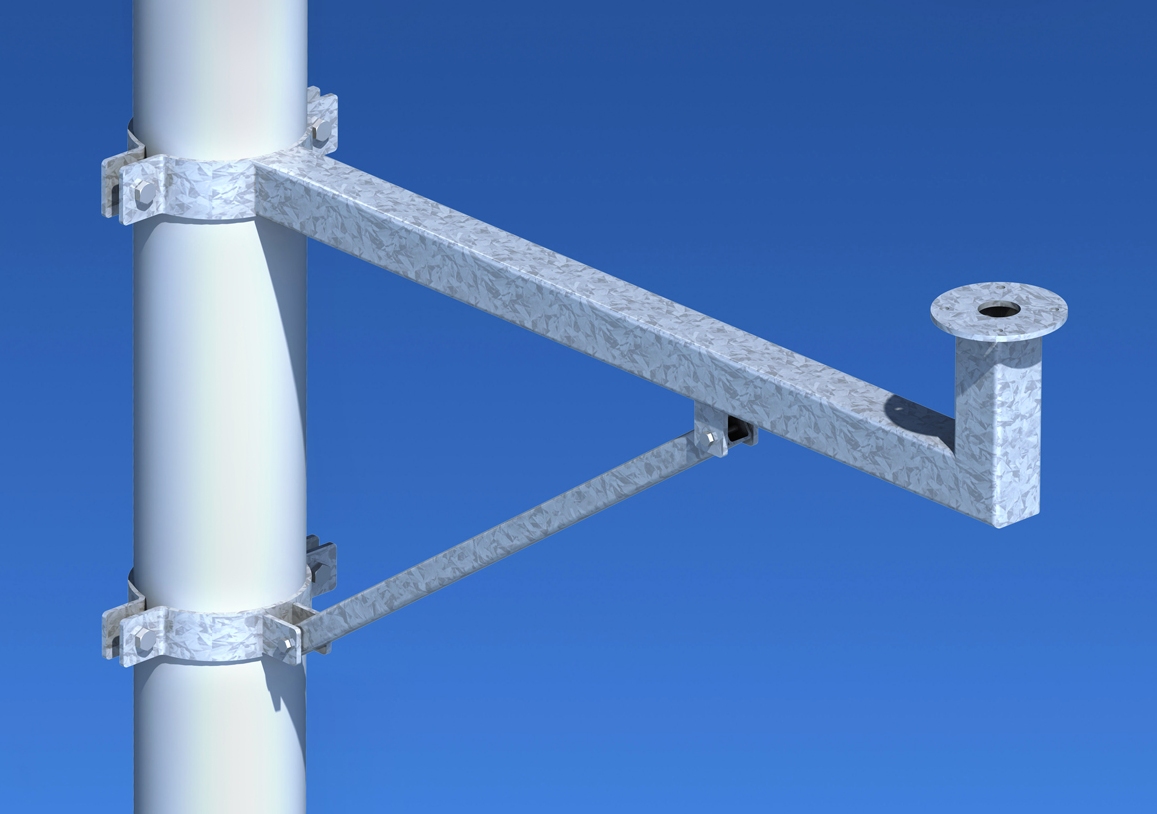

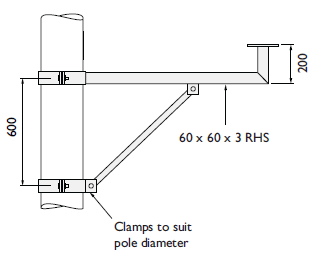

For extended offset brackets over 600mm, it is important than on tilt-down products, the arm is orientated in the direction of tilt.
| Part Number | Outreach | Load Capacity | Bracket Weight |
| PMB-(Ø*)-600/SPT | 600mm | 25kgs | 11.5kgs |
| PMB-(Ø*)-1000/SPT | 1000mm | 25kgs | 14kgs |
| PMB-(Ø*)-1200/SPT | 1200mm | 20kgs | 15.75kgs |
| PMB-(Ø*)-1500/SPT | 1500mm | 15kgs | 17.5kgs |
Add (Ø*) pole diameter - e.g. for 219mm diameter pole with 1500mm outreach - PMB-219-1500/SPT

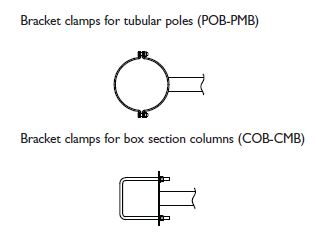

All part numbers noted above are for brackets to fit tubular poles. For brackets to fit box section columns replace PMB prefix with CMB and state column section size - e.g. for a 150mm box section column with 1000mm outreach - CMB-150-1000/SPT
Construction and finish
-
Produced in high tensile steel
-
Hot dip galvanised for longevity
-
Fixings are stainless steel grade A2
-
Powder coated finish to BS & RAL colours on request
