PT-1689-N

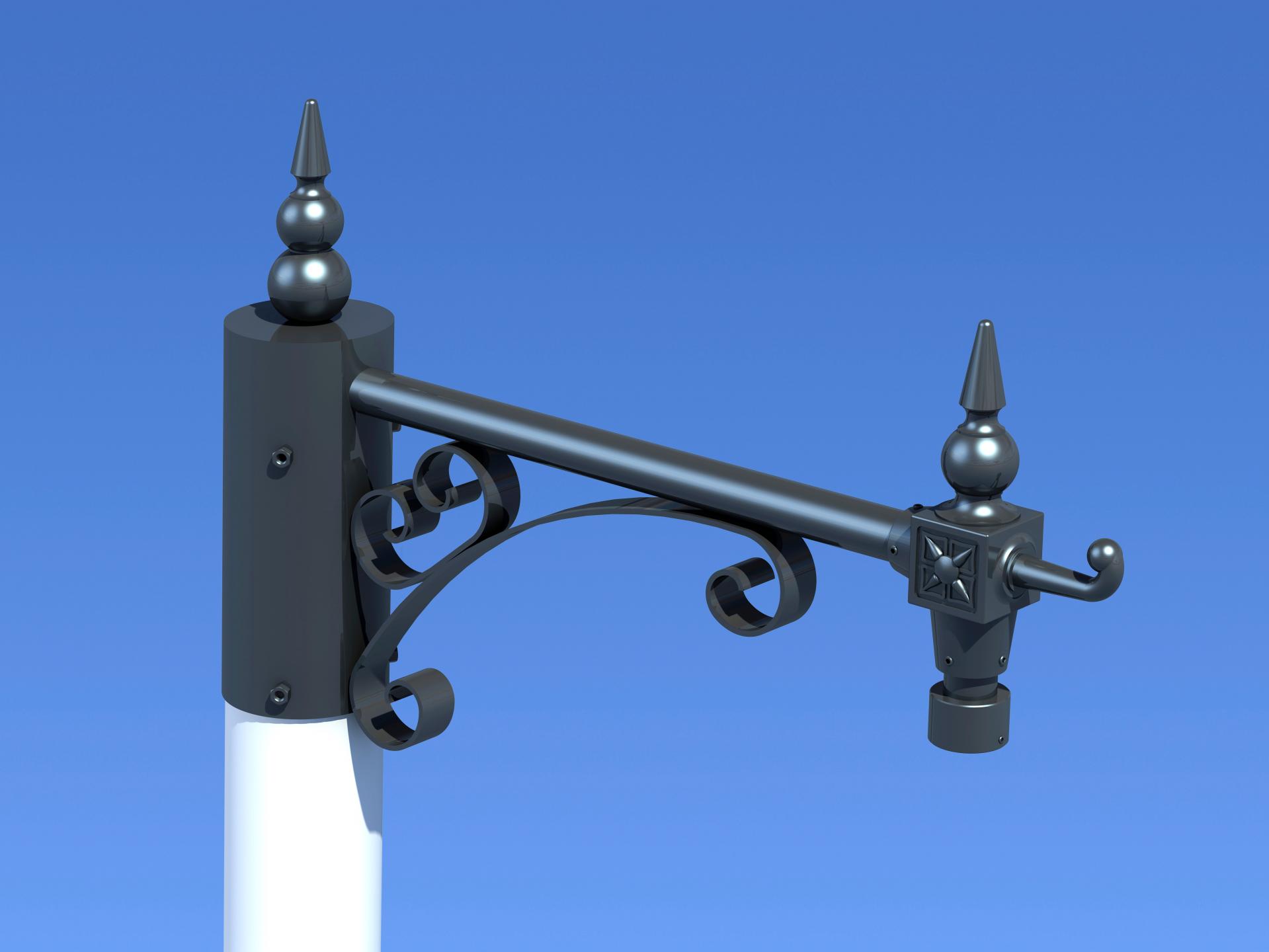

Ornate Pole Top Dome Camera Mounting Bracket

PT-1689-N

Features

  • Ornate CCTV camera bracket to fit the top of Altron ornate poles
  • Genuine scrolls and cast finials produce authentic installations
  • Cabling for dome concealed through bracket arm
  • Can be produced to suit any dome type - See 'Options' tab for common sizes
  • Available for twin, triple and quadruple dome mounting options
  • Hot dipped galvanised with powder coat or painted finish

Download Datasheet

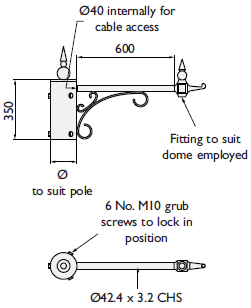

PT-1689-N1



Please specify dome make & model number when ordering

Brackets available in all 3 styles, other styles made to order

Ornate Styles

Construction and finish

  • Produced in high tensile steel
  • Hot dip galvanised for longevity
  • Fixings in stainless steel grade A2
  • Power coated or painted finish to BS & RAL colours

Part Numbering

For part number add (Ø*) pole diameter - e.g. for Altron 139mm diameter pole with Spigot Top - PT-1689-N/139

Dome Adaptors

Please specify dome make & model number when ordering, or dome fitting size / type - Common sizes supplied below :-

  • 1 ½” NPT Female - Pelco, Hikvision, Avigilon, Dahua, Hanwha etc.
  • 1 ½” NPT Male - Bosch, Axis, Panasonic etc.
  • ¾” NPT Male - Illustra etc.
  • M35x1.5P Female - Bosch etc.
  • Ø47.5mm ID (Internal Diameter) - Hikvision etc.
  • 1” BSPP Female - Hikvision Pendant Cap etc.
