SB1-PMC/D

Dome Swivel Arm Corner Parapet Bracket

SB1_1000PMC_D_operationalSB1_1000PMC_D_service

Features

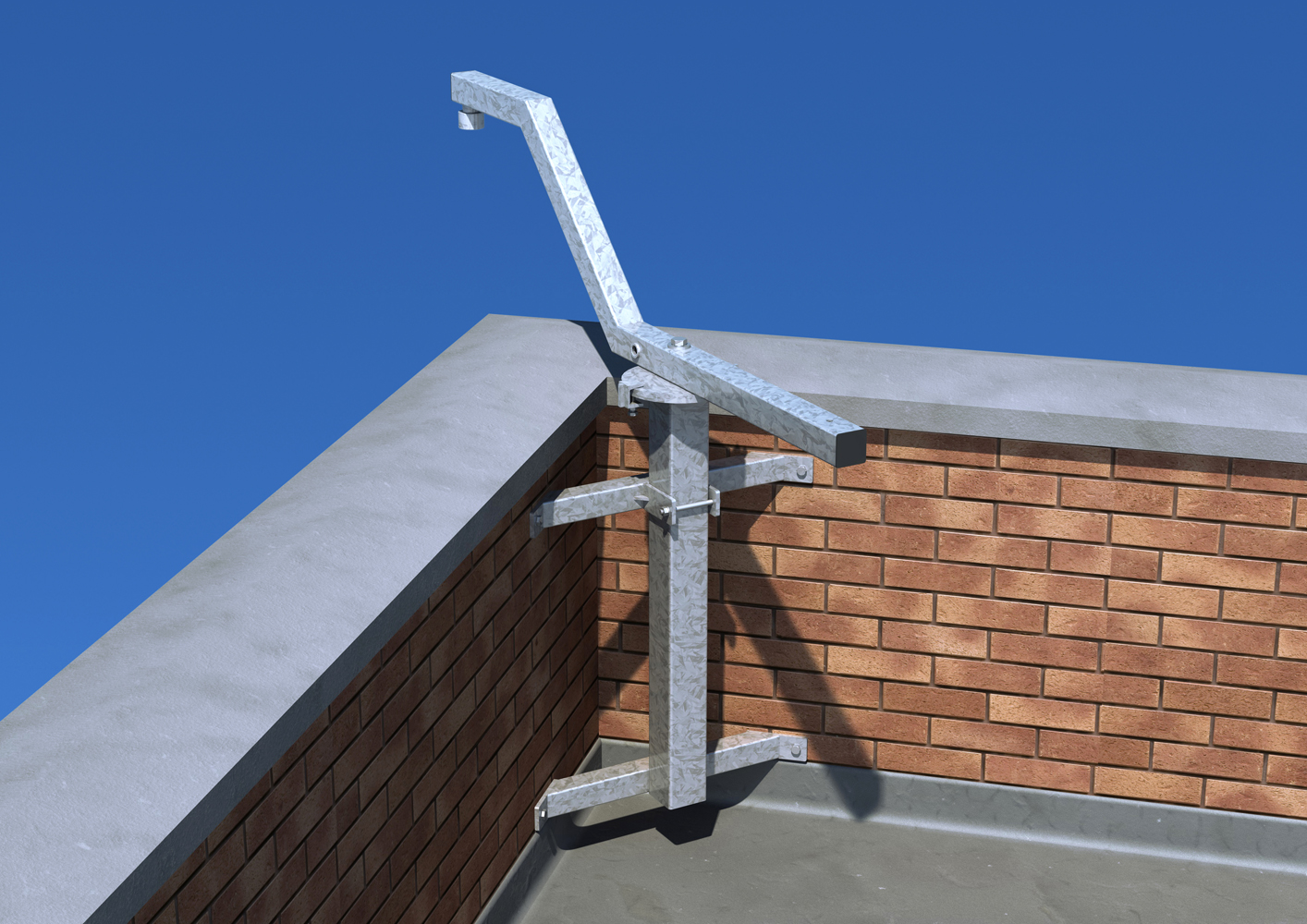

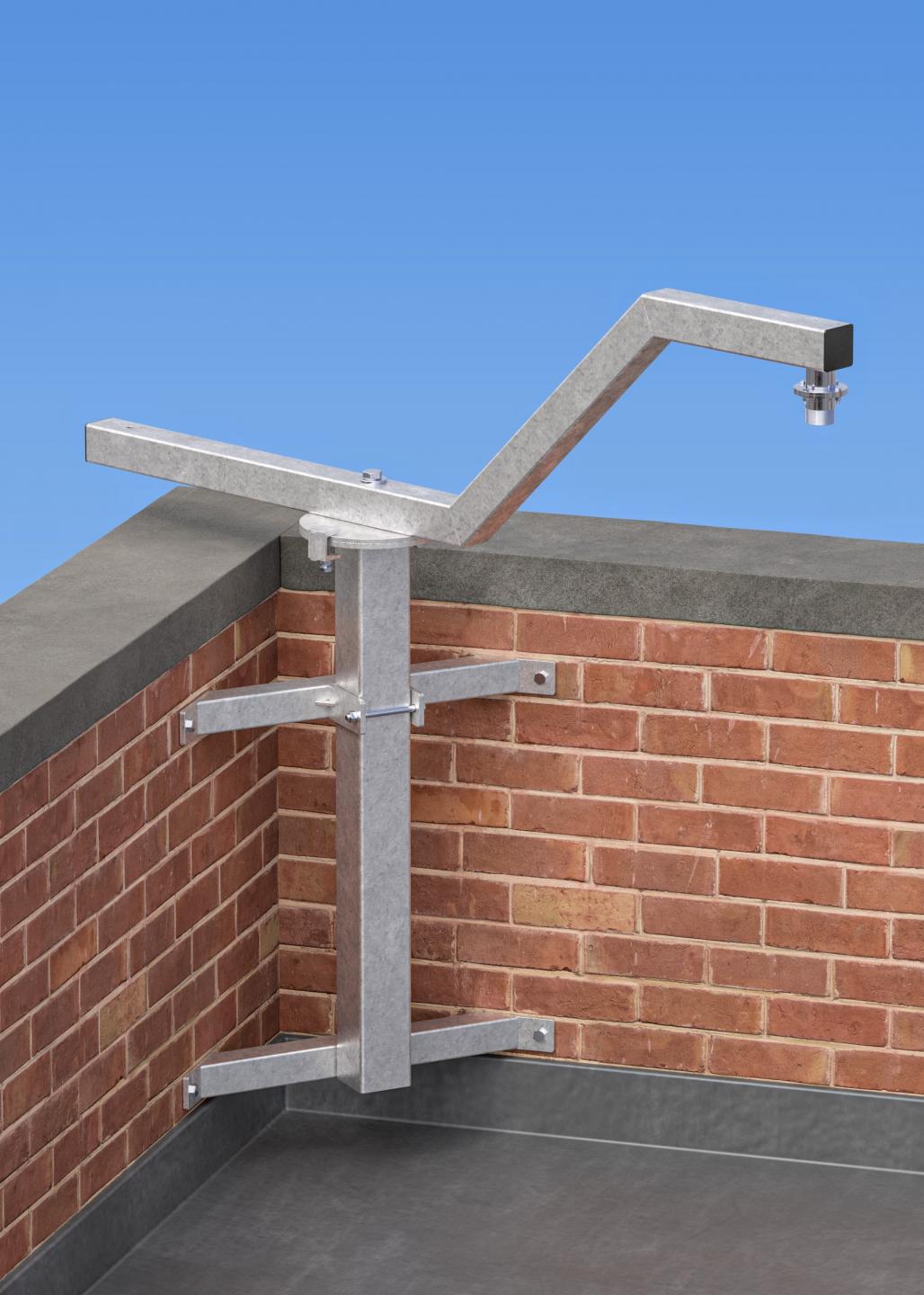

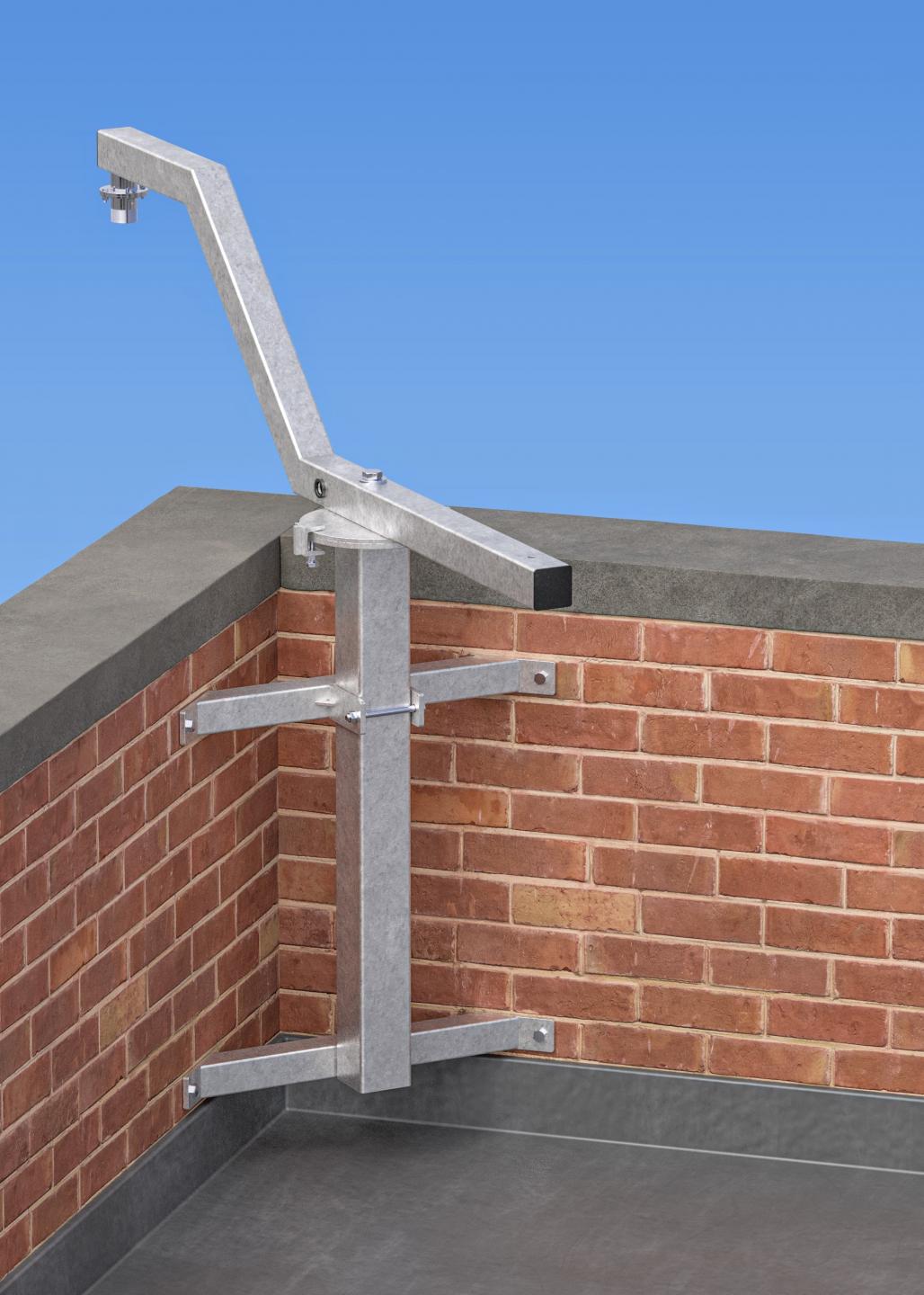

  • Swivel plates and double clamping arrangement allow the swivel arm to be locked solidly in the operating position, and then easily brought back within the parapet for camera servicing
  • Rise in arm gives clearence for dome over parapet, whilst rest of bracket does not 'skyline'
  • Solid constructions means stable platform for camera mounting
  • Designed to enable man handling through lift and stairwell for roof access
  • Internal cabling version available for when used in public access areas such as car park roofs
  • Swivel arm can be supplied with a removable rear arm option for areas with restricted access
  • Also available for PTZ Camera Mounting

Download Datasheet

Technical

Max. load capacity

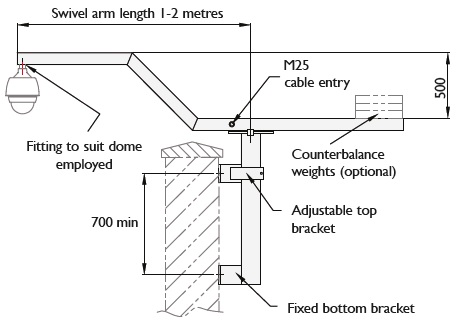

  • Arm length up to 2m = 15kgs / 0.15m2
  • Arm lengths of over 2m depends on application

Notes on parapet mounting

  • Parapets must be of solid construction, ideally pre-cast concrete or steel-framed
  • For brick built parapets, single skin construction is not suitable
  • Parapets where the brickwork is not in good condition are not suitable
  • The minimum parapet height is 1100mm
  • The product head load must not be exceeded
  • In cases where a greater head load is proposed, Altron must be contacted and suitable advice should be sought regarding parapet construction and strength



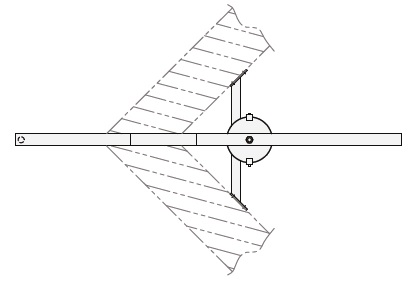

SB1_PMCD-1



       SB1_PMCD

Part Number

Arm Length

SB1-1000PMC/D 1m
SB1-1200PMC/D 1.2m
SB1-1500PMC/D 1.5m
SB1-2000PMC/D 2m
For Internal Cableway Option  suffix part number /IC

Construction and finish

  • Produced in high tensile steel
  • Hot dip galvanised for longevity
  • Fixings are stainless steel grade A2 and galvanised grade 8.8
  • Painted finish to BS & RAL colours on request

Dome mounting adaptor brackets

Altron dome mounting swivel arms are versatile and can be produced to suit any dome type. Standard mounting variations suit most installations, but if you have an installation that requires something non-standard, then we produce bespoke brackets to suit your specific requirement.

Please specify dome make & model number when ordering.
