Products Roof Mounted Products Swivel Arm Brackets - Domes SB1-RM/D

SB1-RM/D

Dome Swivel Arm Roof Mounted Bracket
Common sizes held in stock

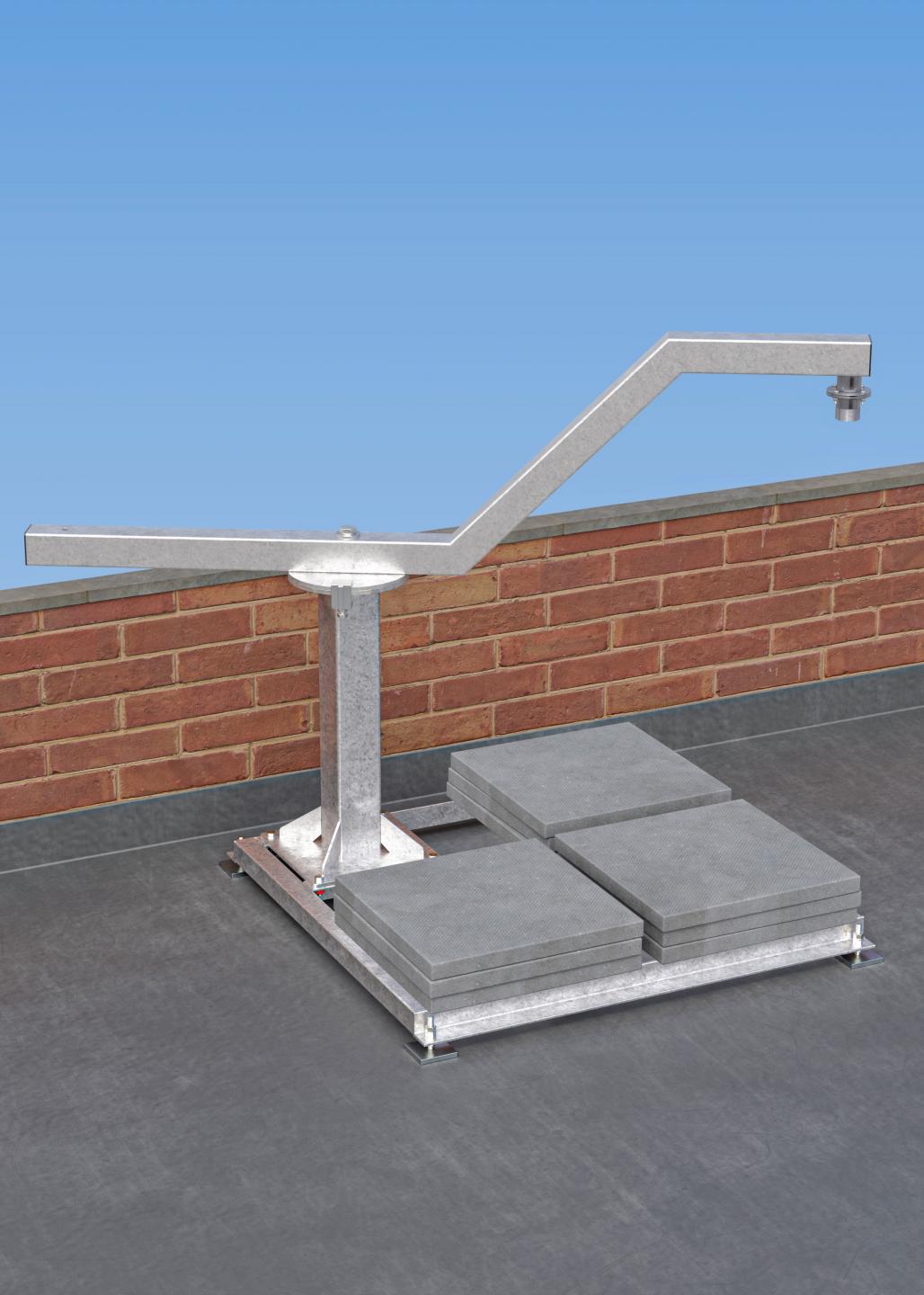

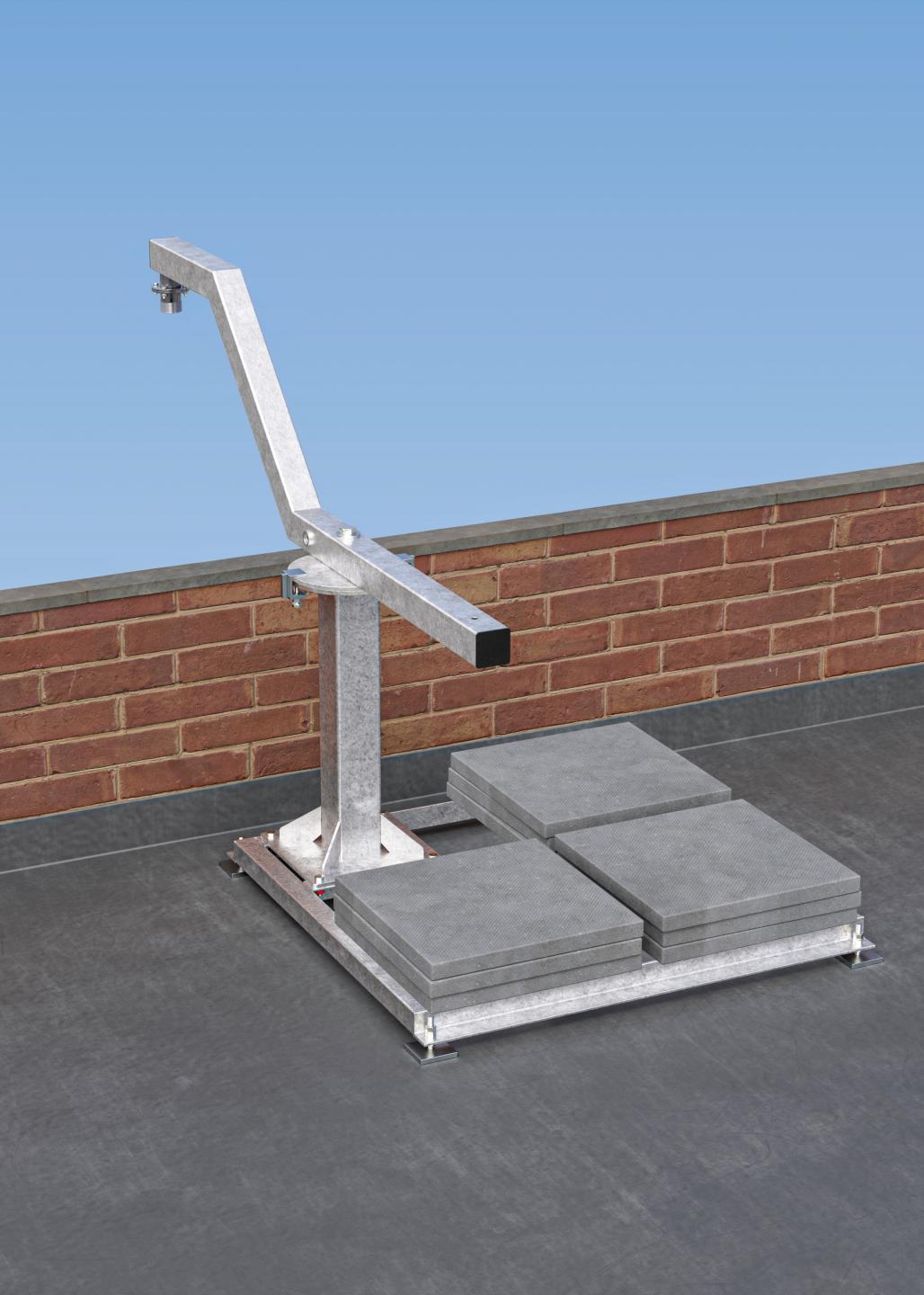

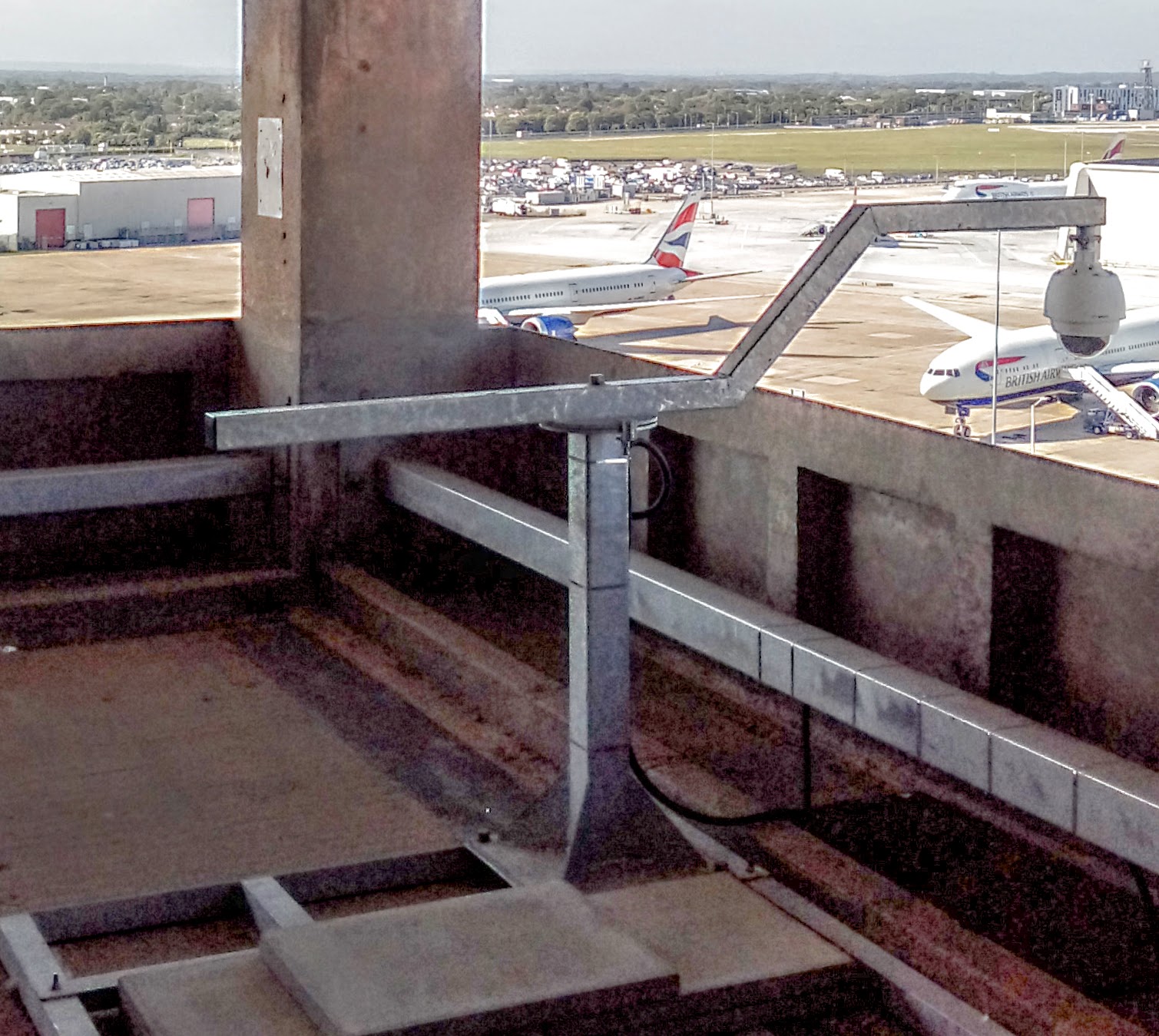

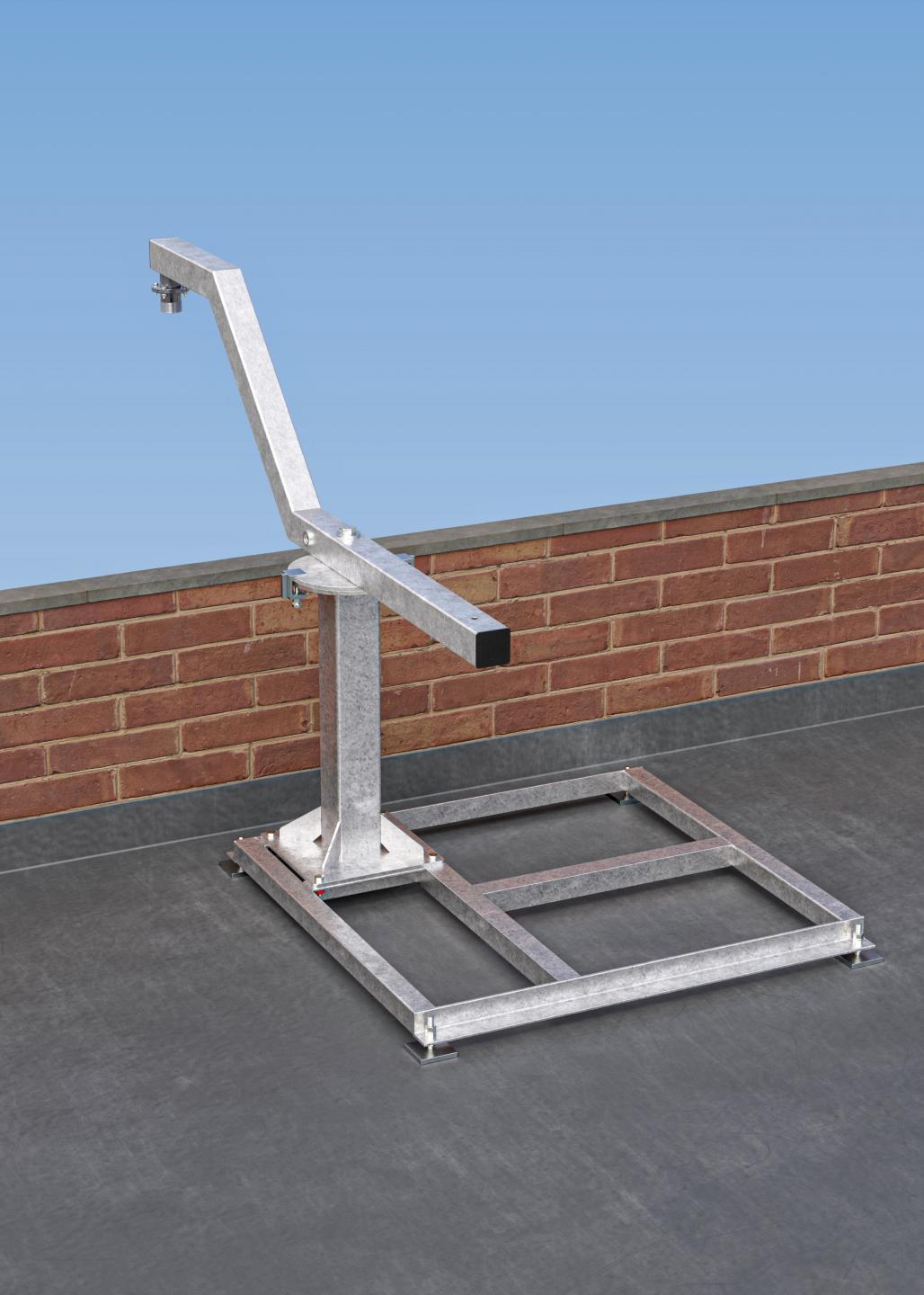

031 SB1-1000RMD-600-PG88-RS - VIEW 1 CROPPED 5x7032 SB1-1000RMD-600-PG88-RS - VIEW 4 CROPPED 5x7SB1-RMDSB1-D in airport building (2)

Altron Dome Swivel Arm Roof Mounted Brackets enable dome cameras to be serviced safely within roof space, whilst the ballast frame provides non-penetrative installation - Most variations are available from stock, and where a standard product does not suit we can provide variations, often on short lead times.

Features

  • Swivel plates and double clamping arrangement allow the swivel arm to be locked solidly in the operating position, and then easily brought back within the parapet for camera servicing
  • Rise in arm gives clearance for dome over parapet, whilst rest of bracket does not 'skyline'
  • Solid constructions means stable platform for camera mounting
  • Designed to enable man handling through lift and stairwell for roof access
  • Bolt together frame option (standard on 1500mm2 and 1800mm2 frames) allows frame to be carried in small component form
  • Supplied with UDA to suit dome make / model employed - Most common sizes held in stock
  • UDA benefits from being easily removed / replaced if dome is upgraded, without need for replacing entire bracket / arm
  • UDA's can also be supplied with flat mounting plates, commonly for small, static / vandal domes, with or without junction boxes
  • Can be produced to suit any dome fitting type, or where something non-standard is required - non-stock UDA's made to order
  • Internal cabling version available for when used in public access areas such as car park roofs
  • Swivel arm can be supplied with a removable rear arm option for areas with restricted access
  • Also available for PTZ Camera Mounting

Download Datasheet

Technical

  • Max. load capacity - 15kgs / 0.15m2
  • Typical ballast amount 100 - 320kgs depending on arm length, upstand height, location and roof height above ground level
  • Special bespoke variations made to order

    Please specify dome make & model number when ordering, or dome fitting size / type - See 'Stock UDA' tab for sizes / types held




Arm
Length



Default
Part Number
(300mm upstand)



Ballast
Frame Size
(300mm Upstand)



Part Number
with 600mm
Upstand



Ballast
Frame Size
(600mm Upstand)



Part Number
with1100mm
Upstand



Ballast
Frame Size
(1100mm Upstand)
1m SB1-1000RM/D 1000mm2 SB1-1000RM/D/600 1000mm2 SB1-1000RM/D/1100 1300mm2
1.2m SB1-1200RM/D 1000mm2 SB1-1200RM/D/600 1300mm2 SB1-1200RM/D/1100 1300mm2
1.5m SB1-1500RM/D 1300mm2 SB1-1500RM/D/600 1300mm2 SB1-1500RM/D/1100/BD 1500mm2
2m SB1-2000RM/D/BD 1500mm2 SB1-2000RM/D/600/BD 1800mm2 SB1-2000RM/D/1100/BD

1800mm2

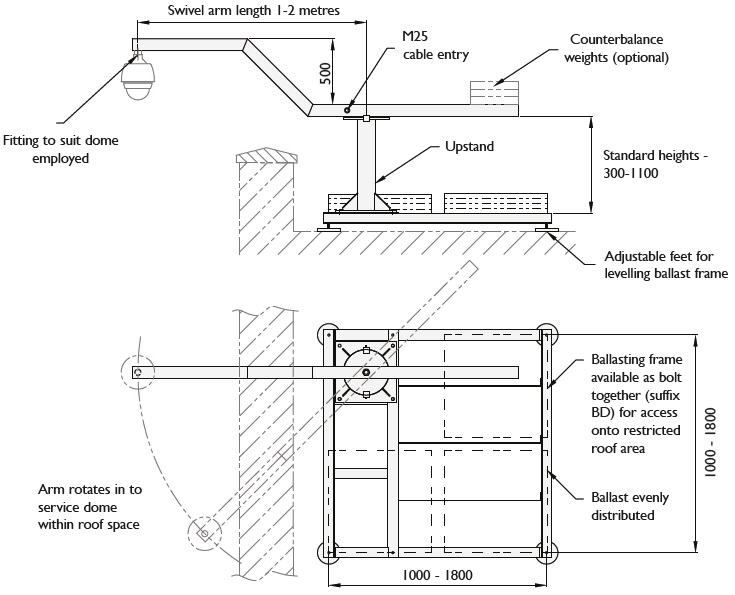

SB1_RMD diagram

    Construction and finish

    • Produced in high tensile steel
    • Hot dip galvanised for longevity
    • Fixings are stainless steel grade A2 and galvanised grade 8.8
    • Painted finish to BS & RAL colours on request

      Options



      • Non /BD part numbers are supplied as standard with a Welded Ballast Frame - For these to be supplied with a Bolt Together Frame - Add /BD suffix

      • Internal Cableway - Add /IC suffix. e.g. SB1-1500RM/D/600/IC

      • Removable Rear Arm - Add /RA suffix. e.g. SB1-2000RM/D/1100/BD/RA

      • Our standard upstand heights are 300mm (default), 600mm and 1100mm - Alternative upstand heights can be supplied to suit specific roof requirements - Please contact our Sales Office for further details

      • Standard ballast frames are square, but we can produce frames to suit specific roof restrictions, including 'L' shaped frames where necessary - Please contact our Sales Office for further details

      • Where roof restrictions do not allow for our standard recommended frame size - i.e. The SB1-1500RM/D/1100/BD with its 1500mm square frame. We can often supply with a smaller frame by increasing the ballast weight required - Please contact our Sales Office for further details

      • Counterbalance weights can be supplied to help support the arm when rotating, typically for heavier camera loads - Please contact our Sales Office for further details

      • Paint finish over galvanising - To BS / RAL colours on request

      Part Numbering


      /BD in the part numbers below indicate a 'Bolt Together Ballast Frame' supplied as standard

      300mm Upstand (Default Upstand)

      SB1-1000RM/D                stock product
      SB1-1200RM/D                stock product
      SB1-1500RM/D                stock product
      SB1-2000RM/D/BD

      600mm Upstand

      SB1-1000RM/D/600          stock product
      SB1-1200RM/D/600
      SB1-1500RM/D/600          stock product
      SB1-2000RM/D/600/BD

      1100mm Upstand

      SB1-1000RM/D/1100         stock product
      SB1-1200RM/D/1100         stock product
      SB1-1500RM/D/1100/BD   stock product
      SB1-2000RM/D/1100/BD

      Stock UDA's


      Please specify dome make & model number when ordering, or dome fitting size / type - Common sizes held below :-

      • 1 ½” NPT Female - Pelco, Hikvision, Avigilon, Dahua, Hanwha etc.
      • 1 ½” NPT Male - Bosch, Axis, Panasonic etc.
      • ¾” NPT Male - Illustra etc.
      • M35x1.5P Female - Bosch etc.
      • Ø47.5mm ID (Internal Diameter) - Hikvision etc.
      • 1” BSPP Female - Hikvision Pendant Cap etc.
