ARC Roadside Cabinets

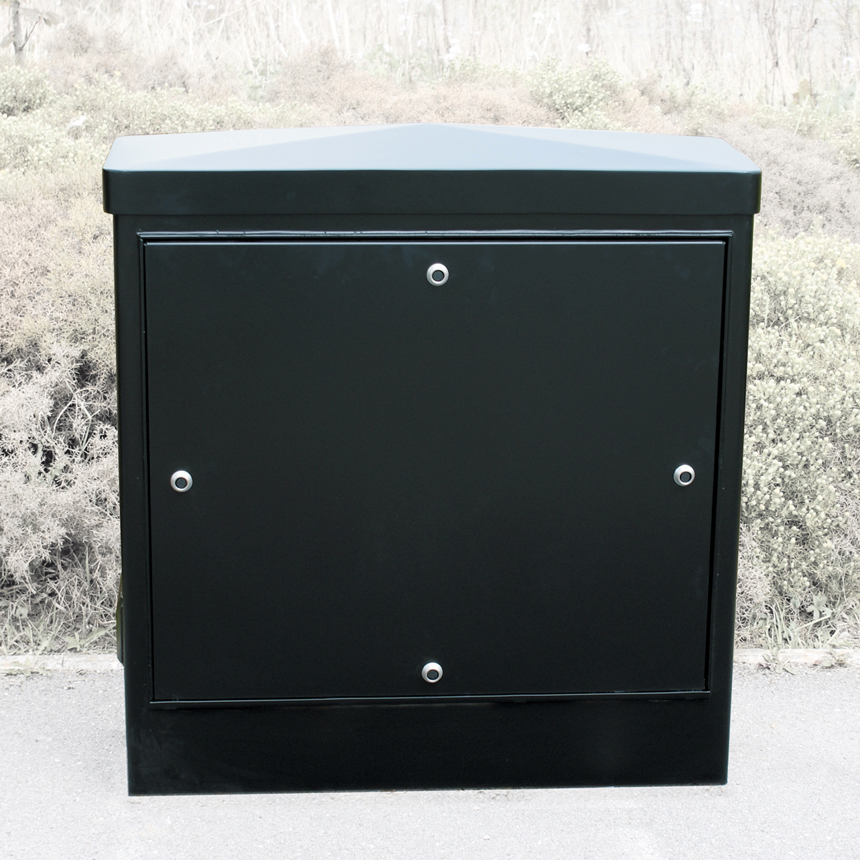

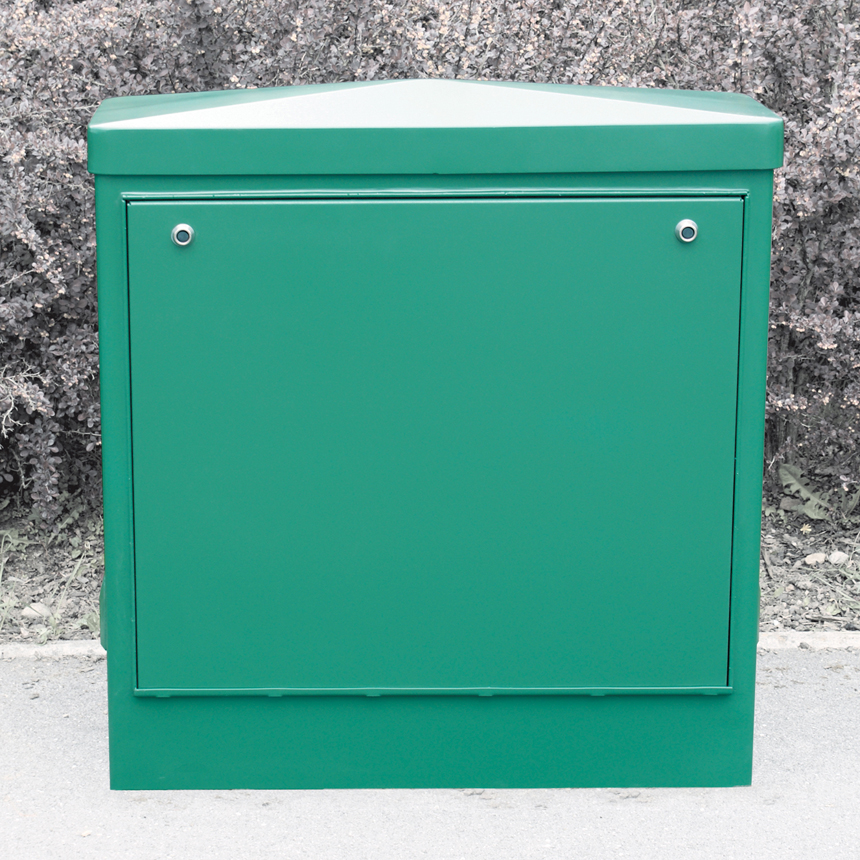

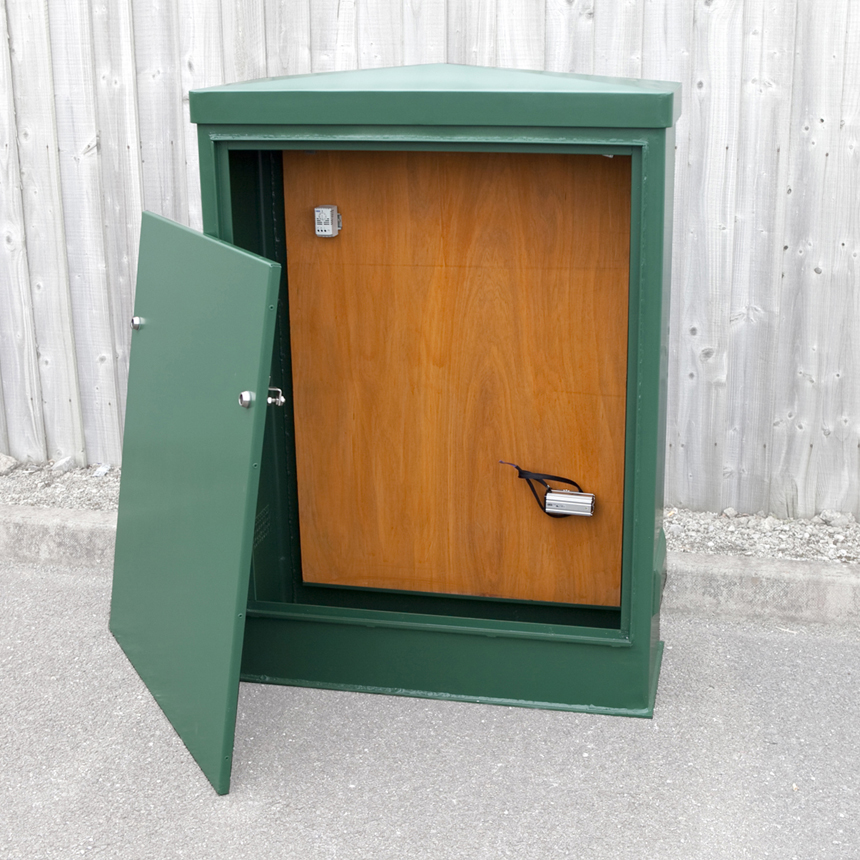

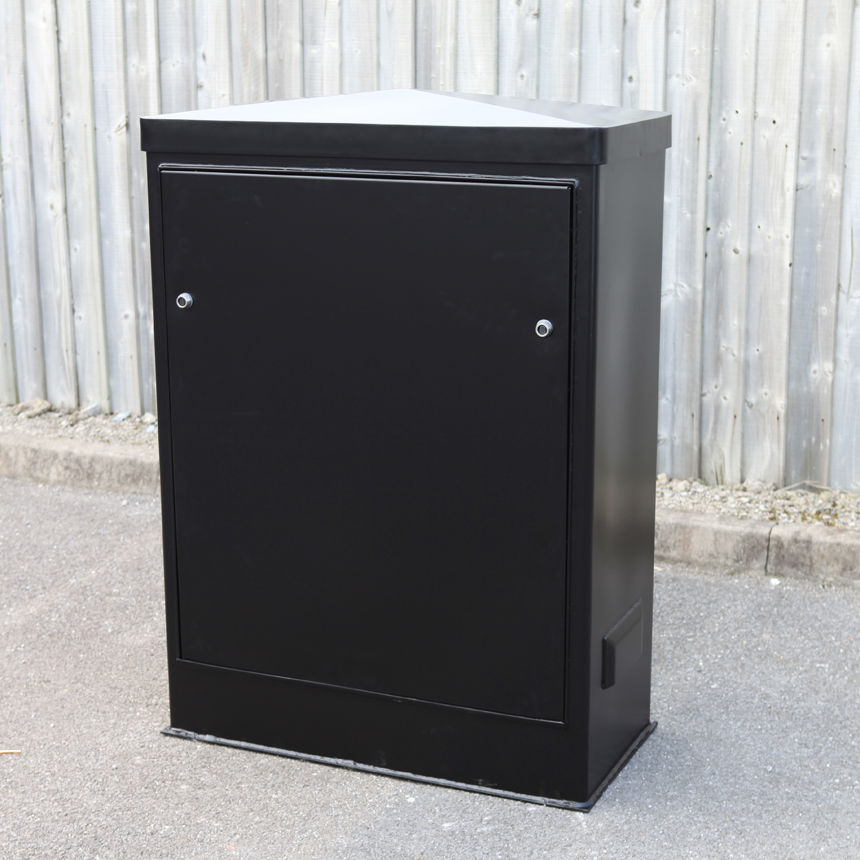

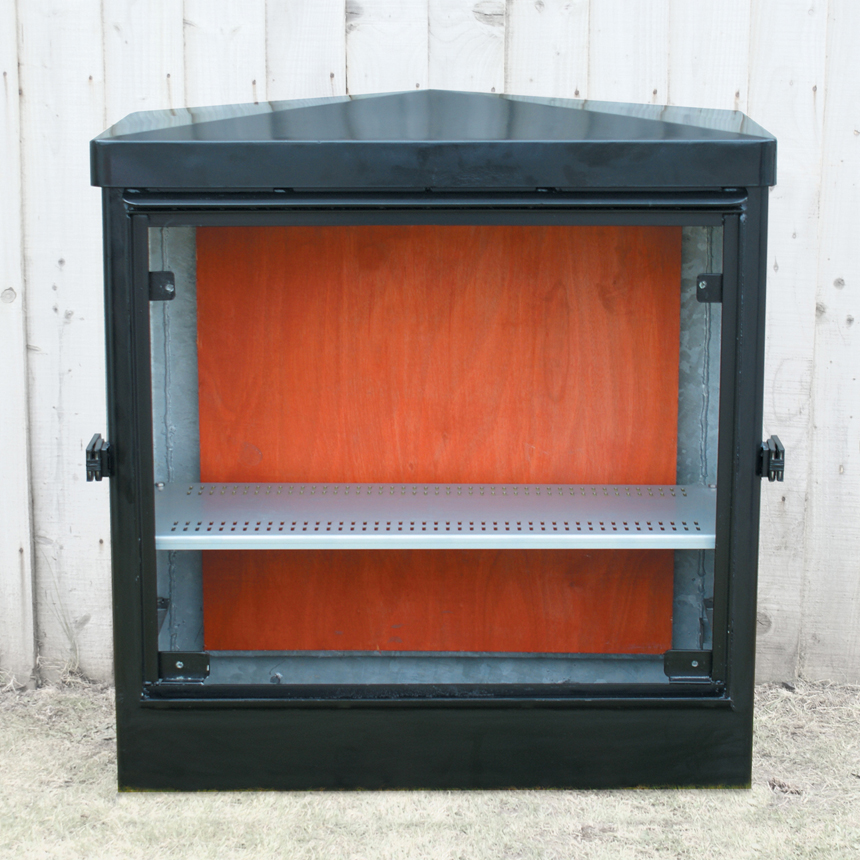

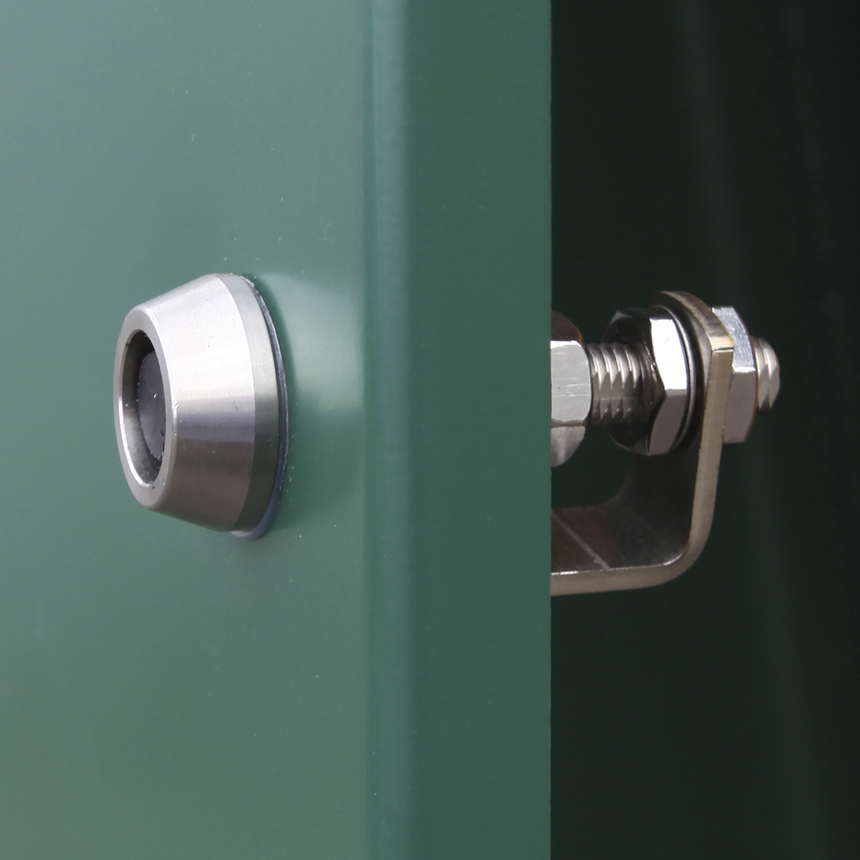

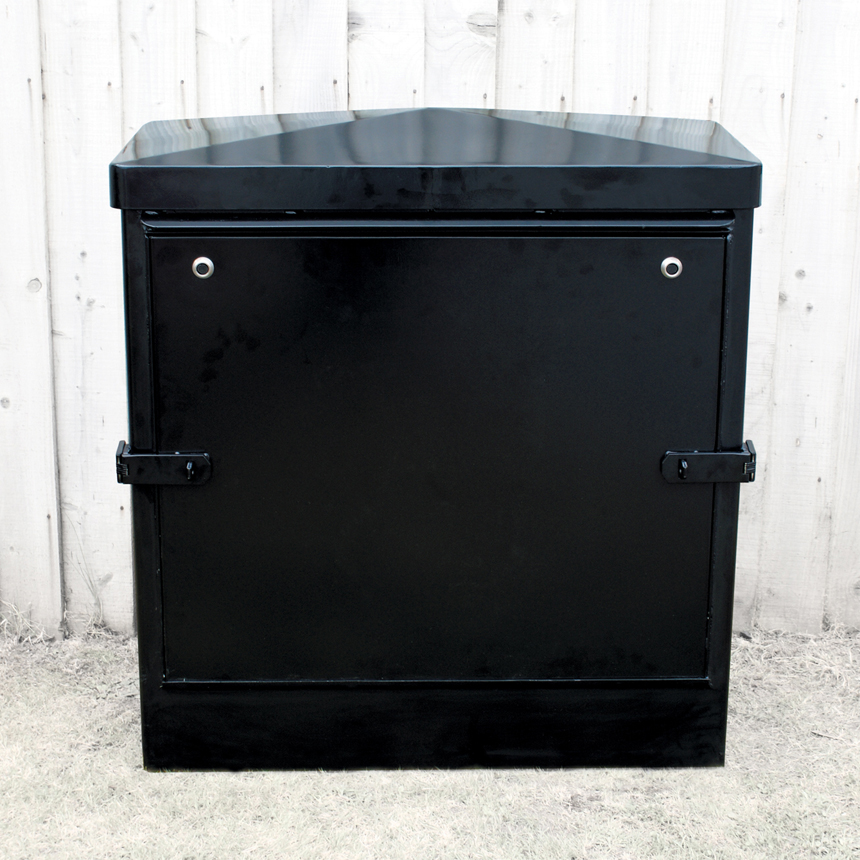

ARC-12-90-32ARC-90-90-32 with padlockable hasp and stapleARC-12-90-32 with heater and thermostatCabinet fitted with shelfARC-90-90-32 with standard 2 point lockingARC-90-90-32 with 4 point lockingAltron stainless steel secure locks as standard(1)

A robust and secure range of heavy duty fabricated steel roadside cabinets, galvanised and then powder coated finish

  • Complete with quick release removable 15 mm thick treated backboard for equipment mounting
  • Lift off door
  • Heavy duty fabricated construction
  • Hot dip galvanised finished gives minimum expected 25 year lifespan
  • Numerous security features ensure high level of vandal resistance
  • Earthing points within cabinet and on door
  • Convection air circulation and venting as standard
  • Standard colours are 14C39 Holly bush green or Black. Other colours from BS/RAL colour charts available on request
Related Products

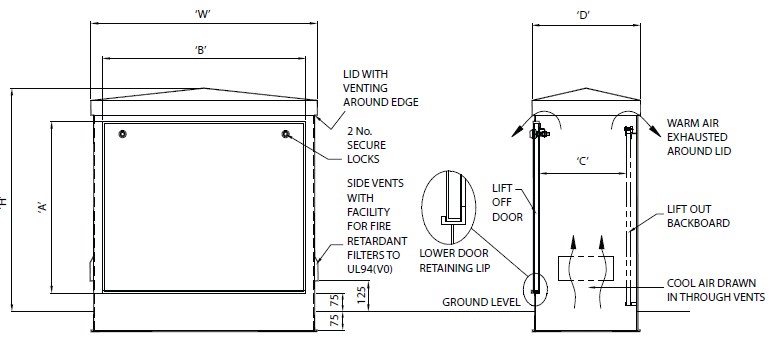

ARC Roadside Cabinet Range



Model No.
Height
H
Width
W
Depth
D
Working
Depth C
Back Board
Height x
Width
Door
Aperture
A x B
Cabinet
Weight
Kgs
ARC-90-60-32 920 600 320 220 700 x 470 650 x 475 90
ARC-90-90-32 920 900 320 220 700 x 770 650 x 775 122
ARC-90-12-32 920 1200 320 220 700 x 1070 650 x 1075 154
ARC-12-60-32 1220 600 320 220 1000 x 470 950 x 475 113
ARC-12-90-32 1220 900 320 220 1000 x 770 950 x 775 145
ARC-12-12-32 1220 1200 320 220 1000 x 1070 950 x 1075 177
ARC-90-60-42 920 600 420 320 700 x 470 650 x 475 97
ARC-90-90-42 920 900 420 320 700 x 770 650 x 775 132
ARC-90-12-42 920 1200 420 320 700 x 1070 650 x 1075 167
ARC-12-60-42 1220 600 420 320 1000 x 470 950 x 475 121
ARC-12-90-42 1220 900 420 320 1000 x 770 950 x 775 153
ARC-12-12-42 1220 1200 420 320 1000 x 1070 950 x 1075 185

Options

Tamper Switch CAB-TS
4 point locking
(added to end of part number)		 /A4P
High Security lock in addition CAB-HS
Filters for vents
Thermostat
Heater
 		 CAB-F
CAB-T
CAB-H
Circulation Fan + filters for vents
 - ARC-60-32 cabinets
 - ARC-90-32 cabinets
 - ARC-12-32 cabinets
 - ARC-60-42 cabinets
 - ARC-90-42 cabinets
 - ARC-12-42 cabinets
ARC-60-32/CF
ARC-90-32/CF
ARC-12-32/CF
ARC-60-42/CF
ARC-90-42/CF
ARC-12-42/CF

Padlockable Hasp and Staple
(Hasp and staple either side of the door)		 PHS-ARC

Part Numbering

ARC roadside cabinets are supplied with secure locks and treated wooded back board as standard

Standard part numbers are shown below:-

ARC-90-60-32    Stock product
ARC-90-90-32    Stock product
ARC-90-12-32
ARC-12-60-32
ARC-12-90-32
ARC-12-12-32    Stock product
ARC-90-60-42
ARC-90-90-42
ARC-90-12-42
ARC-12-60-42
ARC-12-90-42
ARC-12-12-42    Stock product

For 4 point locking door suffix /A4P
e.g. ARC-90-60-32/A4P
