Products Cabinet Based Poles AW1545/BAS - Industrial Cabinet Based Poles

AW1545/BAS - Industrial Cabinet Based Poles - Fixed and Tilt-down

Fixed Height Range 4m - 12m
Tilt-Down Height Range 4m - 12m

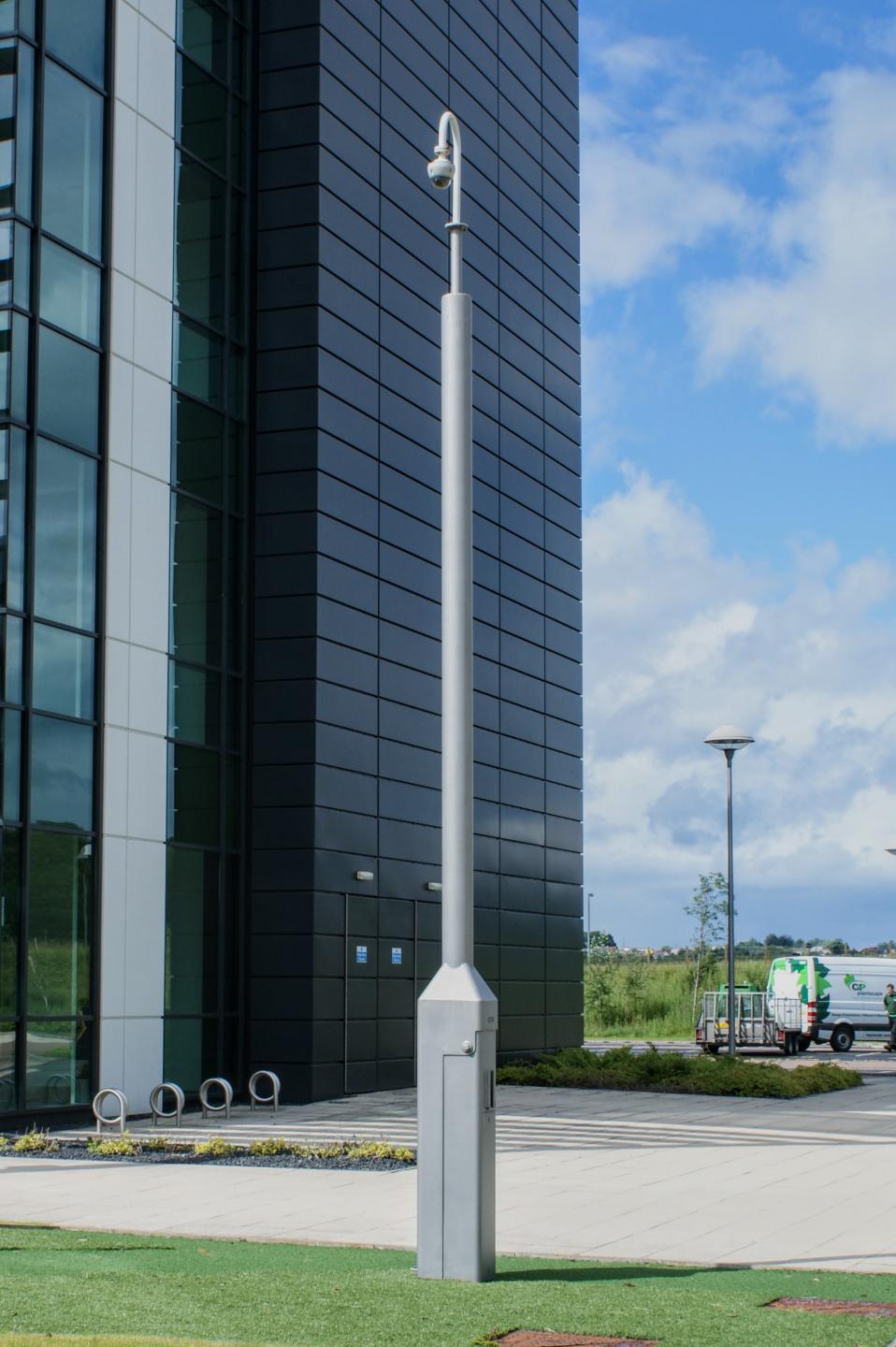

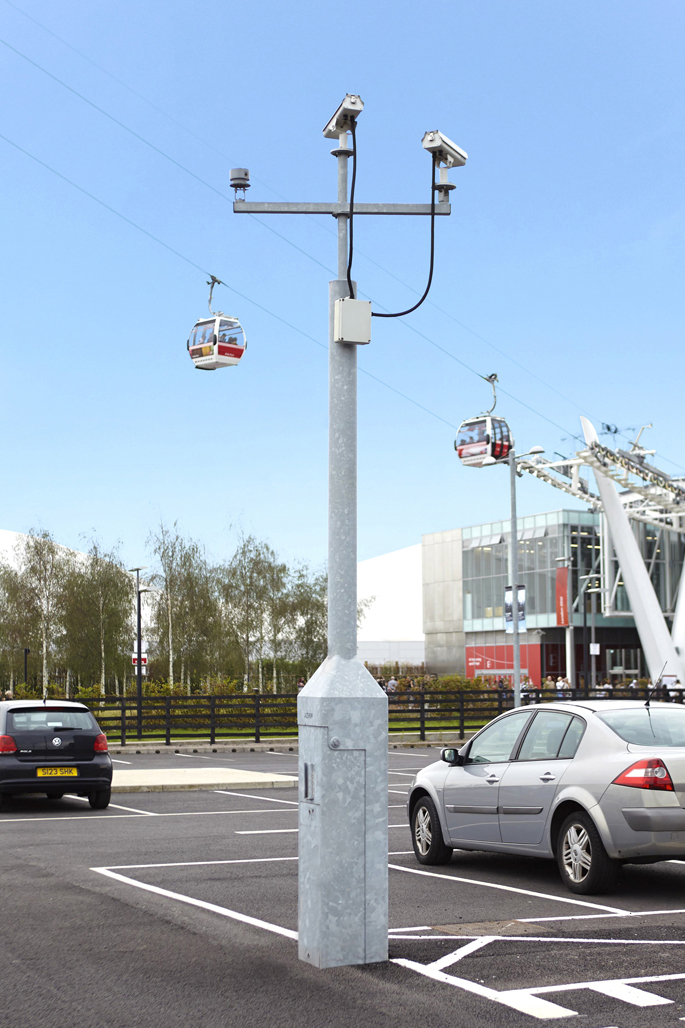

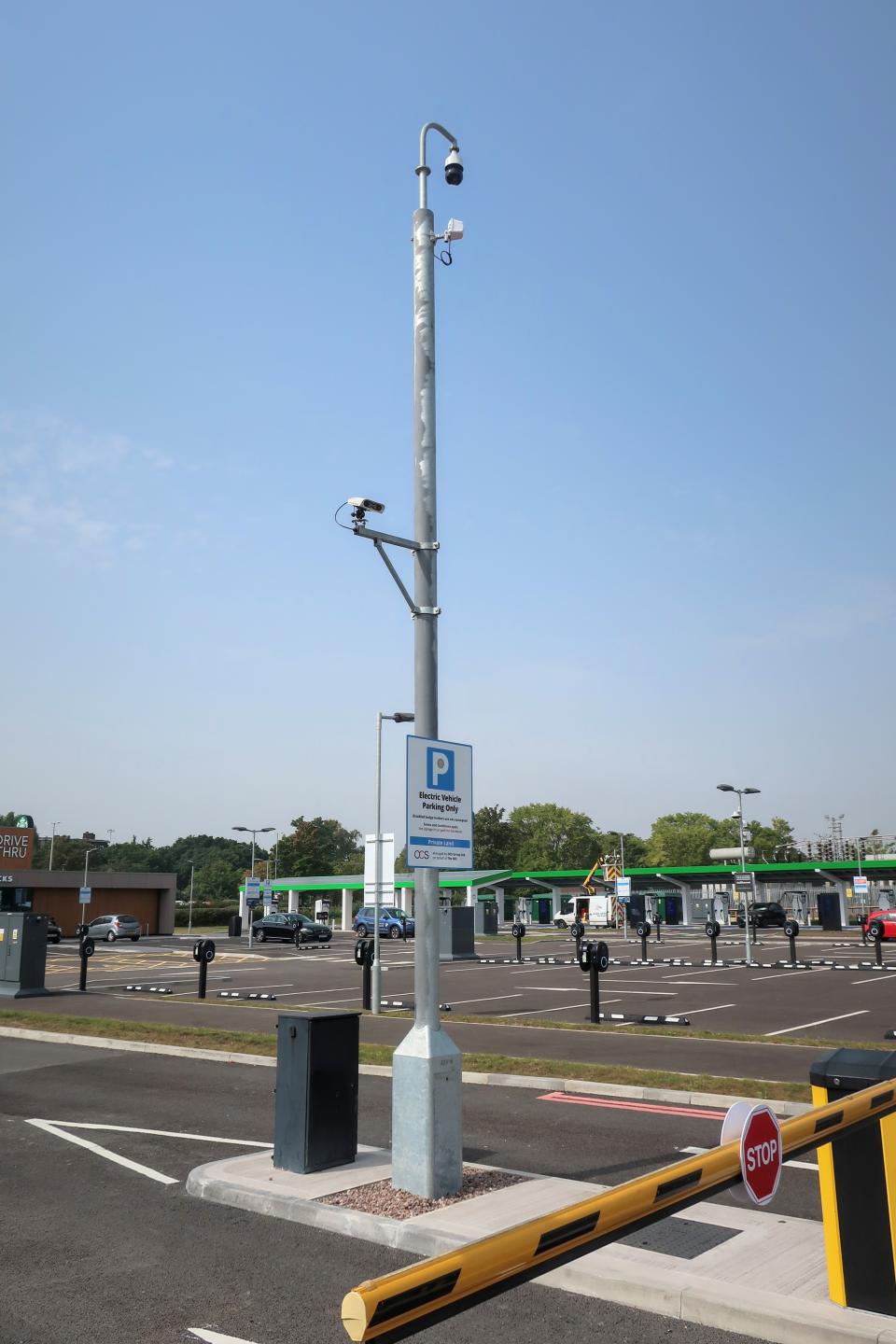

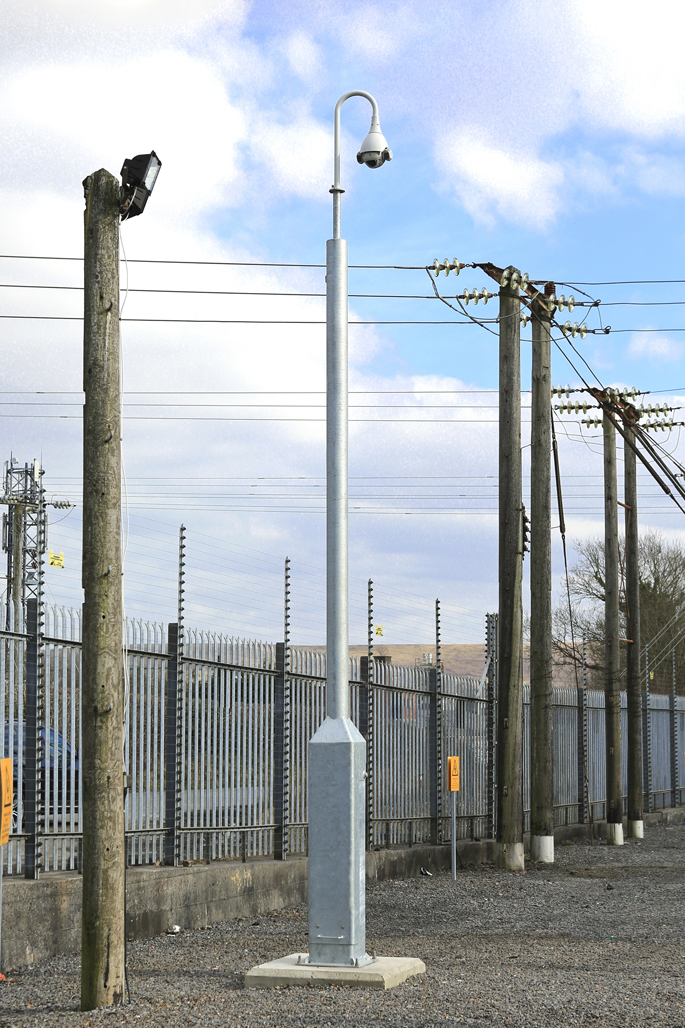

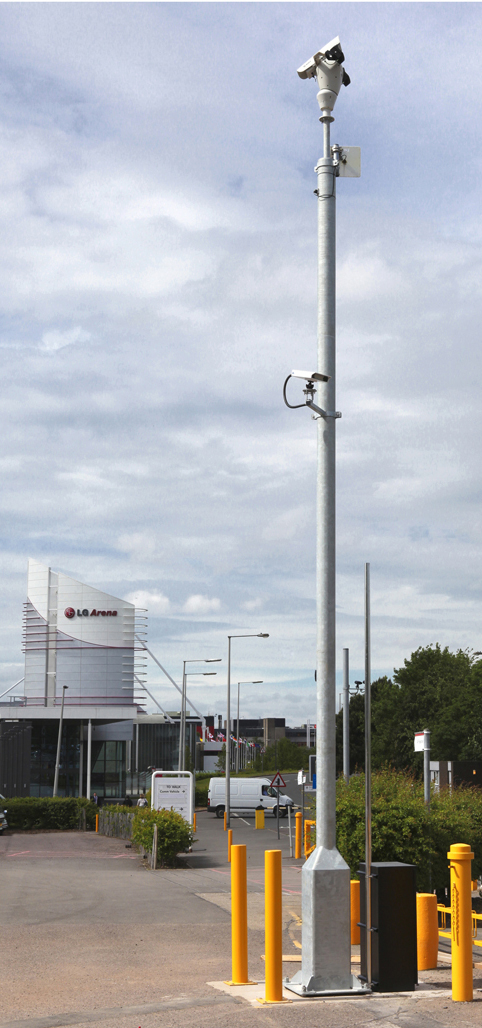

AW1545/8/BASAW1545/6TD/BAS_2AW1545-5-TD-BASAW1545-8-BAS (2)AW1545-6-TD-BAS

The AW1545/BAS Cabinet Based pole range offers a cost effective means of mounting CCTV equipment within the one pole structure. More commonly used for industrial and commercial type installations, it does not have venting and high security locks, that come as standard on the UP range, and baseplate is not normally buried, but does offer the other security features common to our cabinet based poles and also the clean, aesthetic appearance, common to the AW1545 range and is backed up with a full range of accessories.

  • Stable structures for all camera types
  • Available in 6 standard cabinet sizes, 300, 350, 400, 450, 500 and 600 square (350mm square as standard if not specified)
  • Flush fitting door, level with cabinet surface, no external frame combined with flush fitting Altron secure locks giving enhanced security and a clean aesthetic appearance
  • Treated wooden backboard within cabinet
  • 4 point security door locking option
  • Demountable winches allow for a secure installation whilst also reducing costs on multiple installations
  • A wide range of standard Altron Accessories and Brackets available
  • Pole adaptations available to suit customers/project specific requirements
  • Constructed in high tensile steel and hot dip galvanised after fabrication for durability
  • Option of painting over the galvanised finish in colours available from BS and RAL colour charts

  • Internal cabling
  • Close fitting flush doors
  • Solid secure heavy duty door locks
  • Internal padlock facility on tilt down poles to protect against un-authorised lowering

  • Public area CCTV
  • Industrial and commercial premises
  • Schools and universities
  • Prisons and detention facilities
  • Utilities sites
  • Railway platforms & car parks
  • Car parks
  • Retail Parks
  • Sports stadia
Related Products

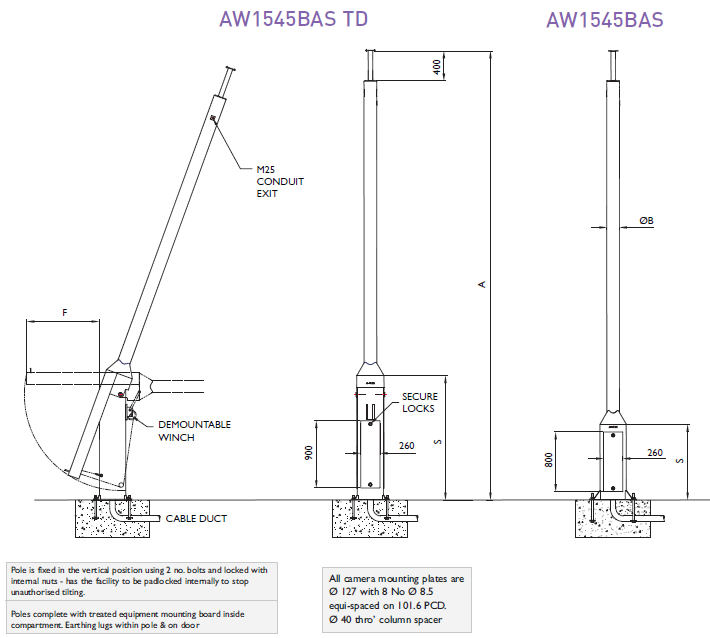

AW1545-BAS



Model No. Height
in mtrs
A
Max equip
weight
at top
kgs
Max
equip
surface
area
m2
Pole
ØB
Cabinet
height
above
ground
S
Pole rear
clearance
when
tilting
F
Winch
part
number
Product
weight
kgs
AW1545/BAS - Fixed
AW1545/4/BAS                    4 40 0.25 168 1000 - - 153
AW1545/5/BAS 5 40 0.25 168 1000 - - 175
AW1545/6/BAS  6 40 0.25 168 1000 - - 197
AW1545/7/BAS 7 40 0.25 168 1000 - - 219
AW1545/8/BAS 8 40 0.25 168 1000 - - 251
AW1545/8HD/BAS 8 80 0.5 193 1300 - - 341
AW1545/9/BAS 9 40 0.25 193 1300 - - 371
AW1545/10/BAS 10 40 0.25 193 1300 - - 401
AW1545/12/BAS 12 40 0.25 193 1300 - - 462

AW1545/TD/BAS - Tilt-Down
AW1545/4 TD/BAS 4 40 0.25 168 1700 1150 DW1000/45 236
AW1545/6 TD/BAS 6 30 0.25 168 1700 1150 DW1000/45 280
AW1545/8 TD/BAS 8 25 0.25 168 1700 1150 DW1500/45 334
AW1545/10 TD/BAS 10 40 0.25 193 2850 2150 DW2500/45 592
AW1545/12 TD/BAS 12 25 0.25 193 2850 2150 DW2500/45 643



Where payloads are greater than those stated above please contact Altron
All dimensions in mm's unless stated otherwise

Applicable standards


Design
- Design analysis carried out using a specialist software package in accordance with ILE TR7, BS6399 and BS8100

Material and Finishing
- Structural steel hollow sections EN10219 - EN10025:2004
- Steel flat angles and structural sections EN10025, EN10111, EN 10130
- Foundation bolts Grade 4.6 spun galvanised BS4190, BS3692, DIN931, 934, 601
- Fixings: stainless steel Grade A2, galvanised Grade 4.6  Grade 8.8  BS4190, BS3692, DIN 931, 934, 601
- Hot dipped galvanising after fabrication to ISO 1461
- Painting in BS and RAL colours in accordance with BS4800

Manufacturing Processes
- Welding Procedures conform with BS EN 1011:2009, BS EN 9606-1

Winches
- Wire ropes to BS183:1972, BS EN 13411 3 2004 + A1 2008
- Winches conform to American ASAE standard S361.IT.

Options

Decorative Banding /B
Screw-In Swan Neck Adaptor /SN
Double Door (on Fixed poles only) /DD
Double Door with Washer Bottle Conduit /DDW
Access Cover Plate and Cable Restraining Bar /AC
Full Convection Venting
High Security Locks /HS
Altron Locks in 4-Point Arrangement /A4P
Tamper Switch /TS
Lighting Spigot /LS
Cabinet Base Size /300 /350 /450 /500 /600 (mm Square) e.g /300

Part Numbering

Standard part numbers are as shown below. For addition of options, add suffix to part number e.g. for AW1545/8/BAS pole with 450mm square cabinet base, double doors, and 4 point locking, use part number AW1545/8/450/DD/BAS/A4P

AW1545/BAS Cabinet Based poles are supplied with treated backboards and secure locks as standard

Fixed poles
All poles have 350mm square cabinet base as standard
AW1545/4/BAS
AW1545/5/BAS
AW1545/6/BAS - Stock product
AW1545/7/BAS
AW1545/8/BAS - Stock product
AW1545/9/BAS
AW1545/10/BAS
AW1545/11/BAS
AW1545/12/BAS

Tilt-down poles
All poles have 350mm square cabinet base as standard
AW1545/4TD/BAS
AW1545/5TD/BAS
AW1545/6TD/BAS - Stock product
AW1545/7TD/BAS
AW1545/8TD/BAS - Stock product
AW1545/9TD/BAS
AW1545/10TD/BAS
AW1545/11TD/BAS
AW1545/12TD/BAS
