Products Modular Towers & Columns AW1697 - Cabinet Based Square Section Columns

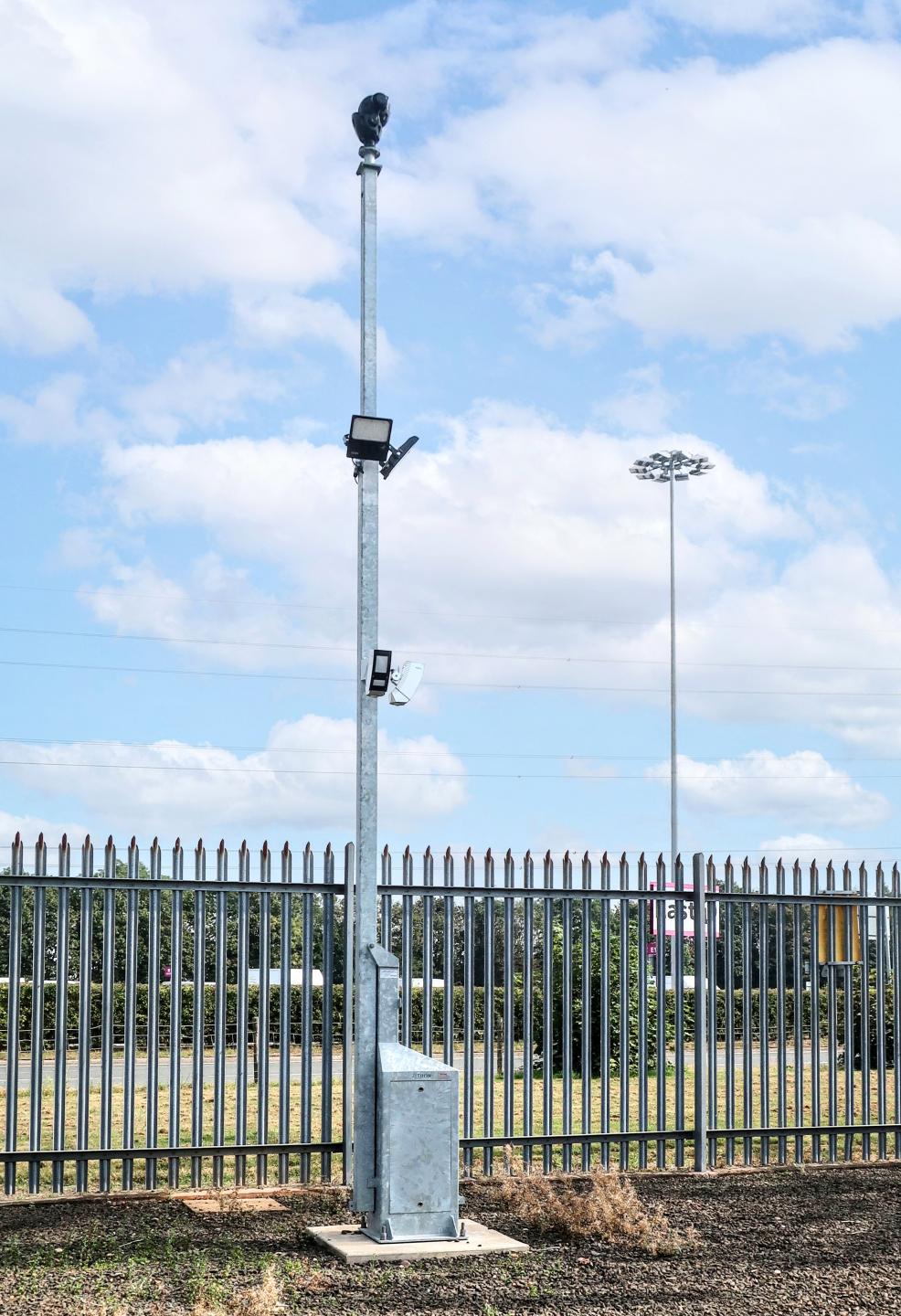

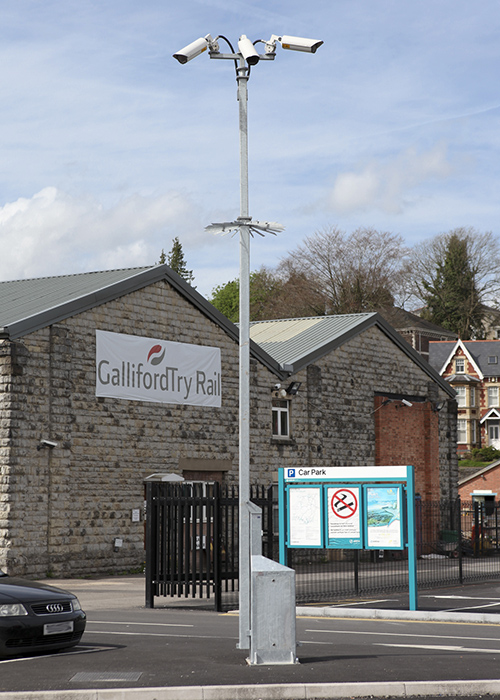

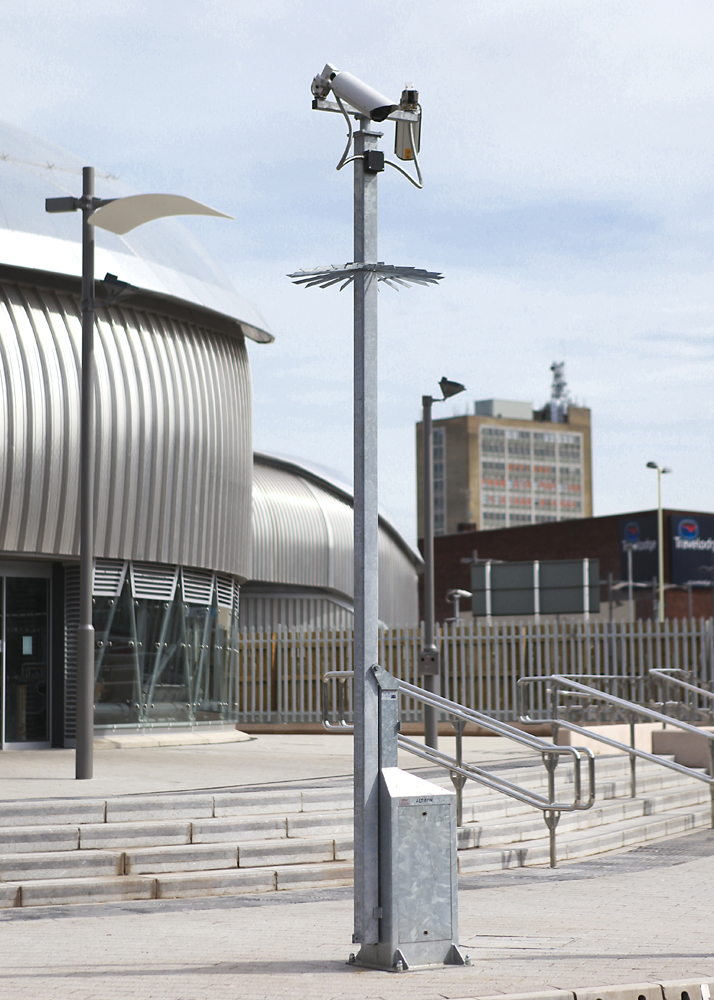

AW1697 - Cabinet Based Square Section Columns - Tilt-down

Height range 4.5m - 15m

AW16976/6_3AAW1697_1AW1697/6

A cost effective and comprehensive range of CCTV Columns, with most models available 'ex stock', offering a good level of security.The column base post has a built in cabinet for mounting equipment within the one unit, therefore providing cost savings where a separate cabinet would otherwise need to be used. Suitable for installations where the public has access, these columns have an internal padlock facility.The range is generally for light to medium fixed and PTZ applications, but there are also heavy duty (HD) options for high loading PTZ and dual lighting & CCTV applications.

  • Modular construction for ease of assembly and installation on site
  • Ideal for restricted access areas
  • Provides stable mounting platform for all camera types
  • Demountable winches ensure security and reduces costs on multiple installations
  • Enable camera maintenance at ground level, therefore reducing maintenance costs
  • A wide range of standard Altron Accessories and Brackets available ex stock
  • Quick turnaround for larger projects
  • Constructed in high tensile steel and hot dip galvanised after fabrication for durability
  • Option of painting over the galvanised finish in colours available from BS and RAL colour charts

  • Internal cabling
  • Internal padlock facility
  • Close fitting flush doors
  • Solid secure heavy duty door locks

  • Industrial and commercial premises
  • Perimeter detection
  • Utilities sites
  • Schools and universities
  • Sports stadia
  • Railway platforms & car parks
  • Car parks
  • Petrochemical sites
  • Securing compounds
Related Products

AW1697

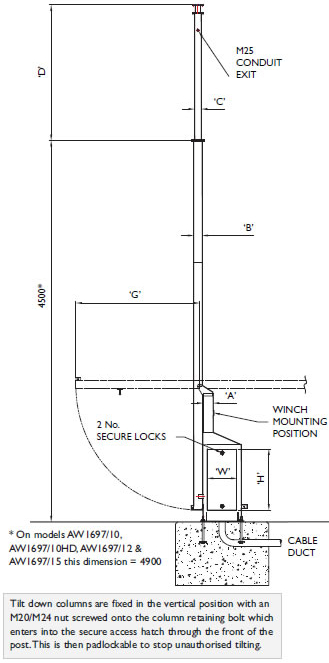

Foundation and bolting details

Model
No.
Height
in
mtrs

Post
type

Max
equip
weight
at top
kgs

Max
equip
surface
area
m2

Post
size
A2

Lower
section
size
B2

Mid
section
size
B2

Upper
section
size
C2

Exten'sn
length
D1
mtrs

Exten'sn
length
D2
mtrs

Door
aperture
size
HxW

Column rear
clearance
when
tilting G

Winch
part
number

Product
weight
kgs
AW1697/4.5  4.5   BP   35   0.3   120   100   -   -   -   -   600x350   1700   DW1000/97   180
AW1697/6  6   BP   25   0.2   120   100   -   80   1.5   -   600x350   1700   DW1000/97   192
AW1697/6HD  6   BP   35   0.3   120   120   -   90   1.5   -   600x350   1700   DW1000/97   220
AW1697/7.5  7.5   BP   25   0.2   150   120   -   90   3   -   600x350   2000   DW1500/97   244
AW1697/7.5HD  7.5   BP   50   0.3   150   150   -   100   3   -   600x350   2000   DW1500/97HD   273
AW1697/9  9   BP   25   0.16   150   150   -   100   4.5   -   600x350   2000   DW2500/97   299
AW1697/10HD  10   BP   50   0.5   200   200   -   150   4.9   -   600x350   2600   DW2500/97HD   551
AW1697/12   12   BP   35   0.3   200   200   150   100   4.9   2.0   600x350   2600   DW2500/97HD   577
AW1697/15  15   BP   25   0.16   200   200   150   100   4.9   4.9   600x350   2600   DW2500/97HD   614

Where payloads are greater than those stated above please contact Altron
All dimensions in mm's unless stated otherwise

Applicable standards


Design
- Design analysis carried out using a specialist software package in accordance with ILE TR7, BS6399 and BS8100

Material and Finishing
- Structural steel hollow sections EN10219 - EN10025:2004
- Steel flat angles and structural sections EN10025, EN10111, EN 10130
- Foundation bolts Grade 4.6 spun galvanised BS4190, BS3692, DIN931, 934, 601
- Fixings: stainless steel Grade A2, galvanised Grade 4.6  Grade 8.8  BS4190, BS3692, DIN 931, 934, 601
- Hot dipped galvanising after fabrication to ISO 1461
- Painting in BS and RAL colours in accordance with BS4800

Manufacturing Processes
- Welding Procedures conform with BS EN 1011:2009, BS EN 9606-1

Winches
- Wire ropes to BS183:1972, BS EN 13411 3 2004 + A1 2008
- Winches conform to American ASAE standard S361.IT.

Options

Tamper switch           /TS
4 point locking door   /A4P
High security lock      /HS

Column heights

All column products can be made to specific non-standard heights. For example an AW1697/4.5 is a 4.5m column as standard

If a 4m variation is required, then specify AW1697/4
If a 5m variation is required, then specify AW1697/5

Column capacities and duty ratings

Standard column capacities are as specified in the Tech Table tab. If a higher capacity column is required, then please contact our Sales office who can advise on non-standard product configurations that will accommodate higher loading

Part Numbering

AW1697/4.5      Stock product
AW1697/6         Stock product
AW1697/6HD
AW1697/7.5
AW1697/7.5HD
AW1697/9
AW1697/10HD
AW1697/12
AW1697/15
