AW1545/UP - Urban Cabinet Based Poles - Fixed and Tilt-down

Fixed Height Range 4m - 15m
Tilt-Down Height Range 4m - 12m

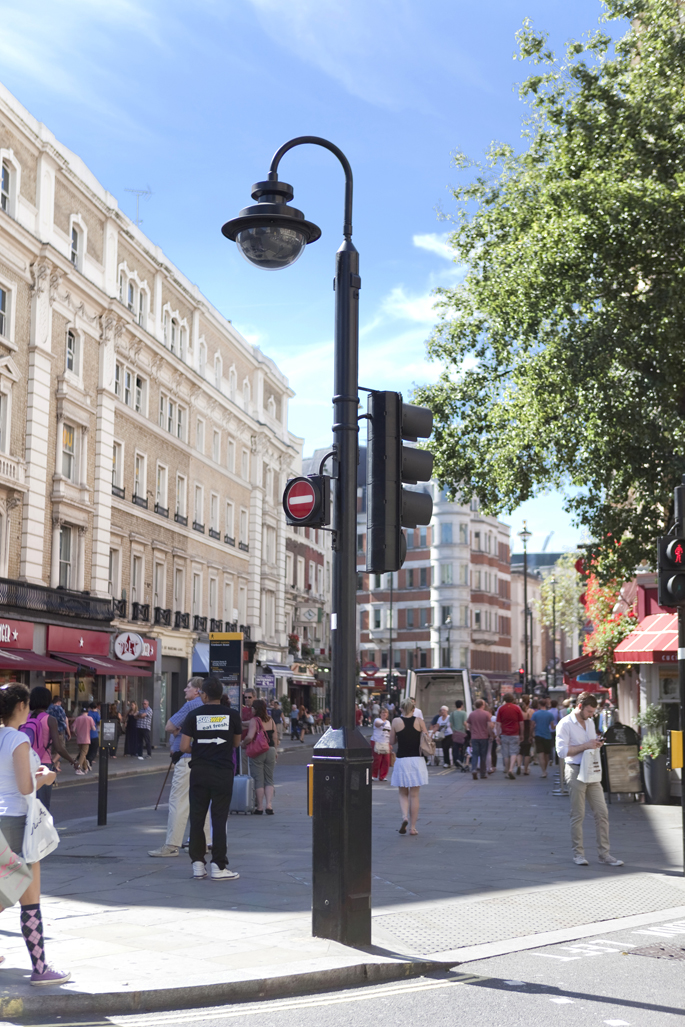

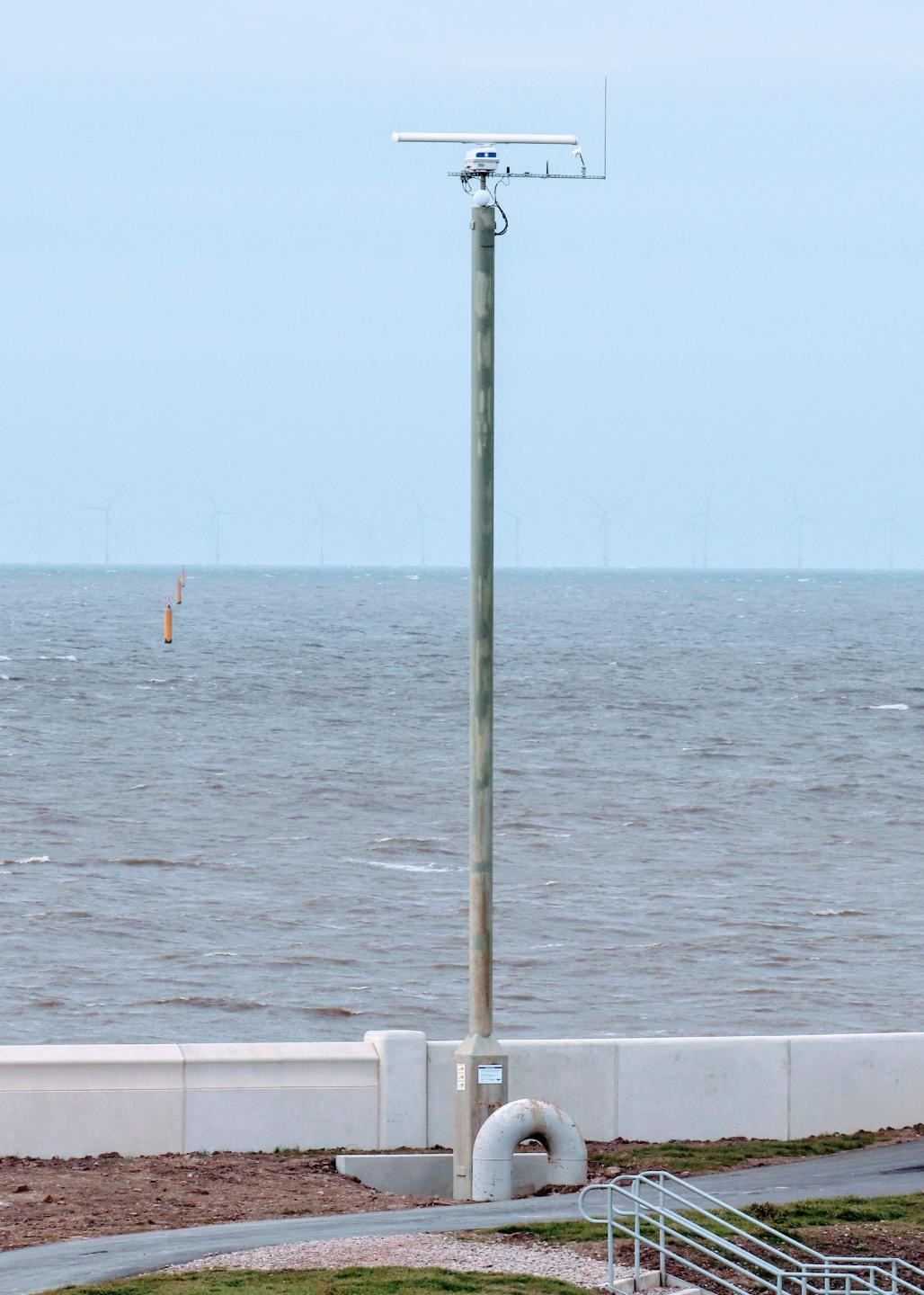

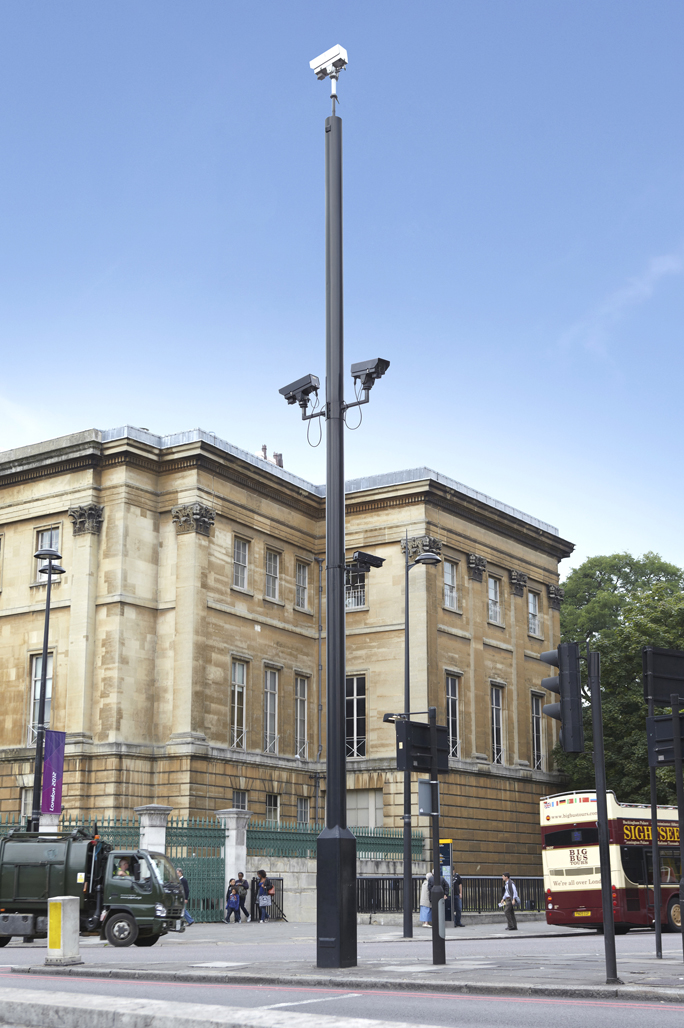

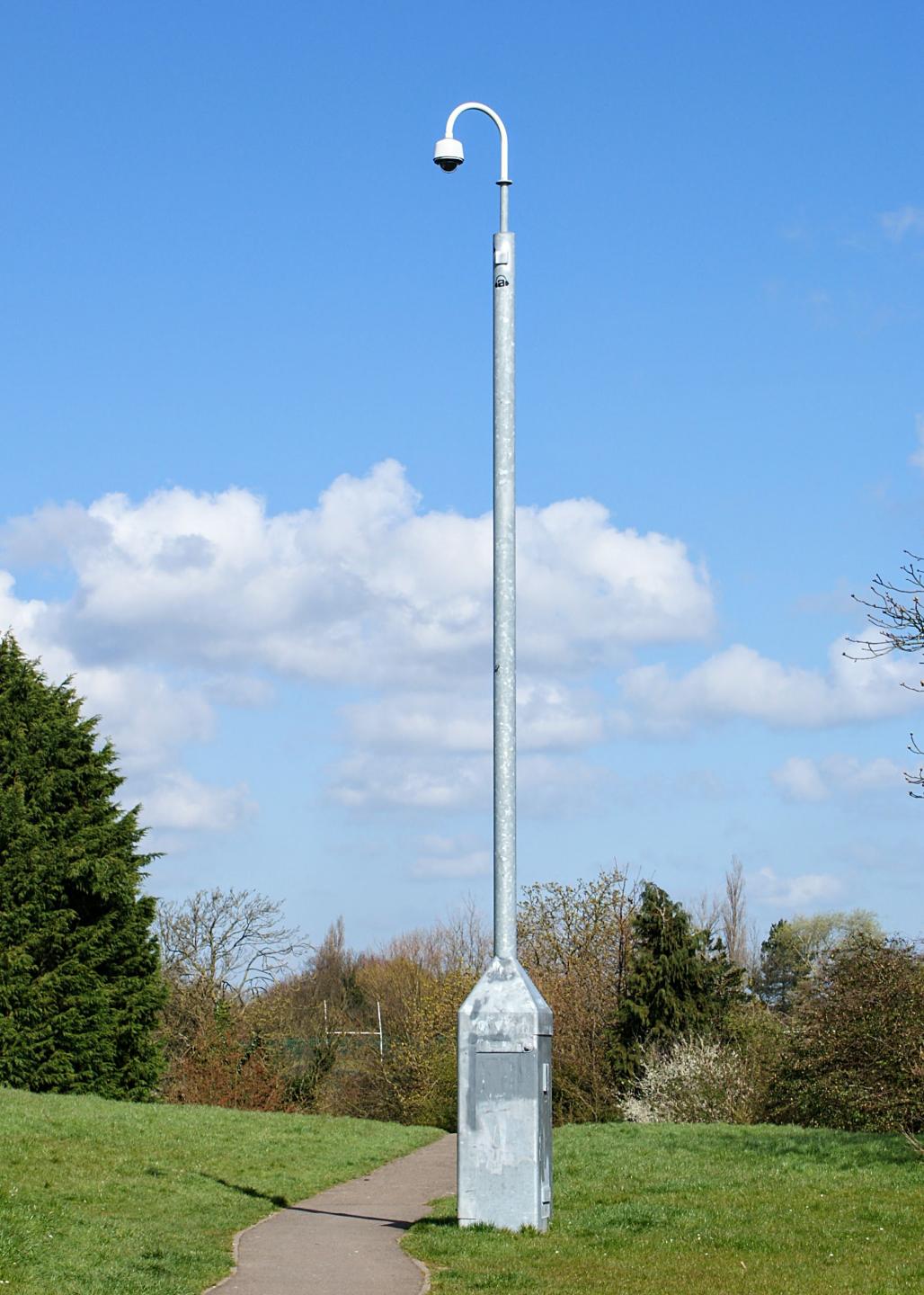

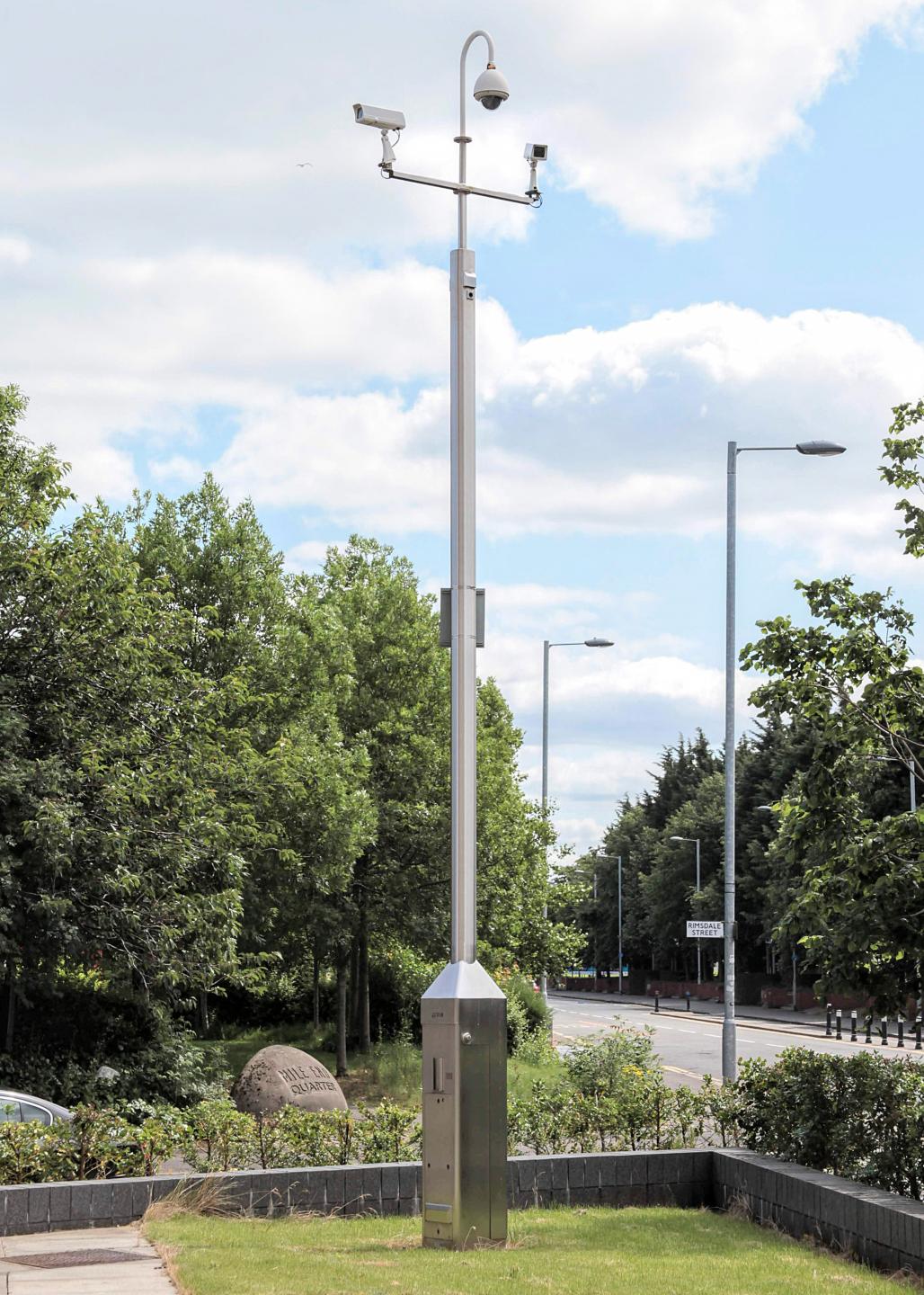

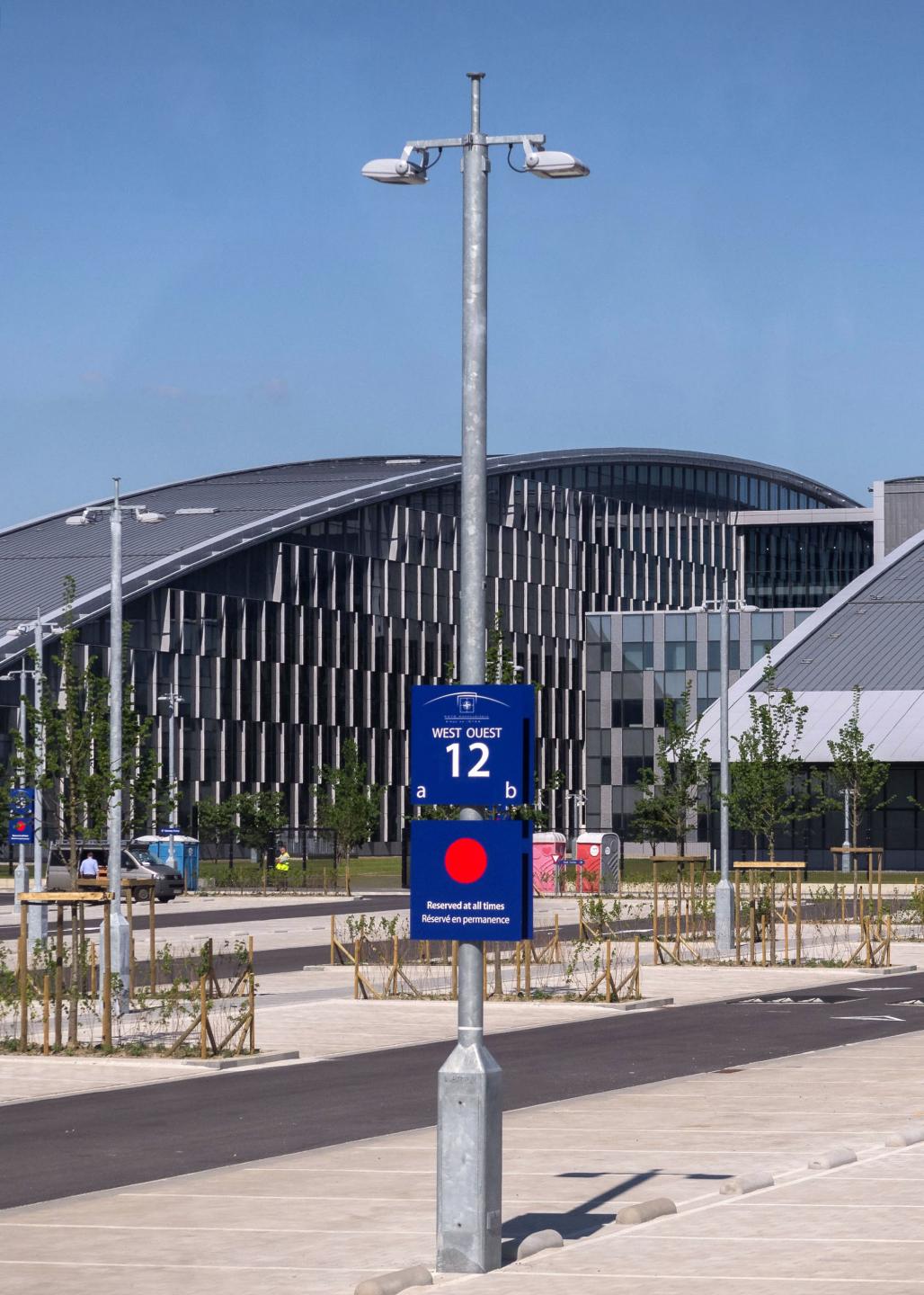

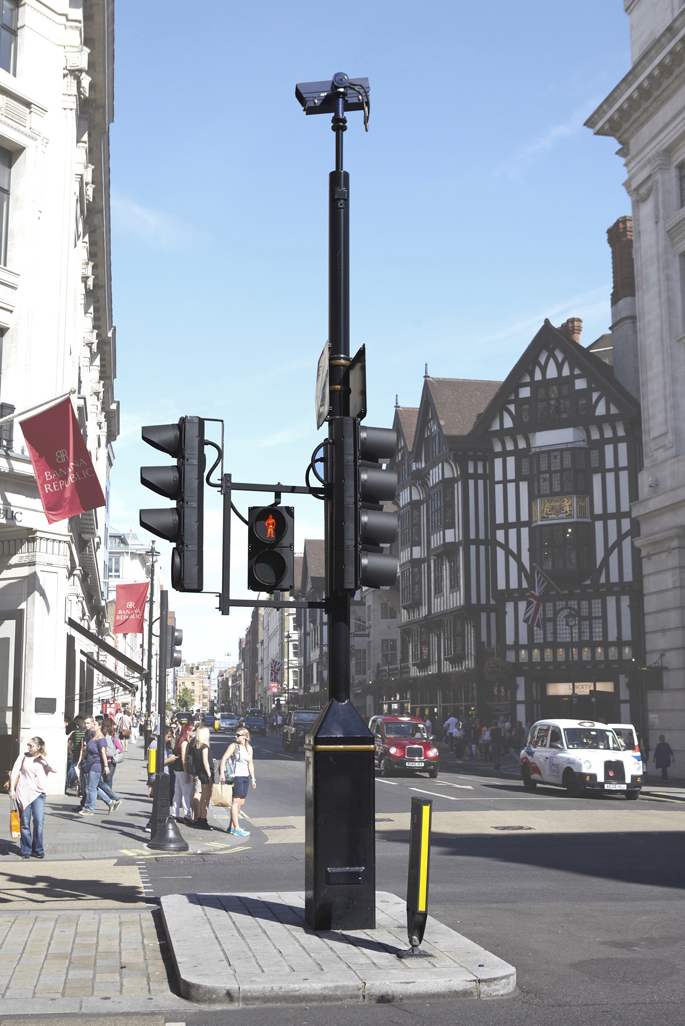

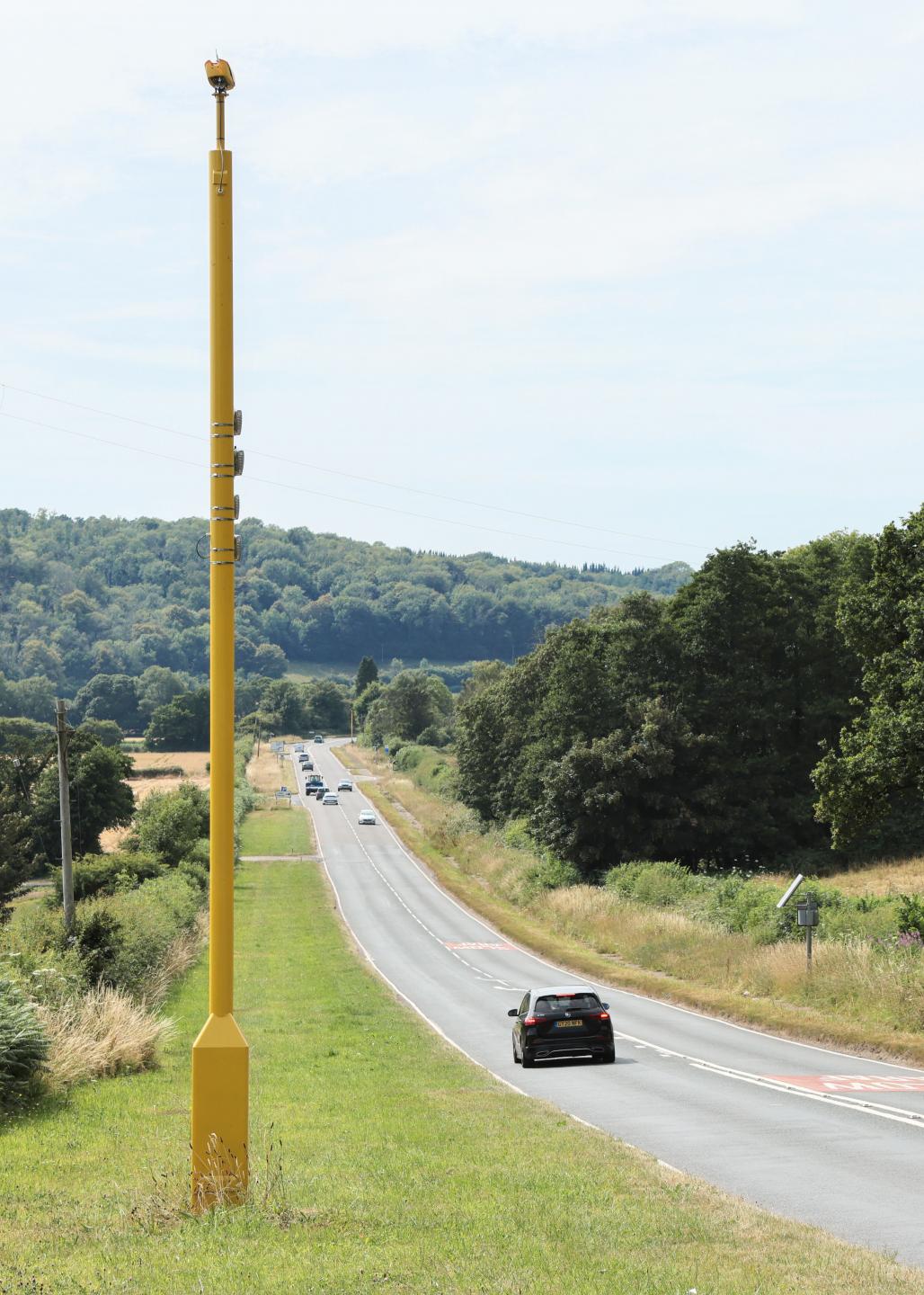

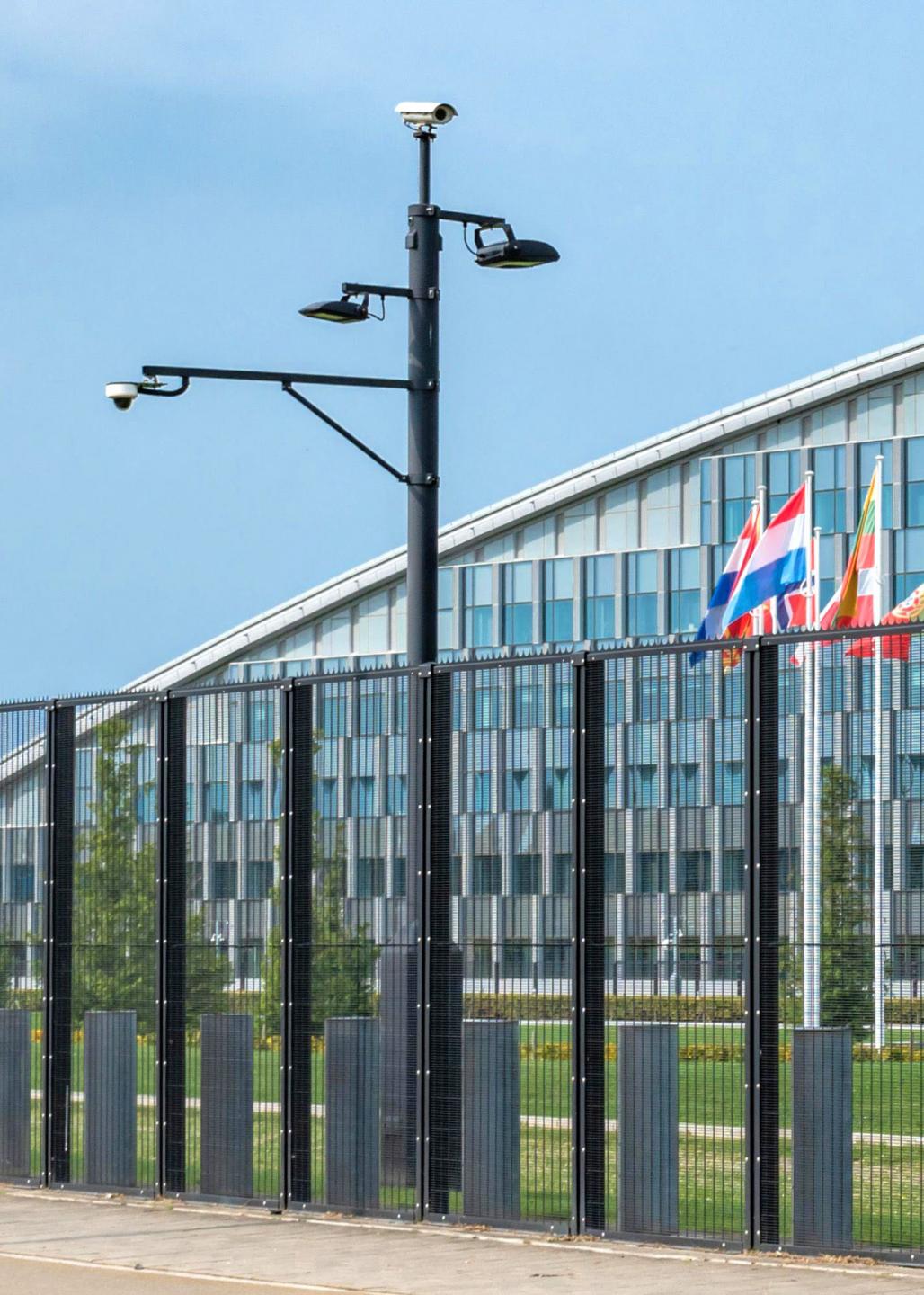

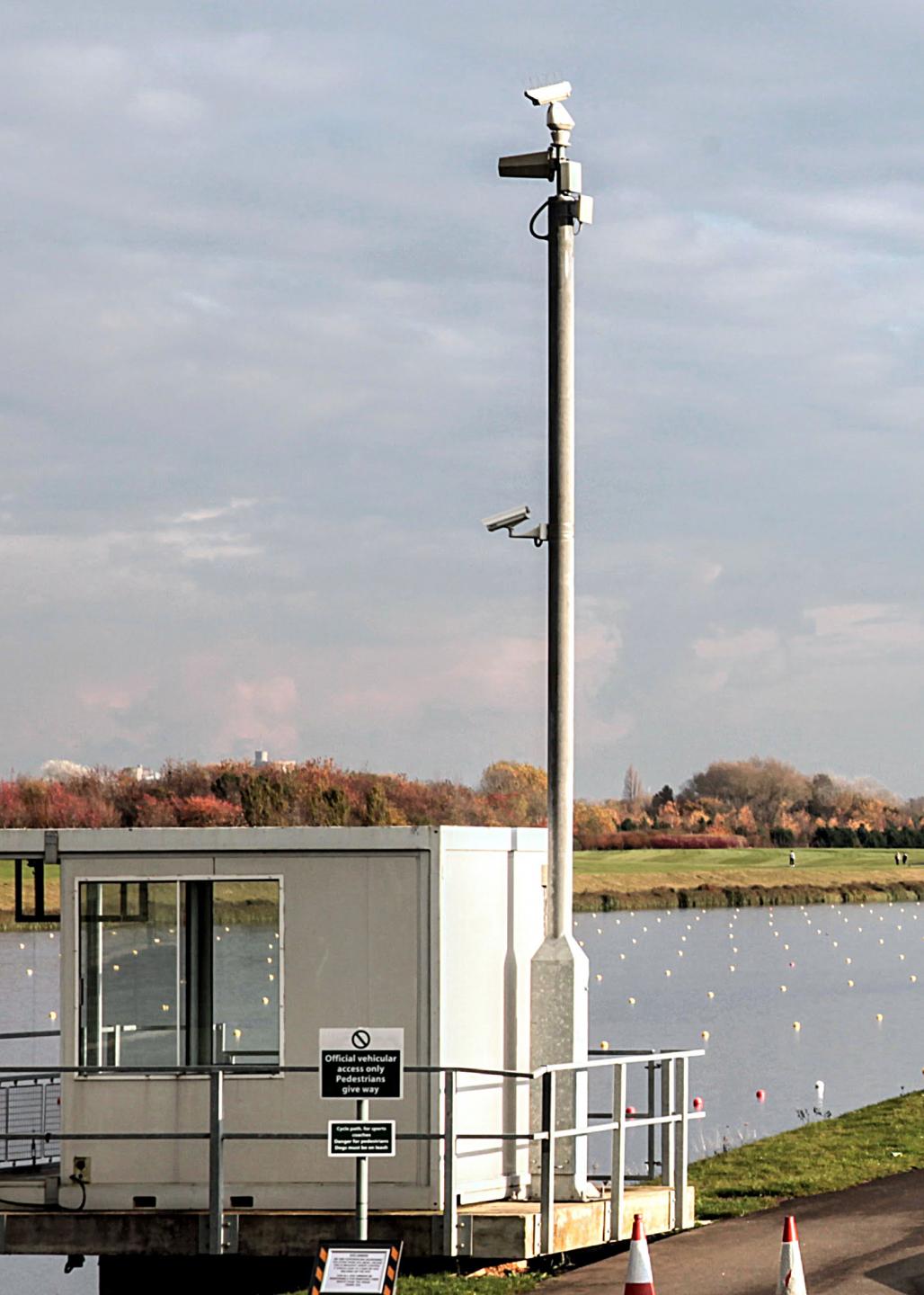

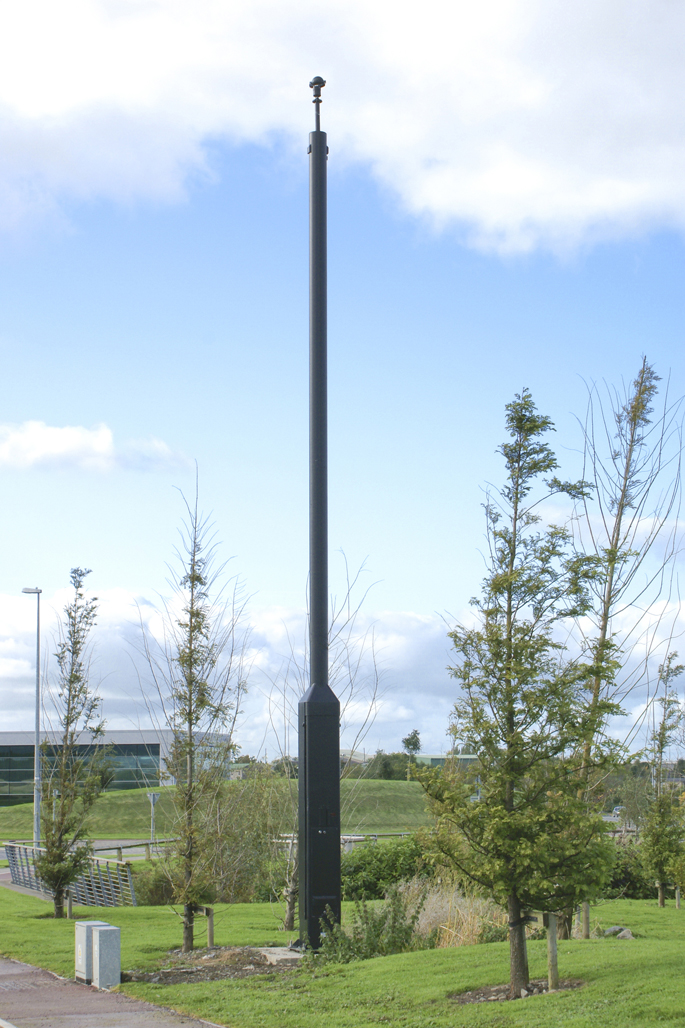

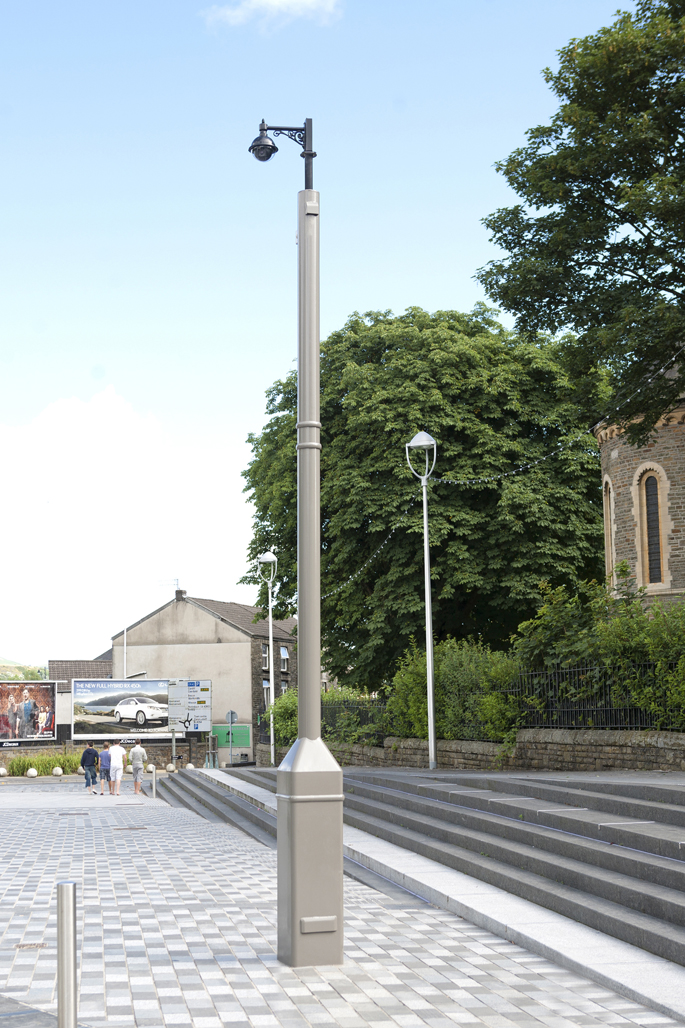

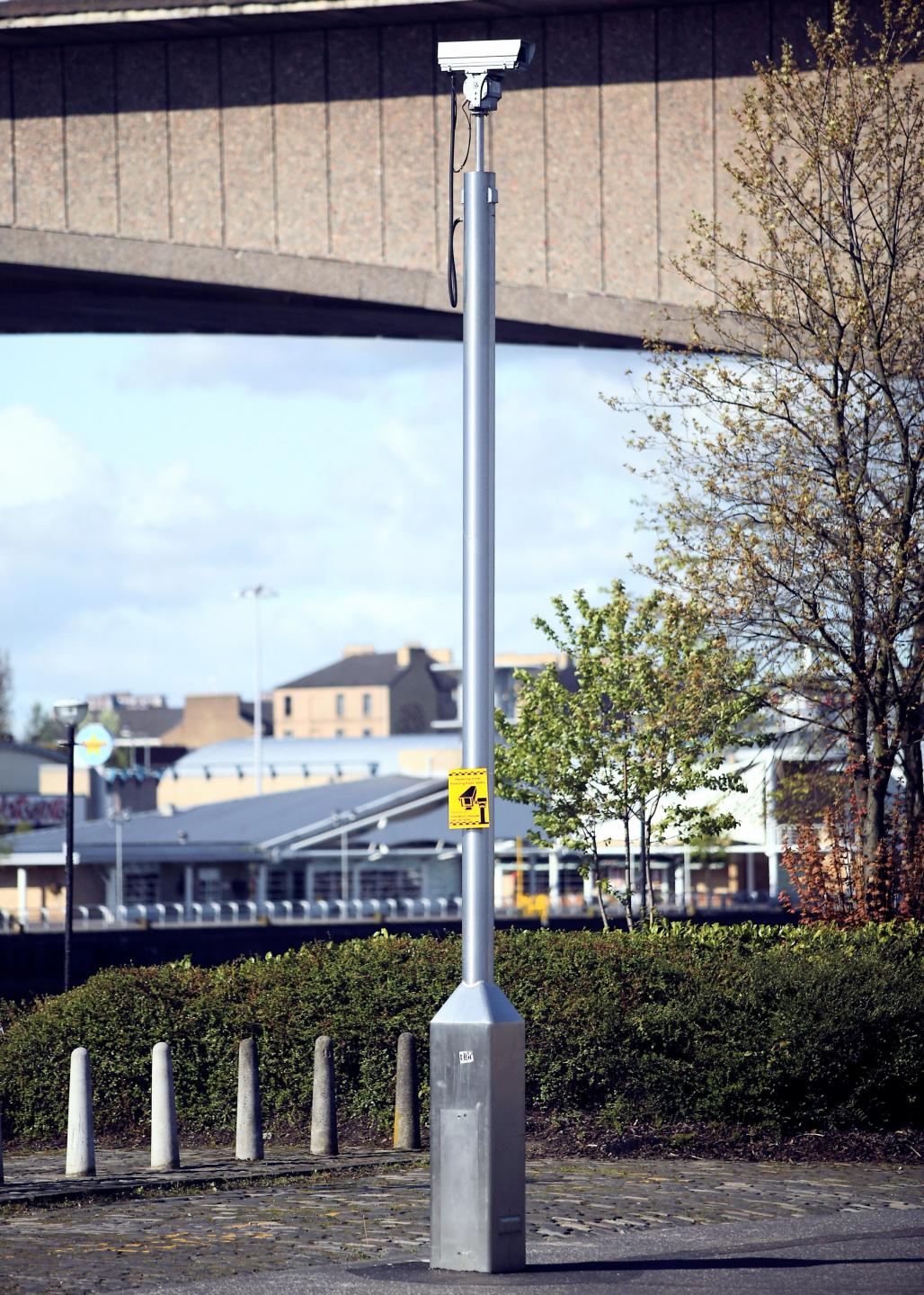

4-1 - 5x7AW1545-6-B-UP (2)AW1545-8-UPAW1545-6-UP in stainless steel - 5 x 7AW1545-8-TD-UP in stainless steel - 5 x 7AW1545-6-300-UPAW1545-12-UP (2)AW1545-5-UP-350 - 5 x 7AW1545-12-TD-UPAW1545-8-TD-UP - 5 x 7AW1545-12-UP with enlarged cabinet to house equipment - 5 x 7AW1545-6-B-UPAW1545-8-UP with 500sq cabinet base - 5 x 7

Designed to meet the specific demands of public area CCTV, our range of high specification cabinet based poles come as standard with venting, high security locks and high capacity, good quality, treated back boards. With many cabinet sizes, door options and head mounting options, backed up with a full range of accessories, the AW1545/UP pole range offers a comprehensive solution for urban CCTV installations.

  • Stable structures for all camera types
  • Available in 6 standard cabinet sizes, 300, 350, 400, 450, 500 and 600 square (400mm square as standard if not specified)
  • Flush fitting door, level with cabinet surface, no external frame combined with flush fitting Altron secure locks and a high security lock giving enhanced security and a clean aesthetic appearance
  • 4 point security door locking option
  • Standard convection venting eliminates condensation (when the pole base is properly sealed on installation)
  • Demountable winches allow for a secure installation whilst also reducing costs on multiple installations
  • A wide range of standard Altron Accessories and Brackets available
  • Pole adaptations available to suit customers/project specific requirements
  • Constructed in high tensile steel and hot dip galvanised after fabrication for durability
  • Option of painting over the galvanised finish in colours available from BS and RAL colour charts
  • Also available in 316 stainless steel, architectural finish

  • Internal cabling
  • Close fitting flush doors
  • Solid secure heavy duty door locks and high security lock
  • Secure venting method
  • Internal padlock facility on tilt down poles to protect against un-authorised lowering
  • Anchor bolts below ground level

  • Public area urban CCTV
  • Highways
  • Industrial and commercial premises
  • Schools and universities
  • Prisons and detention facilities
  • Utilities sites
  • Railway platforms & car parks
  • Car parks
  • Retail Parks
  • Sports stadia
Related Products

AW1545-UP

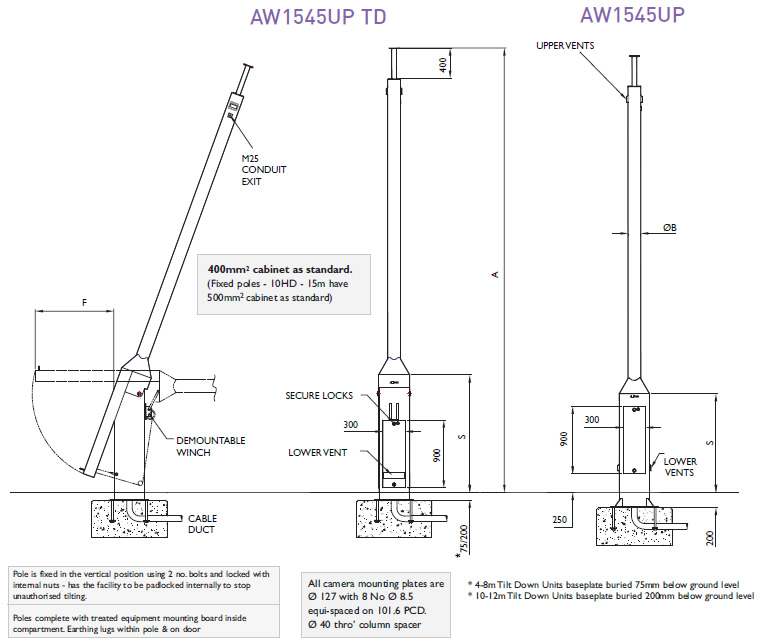

Foundation and bolting details



Model No. Height
in mtrs
A		 Max equip
weight
at top
kgs		 Max
equip
surface
area
m2		 Pole
ØB		 Cabinet
height
above
ground
S		 Pole rear
clearance
when
tilting
F		 Winch
part
number		 Product
weight
kgs
AW1545/UP - Fixed
AW1545/4/UP                    4 40 0.25 168 1300 - - 216
AW1545/5/UP 5 40 0.25 168 1300 - - 238
AW1545/6/UP  6 40 0.25 168 1300 - - 260
AW1545/7/UP 7 40 0.25 168 1300 - - 292
AW1545/8/UP 8 40 0.25 168 1300 - - 314
AW1545/8/UP/219 8 40 0.25 219 1300 - - 350
AW1545/9/UP 9 40 0.25 219 1650 - - 425
AW1545/10/UP 10 40 0.25 219 1650 - - 496
AW1545/12/UP 12 40 0.25 273 1650 - - 866
AW1545/15/UP 15 40 0.25 273 1650 - - 995

AW1545/HD/UP - Fixed (Heavy Duty)  - Suitable for long offset arms or dual CCTV and lighting applications etc - or high rigidity
AW1545/8HD/UP 8 80 0.5 219 1650     396
AW1545/10HD/UP 10 80 0.5 273 1650     780

AW1545/TD/UP - Tilt-Down
AW1545/4TD/UP 4 40 0.25 168 1625 1150 DW1000/45 246
AW1545/6TD/UP 6 30 0.25 168 1625 1150 DW1000/45 290
AW1545/8TD/UP 8 25 0.25 168 1625 1150 DW1500/45 335
AW1545/10TD/UP 10 40 0.25 219 2650 2150 DW2500/45 668
AW1545/12TD/UP 12 25 0.25 219 2650 2150 DW2500/45 726



Where payloads are greater than those stated above please contact Altron
All dimensions in mm's unless stated otherwise

Notes on Heavy Duty poles and deflections

For 8m Fixed poles, we have three different options. This is due to the significant variation of equipment that can be mounted, from a small PTZ MICI type camera, to 2m offset arms with PTZ and lighting for perimeter security uses for instance. There is also an effect on deflection, where for an 8m pole for the same camera load, the deflection varies significantly for the three options.
This is outlined in the table below:

Pole Model number Equipment surface area Equipment weight deflection @ 60mph +/- mm
8 metre options
AW1545/8/UP 0.25m2 40kgs 12.5mm
AW1545/8/UP/219 0.25m2 40kgs 6mm
AW1545/8HD/UP 0.5m2 80kgs 8mm
10 metre options
AW1545/10/UP 0.25m2 40kgs 10mm
AW1545/10HD/UP 0.5m2 80kgs 6mm
Examples of other pole heights
AW1545/4/UP 0.25m2 40kgs 2mm
AW1545/6/UP 0.25m2 40kgs 4mm
AW1545/15/UP 0.25m2 40kgs 35mm

Applicable standards


Design
- Design analysis carried out using a specialist software package in accordance with ILE TR7, BS6399 and BS8100

Material and Finishing
- Structural steel hollow sections EN10219 - EN10025:2004
- Steel flat angles and structural sections EN10025, EN10111, EN 10130
- Foundation bolts Grade 4.6 spun galvanised BS4190, BS3692, DIN931, 934, 601
- Fixings: stainless steel Grade A2, galvanised Grade 4.6  Grade 8.8  BS4190, BS3692, DIN 931, 934, 601
- Hot dipped galvanising after fabrication to ISO 1461
- Painting in BS and RAL colours in accordance with BS4800

Manufacturing Processes
- Welding Procedures conform with BS EN 1011:2009, BS EN 9606-1

Winches
- Wire ropes to BS183:1972, BS EN 13411 3 2004 + A1 2008
- Winches conform to American ASAE standard S361.IT.

Options

Decorative Banding /B
Screw-In Swan Neck Adaptor /SN
Double Door (on Fixed poles only)
/DD
Double Door with Washer Bottle Conduit /DDW
Access Cover Plate and Cable Restraining Bar /AC
Altron Locks in 4-Point Arrangement /A4P
Tamper Switch /TS
Lighting Spigot /LS
Cabinet Base Size /300 /350 /450 /500 /600 (mm Square) e.g /300

Part Numbering

Standard part numbers are as shown below. For addition of options, add suffix to part number e.g. for AW1545/10/UP pole with 500mm square cabinet base, double doors, lighting spigot and 4 point locking, use part number AW1545/10/500/DD/UP/LS/A4P

AW1545/UP Cabinet Based poles are supplied with treated backboards, secure locks, high security lock and venting as standard

Fixed poles
Standard poles up to 10m have 400mm square cabinet base as standard
AW1545/4/UP
AW1545/5/UP
AW1545/6/UP - Stock product
AW1545/7/UP
AW1545/8/UP - Stock product
AW1545/8HD/UP
AW1545/9/UP
AW1545/10/UP
Standard poles 10m Heavy Duty and over, have 500mm square cabinet base as standard
AW1545/10HD/UP
AW1545/11/UP
AW1545/12/UP
AW1545/13/UP
AW1545/14/UP
AW1545/15/UP

Tilt-down poles
All poles have 400mm square cabinet base as standard
AW1545/4TD/UP
AW1545/5TD/UP
AW1545/6TD/UP - Stock product
AW1545/7TD/UP
AW1545/8TD/UP
AW1545/9TD/UP
AW1545/10TD/UP
AW1545/11TD/UP
AW1545/12TD/UP
