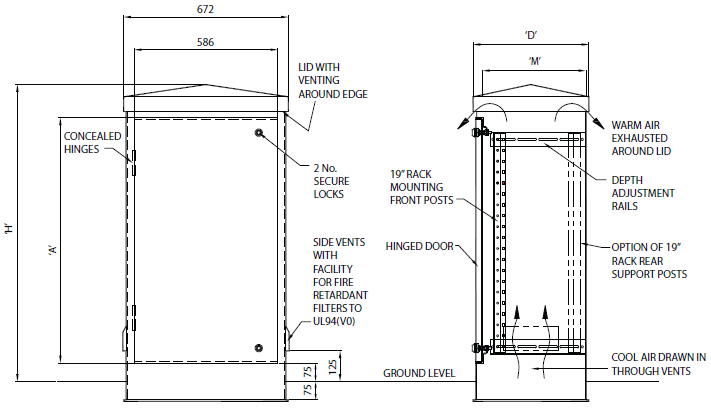

| Model No. |
Height
H
|
Depth
D
|
Maximum
Mounting
Depth M
|
Door
Aperture
A x 516
|
Mounting
Post
Height
|
Cabinet
Weight
Kgs
|
| AEC-90-65-45 | 1010 | 450 | 380 | 650 x 516 | 15u | 120 |
| AEC-90-65-65 | 1010 | 650 | 580 | 650 x 516 | 15u | 132 |
| AEC-11-65-45 | 1210 | 450 | 380 | 850 x 516 | 19u | 140 |
| AEC-11-65-65 | 1210 | 650 | 580 | 850 x 516 | 19u | 154 |
| AEC-13-65-45 | 1410 | 450 | 380 | 1050 x 516 | 24u | 161 |
| AEC-13-65-65 | 1410 | 650 | 580 | 1050 x 516 | 24u | 177 |
| AEC-16-65-45 | 1610 | 450 | 380 | 1250 x 516 | 28u | 180 |
| AEC-16-65-65 | 1610 | 650 | 580 | 1250 x 516 | 28u | 200 |

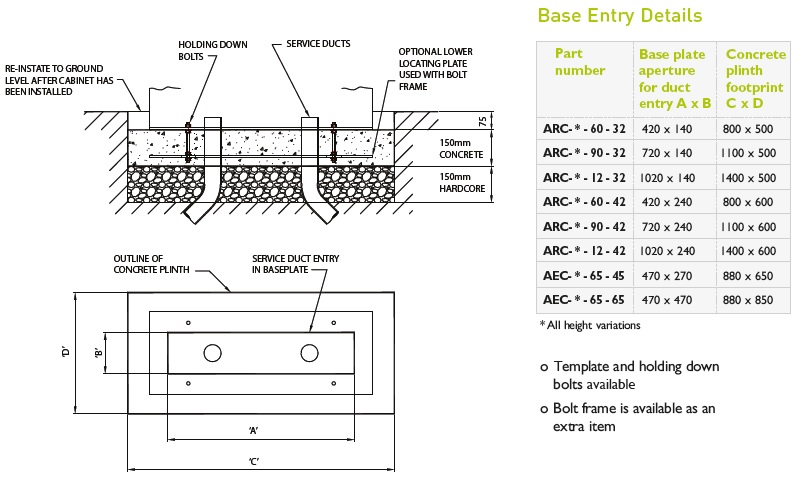

Installation
Options
| Tamper Switch | CAB-TS |
| 4 point locking | /A4P |
|
(add to end of cabinet Pt No)
|
|
| High Security lock in addition | CAB-HS |
|
Filters for vents |
CAB-F |
| Circulation Fan + filters for vents | |
| - AEC-65-45 cabinets | AEC-65-45/CF |
| - AEC-65-65 cabinets | AEC-65-65/CF |
| - AEC-65-65 cabinets* | AEC-65-65/CF2 |
|
*Twin fan option, supplied as
standard option on AEC-16-65-65 |
|
| Thermostat | CAB-T |
|
Heater |
CAB-H |
| Swing frame | /SF |
| (add to end of cabinet Pt No) *Cabinet width = 1000mm AEC-90 & AEC-11 cabinets only |
|
|

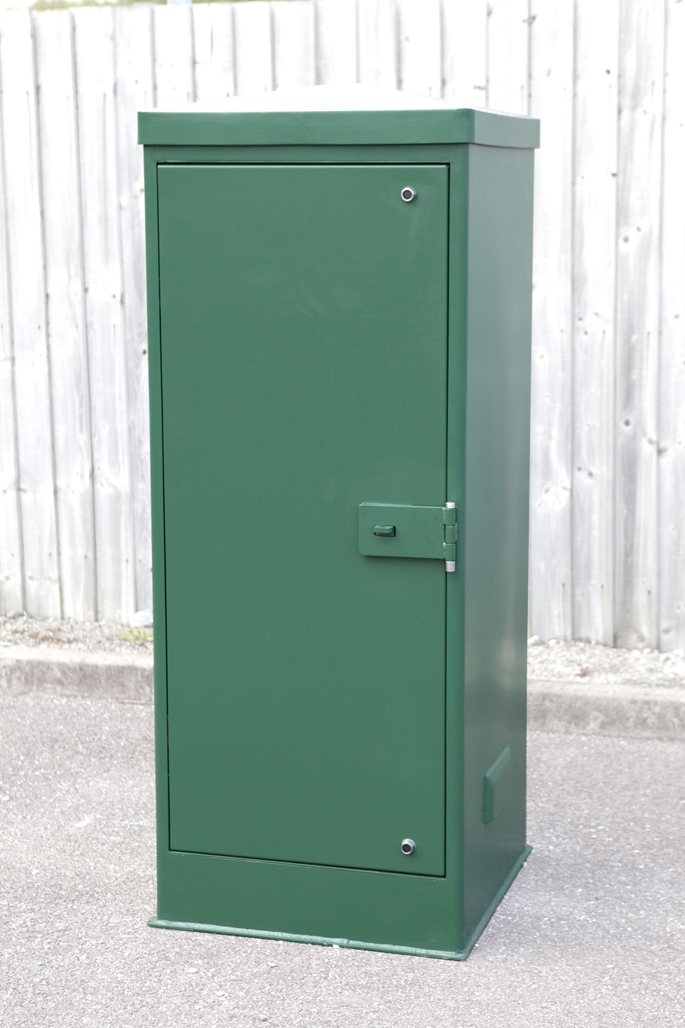

Padlockable Hasp and Staple |
PHS-AEC |
|

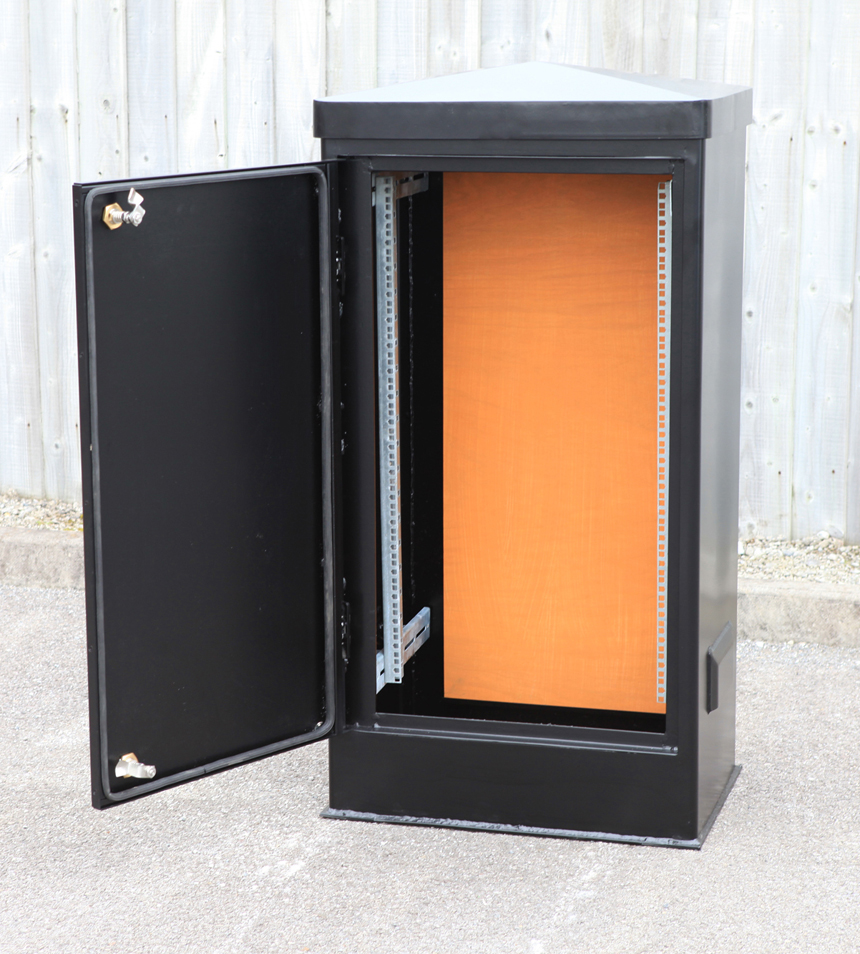

Backboard - Removable:-
- AEC-90-65 cabinets - AEC-11-65 cabinets - AEC-13-65 cabinets - AEC-16-65 cabinets
|
AEC-90-65/BB AEC-11-65/BB AEC-13-65/BB AEC-16-65/BB |
Part Numbering

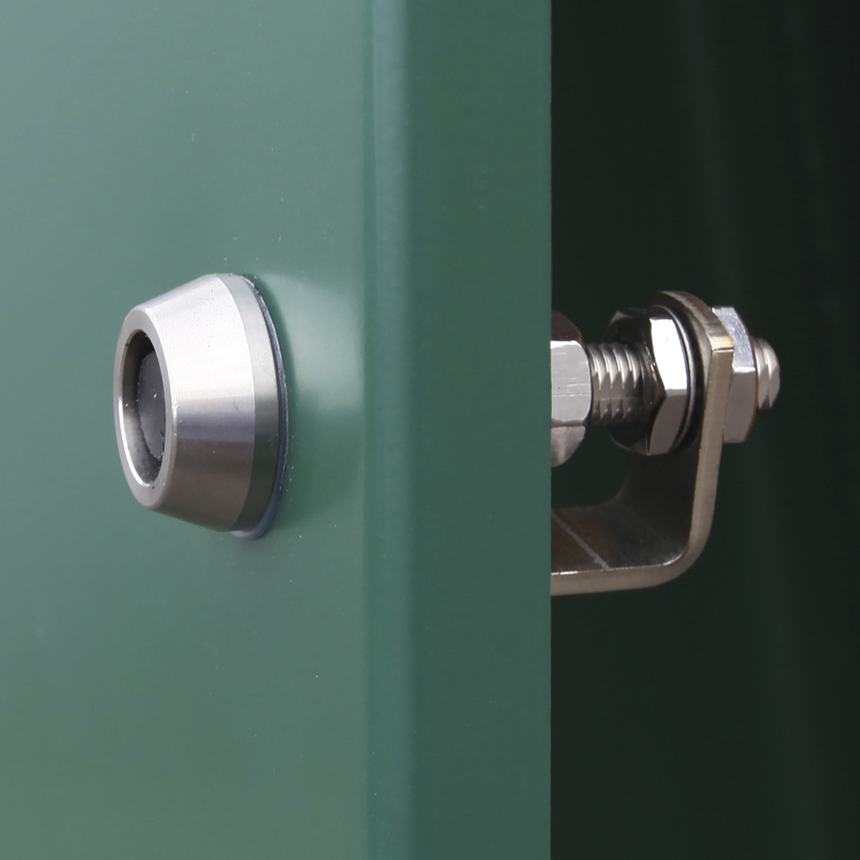

AEC equipment cabinets are supplied with secure locks and 19inch front rack mounting posts as standard.
Standard part numbers are shown below:-
AEC-90-65-45 Stock product
AEC-90-65-65 Stock product
AEC-11-65-45
AEC-11-65-65 Stock product
AEC-13-65-45
AEC-13-65-65 Stock product
AEC-16-65-45
AEC-16-65-65
AEC-90-65-65 Stock product
AEC-11-65-45
AEC-11-65-65 Stock product
AEC-13-65-45
AEC-13-65-65 Stock product
AEC-16-65-45
AEC-16-65-65
For 4 point door locking suffix /A4P
e.g. AEC-90-65-45/A4P
