Products Modular Towers & Columns ANCT - Nested Towers

ANCT - Nested Towers - Tilt-down

Height range 4m - 10m

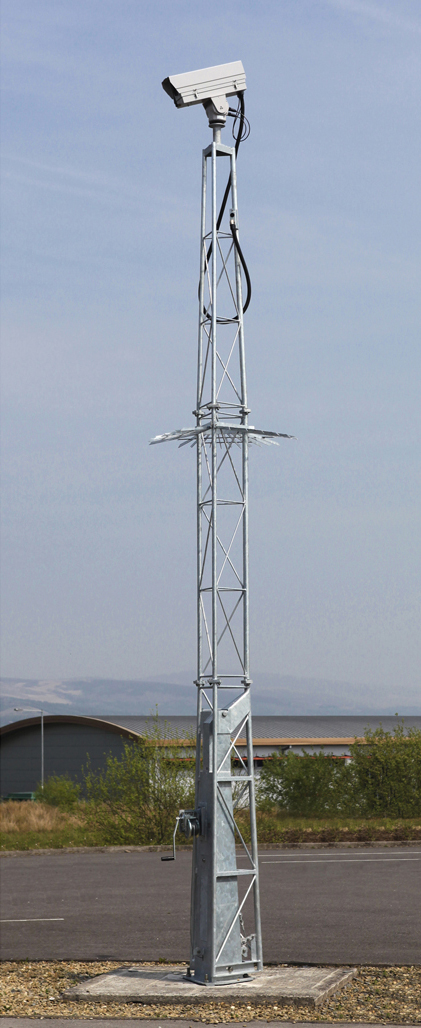

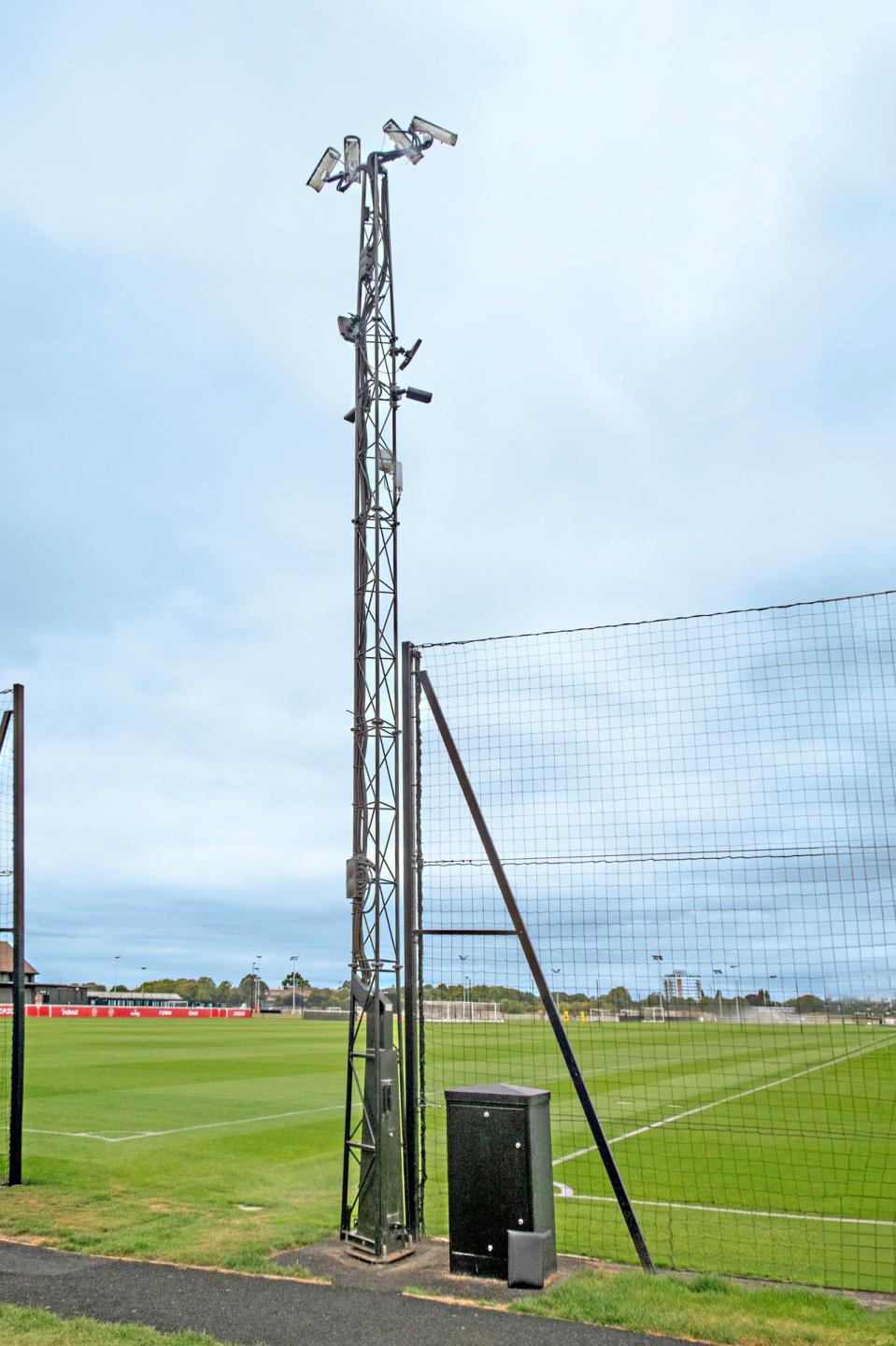

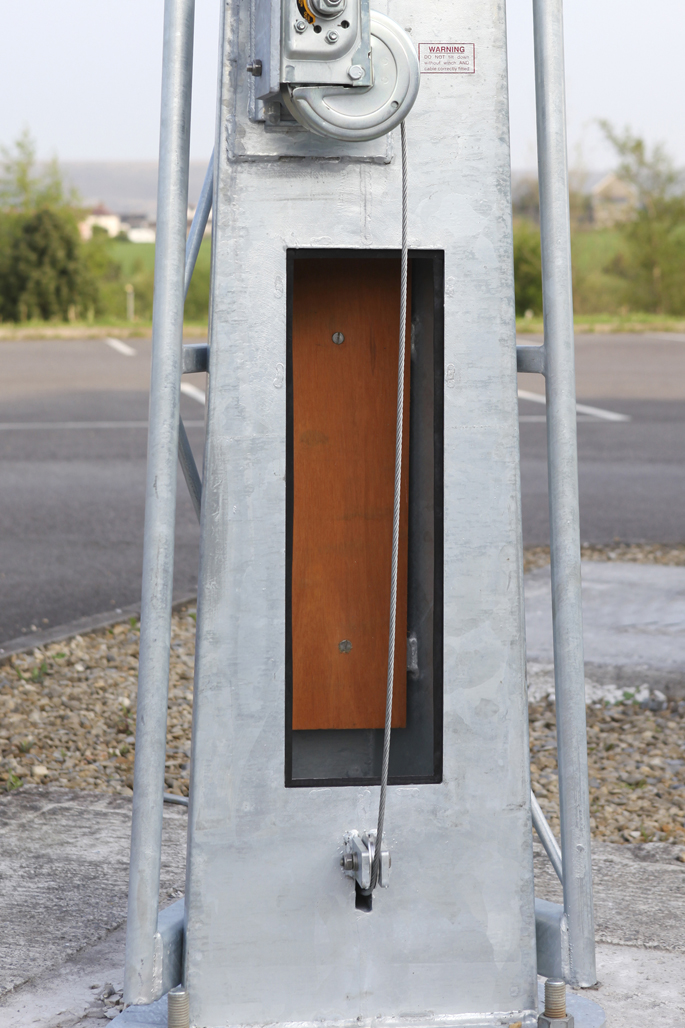

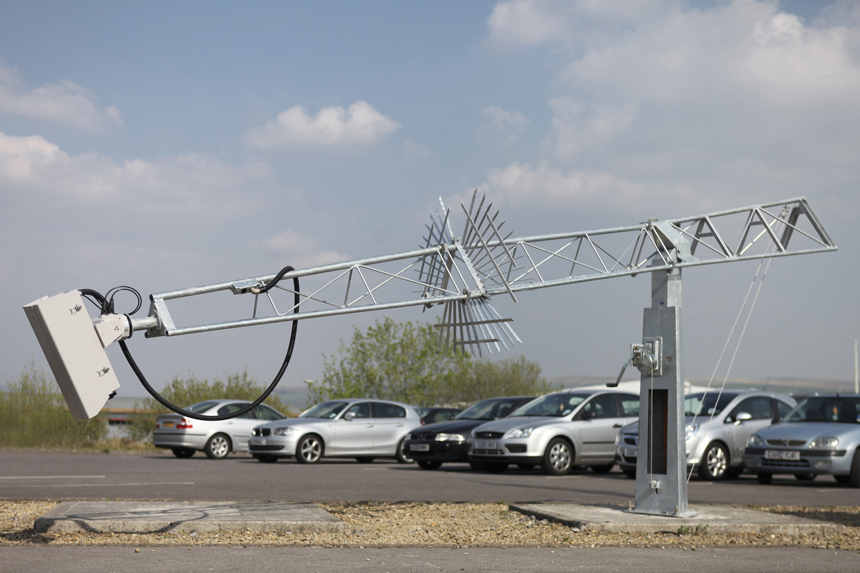

ANCT/6ANCT-6 in tilted positionLarge equipment capacityANCT winch installedConcealed cable wayANCT features

Altron Nested Camera Towers are designed to be a secure mounting solution, where a lattice tower is the preferred mounting option. Cabling through the tower is completely concealed thanks to its patented hinge design and there is a secure access door and treated backboard within the large integrated base post so that connections and equipment are situated inside the tower.

Installation is made easy by the use of a simple bolt frame for setting the holding down bolts and a large entry point into the base post provides clear access for cable ducts.The footprint of the tower is small and the appearance is neat and compact due to the base post 'nesting' inside the tower.

ANCT towers give good rigidity and are suitable for exposed locations. Ideal for medium to heavy camera installations or lighter applications where rigidity is paramount, a full range of accessories is available and all tower components are held in stock. ANCT Towers are not ideally suited for public area installations due to their climbable nature.

  • Modular construction in 2 metre sections for ease of assembly and installation on site
  • Large integrated cabinet, allowing equipment mounting and internal cable connections

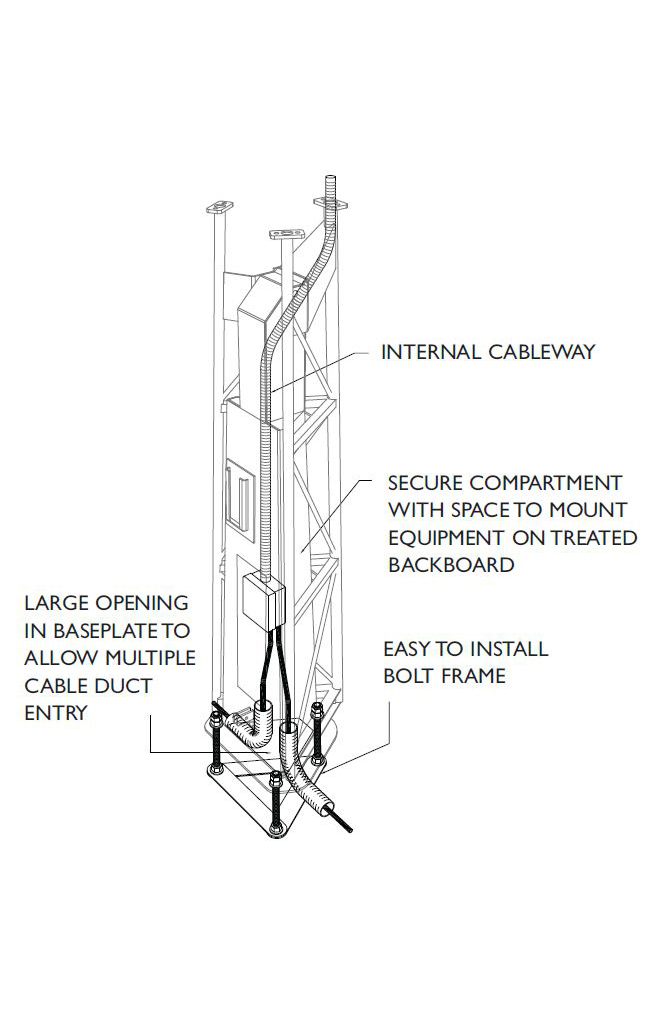

  • Patented method of internal cabling pathway, through cabinet and tilt-mechanism, up through tower leg and exiting via conduit exit points.
  • Simple method of pre-casting base connections - only bolts need to be cast, no other steelwork
  • Large cable duct entry into bottom of base post
  • Ideal for restricted access areas
  • Provides stable mounting platform for all camera types

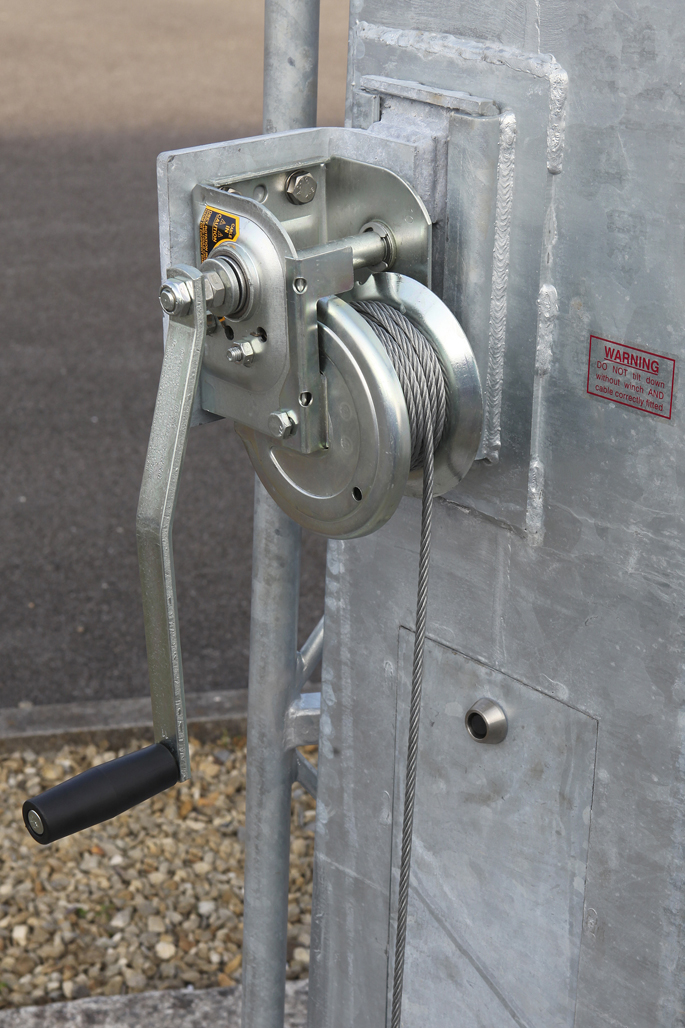

  • Demountable winches ensure towers are secure and reduces costs on multiple installations
  • Enables camera maintenance at ground level, therefore reducing maintenance costs
  • A wide range of standard Altron Accessories and Brackets available ex stock
  • Constructed in high tensile steel and hot dip galvanised after fabrication for durability
  • Option of painting over the galvanised finish in colours available from BS and RAL colour charts

  • Internal cabling
  • Internal padlock facility
  • Close fitting flush doors
  • Solid secure heavy duty door locks

  • Industrial and commercial premises
  • Perimeter detection
  • Utilities sites
  • Car parks
  • Petrochemical sites
  • Securing compounds

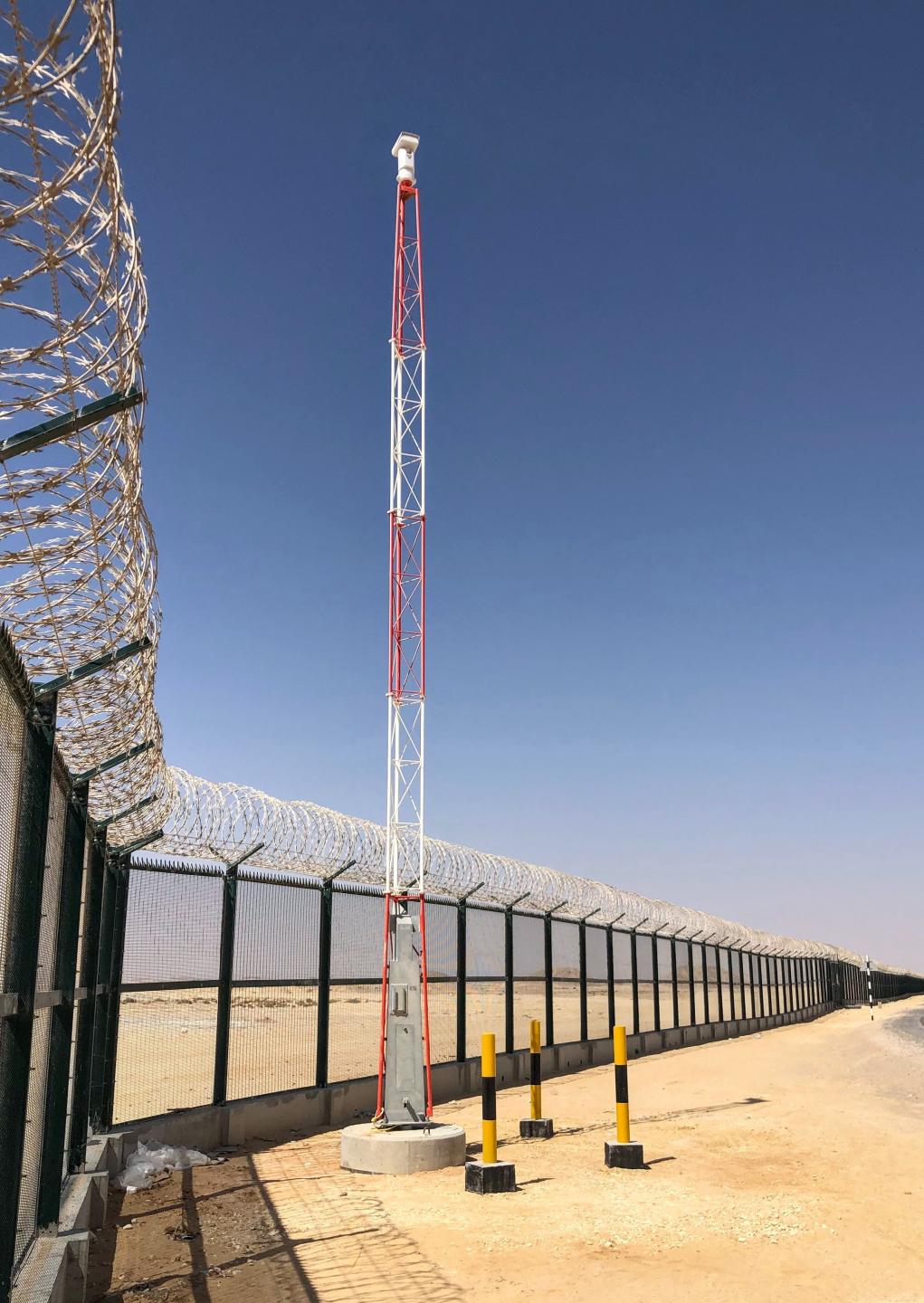

  • Military and high security sites
Related Products

anct

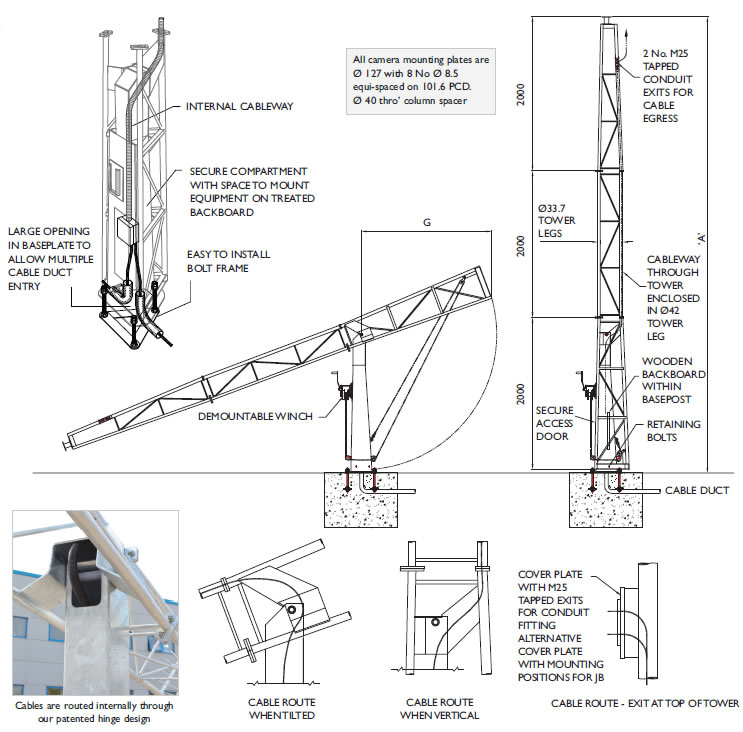

Foundation and bolting details



Tower
Part Number
Height
in mtrs
A
 Max equip
weight
at top
kgs		 Max
equip
surface
area
m2		 Tower
clearance
when tilting
G
Cabinet
Door
Size
H x W
Back board
size &
compartment
depth
H x W x D
 Winch
part
number		 Product
weight
kgs
ANCT 4 4 50 0.5 2000 600x165 570x170x150 DW1000/ANCT 145
ANCT 6 6 50 0.4 2000 600x165 570x170x150 DW1000/ANCT 172
ANCT 8 8 30 0.25 2000 600x165 570x170x150 DW2500/ANCT 199
ANCT 10 10 25 0.2 2000 600x165 570x170x150 DW2500/ANCT 226



Where payloads are greater than those stated above please contact Altron
All dimensions in mm's unless stated otherwise

Applicable standards


Design
- Wind loading and structural design is carried out using specialist software package in accordance with BS8100 PT1,‘Code of practice for loading’ and BS8100 PT3,‘Code of practice for strength assessment of members of lattice towers and masts’

Material and Finishing
- Structural steel hollow sections EN10219 - EN10025:2004
- Steel flat angles and structural sections EN10025, EN10111, EN 10130
- Foundation bolts Grade 4.6 spun galvanised BS4190, BS3692, DIN931, 934, 601
- Fixings: stainless steel Grade A2, galvanised Grade 4.6  Grade 8.8  BS4190, BS3692, DIN 931, 934, 601
- Hot dipped galvanising after fabrication to ISO 1461
- Painting in BS and RAL colours in accordance with BS4800

Manufacturing Processes
- Welding Procedures conform with BS EN 1011:2009, BS EN 9606-1

Winches
- Wire ropes to BS183:1972, BS EN 13411 3 2004 + A1 2008
- Winches conform to American ASAE standard S361.IT.

Options

Tamper switch    /TS
Earth bosses      /E-BOSS

Part Numbering

Altron nested towers are supplied with backboard fitted as standard

ANCT/4
ANCT/6
ANCT/8
ANCT/10
