| Model No. |
Height
in mtrs
|
Post type | Max equip weight at top kgs |
Max surface area m2 |
Post size| A2 |
Mid length mtrs L |
Top length mtrs |
Tower rear clearance |
Winch part number |
Product weight kgs |
| ACT1 | 4.5 | FB | 40 | 0.4 | - | - | - | - | - | 55 |
| Standard | PM | 40 | 0.4 | 120 | - | - | 1700 | DW1000/AT | 98 | |
| Duty | BP | 40 | 0.4 | 120 | - | - | 1700 | DW1000/AT | 115 | |
| ACT2 | 6 | FB | 40 | 0.4 | - | - | 1.5 | - | - | 70 |
| Standard | PM | 40 | 0.4 | 120 | - | 1.5 | 1700 | DW1000/AT | 118 | |
| Duty | BP | 40 | 0.4 | 120 | - | 1.5 | 1700 | DW1000/AT | 135 | |
| ACT3 | 7.5 | FB | 35 | 0.25 | - | - | 3 | - | - | 81 |
| Standard | PM | 35 | 0.25 | 120 | - | 3 | 1700 | DW1500/AT | 131 | |
| Duty | BP | 35 | 0.25 | 120 | - | 3 | 1700 | DW1500/AT | 147 | |
| ACT3HD | 7.5 | FB | 40 | 0.35 | - | - | 3 | - | - | 107 |
| Heavy | PM | 40 | 0.35 | 150 | - | 3 | 2000 | DW1500/ATHD | 193 | |
| Duty | BP | 40 | 0.35 | 150 | - | 3 | 2000 | DW1500/ATHD | 197 | |
| ACT4HD | 9 | FB | 35 | 0.25 | - | - | 4.5 | - | - | 124 |
| Heavy | PM | 35 | 0.25 | 150 | - | 4.5 | 2000 | DW1500/ATHD | 204 | |
| Duty | BP | 35 | 0.25 | 150 | - | 4.5 | 2000 | DW1500/ATHD | 208 | |
| ACT12 | 12 | FB | 25 | 0.2 | - | 4.5 | 3 | - | - | 150 |
| BP | 25 | 0.2 | 180 | 4.5 | 3 | 2400 | DW2500/AT | 237 | ||
| PM | 25 | 0.2 | 180 | 4.5 | 3 | 2400 | DW2500/AT | 233 | ||
| ACT14 | 14 | BP | 50 | 0.25 | 200 | - | 7 | 2800 | DW1500/AT14 | 387 |
| Telescopic | PM | 50 | 0.25 | 200 | - | - | 2800 | DW1500/AT14 | 341 |
Where payloads are greater than those stated above please contact Altron
All dimensions in mm's unless stated otherwise
Applicable standards
Design
- Wind loading and structural design is carried out using specialist software package in accordance with BS8100 PT1,‘Code of practice for loading’ and BS8100 PT3,‘Code of practice for strength assessment of members of lattice towers and masts’
Material and Finishing
- Structural steel hollow sections EN10219 - EN10025:2004
- Steel flat angles and structural sections EN10025, EN10111, EN 10130
- Foundation bolts Grade 4.6 spun galvanised BS4190, BS3692, DIN931, 934, 601
- Fixings: stainless steel Grade A2, galvanised Grade 4.6 Grade 8.8 BS4190, BS3692, DIN 931, 934, 601
- Hot dipped galvanising after fabrication to ISO 1461
- Painting in BS and RAL colours in accordance with BS4800
Manufacturing Processes
- Welding Procedures conform with BS EN 1011:2009, BS EN 9606-1
Winches
- Wire ropes to BS183:1972, BS EN 13411 3 2004 + A1 2008
- Winches conform to American ASAE standard S361.IT.
Installation
Operating instructions
Support
Options
Conduit fitted to tower
Ø20mm conduit /C20
Ø25mm conduit /C25
Common tower height options
5m ACT1/5 (followed by mounting type - FB-PM-BP)
8m ACT3/8 " " " "
10m ACT4HD/10 " " " "
Cabinet based version AW1697/ACT is available in all tower height options and is based on our AW1697 cabinet based column range
Part Numbering

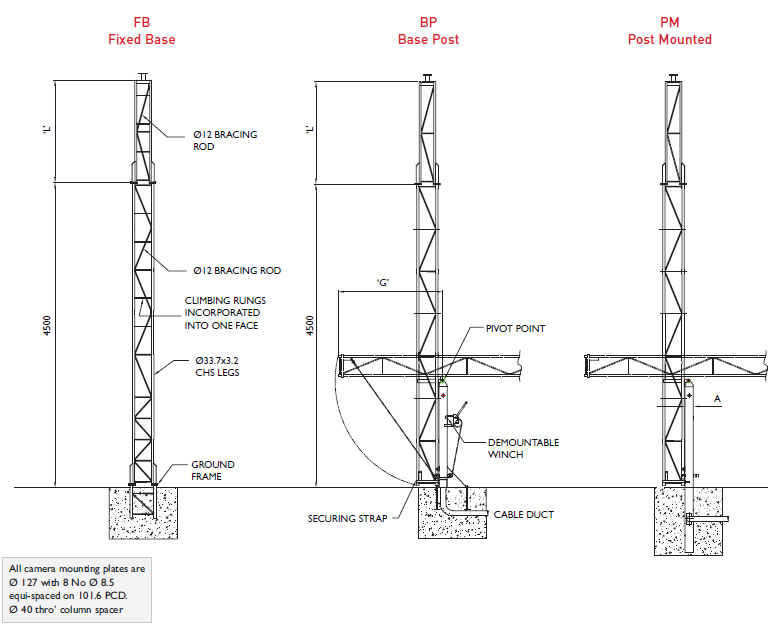

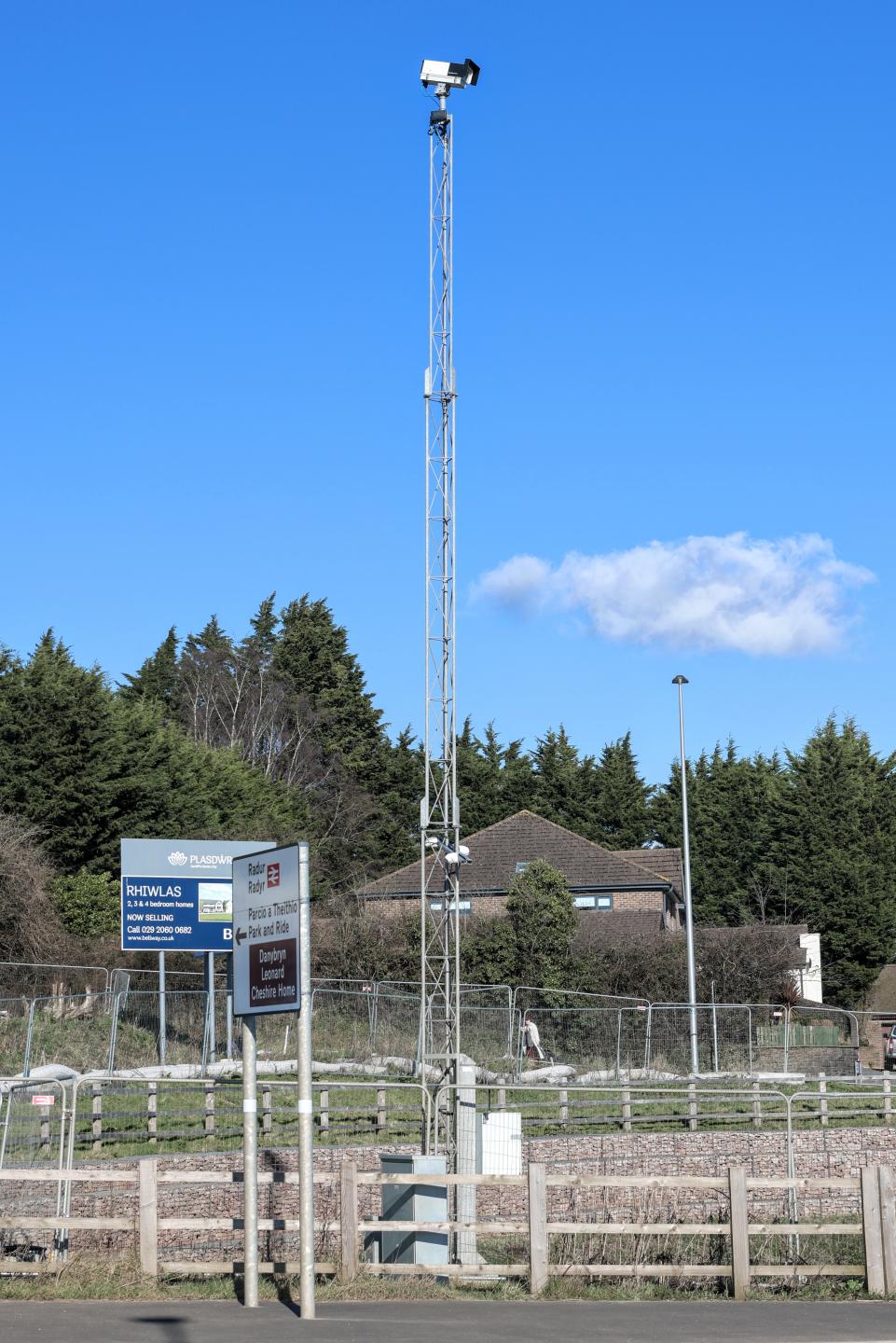

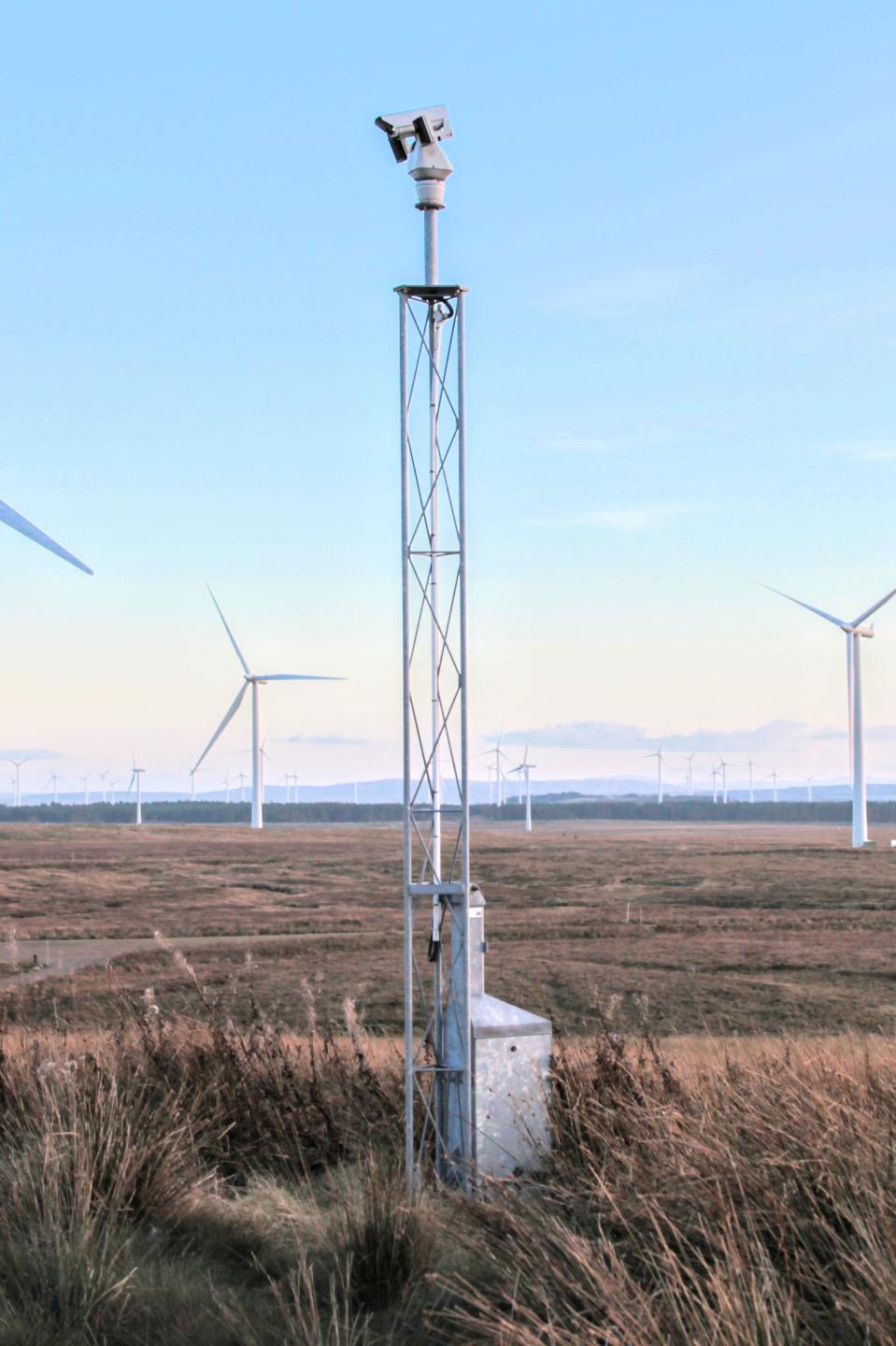

Fixed base towers
ACT1FB stock product
ACT2FB stock product
ACT3FB stock product
ACT3HDFB stock product
ACT4HDFB stock product
ACT12FB

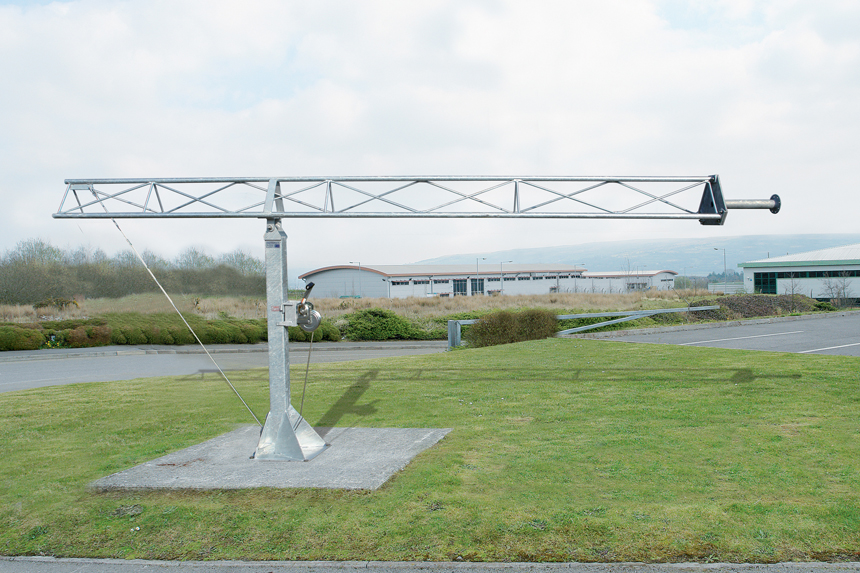

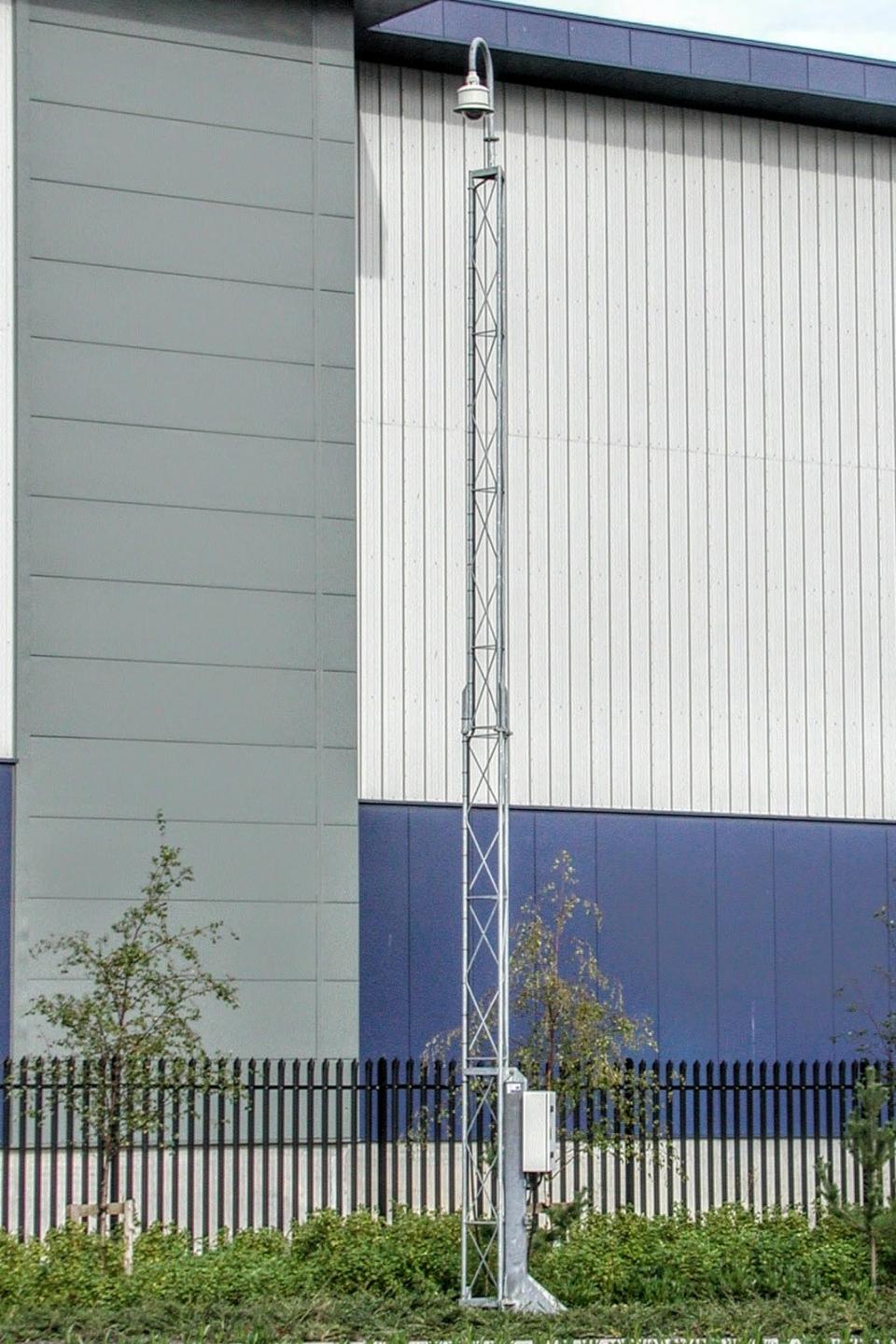

Tilt-down base plate mounted towers
ACT1BP stock product
ACT2BP stock product
ACT3BP stock product
ACT3HDBP stock product
ACT4HDBP stock product
ACT12BP
ACT14BP

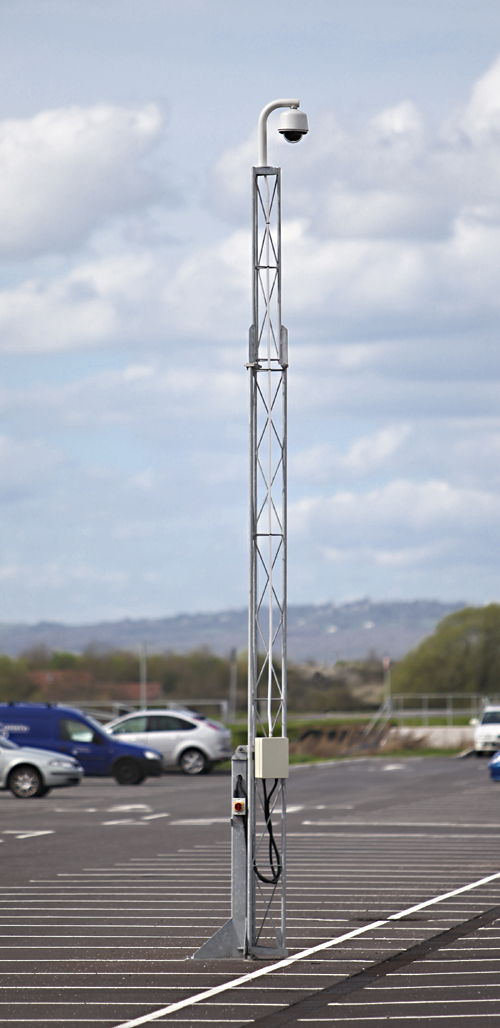

Tilt-down post mounted towers
ACT1PM stock product
ACT2PM stock product
ACT3PM stock product
ACT3HDPM stock product
ACT4HDPM stock product
ACT12PM
ACT14PM
