AW1545 - ENEK - HNEK - TNEK - Ornate Cabinet Based Poles

Height range - ENEK-HNEK  4m - 15m
Height range - TNEK  4m - 10m

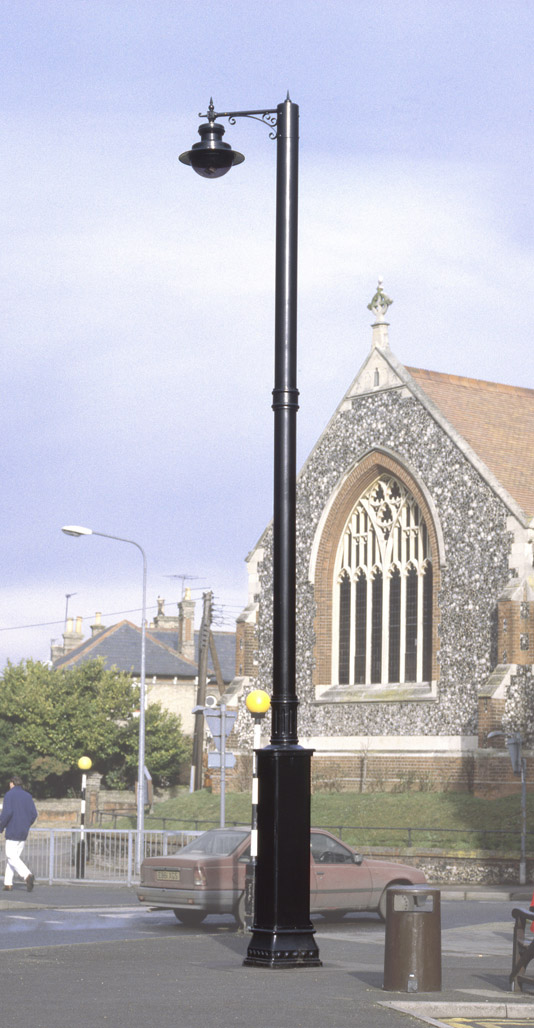

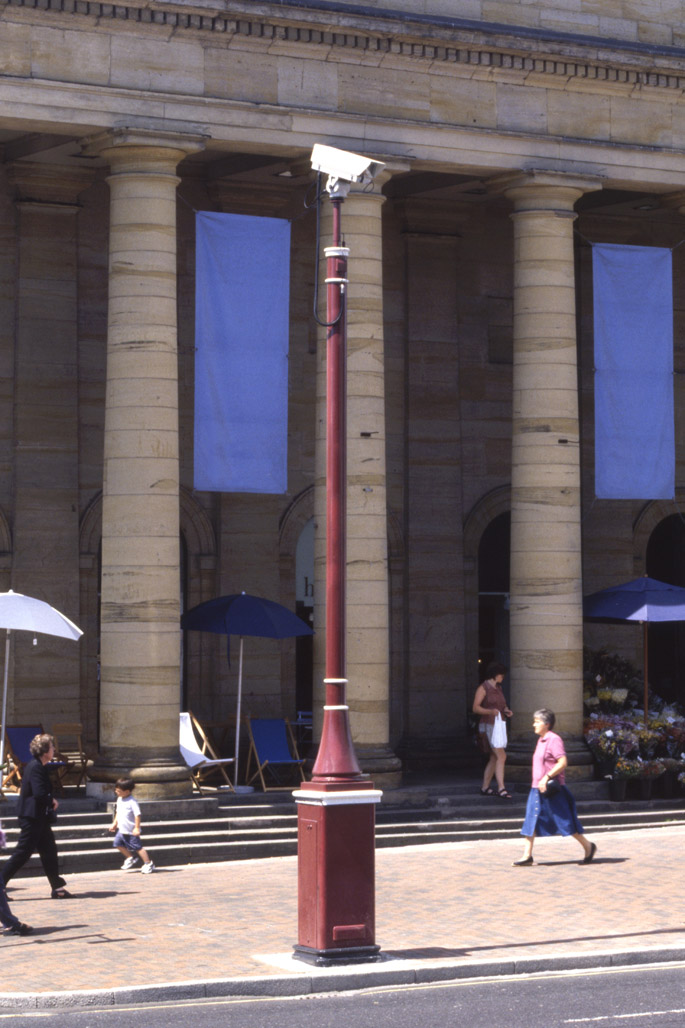

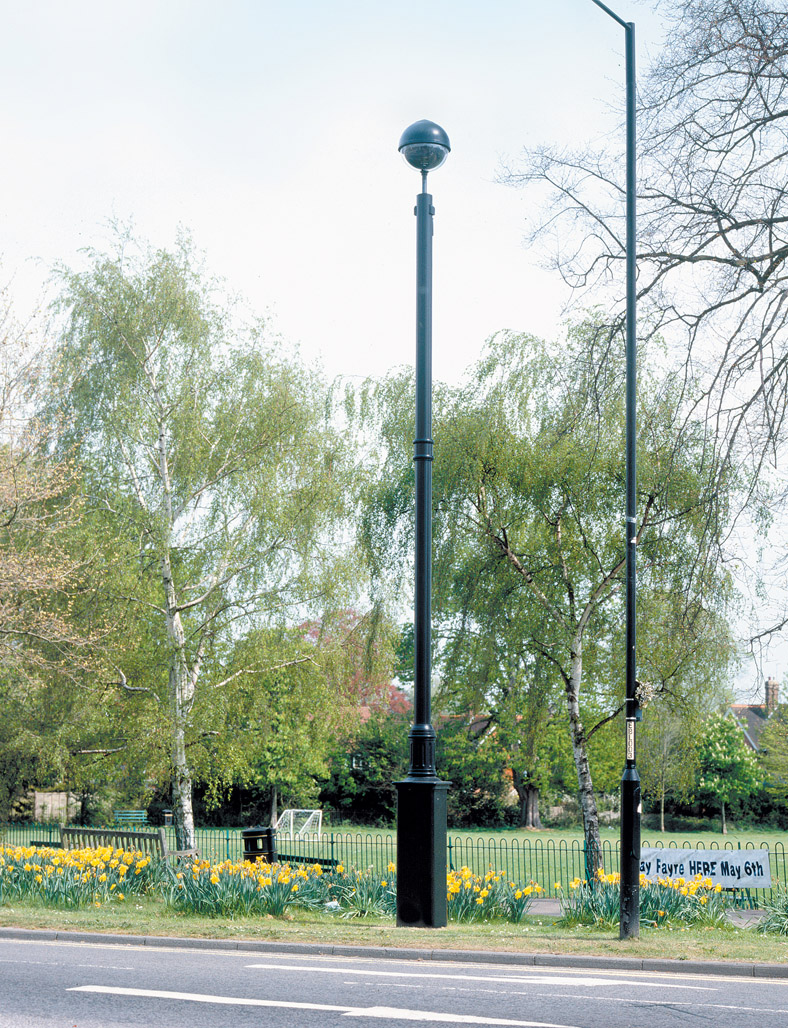

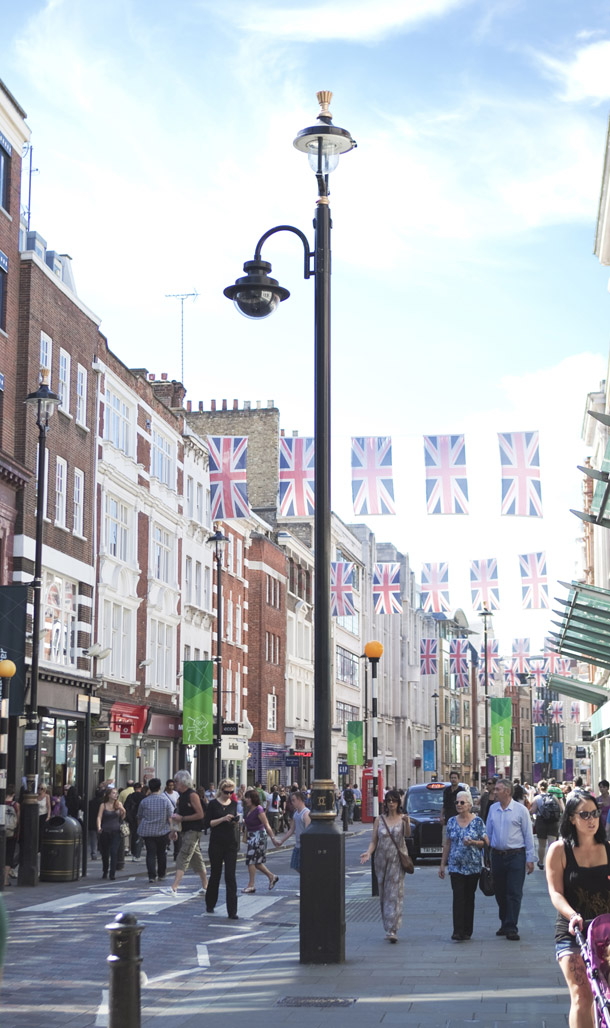

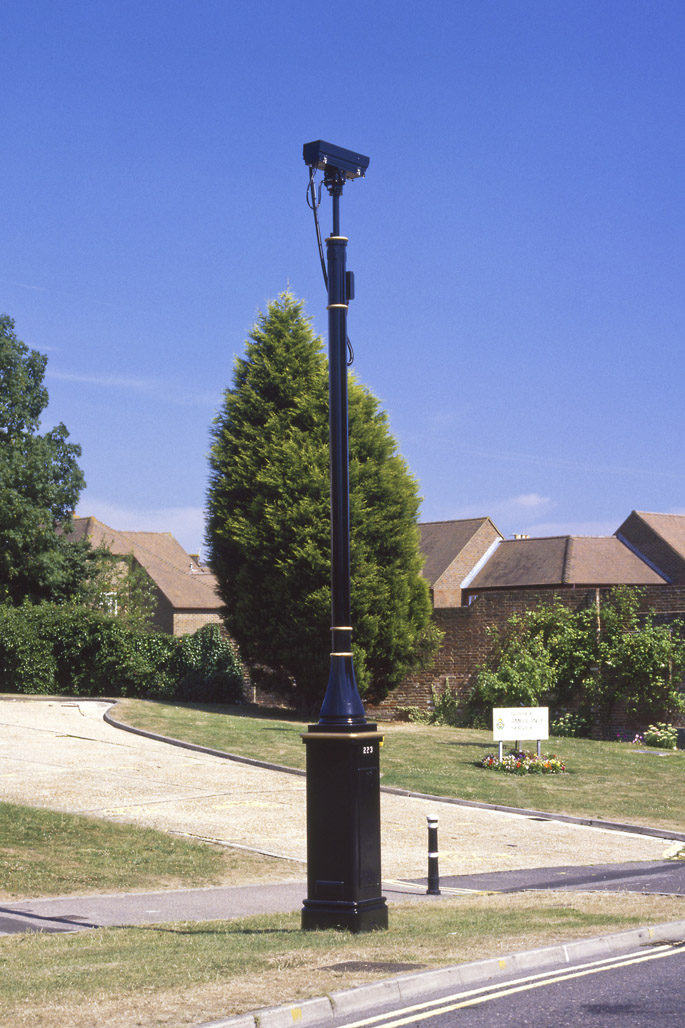

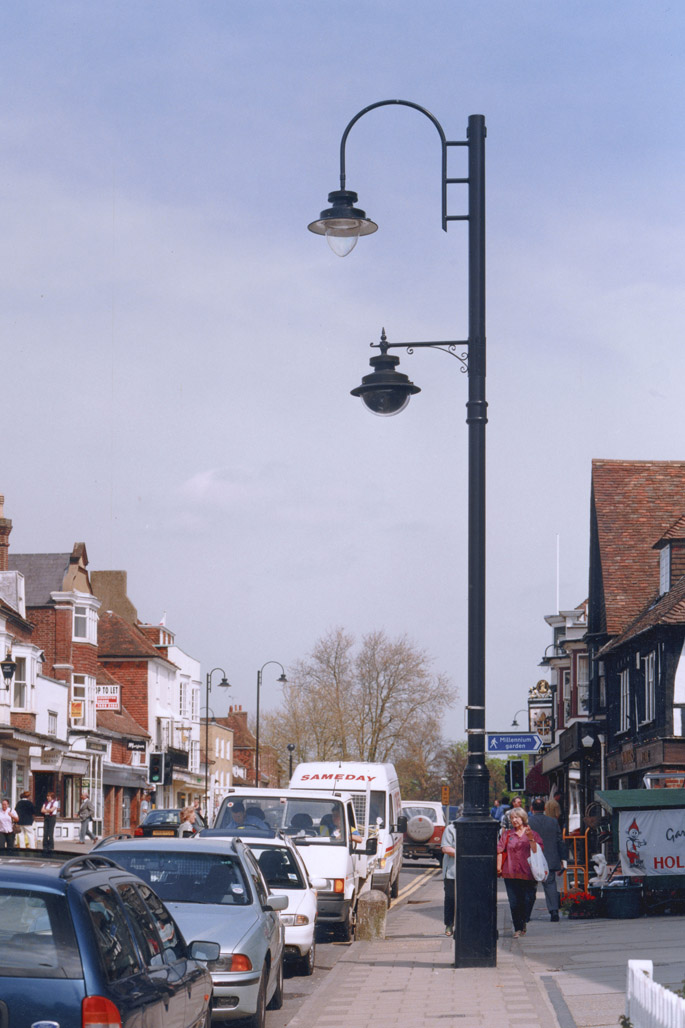

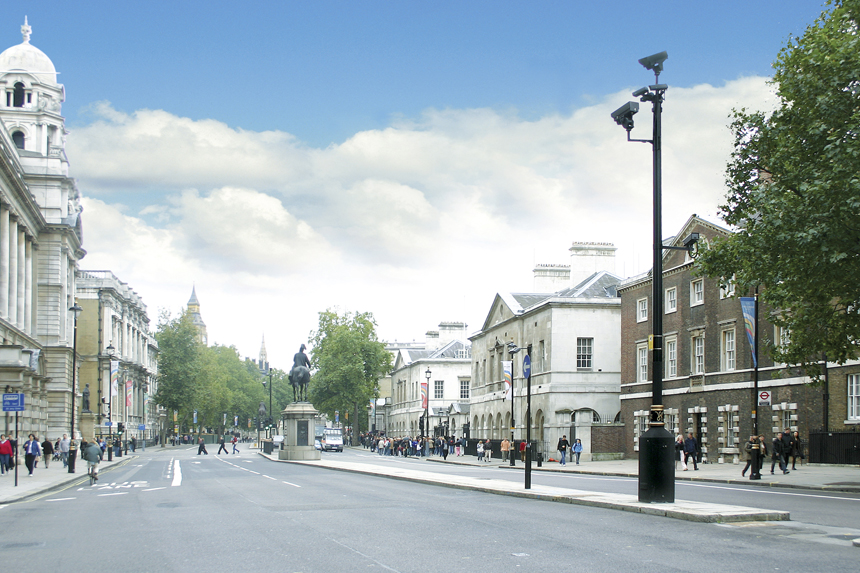

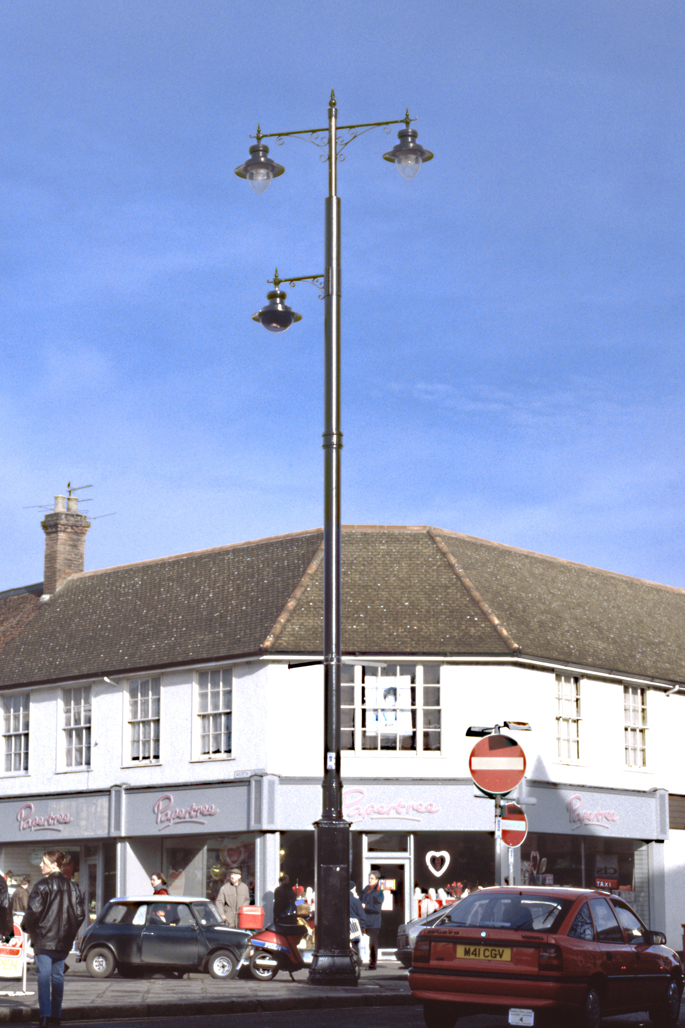

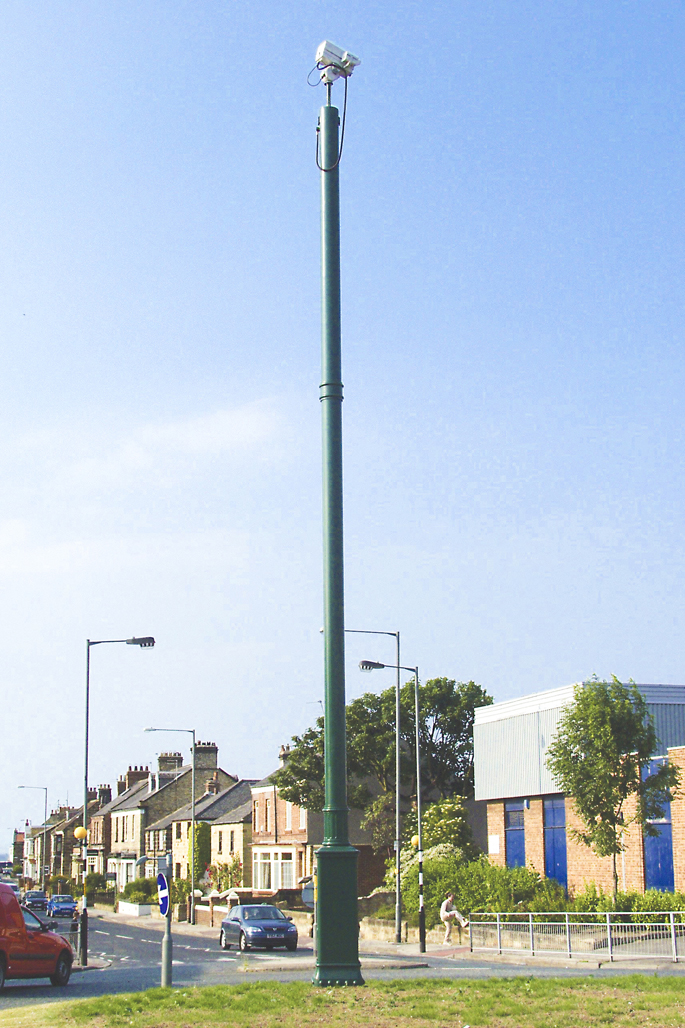

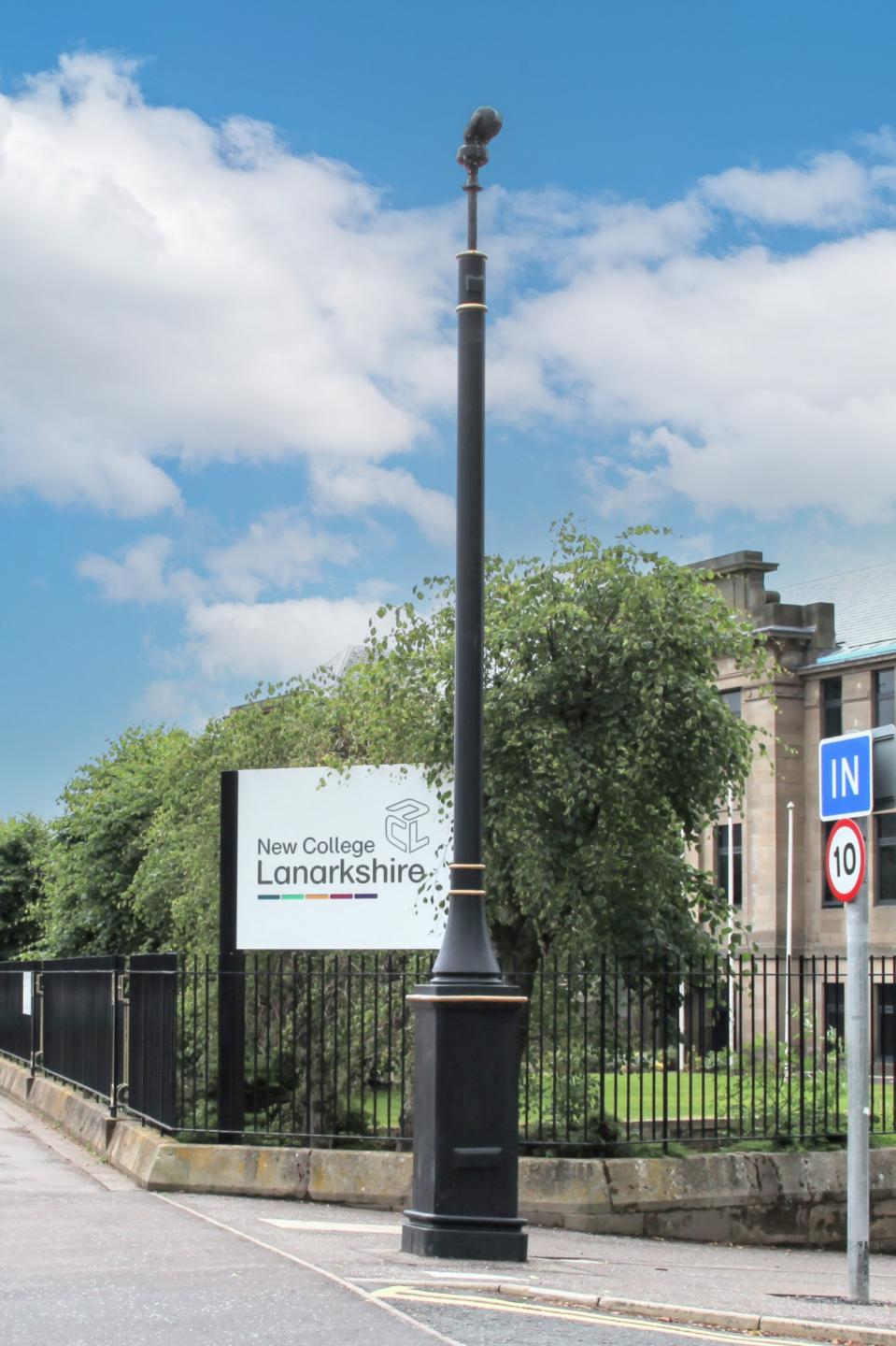

PIC 21 1545ENEK galleryAW1545/6/TNEKIMG 8833 1 galleryimg020 edited gallerypage 38 top galleryAW1545/8/TNEKAW1545-ENEK 10m poleAW1545 8m special with Westminster casting - Horseguards ParadeAW1545-ENEK 12m pole

Ornate versions of the AW1545 UP cabinet base pole range, incorporating cast embellishment kits to enhance the pole appearance. Ideally suited to areas of historical or architectural importance where CCTV systems are required to blend aesthetically with their surroundings.A full range of ornate brackets and accessories ensure an authentic installation.

  • Stable structures for all camera types
  • Flush fitting door, level with cabinet surface, no external frame combined with flush fitting Altron secure locks and a high security lock giving enhanced security and a clean aesthetic appearance
  • 4 point security door locking option
  • Standard convection venting eliminates condensation (when the pole base is properly sealed on installation)
  • A wide range of ornate Altron Accessories and Brackets available
  • Pole adaptations available to suit customers/project specific requirements
  • Constructed in high tensile steel and hot dip galvanised after fabrication for durability
  • Option of painting over the galvanised finish in colours available from BS and RAL colour charts

  • Internal cabling
  • Close fitting flush doors
  • Solid secure heavy duty door locks and high security lock
  • Secure venting method
  • Additional security measures available
  • Anchor bolts below ground level

  • Public area urban CCTV
  • Historic sites
  • Private residences
Related Products

AW1545

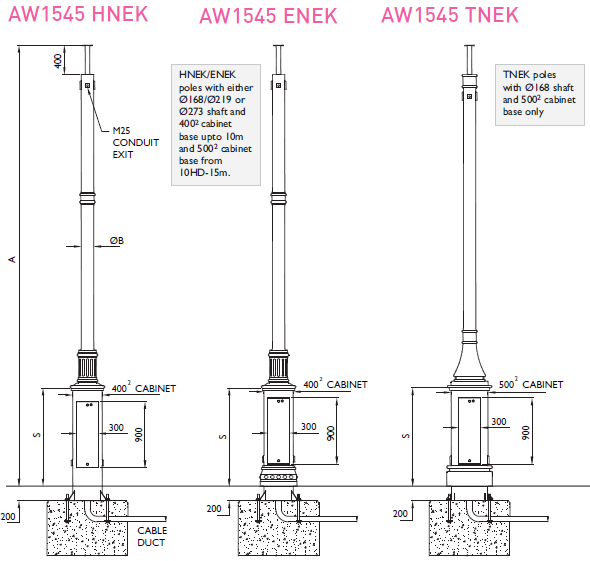

Foundation and bolting details



Model No.
Add suffix eg
AW1545/4/TNEK    		 Height in
mtrs  'A'   		 Max equip
weight at
top 'kgs'		 Max equip
surface
area m2		   Pole Diameter
         ØB		   Cabinet base2
size

Cabinet height
above ground  'S'



  Product
weight kgs
          ENEK\ HNEK TNEK   ENEK\ HNEK TNEK   ENEK HNEK TNEK
AW1545/4              4 40 0.25   168      168     400 500   1500    1300     1300            397
AW1545/5 5 40 0.25   168 168   400 500   1500 1300 1300           418
AW1545/6 6 40 0.25   168 168   400 500   1500 1300 1300           436
AW1545/7 7 40 0.25   168 168   400 500   1500 1300 1300           490
AW1545/8 8 40 0.25   168 168   400 500   1500 1300 1300           517
AW1545/8HD 8 50 0.5   219  -    400  -    1950 1650 1650           548
AW1545/9 9 40 0.25   219 168   400 500   1950 1650 1650           619
AW1545/10 10 40 0.25   219 168   400 500   1950 1650 1650           702
AW1545/10HD 10 50 0.5   273  -    500  -    2050 1650  -            820
AW1545/12 12 40 0.25   273  -    500  -    2050 1650  -            920
AW1545/15 15 40 0.25   273  -    500  -    2050 1650  -           1090

Where payloads are greater than those stated above please contact Altron
All dimensions in mm's unless stated otherwise

Applicable standards


Design
- Design analysis carried out using a specialist software package in accordance with ILE TR7, BS6399 and BS8100

Material and Finishing
- Structural steel hollow sections EN10219 - EN10025:2004
- Steel flat angles and structural sections EN10025, EN10111, EN 10130
- Foundation bolts Grade 4.6 spun galvanised BS4190, BS3692, DIN931, 934, 601
- Fixings: stainless steel Grade A2, galvanised Grade 4.6  Grade 8.8  BS4190, BS3692, DIN 931, 934, 601
- Hot dipped galvanising after fabrication to ISO 1461
- Painting in BS and RAL colours in accordance with BS4800

Manufacturing Processes
- Welding Procedures conform with BS EN 1011:2009, BS EN 9606-1

Winches
- Wire ropes to BS183:1972, BS EN 13411 3 2004 + A1 2008
- Winches conform to American ASAE standard S361.IT.

Options

Screw in Swan Neck adaptor /SN
Double door  /DD
Double door with washer bottle conduit /DDW
Access cover plate and cable restraining bar /AC
Altron locks in 4-point arrangement /A4P
Tamper switch /TS
Lighting spigot /LS

Part Numbering

Standard part numbers are as shown below. For addition of options, add suffix to part number e.g. for AW1545/8/ENEK pole with double doors, lighting spigot and 4 point locking, use part number AW1545/8/ENEK/DD/LS/A4P

Ornate cabinet based poles are supplied with treated backboards, secure locks, high security lock and venting as standard

ENEK & HNEK - change suffix to suit
Poles up to 10m with 400 square cabinet base. Poles from 10mHD to 15m with 500 square cabinet base
AW1545/4/ENEK
AW1545/5/ENEK
AW1545/6/ENEK
AW1545/7/ENEK
AW1545/8/ENEK
AW1545/8HD/ENEK
AW1545/9/ENEK
AW1545/10/ENEK
AW1545/10HD/ENEK
AW1545/11/ENEK
AW1545/12/ENEK
AW1545/13/ENEK
AW1545/14/ENEK
AW1545/15/ENEK

TNEK
These poles have 500 square cabinet base - available in heights up to 10m
AW1545/4/TNEK
AW1545/5/TNEK
AW1545/6/TNEK
AW1545/7/TNEK
AW1545/8/TNEK
AW1545/9/TNEK
AW1545/10/TNEK


Altron embellishments are produced to a high standard in cast aluminium or cast iron. Our standard embellishment ranges are shown in detail below.

AW1545 HNEK

aw1545 hnek



AW1545 TNEK

AW1545 TNEK

AW1545 ENEK

AW1545 ENEK

AW1502 ENEK

aw1502 enek
