Model No. |
Full Height ('A') |
Post Type |
Max Equip. Weight at Top |
Max Equip. Surface Area |
Lower Section |
Mid Section |
Top |
Door |

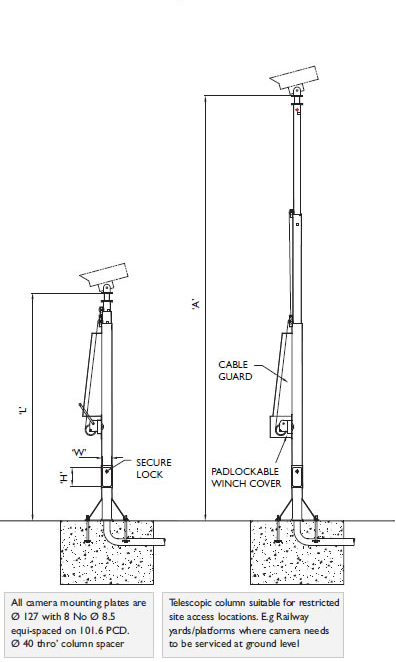

Retracted Height ('L') |
Winch |
Product |
|
|
ACC/TEL/4 |
4m |
FB |
35kgs |
0.25m2 |
100mm2 |
80mm2 |
60mm2 |
200x90mm |
2.1m |
Included |
95kgs |
|
|
ACC/TEL/6 |
6m |
FB |
35kgs |
0.25m2 |
120mm2 |
100mm2 |
80mm2 |
280x110mm |
3m |
Included |
156kgs |
|
|
ACC/TEL/8 |
8m |
FB |
25kgs |
0.11m2 |
120mm2 |
100mm2 |
80mm2 |
280x110mm |
3.8m |
Included |
195kgs |
Where payloads are greater than those stated above please contact Altron
All dimensions in mm's unless stated otherwise
Applicable standards
Design
- Design analysis carried out using a specialist software package in accordance with ILE TR7, BS6399 and BS8100
Material and Finishing
- Structural steel hollow sections EN10219 - EN10025:2004
- Steel flat angles and structural sections EN10025, EN10111, EN 10130
- Foundation bolts Grade 4.6 spun galvanised BS4190, BS3692, DIN931, 934, 601
- Fixings: stainless steel Grade A2, galvanised Grade 4.6 Grade 8.8 BS4190, BS3692, DIN 931, 934, 601
- Hot dipped galvanising after fabrication to ISO 1461
- Painting in BS and RAL colours in accordance with BS4800
Manufacturing Processes
- Welding Procedures conform with BS EN 1011:2009, BS EN 9606-1
Winches
- Wire ropes to BS183:1972, BS EN 13411 3 2004 + A1 2008
- Winches conform to American ASAE standard S361.IT.
Installation
Operating Instructions
For operating instructions, please contact our Sales office
Support
Options
The following options are available:-
- Wall mounted tilt-down
- Bottom hinged tilt-down
- Produced to specific non-standard heights
- Trailer mounted tilt-over 6 & 9m versions
Part Numbering

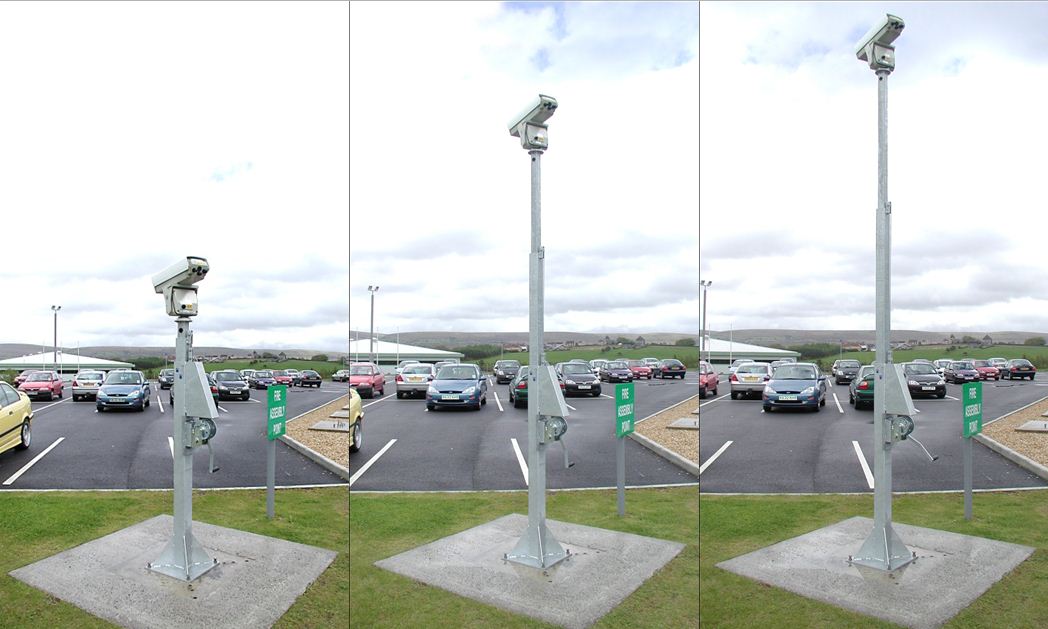

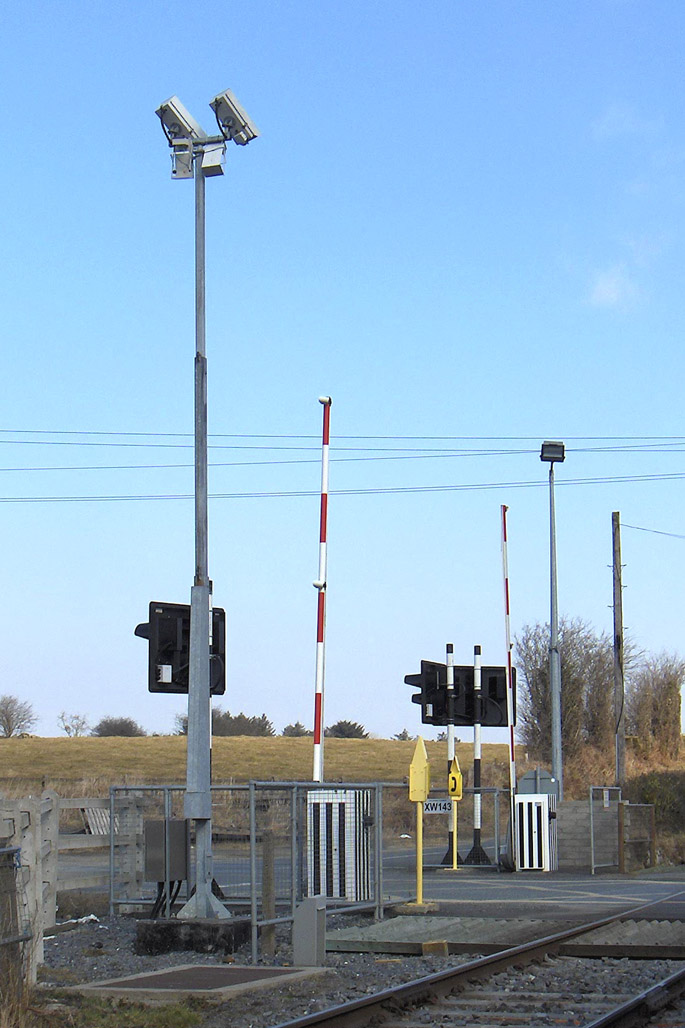

Three section telescopic columns supplied with winch guard and cable guard as standard
ACC/TEL/4
ACC/TEL/6
ACC/TEL/8
