Products Trolley Head Poles AW1502/LTH/168 - Slim-line Trolley Poles

AW1502/LTH/168 - Slim-line Trolley Poles

Height Ranges AW1502/LTH/168 Slim-Line 4m - 10m

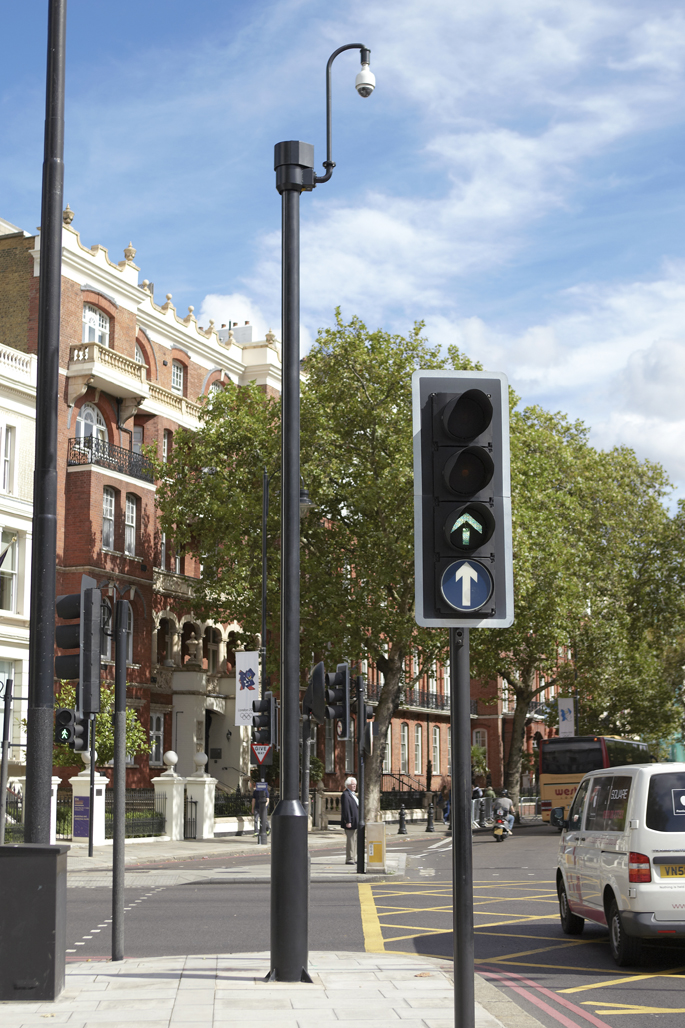

AW1502-LTH slimline pole with rotating swan nexk arm

Altron Lowering Trolley Head Camera Poles enable CCTV equipment to be serviced at ground level, safely, without the need for a man lift or a clear area to tilt the pole over.This is particularly useful in locations where road closures would otherwise be required, pavement locations and pedestrianised areas or where it is not possible to get a man lift and there is no space to tilt the pole over.
The AW1502 Slim-Line version provides a un-obtrusive outline, little larger than a standard lamp post, but with all of the functions and accessories common accross the Altron range of lowering trolley head poles.

  • Stable structure for light to medium camera installations
  • Trolley Head locks solidly in the raised position by means of a cam lever uplatch, meaning that there is no movement in the Trolley Head when the camera is in operation.
  • Flush door and secure lock as standard, enhance security and appearance.
  • Unique slim-line version up to 10 metres in height, using a 168 diameter shaft, giving an extremely slim outline silhouette.
  • A wide range of standard Altron Accessories available
  • Constructed in high tensile steel and hot dip galvanised after fabrication for durability
  • Option of painting over the galvanised finish in colours available from BS and RAL colour charts

  • Internal cabling
  • Close fitting flush door
  • Solid secure heavy duty door lock
  • Internal padlock facility available to stop unauthorised access to winch mechanism
  • Anchor bolts below ground level

  • Where minimum visual impact is required
  • Where access to the camera location is restricted
  • Public area urban CCTV
  • Railway platforms & car parks
  • Car parks
  • Retail Parks
  • Sports stadia
Related Products

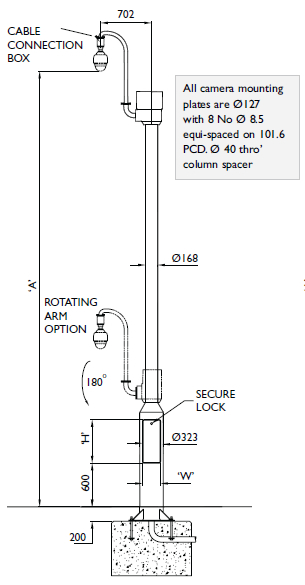

AW1502-LTH-168 Slim-line



Model No. Height in mtrs Max equip
weight at top kgs
Max equip
surface
area m2
Shaft
ØB
Base
ØB2
Base
height
C
Door
aperture
size
H x W
Product
weight
kgs

AW1502/4LTH/168 4 30 0.25 168 323 1300 425x177 281
AW1502/5LTH/168 5 30 0.25 168 323 1300 425x177 310
AW1502/6LTH/168 6 30 0.25 168 323 1300 425x177 339
AW1502/7LTH/168 7 30 0.25 168 323 1300 425x177 368
AW1502/8LTH/168 8 30 0.25 168 323 1300 425x177 397
AW1502/9LTH/168 9 30 0.25 168 323 1300 425x177 513
AW1502/10LTH/168 10 30 0.25 168 323 1300 425x177 548



Where payloads are greater than those stated above please contact Altron
All dimensions in mm's unless stated otherwise

Applicable standards


Design
- Design analysis carried out using a specialist software package in accordance with ILE TR7, BS6399 and BS8100

Material and Finishing
- Structural steel hollow sections EN10219 - EN10025:2004
- Steel flat angles and structural sections EN10025, EN10111, EN 10130
- Foundation bolts Grade 4.6 spun galvanised BS4190, BS3692, DIN931, 934, 601
- Fixings: stainless steel Grade A2, galvanised Grade 4.6  Grade 8.8  BS4190, BS3692, DIN 931, 934, 601
- Hot dipped galvanising after fabrication to ISO 1461
- Painting in BS and RAL colours in accordance with BS4800

Manufacturing Processes
- Welding Procedures conform with BS EN 1011:2009, BS EN 9606-1

Winches
- Wire ropes to BS183:1972, BS EN 13411 3 2004 + A1 2008
- Winches conform to American ASAE standard S361.IT.

Options

As integral part of pole
Decorative Banding (on base only) /B
Trackway Upgrade (for Manually Operated poles) /TR
Dual Drum Winch & Drill Winding Device /DO
Upgrade (Includes Trackway)
Drop Down Arm for 15kg Camera /DDA15
Drop Down Arm for 30kg Camera /DDA30
Cable Management System /CM
Rotating Arm /RA
Swan Neck Rotating Arm /SN-RA
High Security Lock /HS

Sold seperately
Drill Winding Device DW/DO-1502
Support Bracket for DW/DO AW1502/LTH/168-DSB
Internal Padlock Plate  AW1502/LTH/168-IPP

Part Numbering

Standard part numbers are as shown below. For addition of options, add suffix to part number e.g. for AW1502/10LTH/168 pole with rotating arm for swan neck, dual drum winch and cable management use part number AW1502/10LTH/168/DO/SN-RA/CM

AW1502/LTH/168 Slim-Line Lamp Standard Poles are supplied with secure locks as standard

AW1502/4LTH/168
AW1502/5LTH/168
AW1502/6LTH/168
AW1502/7LTH/168
AW1502/8LTH/168
AW1502/9LTH/168
AW1502/10LTH/168

features

Safety Features

Two winch cables - on DO version, means that there is a failsafe back up cable should there ever be a problem with the main winch cable

Slow free run speed of dual drum winch - In the unlikely event of a winch failure, due to the high gearing ratio of the DO winch unit, the trolley head descends at less than 1 metre per second and comes to rest on the pole shoulder, without any damage taking place.

Failsafe of auto-braking manual winch - For manual winches, the breaking mechanism closes and locks if the friction brake pad should fail, therefore no run-away can take place.

Extensive 'full life' testing - we have gone through rigorous testing of the winch, cable and trolley head components to replicate more than 10 years of operation. All parts are manufactured to be either maintenance free, or give maximum life to first maintenance.

Uplatch

Uplatch with quick release - Altron's unique cam latch system locks the trolley head into the top canopy so that there is no movement or vibration in the trolley head when raised and means that the winch cables do not hold the trolley head in the raised position. The quick release up-latch mechanism is quick and easy to use.

uplatch


Cable Management / CM

Altron's unique system means that the camera feeder cables are marshalled inside the pole shaft when the trolley head is being lowered. There is no need for an additional loop of cable or for a lanyard to be held, whilst operating the pole, therefore a one man operation.

cable-management

Drop Down Arm / DDA (Patent No. 2476970)

The Drop Down Arm enables camera servicing in the upright position at ground level without the need for steps.The arm takes the weight of the camera equipment so this is an easy, one man operation that is safe to carry out. Camera loads of up to 30kgs can be safely lowered.

Drop down arm


IMG 8741 5 gallery
IMG 8740 4 gallery

Dual Drum Winch / DO Drill Winding Device DW/DO

Dual Drum Winch and Drill Winding Device - The dual drum winch gives complete safety with a second 'safety' winch rope.The drill winding device uses the latest battery technology with a speed limiter and torque lock upgrade, specifically for this application to ensure safe, reliable operation.The Drill winding device is light and transferable, so one device can service many poles. This upgrade meets the requirements of PLG07

DO - Dual drum winch

Dual Drum Winch / DO Drill Winding Device DW/DO

Dual Drum Winch and Drill Winding Device - The dual drum winch gives complete safety with a second 'safety' winch rope.The drill winding device uses the latest battery technology with a speed limiter and torque lock upgrade, specifically for this application to ensure safe, reliable operation.The Drill winding device is light and transferable, so one device can service many poles. This upgrade meets the requirements of ILE TR7

Drill Support Bracket / DSB

Drill Winding Device Support Bracket - this can be incorporated for easy one hand operation and takes the weight of the drill winding device, so operating the pole could not be easier.

DO - Dual drum winch
DW/DO Drill winder hand held
DSB - Drill Support Bracket, with Drill winder located in bracket

Rotating Camera Arm / RA

This enables a light load such as a small PTZ to be brought down by hand, by rotating the camera arm downwards, supporting the load by hand. The arm can be set up on site so that it rotates either to the left or to the right. Camera cables can be fed internally through the arm or glanded to the outside.

Rotating camera

Swan Neck Rotating Arm /SN-RA

The swan neck lifts the dome above the top of the pole for better coverage and the rotating arm allows the dome to be brought down for maintenance.The arm can be set up on site so that it rotates either to the left or to the right. A connection box can be fitted above the dome so that cable connections can be made close to the dome.


swan neck
SN-RA Swan Neck Rotating Arm

Trackway / TR

Trackway Upgrade - Trackway keeps the trolley head running true, when lowering and raising even in very windy conditions. This is standard on /DO pole versions.

TR

Cable Management / CM

Altron's unique system means that the camera feeder cables are marshalled inside the pole shaft when the trolley head is being lowered. There is no need for an additional loop of cable or for a lanyard to be held, whilst operating the pole, therefore a one man operation.

cable management

Cable Connection Box /CCB

This is a water proof box with a removable front panel with sufficient space to allow cable connectors to fit inside. It can be provided with glanded entry and exit.

SN-RA Swan Neck Rotating Arm

Internal Padlock Plate / IPP

This is a close fitting internal plate that sits behind the main door, and only comes into view once the door is removed. It will withstand lever attacks and is a second line of defence to make our lowering trolley head poles extremely secure against vandal attacks.

IPP Internal Padlock Plate
