ACC - Square Section Columns - Fixed and Tilt-down

Fixed height range 4.5m - 10m
Tilt-down height range 4.5m - 15m

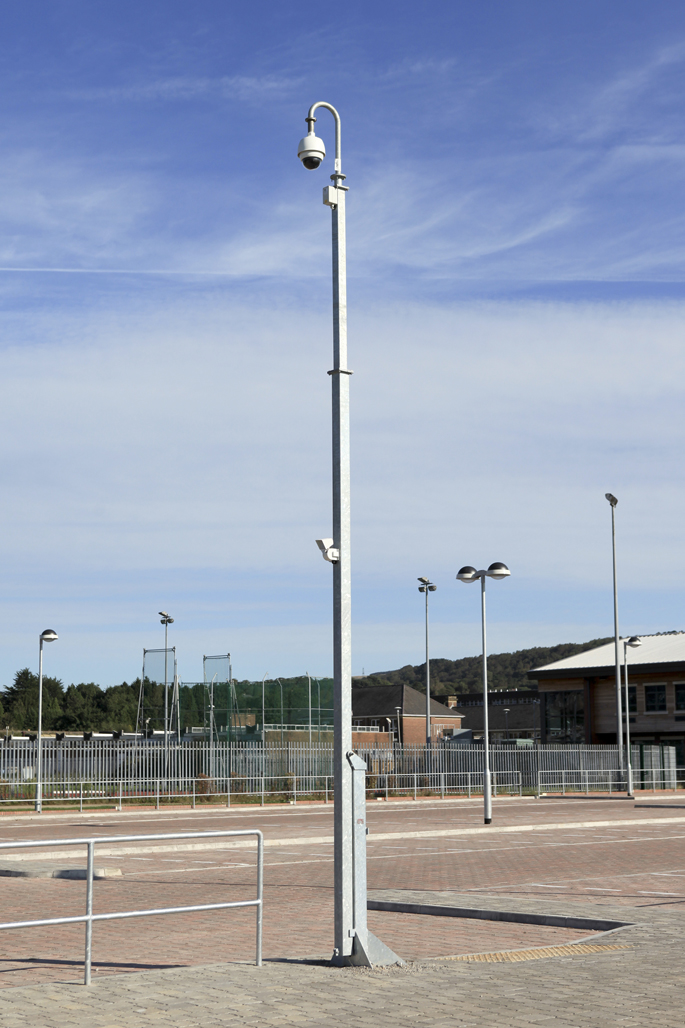

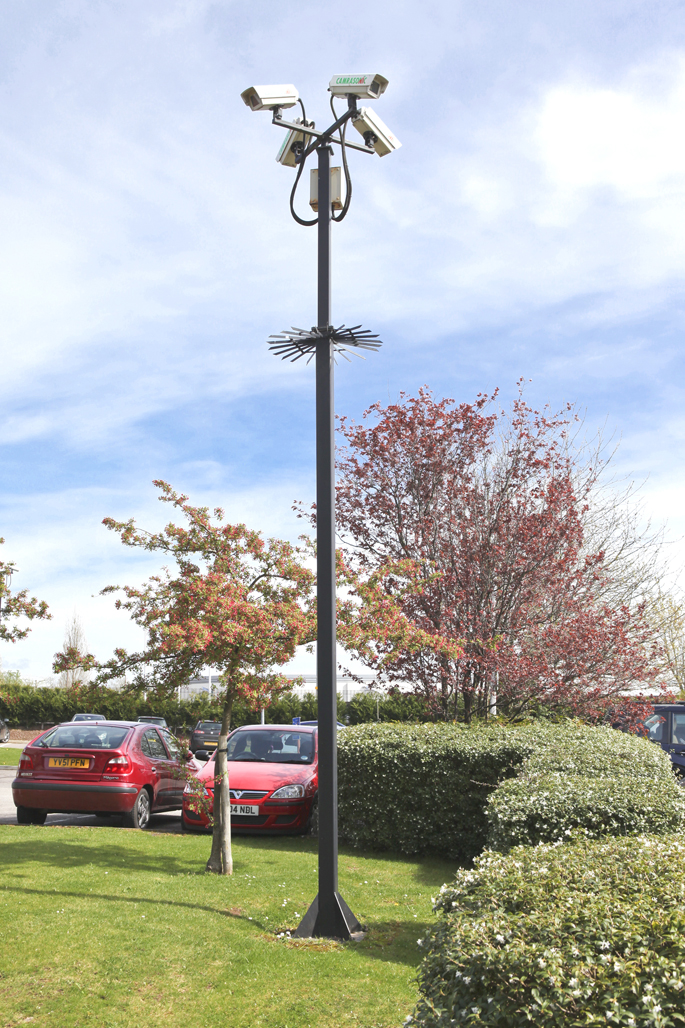

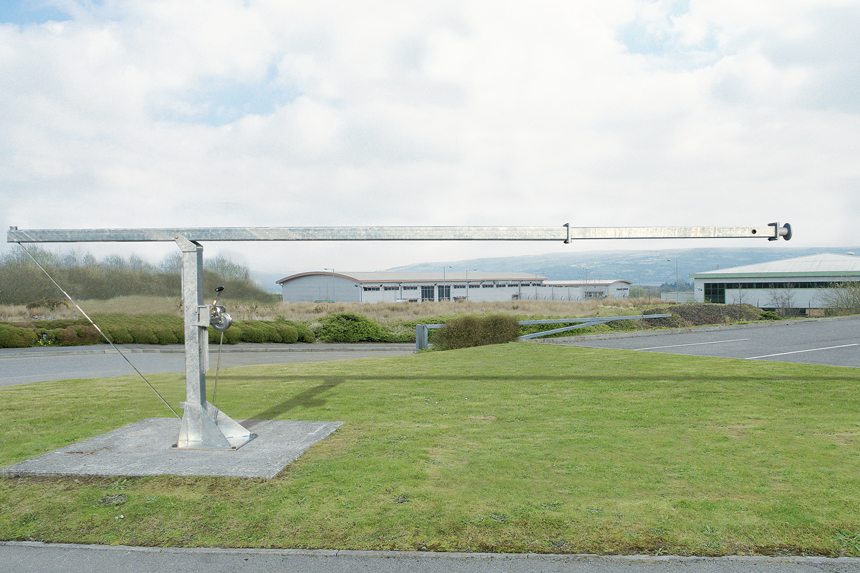

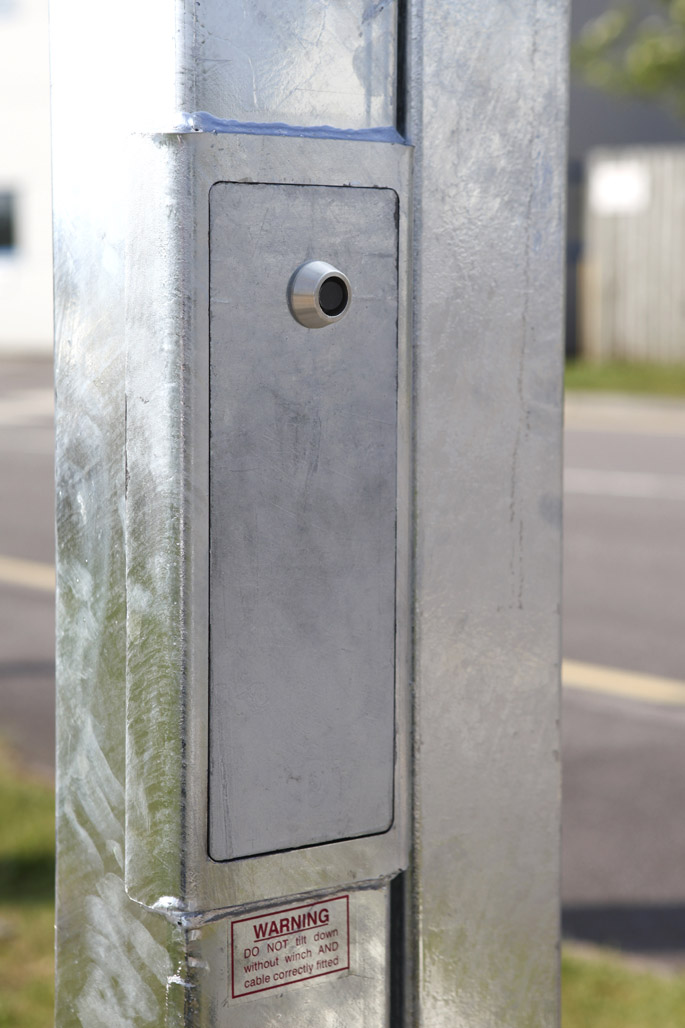

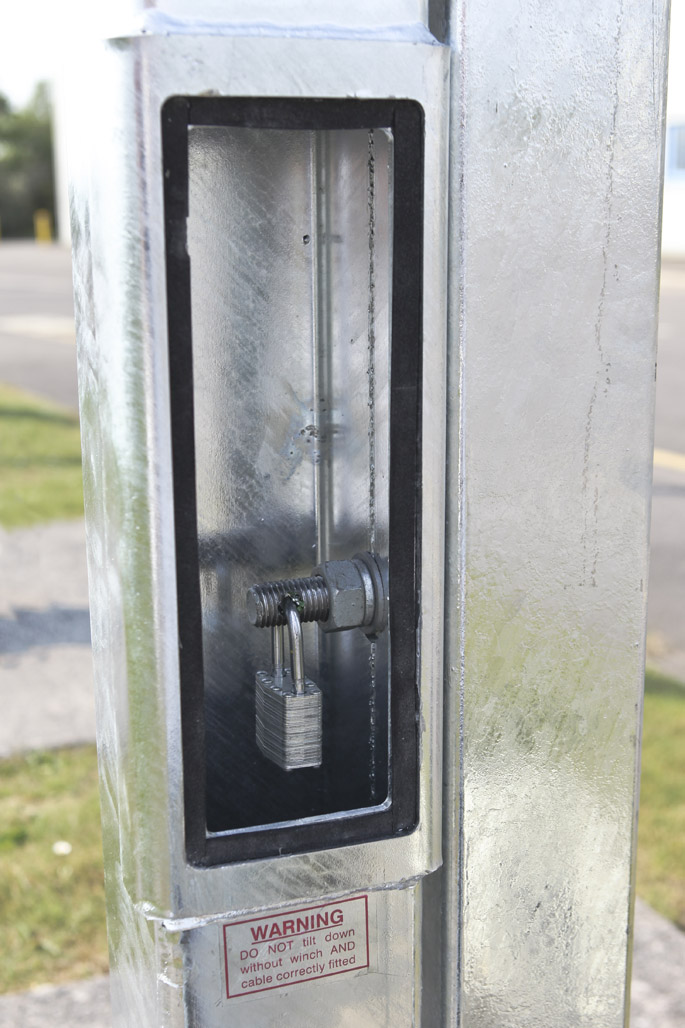

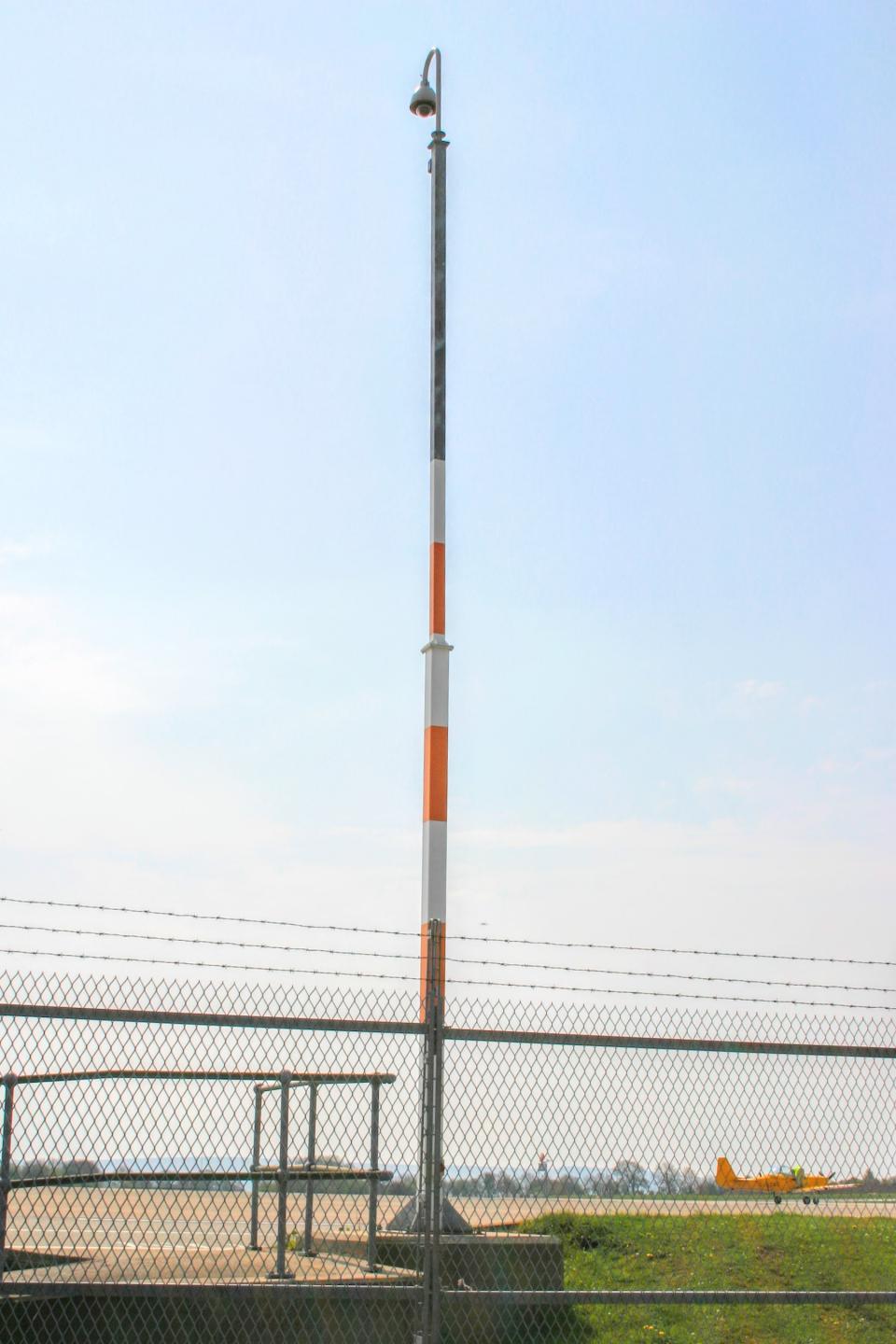

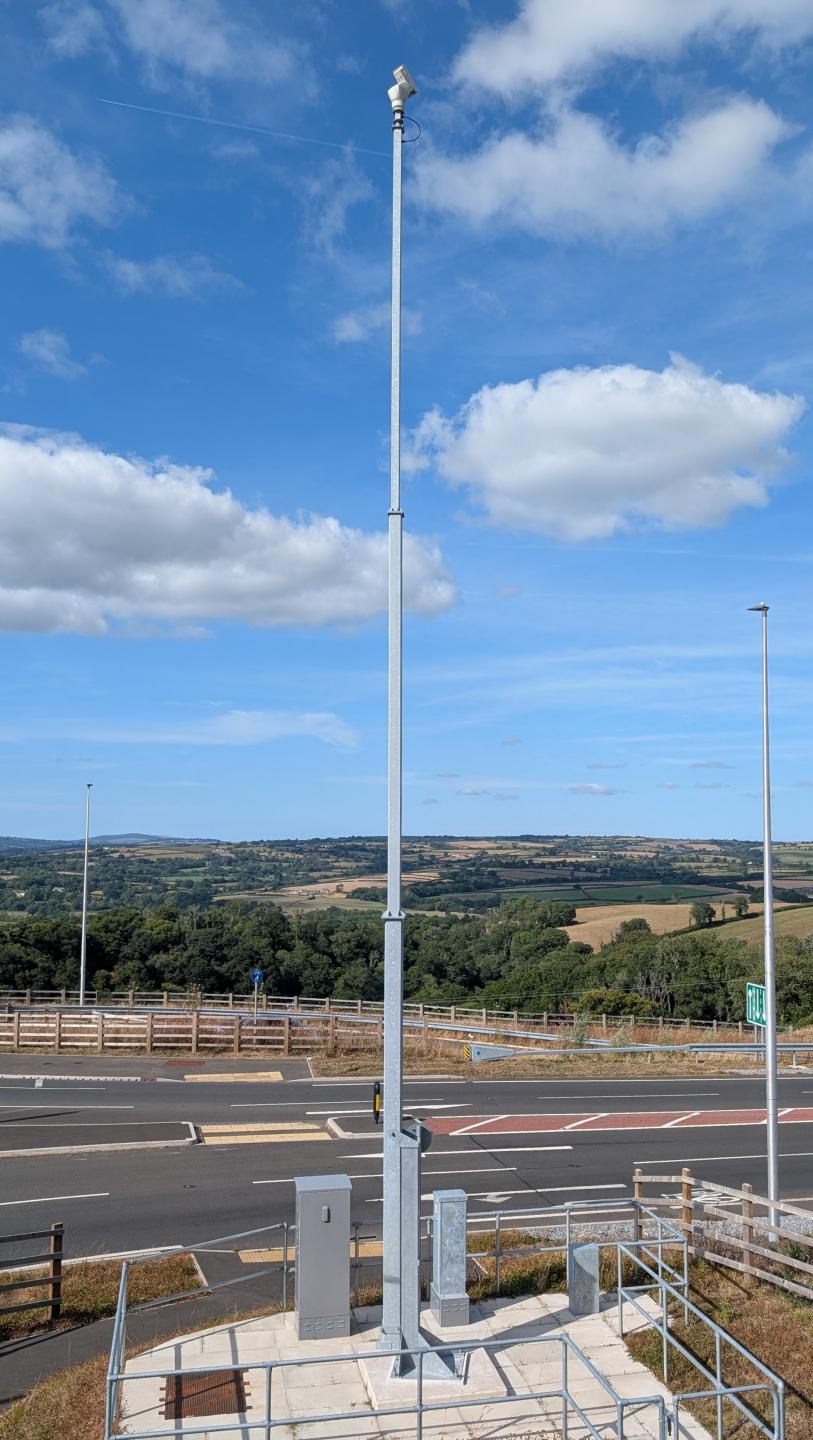

ACC1-BP/LAACC2/BPLAACC4-FB/LAACC2-FBLA (2)ACC2/FBLA - Painted finishACC2/BPLA tilted overInternal padlock facilityFlush door and secure lock as standard

Altron Camera Columns, a cost effective and comprehensive range with most models available 'ex stock', offering a good level of security. Suitable for installations where the public has access - tilt-down models have internal padlock facility.The range is generally for light to medium fixed and PTZ applications, but there are also heavy duty (HD) options for high loading PTZ and dual lighting & CCTV applications.

  • Modular construction for ease of assembly and installation on site
  • Ideal for restricted access areas
  • Provides stable mounting platform for all camera types
  • Demountable winches ensure tilt down models are secure and reduces costs on
    multiple installations
  • Tilt Down models enable camera maintenance at ground level, therefore reducing maintenance costs
  • Tilt Down models available in both bolt down and post mounted base versions
  • A wide range of standard Altron Accessories and Brackets available ex stock
  • Quick turnaround for larger projects
  • Constructed in high tensile steel and hot dip galvanised after fabrication for durability
  • Option of painting over the galvanised finish in colours available from BS and RAL colour charts

  • Internal cabling
  • Internal padlock facility on tilt-down models to protect against unauthorised lowering
  • Close fitting flush doors
  • Solid secure heavy duty door locks

  • Industrial and commercial premises
  • Perimeter detection
  • Utilities sites
  • Schools and universities

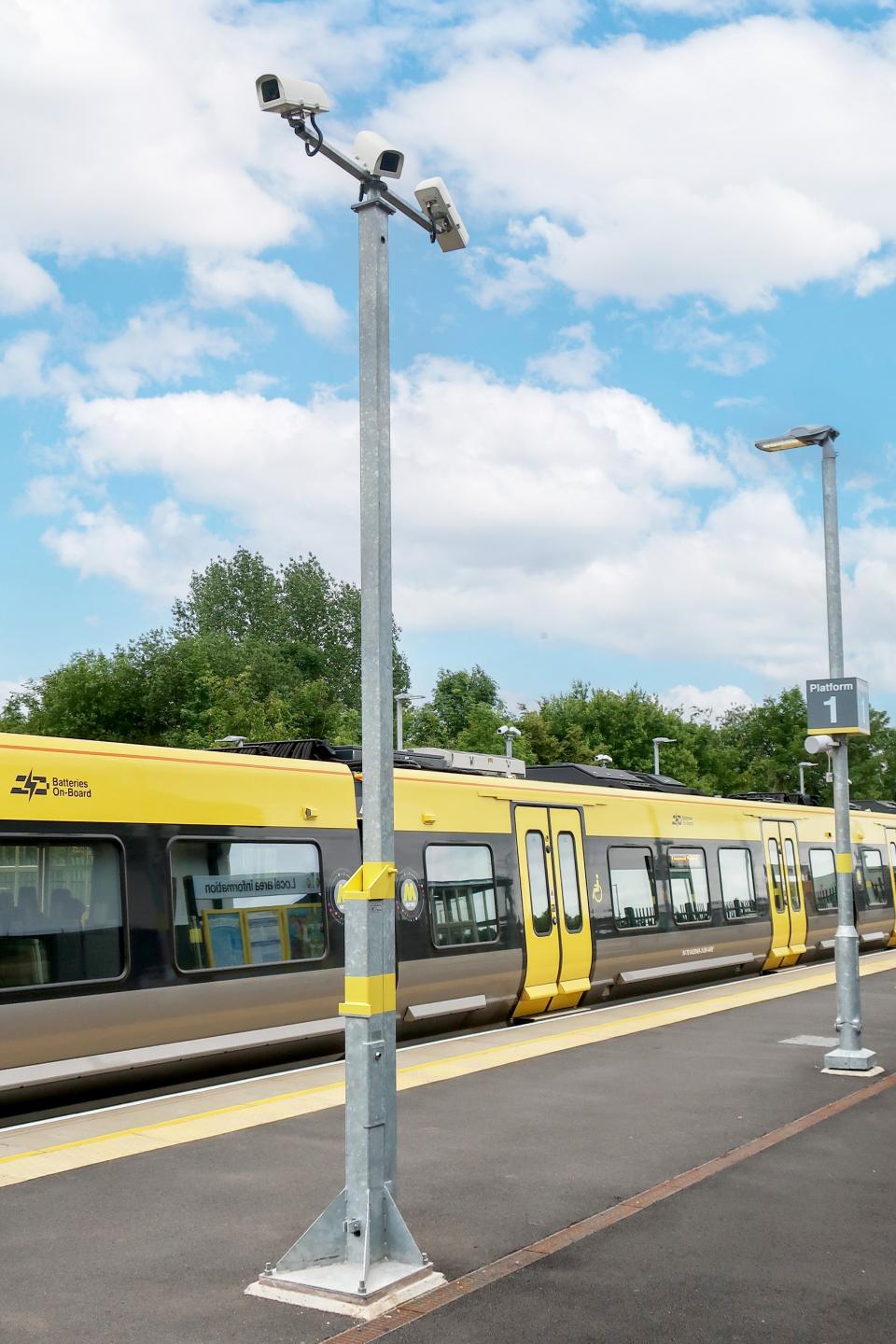

  • Railway platforms & car parks
  • Car parks
  • Petrochemical sites

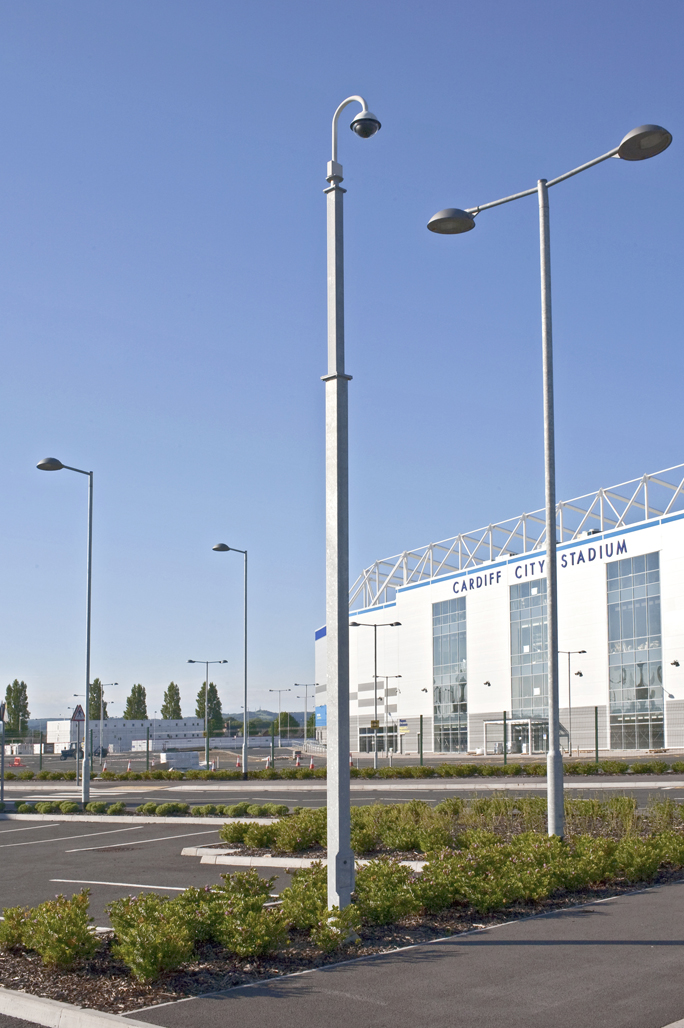

  • Sports stadia
Related Products
acc-v2

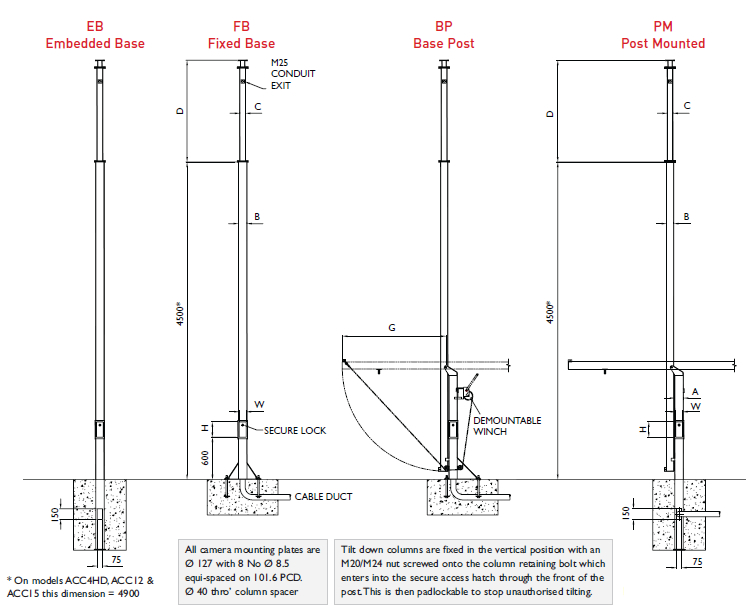

Foundation and Bolting Details

Model
No.		 Height
in
mtrs		 Post
type		 Max
equip
weight
at top
kgs		 Max
equip
surface
area
m2		 Post
size
A2		 Lower
section
B2		 Mid
section
B2		 Upper
section
C2		 Extension
length
D
mtrs		 Door
aperture
size
HxW		 Column
Rear
clearance
when
tilting G		 Winch
part
number		 Product
weight
kgs

ACCI 4.5 FB/EBLA 35 0.3 - 100 - - - 250x70 - - 68
Standard   PMLA 35 0.3 120 100 - - - 270x80 1700 DW1000/AC 100
Duty   BPLA 35 0.3 120 100 - - - 270x80 1700 DW1000/AC 115

ACC2       6 FB/EBLA 25 0.2 - 120 - 90 1.5 270x80 - - 114
Standard   PMLA 25 0.2 120 100 - 80 1.5 270x80 1700 DW1000/AC 115
Duty   BPLA 25 0.2 120 100 - 80 1.5 270x80 1700 DW1000/AC 130

ACC2HD  6 FB/EBLA 35 0.3 - 150 - 100 1.5 280x110 - - 144
Heavy   PMLA 35 0.3 120 120 - 90 1.5 270x80 1700 DW1000/AC 138
Duty   BPLA 35 0.3 120 120 - 90 1.5 270x80 1700 DW1000/AC 157

ACC3       7.5 FB/EBLA 25 0.2 - 150 - 100 3 280x110 - - 161
Standard   PMLA 25 0.2 150 120 - 90 3 280x110 2000 DW1500/AC 189
Duty   BPLA 25 0.2 150 120 - 90 3 280x110 2000 DW1500/AC 193

ACC3HD  7.5 FB/EBLA 50 0.3 - 200 - 120 3 315x150 - - 178
Heavy   PMLA 50 0.3 150 150 - 100 3 280x110 2000 DW1500/ACHD 218
Duty   BPLA 50 0.3 150 150 - 100 3 280x110 2000 DW1500/ACHD 222

ACC4       9 FB/EBLA 25 0.16 - 150 - 100 4.4 280x110 - - 197
Standard   PMLA 25 0.16 150 150 - 100 4.4 280x110 2000 DW2500/AC 244
Duty   BPLA 25 0.16 150 150 - 100 4.4 280x110 2000 DW2500/AC 248

ACC4HD  10 FB/EBLA 50 0.5 - 200 - 150 4.9 315x150 - - 305
Heavy   PMLA 50 0.5 200 200 - 150 4.9 315x150 2600 DW2500/ACHD 492
Duty   BPLA 50 0.5 200 200 - 150 4.9 315x150 2600 DW2500/ACHD 500
                  i        ii
ACC12     12 PMLA 35 0.3 200 200 150 100 4.9     2.0 315x150 2600 DW2500/ACHD 518
    BPLA 35 0.3 200 200 150 100 4.9     2.0 315x150 2600 DW2500/ACHD 526

ACC15     15 PMLA 25 0.16 200 200 150 100 4.9     4.9 315x150 2600 DW2500/ACHD 555
    BPLA 25 0.16 200 200 150 100 4.9     4.9 315x150 2600 DW2500/ACHD 563

Where payloads are greater than those stated above please contact Altron
All dimensions in mm's unless stated otherwise

Applicable standards


Design
- Design analysis carried out using a specialist software package in accordance with ILE TR7, BS6399 and BS8100

Material and Finishing
- Structural steel hollow sections EN10219 - EN10025:2004
- Steel flat angles and structural sections EN10025, EN10111, EN 10130
- Foundation bolts Grade 4.6 spun galvanised BS4190, BS3692, DIN931, 934, 601
- Fixings: stainless steel Grade A2, galvanised Grade 4.6  Grade 8.8  BS4190, BS3692, DIN 931, 934, 601
- Hot dipped galvanising after fabrication to ISO 1461
- Painting in BS and RAL colours in accordance with BS4800

Manufacturing Processes
- Welding Procedures conform with BS EN 1011:2009, BS EN 9606-1

Winches
- Wire ropes to BS183:1972, BS EN 13411 3 2004 + A1 2008
- Winches conform to American ASAE standard S361.IT.

Options

Embeded base    /EB
Backboard           /BB
Tamper switch     /TS

Column heights

All column products can be made to specific non-standard heights. For example an ACC1BPLA is a 4.5m column as standard

If a 4m variation is required, then specify ACC1BPLA/4
If a 5m variation is required, then specify ACC1BPLA/5

Column capacities and duty ratings

Standard column capacities are as specified in the Tech Table tab. If a higher capacity column is required, then please contact our Sales office who can advise on non-standard product configurations that will accommodate higher loading

Part Numbers

Fixed base columns with flush door lockable access

ACC1FBLA       stock product
ACC2FBLA       stock product
ACC3FBLA       stock product
ACC4FBLA       stock product

Embeded base fixed columns are made to order. Replace the -FB, with -EB - e.g. ACC1EBLA

Tilt-down base plate mounted columns with flush door lockable access
