Tubular Fixed & Tapered Poles

Height range - tubular -  3m - 12m
Height range - tapered - 4m - 8m

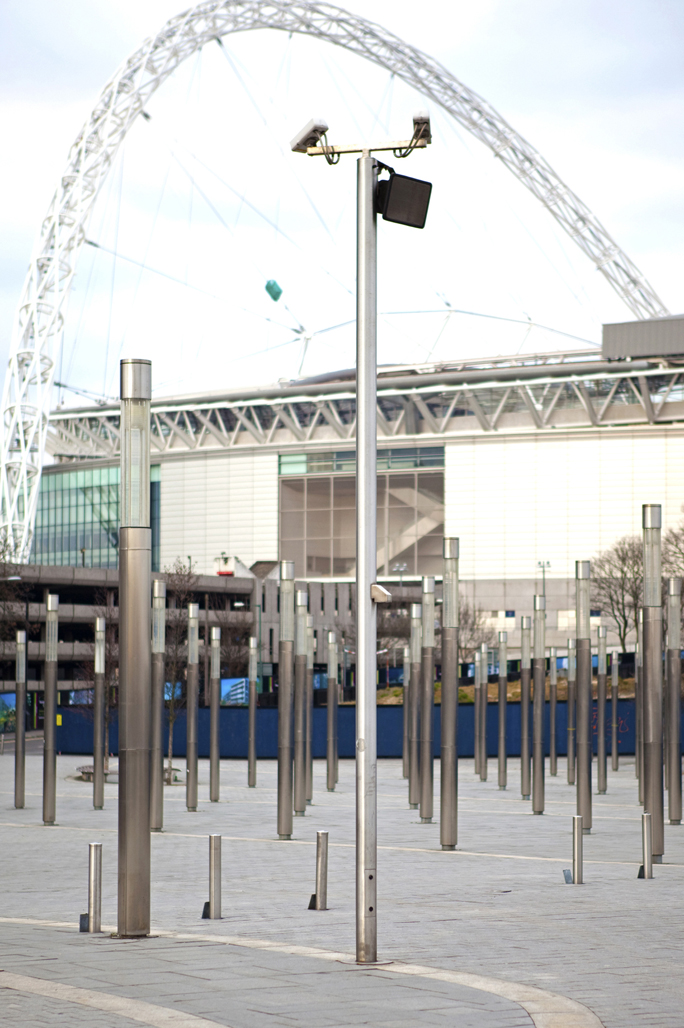

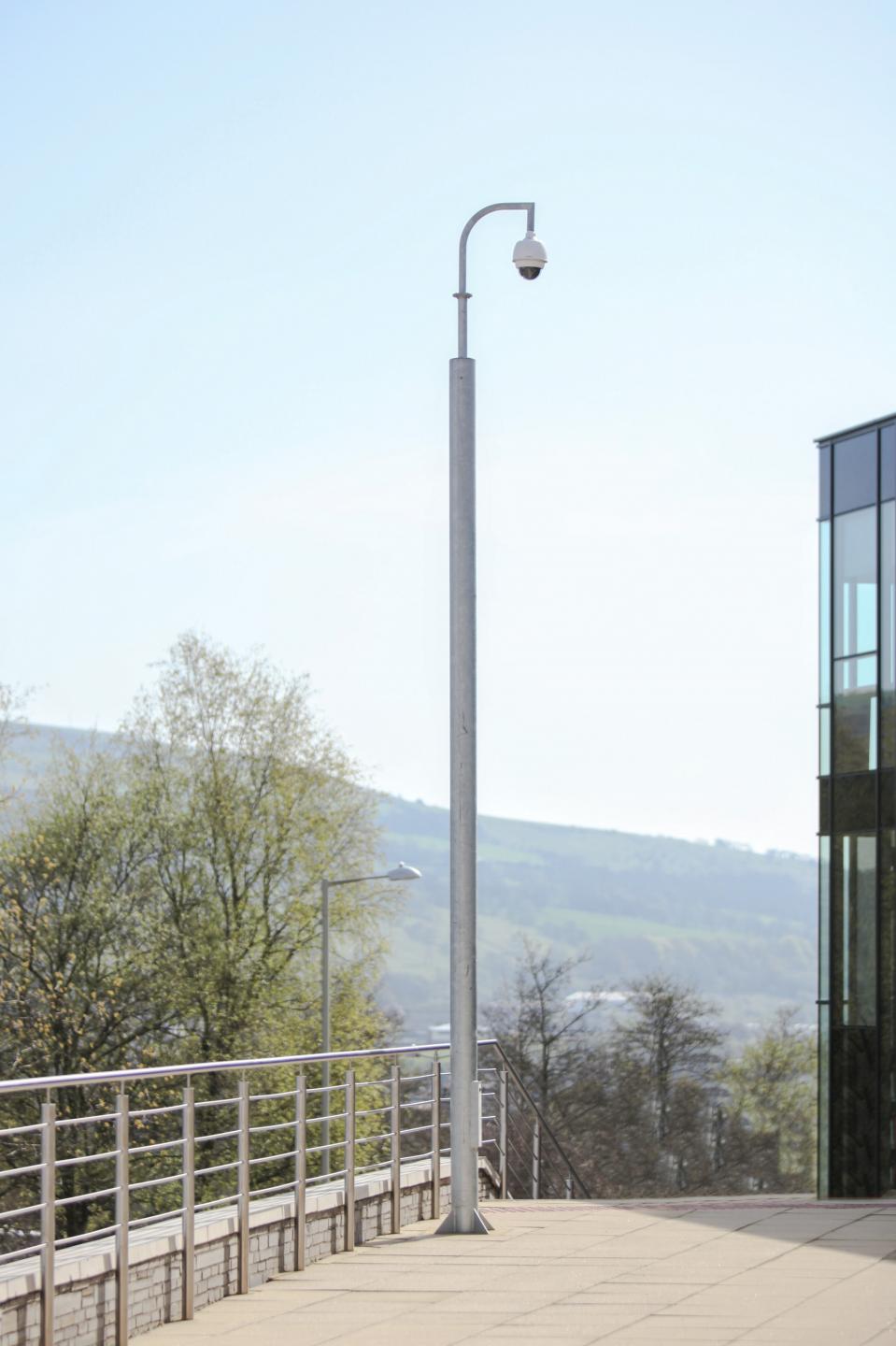

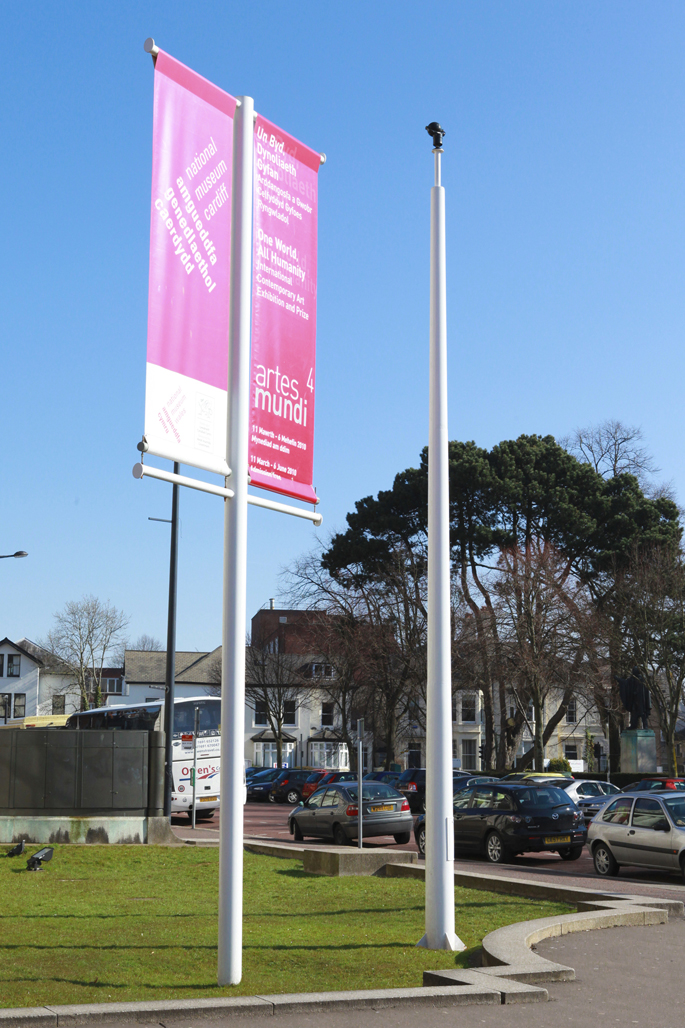

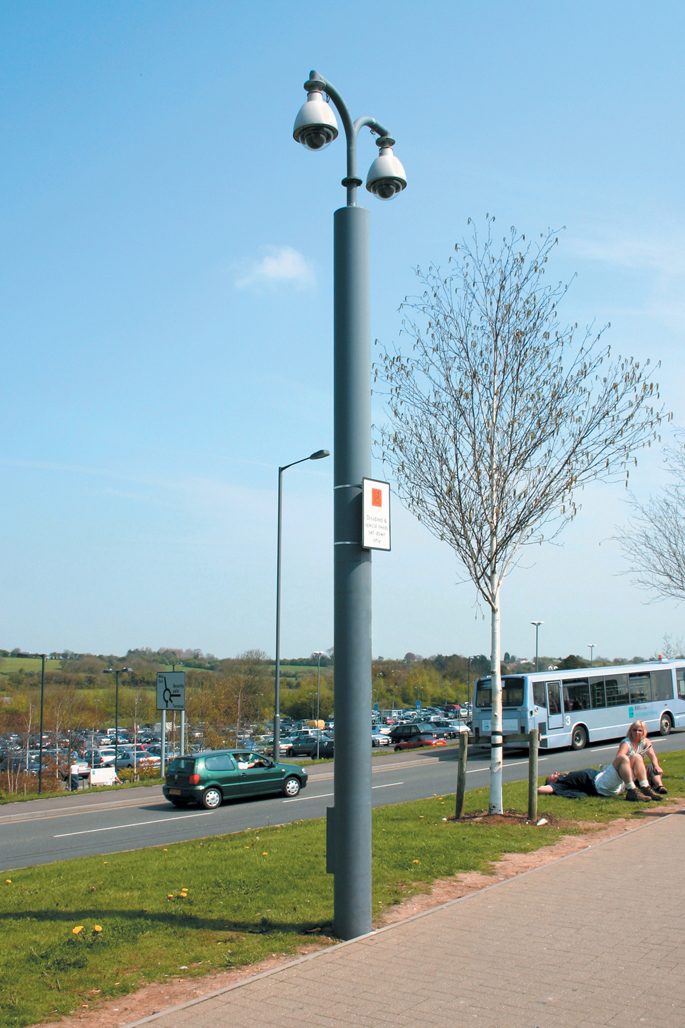

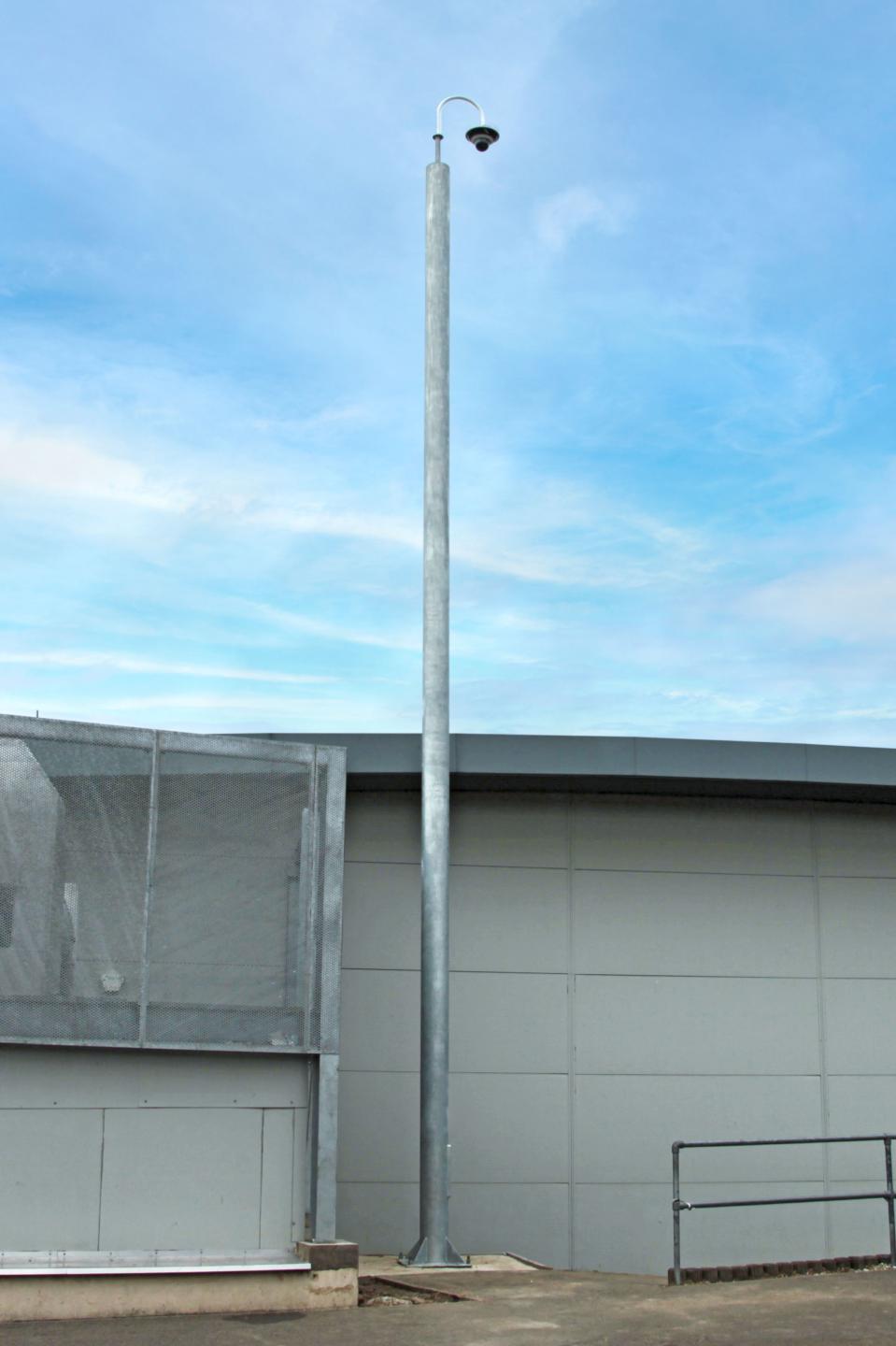

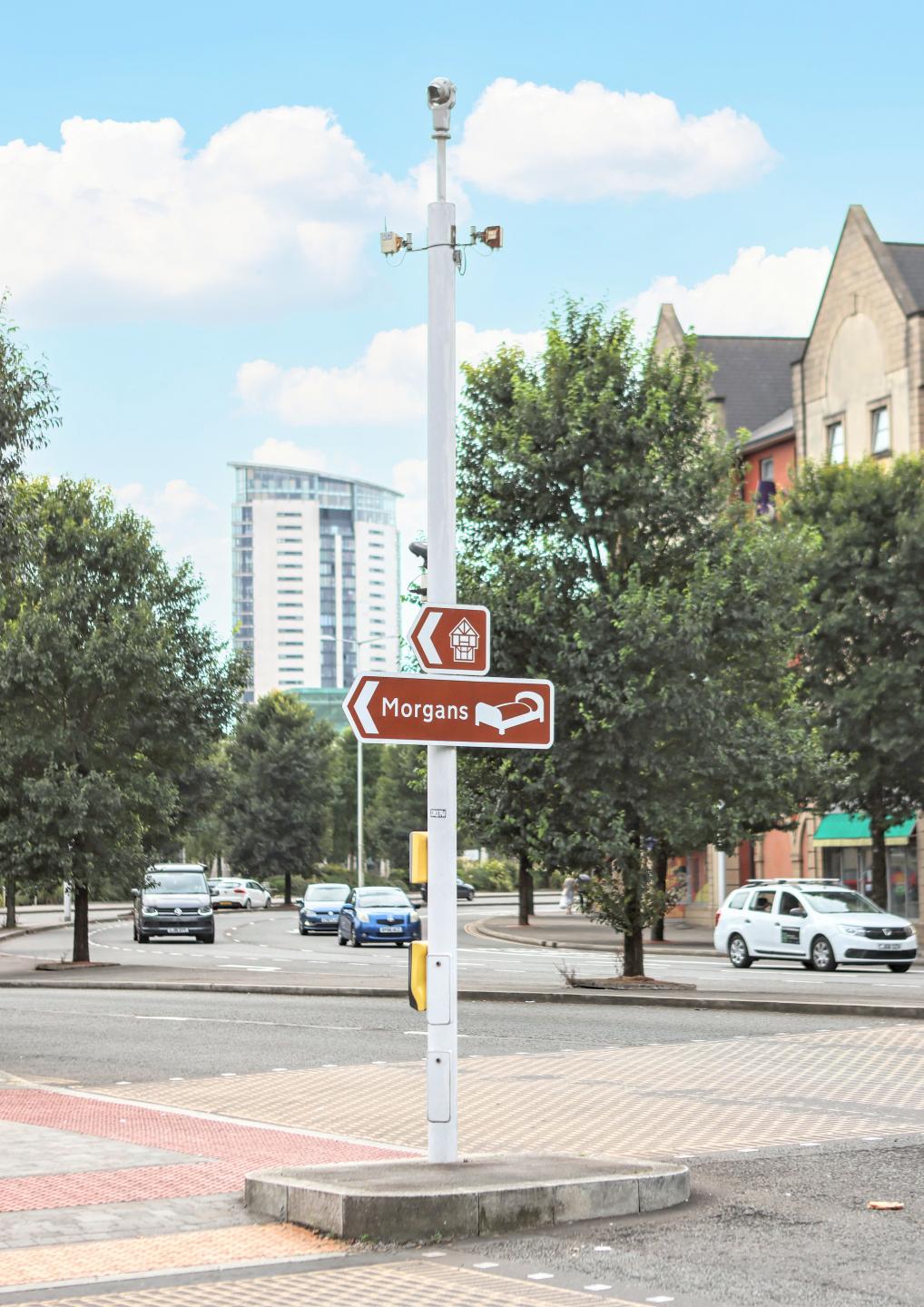

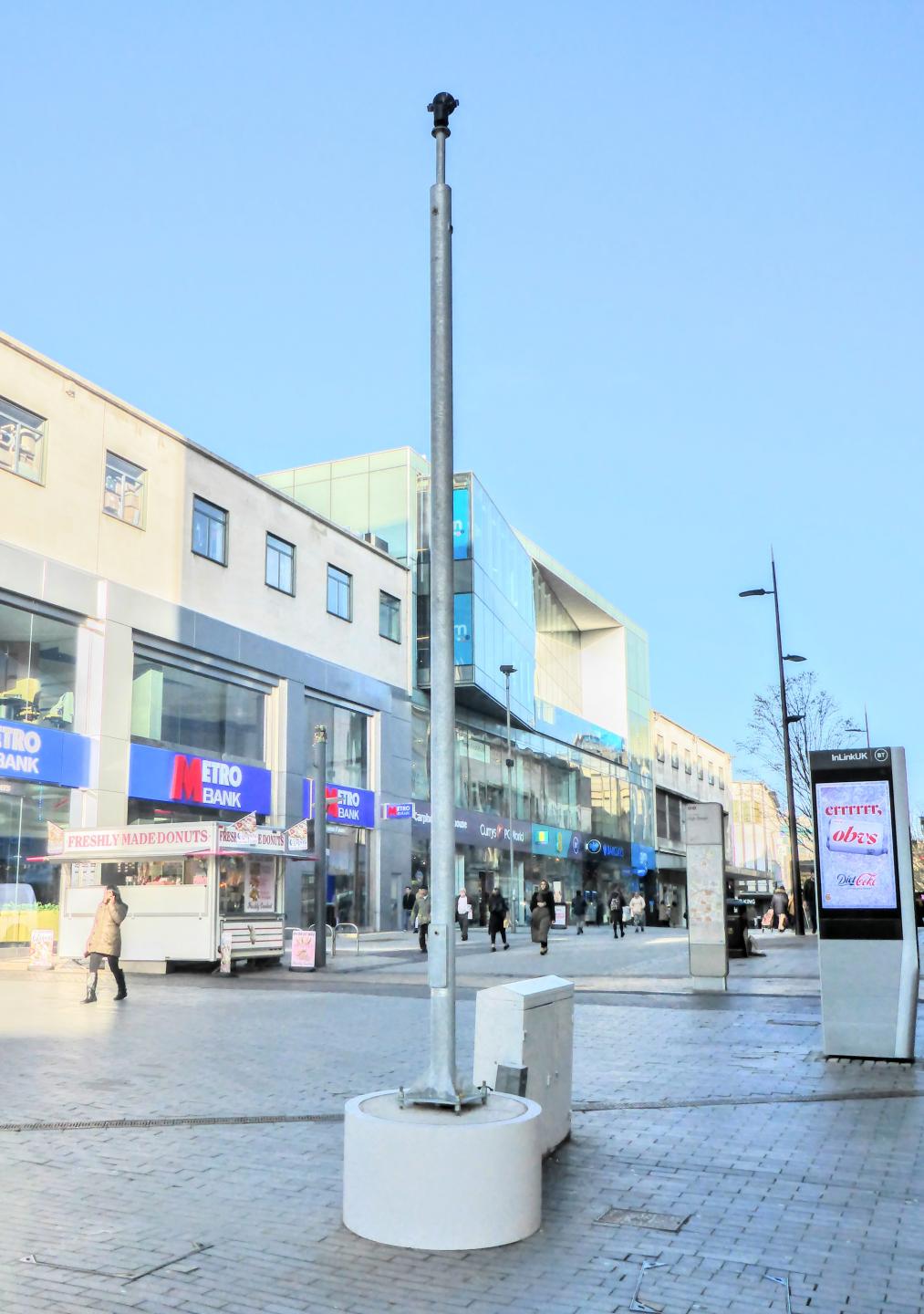

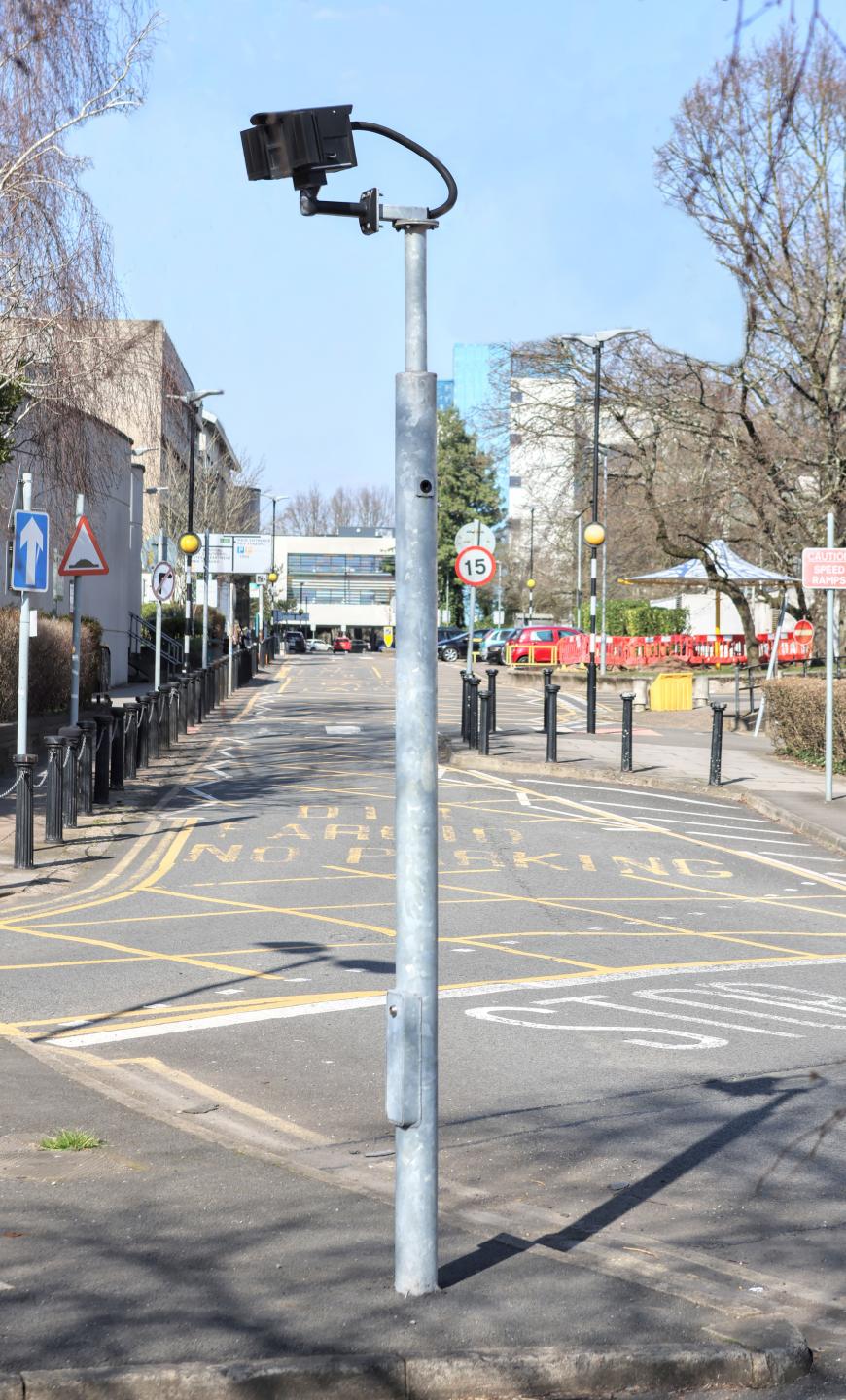

AW1507/6AW1755/3AW1507/6/DDAW1631/10AW1592/5frontpage 16 tubular galleryIMG 3320 galleryAW1592-6 in stainless steel

A comprehensive range of high specification camera poles, that cater for light,medium and heavy duty CCTV applications, therefore offering cost effective mounting solutions tailored to the individual installation requirements.
A full range of accessories are available to ensure appropriate and high quality installations.

  • Available in 3 duties; light, medium and heavy duty to accommodate all types of camera installations
  • Compartments have doors that are close fitting and flush with heavy duty secure locks and are complete with treated backboard
  • Available in bolt down and embedded / direct burial versions
  • A wide range of standard Altron Accessories and Brackets available
  • Pole adaptations available to suit customers / project specific requirements
  • Constructed in high tensile steel and hot dip galvanised after fabrication for durability
  • Option of painting over the galvanised finish in colours available from BS and RAL colour charts
  • Also available in 316 stainless steel, architectural finish

  • Internal cabling
  • Close fitting flush doors
  • Solid secure heavy duty door locks

  • Industrial and commercial premises
  • Perimeter detection
  • Schools and universities
  • Railway platforms & car parks
  • Car parks
  • Public area CCTV
  • Retail Parks
  • Sports stadia
Related Products

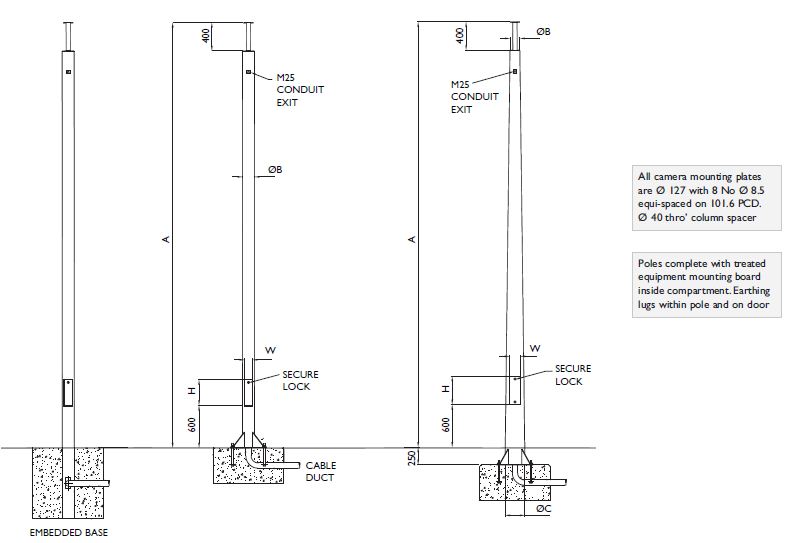

Tubular fixed diagram



Model No.
Height
in mtrs
Max equip
weight
at top
kgs
Max
equip
surface
area
m2
Pole
ØB
Door aperture size
H x W
Pole weight
kgs
TUBULAR FIXED POLES
Light duty
Typically for fixed camera and small dome installations

AW1755/3 3 25 0.25 114 312 x 76 52
AW1755/4 4 25 0.25 114 312 x 76 63
AW1592/5 5 25 0.25 139 312 x 76 113
AW1592/6 6 25 0.25 139 312 x 76 131
AW1507/7 7 25 0.25 168 362 x 106 176
AW1507/8 8 25 0.25 168 362 x 106 208
AW1581/9 9 25 0.25 193 362 x 126 265
AW1581/10 10 25 0.25 193 362 x 126 290

Medium dutyTypically for light PTZ and larger dome installations

AW1592/3 3 35 0.4 139 312 x 76 77
AW1592/4 4 35 0.4 139 312 x 76 95
AW1507/5 5 35 0.4 168 362 x 106 132
AW1507/6 6 35 0.4 168 362 x 106 154
AW1581/7 7 35 0.4 193 362 x 126 215
AW1581/8 8 35 0.4 193 362 x 126 240
AW1576/9 9 35 0.4 219 362 x 126 293
AW1576/10 10 35 0.4 219 362 x 126 376

Heavy dutyTypically for large fully functional PTZ, offset camera loads where min deflection is required

AW1507/4 4 50 0.5 168 362 x 106 110
AW1581/5 5 50 0.5 193 362 x 126 165
AW1581/6 6 50 0.5 193 362 x 126 190
AW1576/7 7 50 0.5 219 362 x 126 235
AW1576/8 8 50 0.5 219 362 x 126 264
AW1631/9 9 50 0.5 273 462 x 126 418
AW1631/10 10 50 0.5 273 462 x 126 461
AW1631/12 12 50 0.5 273 462 x 126 547



TUBULAR TAPERED FIXED POLESgiving aesthetic appearance, and good rigidity

Model
No.
Height
in metres
Max equip weight
at pole top
kgs
Max equip
surface area
m2
Pole Top
ØB
Pole Bottom
ØC
Door aperture
size H x W
Pole weight
kgs
AW2207/4 4 35 0.4 114 187 360 x 132 93
AW2207/5 5 35 0.4 140 198 360 x 142 124
AW2207/6 6 35 0.4 140 249 360 x 150 174
AW2207/7 7 35 0.4 140 267 360 x 150 210
AW2207/8 8 35 0.4 140 285 360 x 150 251



Where payloads are greater than those stated above please contact Altron
All dimensions in mm's unless stated otherwise

Applicable standards


Design
- Design analysis carried out using a specialist software package in accordance with ILE TR7, BS6399 and BS8100

Material and Finishing
- Structural steel hollow sections EN10219 - EN10025:2004
- Steel flat angles and structural sections EN10025, EN10111, EN 10130
- Foundation bolts Grade 4.6 spun galvanised BS4190, BS3692, DIN931, 934, 601
- Fixings: stainless steel Grade A2, galvanised Grade 4.6  Grade 8.8  BS4190, BS3692, DIN 931, 934, 601
- Hot dipped galvanising after fabrication to ISO 1461
- Painting in BS and RAL colours in accordance with BS4800

Manufacturing Processes
- Welding Procedures conform with BS EN 1011:2009, BS EN 9606-1

Options

Embeded base (direct burial) pole option /EB
Access cover plate and cable restraining bar /AC
Decorative banding /B
High security locks /HS
Screw in swan neck adaptor /SN
Washer bottle conduit  /W
Double door  /DD
Tamper switch
/TS
Lighting spigot  /LS

Part Numbering

Standard part numbers are as shown below. For addition of options, add suffix to part number e.g. for AW1507/6 pole with double doors, access cover plate with cable restraining bar and lighting spigot, use part number AW1507/6/DD/AC/LS

Embeded base (/EB) poles are made to order. Add suffix to part number e.g. AW1507/6/EB

Fixed poles - light duty

AW1755/3      stock product
AW1755/4      stock product
AW1592/5      stock product
AW1592/6      stock product
AW1507/7
AW1507/8      stock product
AW1581/9
AW1581/10

Fixed pole - medium duty

AW1592/3
AW1592/4      stock product
AW1507/5      stock product
AW1507/6      stock product
AW1581/7
AW1581/8      stock product
AW1576/9
AW1576/10

Fixed poles - Heavy duty

AW1507/4
AW1581/5
AW1581/6      stock product
AW1576/7
AW1576/8
AW1631/9
AW1631/10

Tapered poles

AW2207/4
AW2207/5
AW2207/6
AW2207/7
AW2207/8
