AW1859 & AW4460 - Tubular Tilt-Down Poles

Height Range - AW1859 - 4m - 12m
Height Range - AW4460 - 4m - 8m

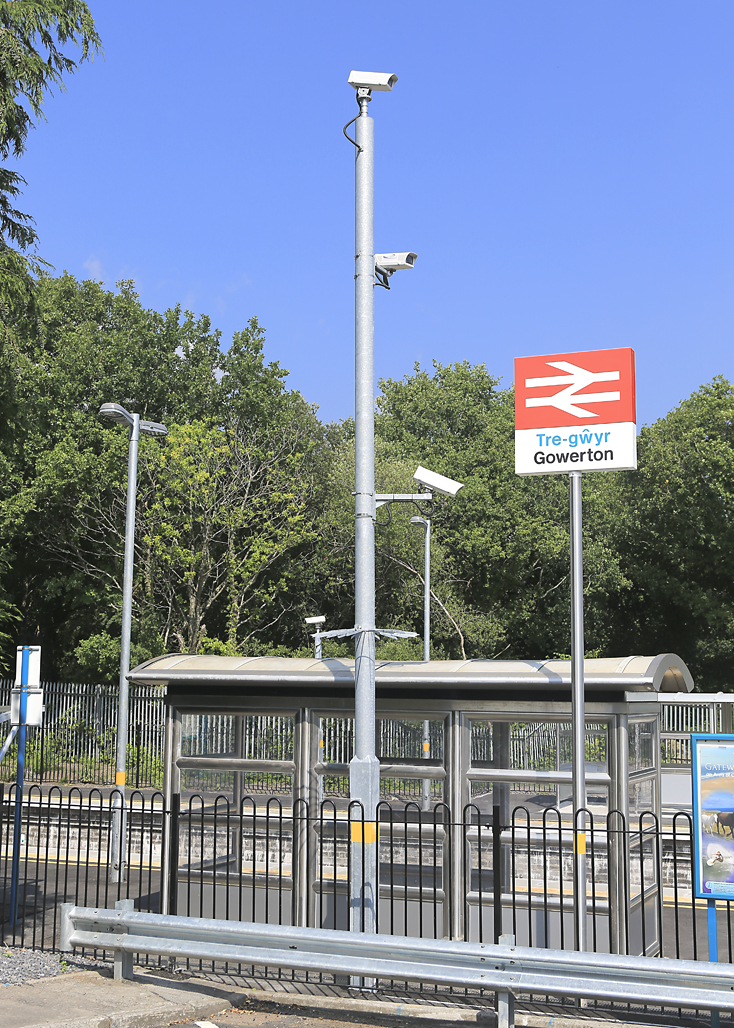

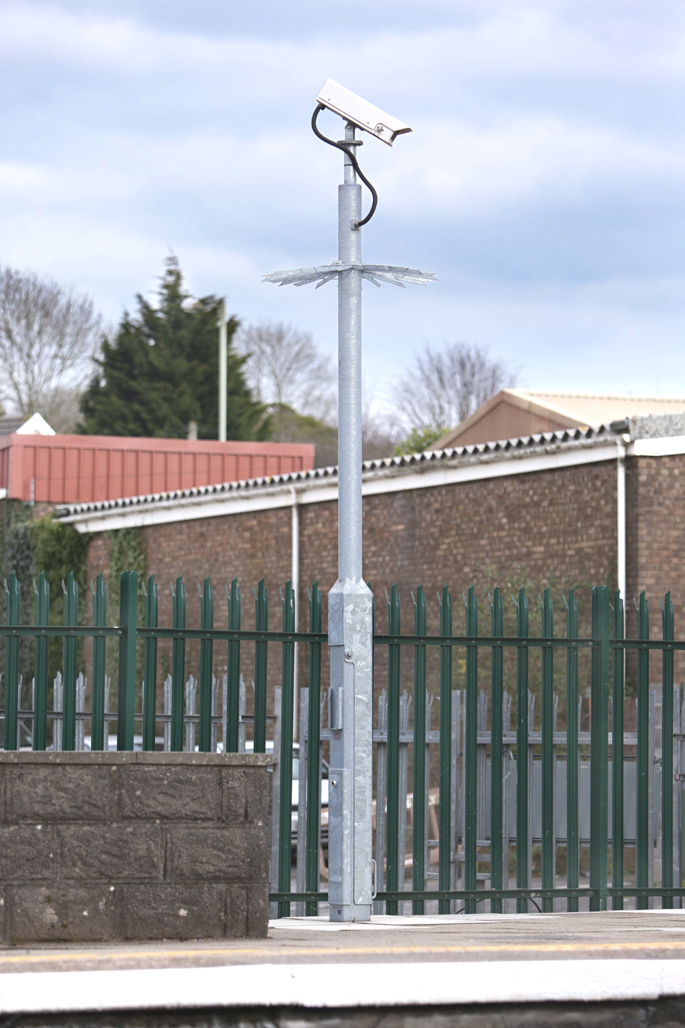

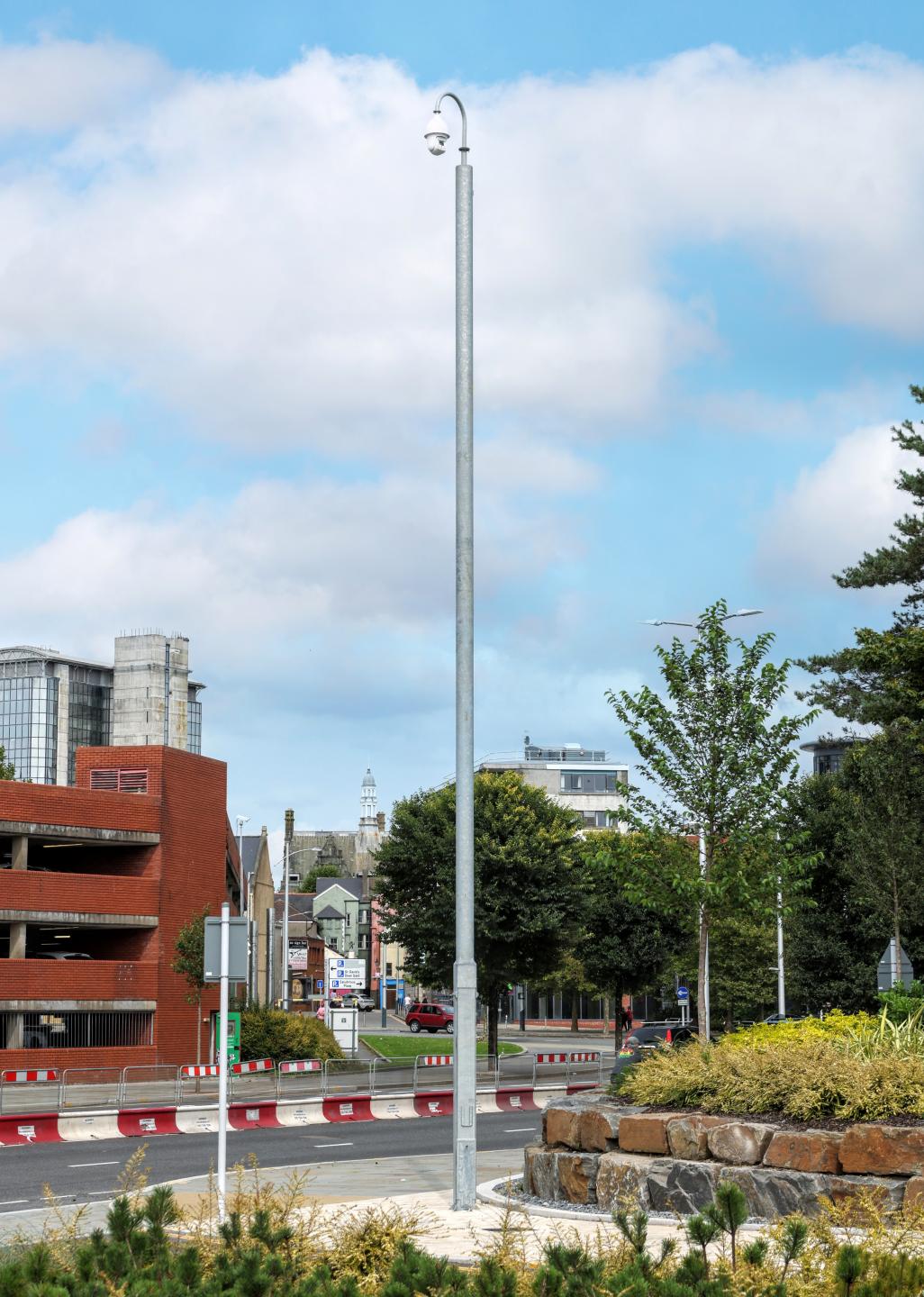

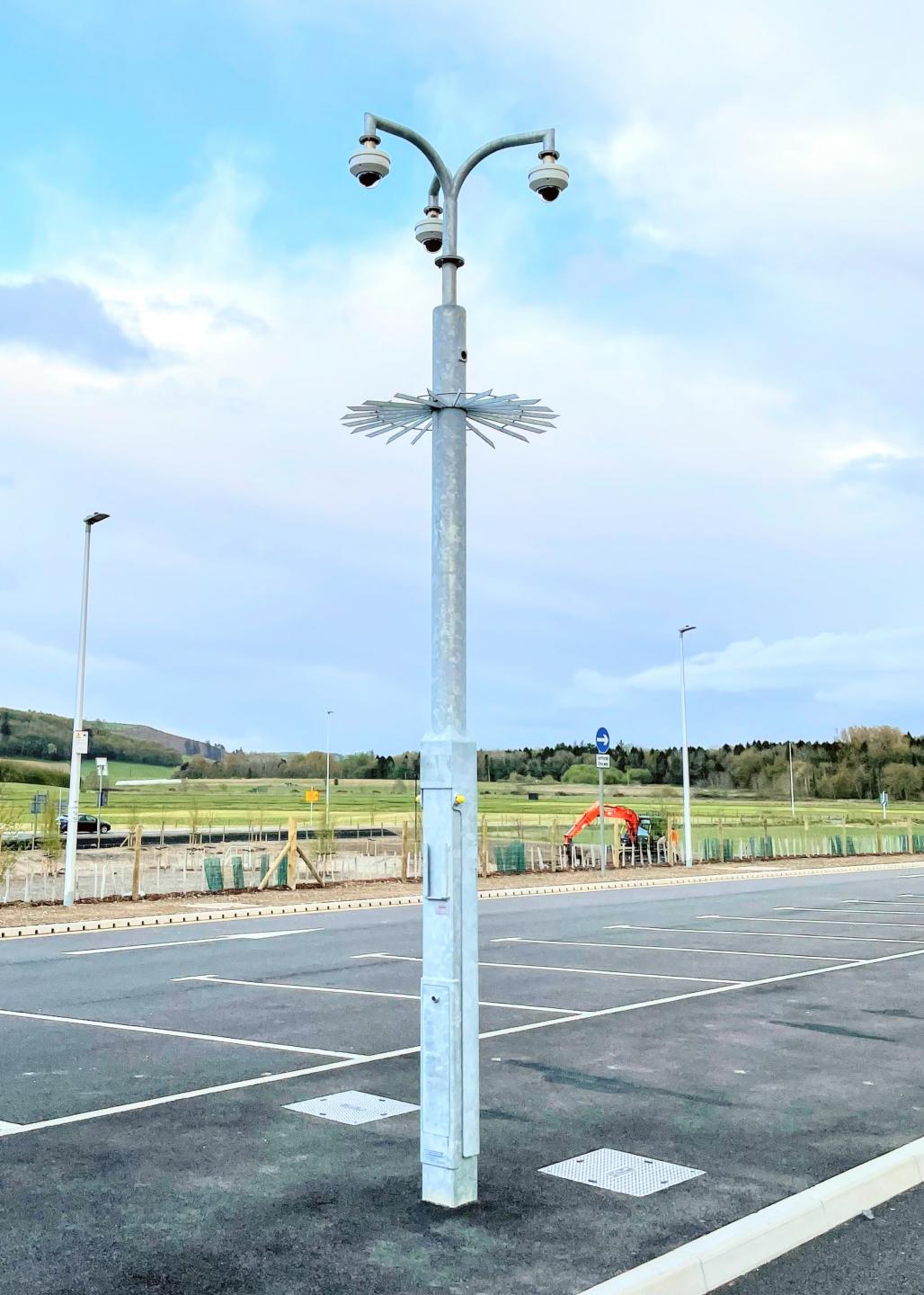

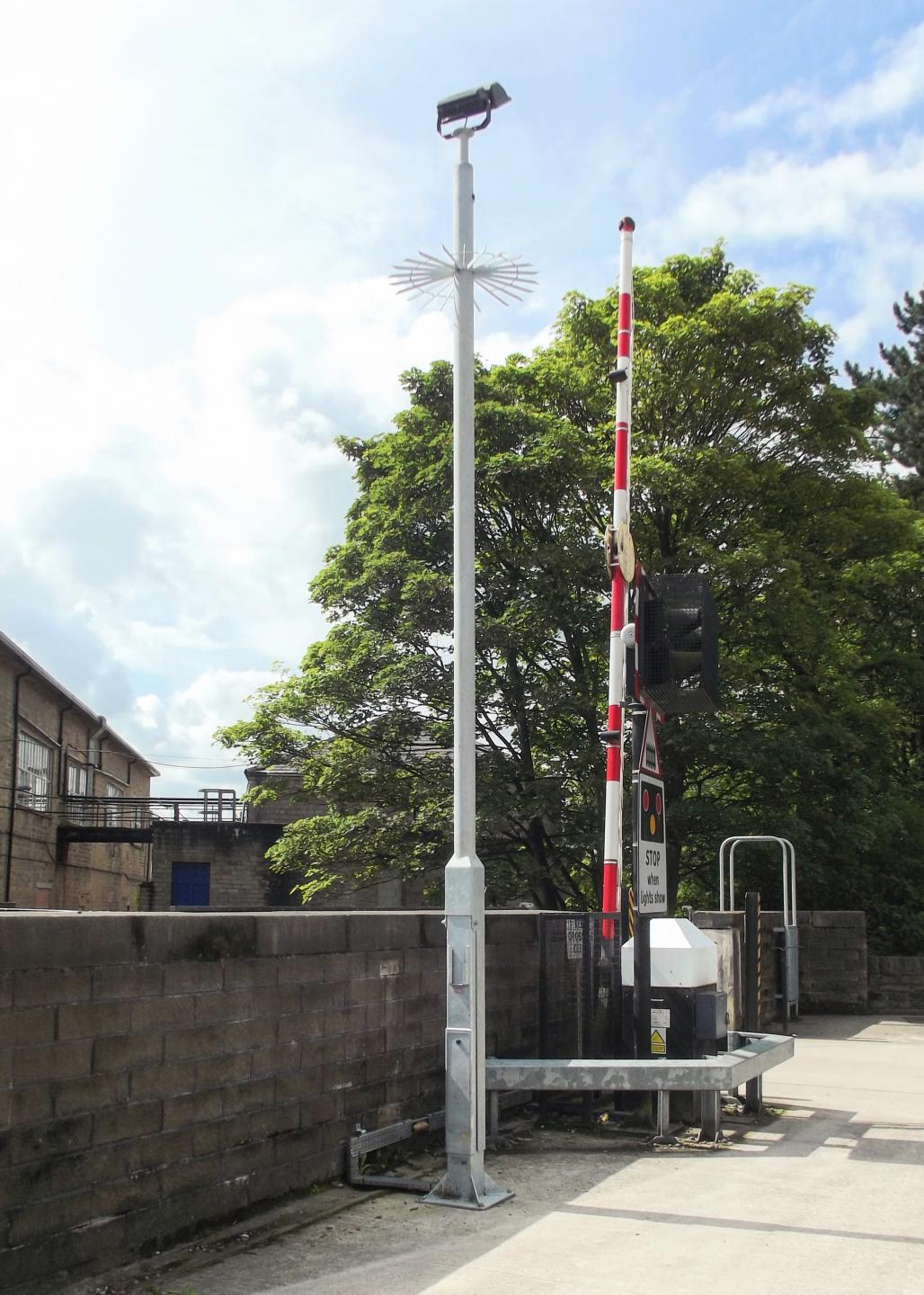

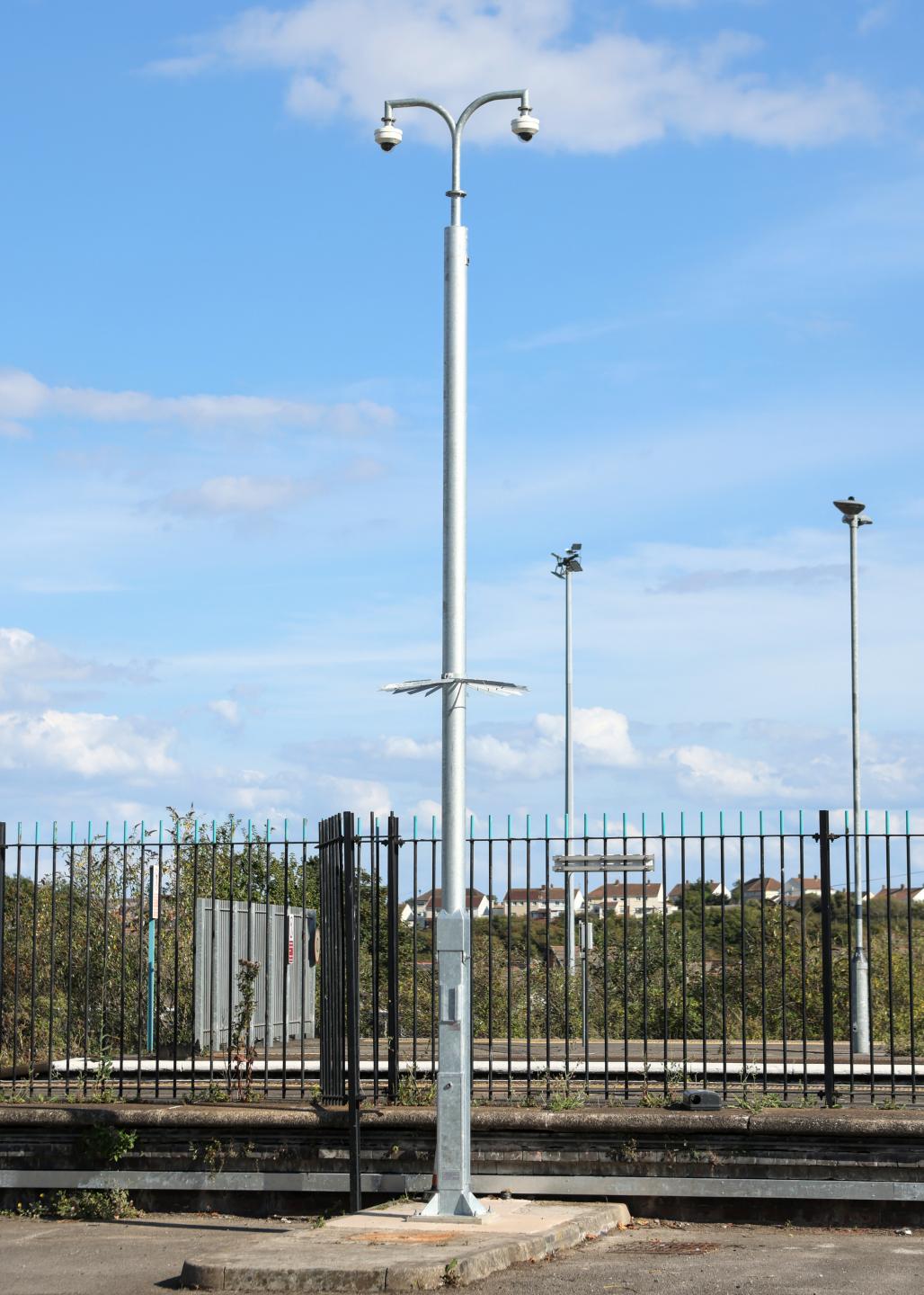

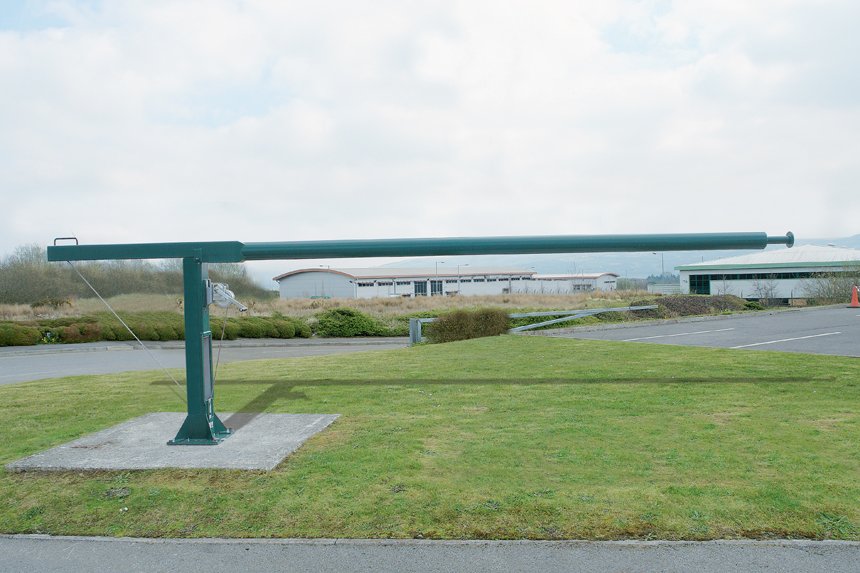

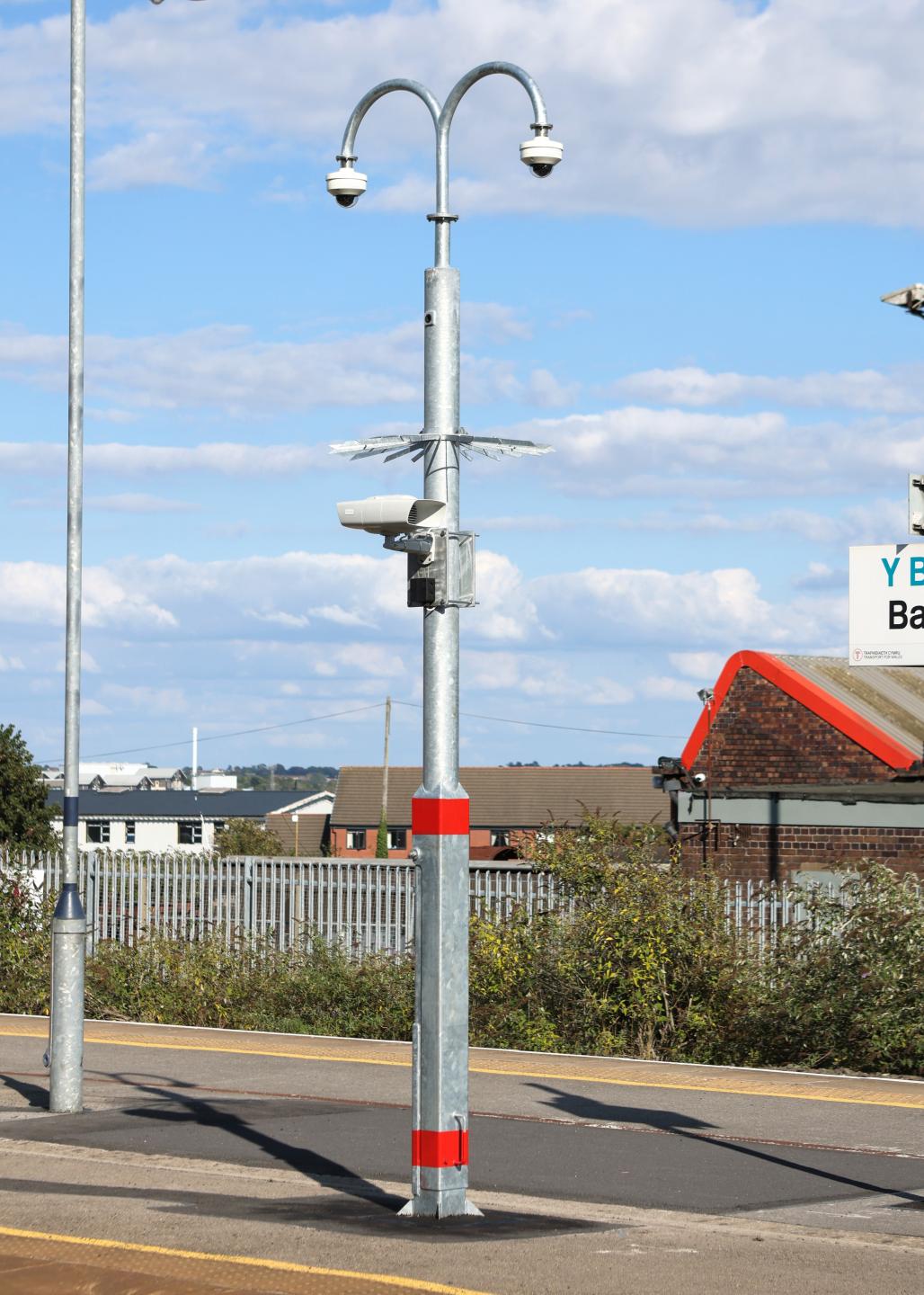

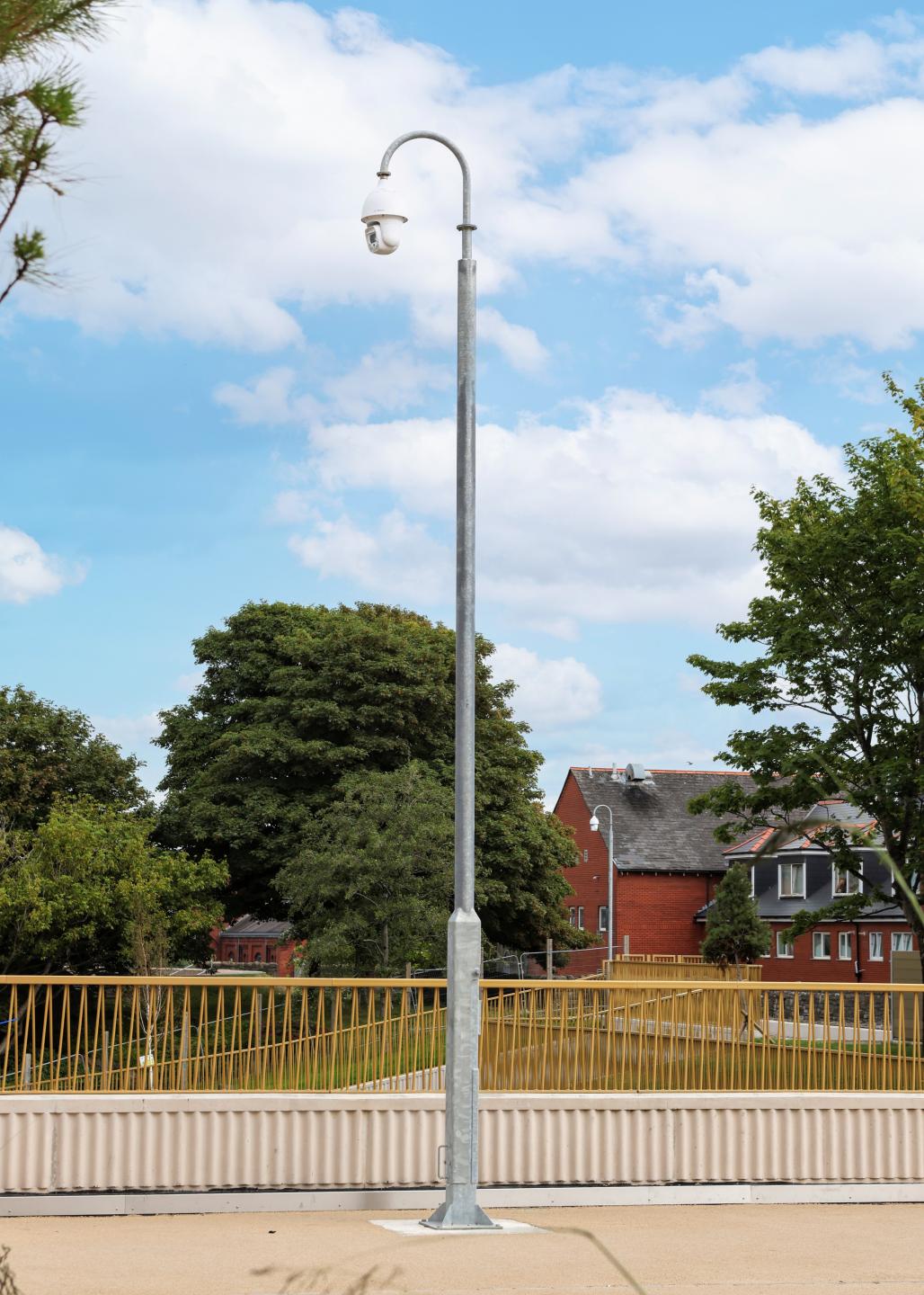

AW1859-4 1 - 7 x 5AW1859-6 - 7 x 5AW1859/8AW1859-10 - 7 x 5AW4460/4AW4460-6 -7 x 5AW1859-4 x 7 x 5AW4460-6 1 - 7 x 5AW1859-6 in tilted position

The AW4460 is a Light Duty Tilt-Down Tubular CCTV Pole more suitable for Fixed Camera and Dome installations, whereas the AW1859 range is a Heavier Duty product suitable for Medium to Heavy PTZ applications. Both products give a neat and aesthetic appearance and are suitable for installations where the public have access, whilst enabling camera equipment to be serviced at ground level. Flush doors and secure locks make these secure products, designed for security installations. A full range of standard accessories back up this comprehensive range of tilt down poles.

  • Stable structures for all camera types
  • Suitable for public access areas
  • Demountable winches allow for a secure installation whilst also reducing costs on multiple installations
  • Compartments have doors that are close fitting and flush with heavy duty secure locks and are complete with treated backboard
  • Available in bolt down and embedded / direct burial versions
  • A wide range of standard Altron Accessories and Brackets available
  • Pole adaptations available to suit customers / project specific requirements
  • Constructed in high tensile steel and hot dip galvanised after fabrication for durability
  • Option of painting over the galvanised finish in colours available from BS and RAL colour charts
  • Also available in 316 stainless steel, architectural finish

  • Internal cabling
  • Close fitting flush doors
  • Solid secure heavy duty door locks
  • Internal padlock facility to protect against un-authorised lowering
  • Can be mounted with anchor bolts below ground level

  • Industrial and commercial premise
  • Perimeter detection
  • Schools and universities
  • Prisons and detention facilities
  • Railway platforms & car parks
  • Car parks
  • Public area CCTV
  • Retail Parks
  • Sports stadia
Related Products

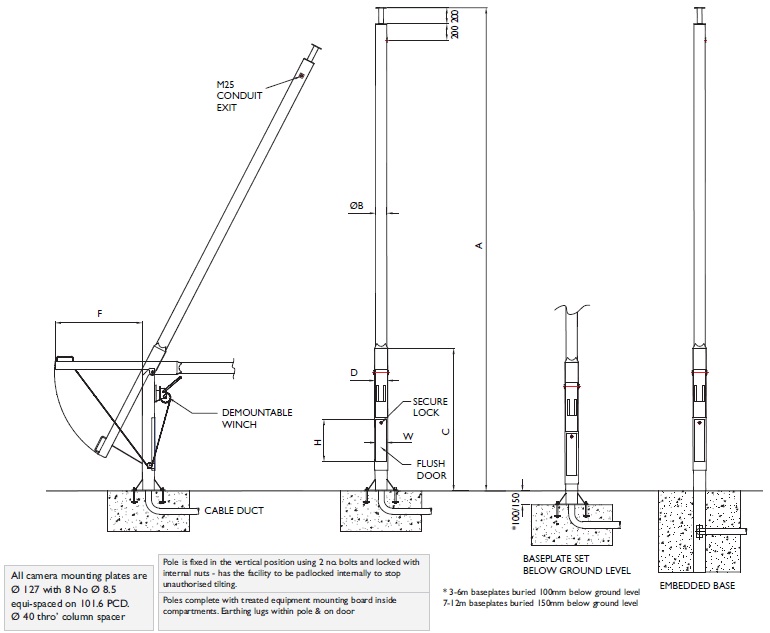

AW1859 diagram



Model No.
Height
in mtrs
A
Max equip
weight
at pole top
kgs
Max
equip
surface
area
m2
Pole
ØB
Post
size
D2
Post
height
C
Pole rear
clearance
when
tilting F
Door
aperture
H x W
Winch
part
number
Product
weight
kgs
AW4460 TILT-DOWN POLES - suitable for loads up to light PTZ and dual dome applications

AW4460/4 4 25 0.25 114 150 1700 1350 500x110 DW1000/60 115
AW4460/5 5 25 0.25 114 150 1700 1350 500x110 DW1000/60 130
AW4460/6 6 25 0.25 114 150 1700 1350 500x110 DW1000/60 145
AW4460/7 7 25 0.25 139 150 2000 1800 500x110 DW1500/60 198
AW4460/8 8 25 0.25 139 150 2000 1800 500x110 DW1500/60 216

AW1859 TILT-DOWN POLES - suitable for heavier PTZ applications and for heights up to 12m

AW1859/4 4 40 0.40 139 150 1700 1350 500x110 DW1000/59 125
AW1859/5 5 40 0.40 139 150 1700 1350 500x110 DW1000/59 147
AW1859/6 6 30 0.40 139 150 1700 1350 500x110 DW1000/59 170
AW1859/7 7 30 0.40 168 180 2000 1800 500x130 DW1500/59 253
AW1859/8 8 30 0.40 168 180 2000 1800 500x130 DW1500/59 275
AW1859/9 9 30 0.40 193 200 2700 2400 500x140 DW2500/59 401
AW1859/10 10 30 0.40 193 200 2700 2400 500x140 DW2500/59 427
AW1859/11 11 25 0.30 193 200 2700 2400 500x140 DW2500/59 453
AW1859/12 12 25 0.25 193 200 2700 2400 500x140 DW2500/59 479



Where payloads are greater than those stated above please contact Altron
All dimensions in mm's unless stated otherwise

Applicable standards


Design
- Design analysis carried out using a specialist software package in accordance with ILE TR7, BS6399 and BS8100

Material and Finishing
- Structural steel hollow sections EN10219 - EN10025:2004
- Steel flat angles and structural sections EN10025, EN10111, EN 10130
- Foundation bolts Grade 4.6 spun galvanised BS4190, BS3692, DIN931, 934, 601
- Fixings: stainless steel Grade A2, galvanised Grade 4.6  Grade 8.8  BS4190, BS3692, DIN 931, 934, 601
- Hot dipped galvanising after fabrication to ISO 1461
- Painting in BS and RAL colours in accordance with BS4800

Manufacturing Processes
- Welding Procedures conform with BS EN 1011:2009, BS EN 9606-1

Winches
- Wire ropes to BS183:1972, BS EN 13411 3 2004 + A1 2008
- Winches conform to American ASAE standard S361.IT.

Options

Embeded base (direct burial) pole option       /EB
Access cover plate and cable restraining bar       /AC
Decorative banding       /B
High security locks      /HS
Screw in swan neck adaptor      /SN
Lighting spigot      /LS



Column capacities and duty ratings

Standard column capacities are as specified in the Tech Table tab. If a higher capacity column is required, then please contact our Sales office who can advise on non-standard product configurations that will accommodate higher loading

Part Numbering

Standard part numbers are as shown below. For addition of options, add suffix to part number e.g. for AW1859/6 pole with access cover plate with cable restraining bar and high security lock, use part number AW1859/6/AC/HS

Embeded base (/EB) poles are made to order. Add suffix to part number e.g. AW1859/6/EB


Poles are supplied with backboard as standard

AW1859/4      stock product
AW1859/5
     stock product
AW1859/6      stock product
AW1859/7
AW1859/8
AW1859/9
AW1859/10
AW1859/11
AW1859/12

AW4460/4      stock product
AW4460/5      stock product
AW4460/6      stock product
AW4460/7
AW4460/8
